Known Period of Use – December 2012 to August 2013
The most notorious chemical attack of the Syrian conflict was the August 21st 2013 Sarin attacks in Damascus. Two types of rockets were used to deliver the Sarin used in the attacks, M14 artillery rockets, described below, and Volcano Rockets, a type of rocket unique to Syrian government forces.
Following the August 21st 2013 attacks, local groups filmed and photographed multiple examples of the remains of Volcano Rockets used in the attacks:
Sarin and Sarin byproducts were
examined by the United Nations Mission to Investigate Allegations of the Use of Chemical Weapons in the Syrian Arab Republic, confirming the muntions contained Sarin. This same munition was also used in previous chemical attacks, including a chemical attack reported in Adra, Damascus, on August 5th 2013:
The remains of the same munition were also documented in a number of other incidents, the earliest known example being published in December 2012:
While the munition in the above video is clearly the same design, there’s no details about the incident beyond videos and photographs published of the munition. Because of the unusual design of the rockets, it was alleged by some that these rockets were created by opposition groups as part of a false flag attack to draw foreign governments into the conflict. This hypothesis can be easily rejected, as the explosive version of the rockets are shown in use by pro-government forces in
by Syrian government forces and pro-Syrian media:
A close examination of images of chemical Volcano rockets and explosive Volcano rockets show that they are virtually identical, with the only significant difference being the design of the warhead, depending on the payload. Details like the type of welding used, position, size, and arrangement of bolts, and the presence of what appears to be a fuzing-related port on the rear of the warhead are shared by both types of the munition. There is also no evidence that either type of these munitions was captured by Syrian opposition forces, and the Syrian government has told the OPCW and UN that they have not lost control of any of their chemical weapons.
Following the August 21st 2013 there were no more incidents of the chemical version of the Volcano Rocket being used in chemical attacks, although multiple videos have been published pro-government media and armed groups showing the use of the explosive version of this rocket, including a larger version of the same design:
140mm M14 Artillery Rockets
Known Period of Use – August 21st 2013

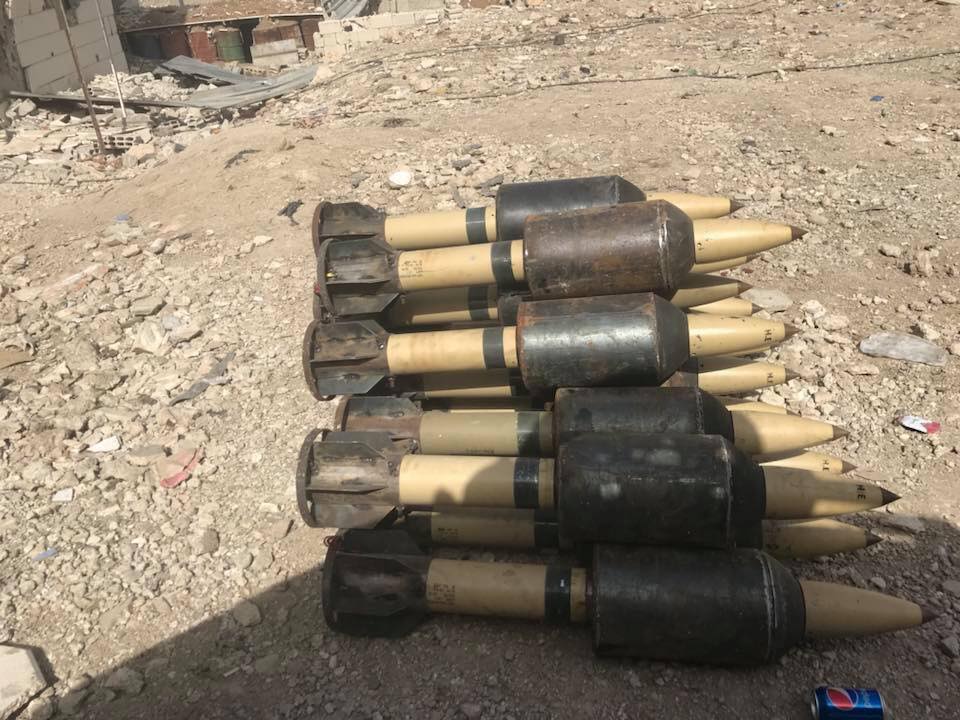

The second type of rocket used in the August 21st 2013 Sarin attacks was the 140mm M14 Artillery Rocket. Unlike the Volcano Rocket, the M14 is a well documented munition original manufactured by the Soviet Union, and coming in a number of variations, including a type fitted with a Sarin warhead:
A
confirmed the Syrian government had M14 Artillery Rockets in their stockpiles, and the August 21st 2013 attack was the only documented instance of M14 Artillery Rockets being used in the Syrian conflict, either for conventional attacks or chemical attacks.
Helicopter Dropped Sarin Packages
Known Period of Use – April 2013
The most unusual chemical munitions used by the Syrian government were documented in two attacks in April 2013. It was reported that on April 13th 2013 in Sheikh Maghsoud, Aleppo, and
helicopters dropped packages containing grenades containing chemical agents. The objects themselves appear to have been different designs of grenades placed inside a cinder-block and/or a box. The remains of this construct were filmed at one of the Saraqib impact sites:
Similar white debris was filmed after the Sheikh Maghsoud attack:

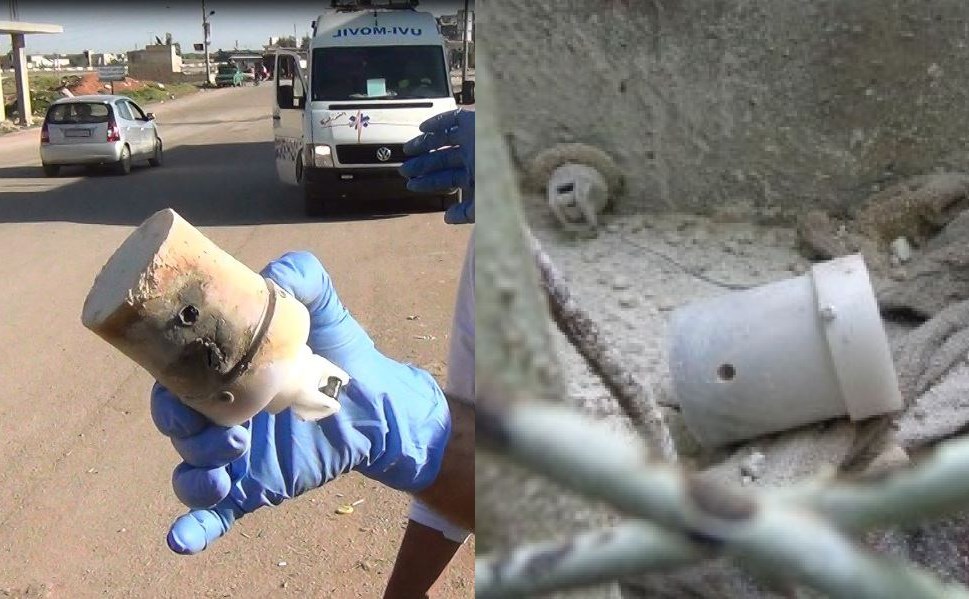

Remains of a white grenade were recorded at both incidents, as shown below:
Left – Saraqib; Right – Sheikh Maghsoud
In addition, remains of other grenade-like munitions were documented at the sites of the attacks, and a
published in 2017 revealed that French intelligence had acquired one of the munitions used in the Saraqib attack that hadn’t detonated:
The French report stated “The chemical analyses carried out showed that it contained a solid and liquid mix of approximately 100ml of sarin at an estimated purity of 60%. Hexamine, DF and a secondary product, DIMP, were also identified. Modelling, on the basis of the crater’s characteristics, confirmed with a very high level of confidence that it was dropped from the air.”
The use of Sarin was further confirmed in a
which detailed findings of an autopsy of one of the victims, that “clearly indicated signatures of a previous Sarin exposure.”
Syrian Chemical Aerial Bombs
Known Period of Use – March to April 2017
Following Sarin attacks in
and

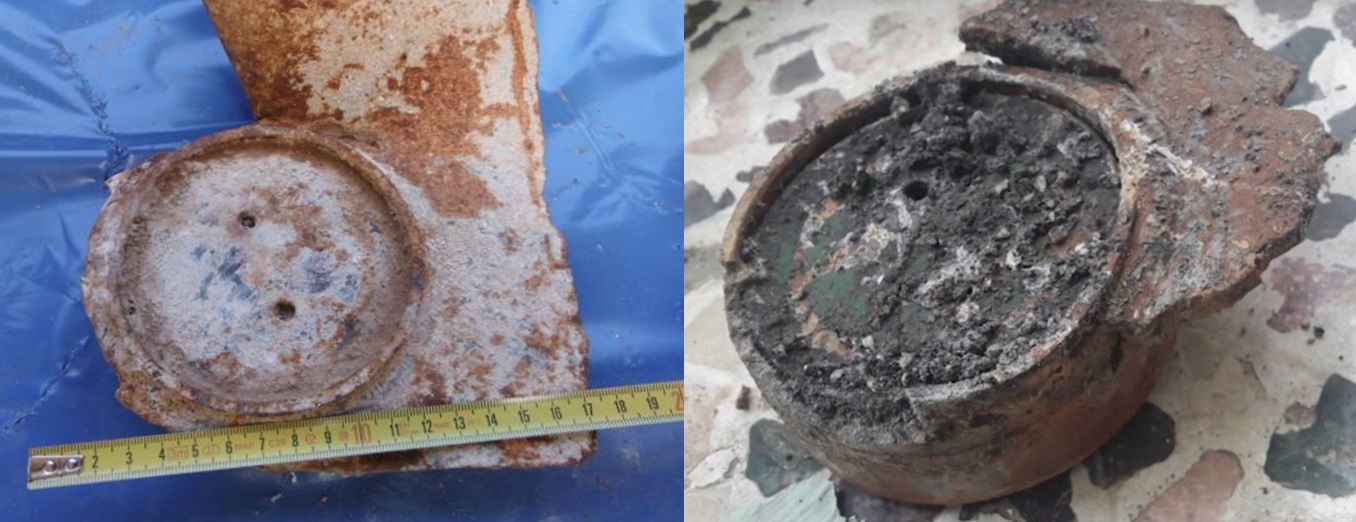

debris was documented that indicates a specific type of Syrian chemical aerial bomb was used in the attacks. Remains of a filling cap, identified as being “uniquely consistent with Syrian chemical aerial bombs” by the OPCW-UN JIM in their report on the April 4th 2017 Khan Sheikhoun attack, were documented in both the Al-Lataminah attack and Khan Sheikhoun attack:
Left – The cap from Al-Lataminah; Right – The cap from Khan Sheikhoun
Additional debris documented at the site of the Al-Lataminah Sarin attack allowed for the type of Syrian chemical aerial bomb to be identified, thanks to efforts by the Russian government to claim the OPCW-UN JIM’s report on the Khan Sheikhoun attack was wrong. During a lengthy press conference on November 2nd 2017, the Russian Foreign Ministry, Ministry of Defence and the Ministry for Industry and Trade presented its response to the Organisation for the Prohibition of Chemical Weapons – UN Joint Mission (OPCW-UN JIM) report on the Khan Sheikhoun Sarin attack. The presentation included a series of slides, which included

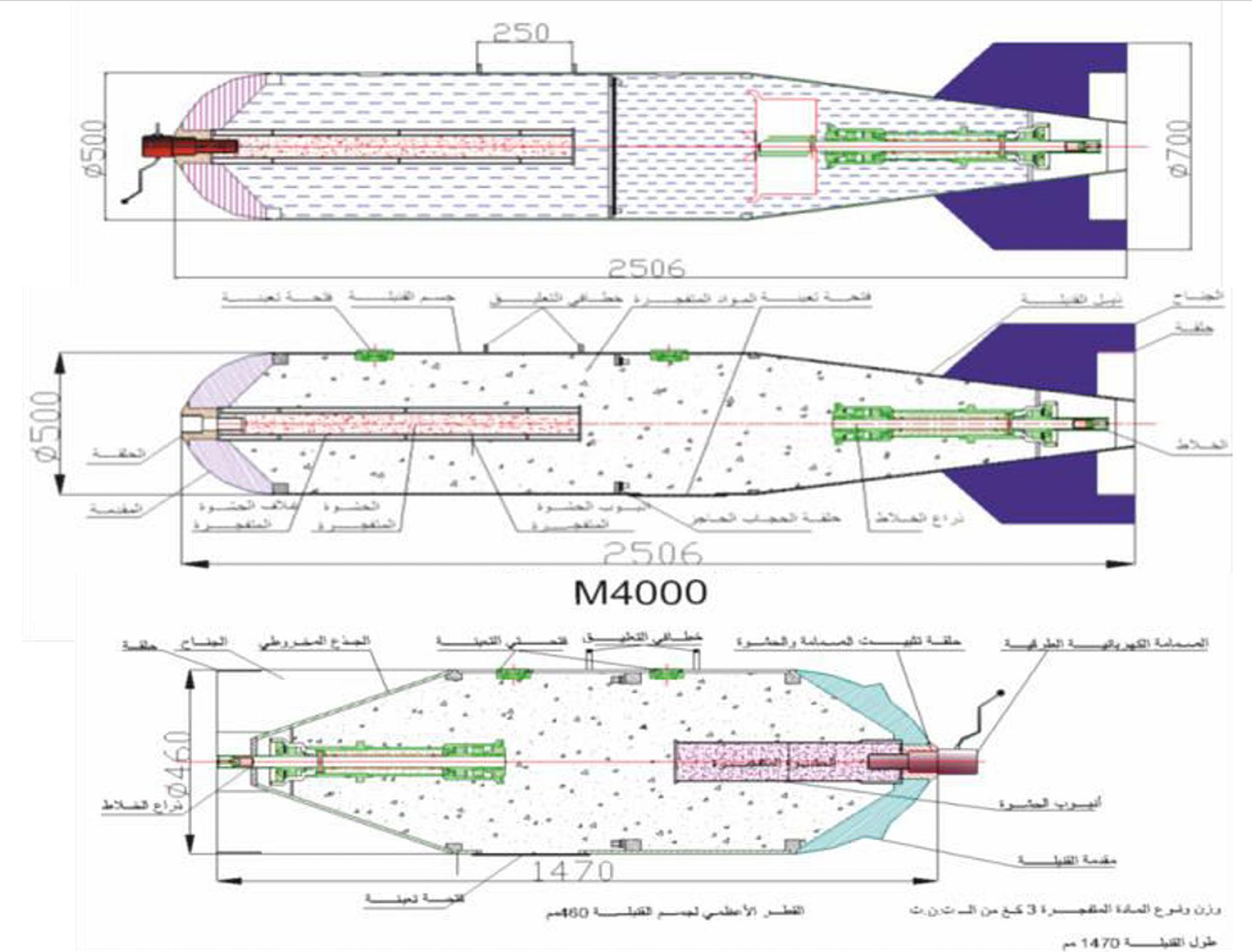

, designated the MYM6000 and M4000. The slides from the presentation, with a clearer version of the bomb diagrams, were
:
The debris
, including the width and configuration of the tail fins:
This design is consistent with the description of Syrian chemical aerial bombs in the Mediapart article “
“:
“It also meant that engineers from the SSRC also had to design bombs that were specific for sarin, and which were quite different to ordinary munitions. “On the outside, they resemble conventional bombs of 250 and 500 kilos of TNT,” explained one of them. “But inside they were totally different, divided into two compartments. The first, at the front, carried the DF. The second, at the rear, [contained] the isopropyl and hexamine. This mixture is stirred together by a stirring rod that can be activated by sort of crank at the rear of the bomb. When the two compartments are filled up, a technician winds the crank which advances the stirring rod to the point it breaks the wall of mica. The sarin synthesis reaction is set off inside the bomb, placed under a cold shower and maintained within a very precise temperature range which is controlled by a laser thermometer,” continued the former SSRC source. “After which, all that’s left is to introduce, in the allocated hold at the point of the bomb, the explosive charge and detonator – altimetric, chronometric or other – and to place the bomb under the wing of the plane. The load must be very precisely measured. If it is too big, the heat given off can cause the decomposition of the product, or the formation of a cloud of gas too far from the ground, which would render it ineffective. In principle, a 250-kilo bomb contains 133 litres of sarin, a few kilos of TNT and a ballast to preserve the aerodynamic characteristics of the weapon. A 500-kilo bomb contains 266 litres of sarin. The ideal altitude for the explosion of the bomb is about 60 metres.””
Chlorine Rockets
Known Period of Use – January 2017 to February 2018
Two types of munitions have been documented in relation to the dozens of chlorine attacks that have taken place during the conflict in Syria. In January 2017, the remains of a surface to surface rocket were documented following a reported chlorine attack in Al-Marj, Damascus:
