Metallic Mine Detector

A highly sensitive metal detector for effective detection of anti-personnel and anti-tank mines.

Non Metallic Mine Detector

A micro processor based detector for effective detection of non-metallic anti personnel & anti-tank mines. Works by sending UHF energy towards the ground and process the reflected energy for the indication and discrimination of mines. Microprocessor is introduced to minimize the false alarms as the reflected energy vary largely due to the variation in the terrain condition and the buried objects in the terrain. It gives audio indication of mines.

Explosive Detector

Hand Held and Long Handle Detector used for detection of explosive materials. Operates on principle of lon Mobility spectrometry technique. Detects vapours coming out of explosives and produces signals in the form of light by LED and sound by buzzer. Rechargeable low voltage alarm battery.

Stun Grenade

A device to produce high intensity illumination and loud bang which causes temporary disorientation and incapacitation of persons. It is non lethal and does not contain explosive material. No fragments are produced after initiation. Available in single bang and six bang versions.

Single Bang
Illumination intensity1 . 3 - 1 . 5 Mcp
Sound intensity170 - 180 dbs (app)
Delay time1.5 - 2 Second
Total weight230 g approx
Diameter51.50 mm
Length165 mm

Six Bang
Illumination intensityU p t o 1 . 5 Mcp
Sound intensity170 - 180 dbs (app)
Delay time1.5 - 2 Second
Total weight530 g approx
Diameter40 mm
Length118 mm
Function time3 - 4 Sec

Tear Gas Shell

Contains CS composition and is used for riot control by the law enforcing agencies, using 38mm tear gas gun. The parameters and its characteristics conform to international standards. Aluminum cased payload enclosed in plastic casing.

Calibre 37 / 38 mm
Range (long)137 m (1 50 yards)
Range (Small)68 m (75 yards)
Discharge Time35 Sec. (Plus)
Shelf Life4 years
Length140 mm
Weight150 - 160 g

CS Grenade

A non lethal hand throw grenade used for riot control. Produces white fumes of CS which cause severe irritation of respiratory tract, burning pain in nose and burning sensation in eyes etc.


Smoke Grenade

Used to release a very dense cloud of smoke to fill the surrounding areas to military unit such as infantry tanks, air crafts and ships etc. Used for anti terrorist operations.


Body Scanners

Hand held metal detectors for security and law enforcing agencies.


  • Gives an audio signal, red LED visual alarm and vibration
  • Available with rechargeable & consumable battery, and auto tuning
  • Contains low battery alarm
  • Reverse battery protection

Walk Through Scanning Gate

Walk Through Gate is used for detection of metal contents at security locations. The system works on Induction Balancing (IB) technique. Whenever a metallic object comes within the vicinity of WTS an error signal is produced, which is digitally processed.


  • No. of zones: 06
  • Four LED alarm light bar
  • LCD screen readable in sunlight
  • Remote Controlled
  • Electric Current AC 21 5-230V
  • Power less than 35 W
  • Work environment -20 C to 55C

Bullet Proof Jacket
Ballistic Jacket
GIDS indigenously developed Ballistic Jackets are suitable for both military as well as non-military applications. GIDS jackets can be used as a stand alone or with Ballistic plates to further enhance protection levels. State-of-the-art technology is utilized to create a product that combines higher protection level with reduced weight. Our product can also be customized to meet customer's specific needs.
Ballistic Plate
GIDS Ballistic Plates are integration of hard ceramic hexagons, with high molecular weight polyethylene or aramid backing, with optimized composite construction to produce rugged multi-hi armor, reaching protection levels NIJ III plus at the lowest cost. They are available for both stand-alone and non-stand-alone use. Ballistic plates can be used various Ballistic Jackets due to their very high compatibility. State-of-the-art technologies are applied to create new products that combine a high protection level with less weight and design and manufacturing the product according to the customer's needs in a variety of sizes and shapes.


ModelProtection LevelWeight of PlateSize & Weight of Jacket
SBJ-100PK Level IIIA
9 mm Tokarev (TT-30)
Can be upgraded to
Level III-PK when used
with Level III Ballistic Plate
Under 1,700
Grams (UHMWPE
+ Ceramic Strike Face)
4.0 Kg (Maximum)
SBJ-200NIJ Level IIIA
.44 MAG SJHP
TT-30 Tokarev
Can be upgraded to NIJ
Level III plus when used
with Level III Ballistic Plate
Under 1,600
Grams (UHMWPE)
Med: 4.5 Kg (Maximum)
SBJ-300NIJ Level IIIA
.44 MAG SJHP
TT-30 Tokarev
Under 2,400
Grams (UHMWPE +
Ceramic Strike Face)
Large: 5.25 Kg (Maximum)
X-Large: 6.0 Kg (Maximum)
General Qualities / Provisions
  • Opening from sides and collar protection.
  • Able to withstand rough handling in the field.
  • Carrying bag available in nylon/parachute cloth of good quality for safe /prolonged storage /protection.
  • Easy to wear and comfortable over prolonged period.
  • CCD Color.





SECURITY Products
Ballistic Helmet
Metallic Mine Detector
Non Metallic Mine Detector
Explosive Detector
Stun Grenade
Tear Gas Shell
CS Grenade
Smoke Grenade
Body Scanners
Walk Through Scanning Gate
Bullet Proof Jacket

SCOUT Mini
UAV System

Scout is a mini UAV System which is designed for portability. It is modular, portable, light weight and easy to deploy. It is electric powered, capable of completely autonomous flight and carries an electro-optical payload for day time surveillance / reconnaissance.
Performance Characteristic
Range10Km
Enduranceup to 60 mins
Height Ceiling1,500 ft(Camera optimized for this altitude)
LaunchHand - launched
RecoverySkid landing
Flight ModeAutopilot / RVP
Tracking / NavigationGPS Based
PayloadColour CCD camera with Pan/Tilt/Zoom Night Thermal Camera optional)
Power PlantBrushless Electric Motor
Weight4.5 kg (appprox)
Wing span, Lenght 6.5 ft, 4 ft(2m,1.2m)
Ground Control Station (GCS) for SCOUT (Hand Launched) UAV System
huma
huma
Ground Control Station is a portable, brief - case size which is equipped with video, telemetry and command / autopilot control equipment.
Characteristics
  • Mission Planning
  • Mission Execution in Autonomous / RPV mode
  • Pre flight checks through hardware and software
  • Flight and data link monitoring
  • Real time GPS based Tracking of UAV
  • Health of UAV through telemetry sensors
  • Provision of re-programming the flight plan during a mission
  • Fail safe option through autopilot
  • Orbit modes
  • Real time video
  • Video recording on ground

190789

CTU

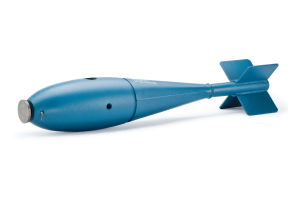

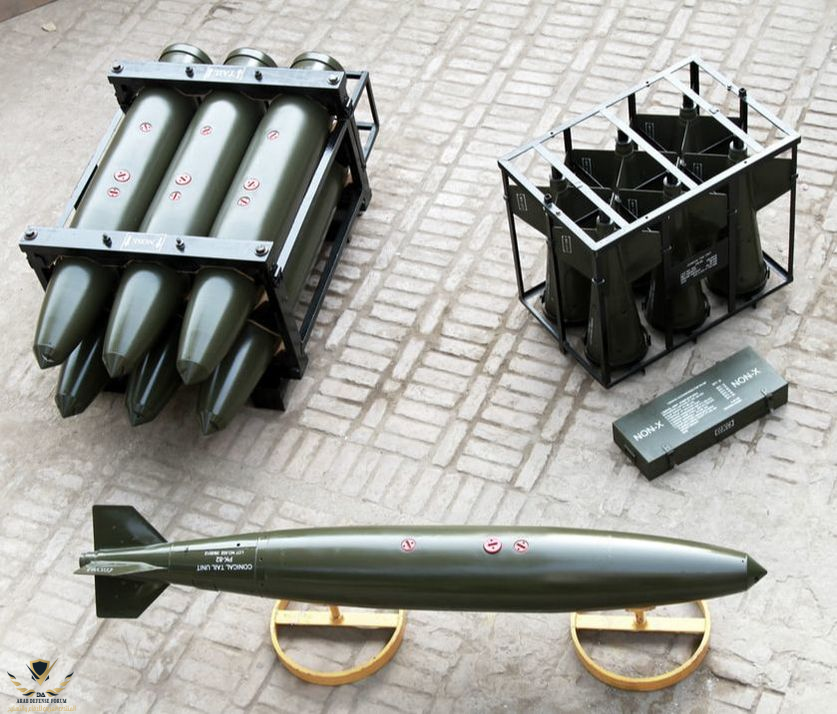

GP Series Bombs CTU
Conical Tail Unit

  • Consists of an elongated cone assembled with four fins
  • Stabilizes the flight and creates low drag configuration of the bomb
  • Can be fitted with GP Series Steel and Pre-Fragmented Bombs

RTU


RTU
Retarded Tail Unit

  • Consists of a shock absorbing tube and four extendable drag fins
  • Especially designed to provide adequate safe distance between bomb and delivery aircraft during low level attack
  • Creates low drag configuration for the bomb when in closed position and a high drag configuration when in open position

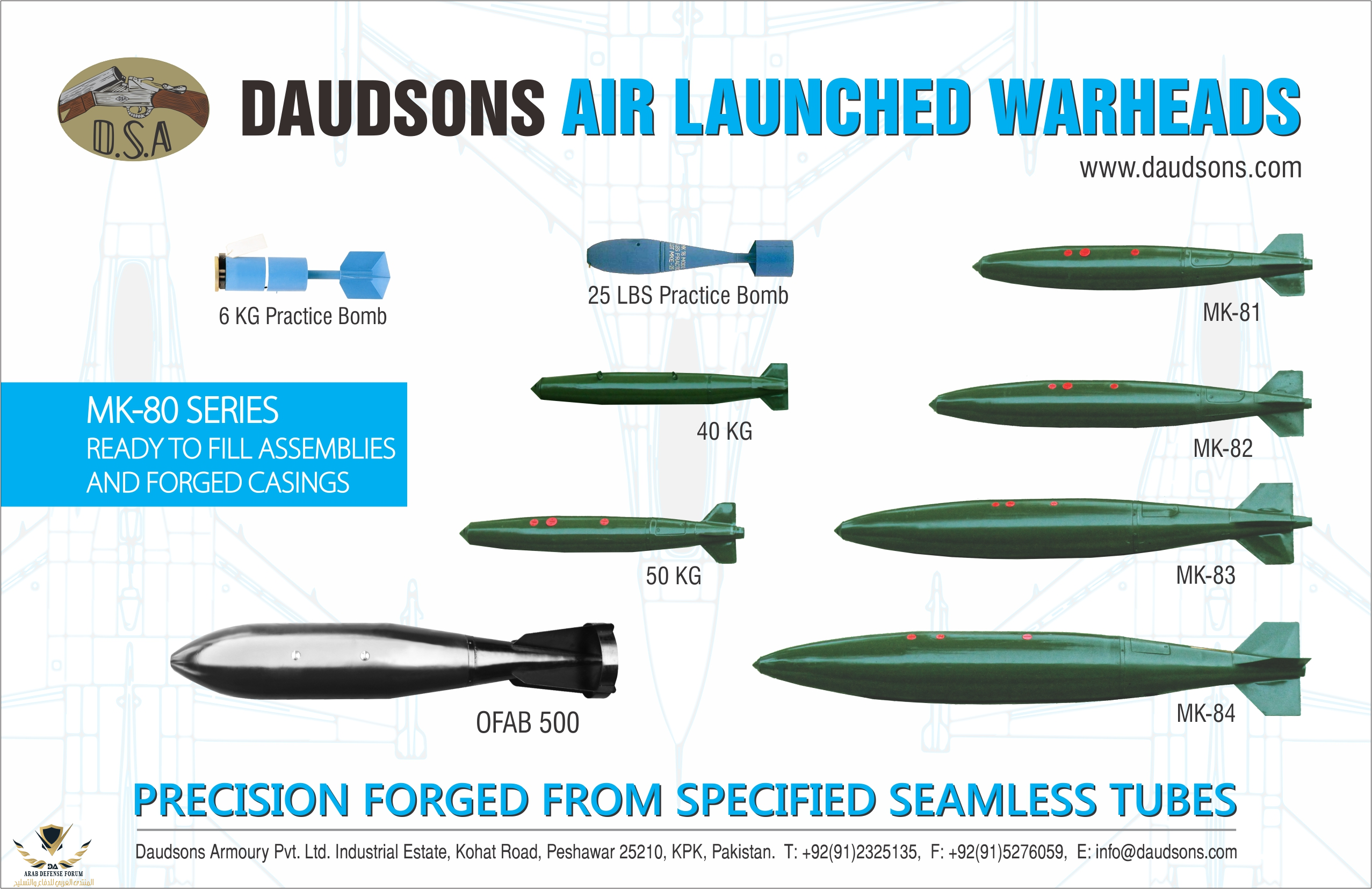

Empty/Sand-filled MK80 series aircraft warheads with accessories. GP & Varients for NATO and WARSAW platforms.

190791


المرفقات

  • 1564122882603.png
    1.4 MB · المشاهدات: 99

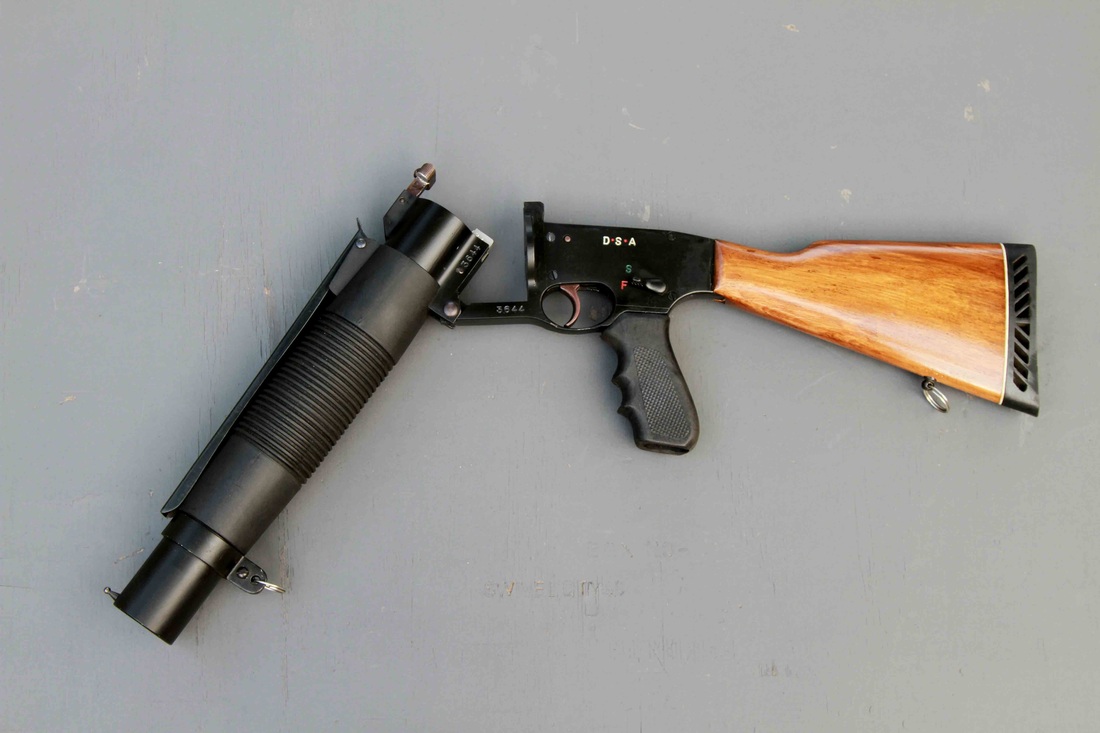

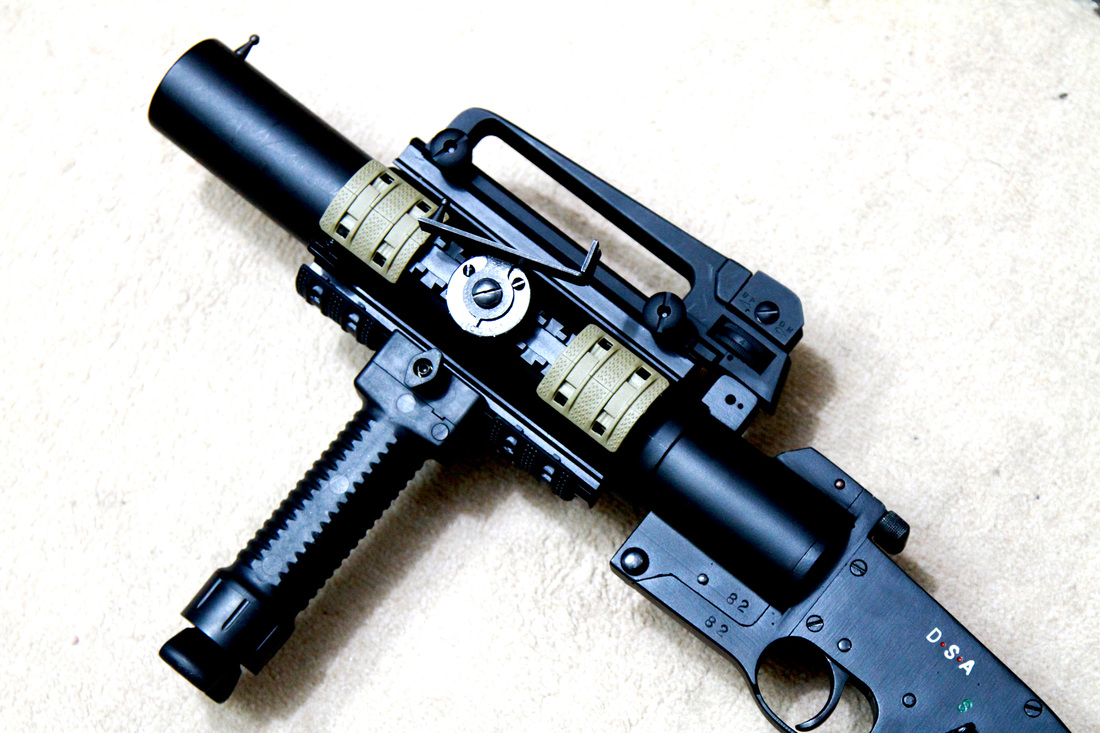

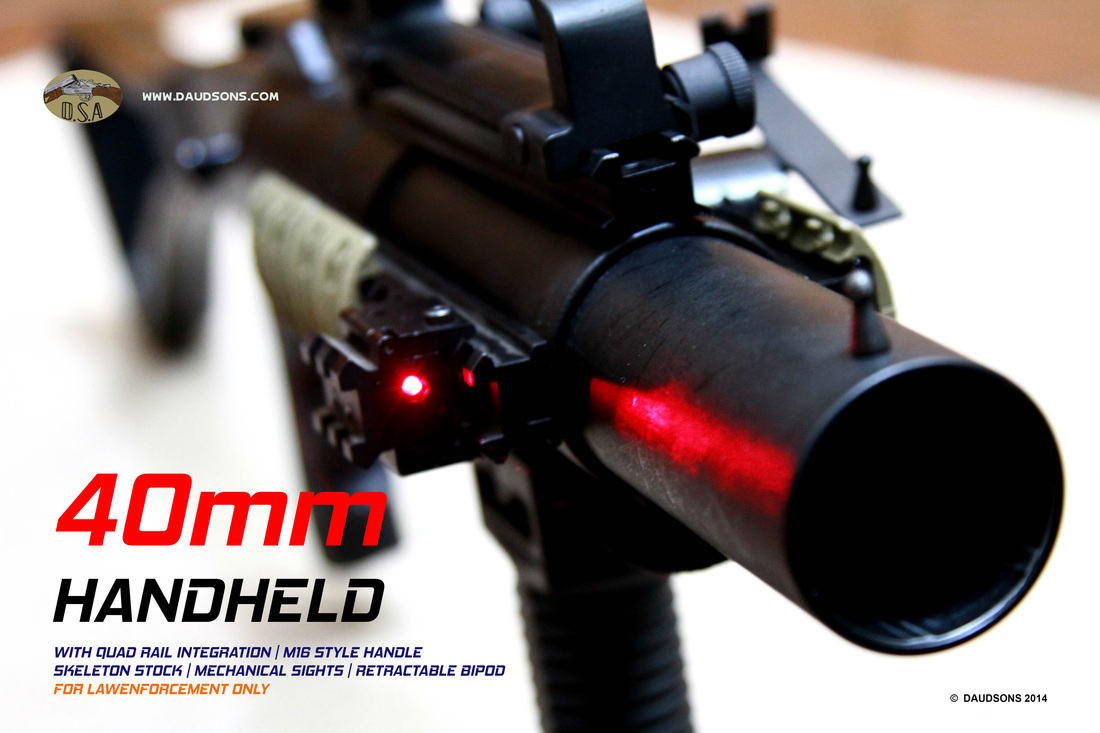

DSA HHGL 40 (TACTICAL)

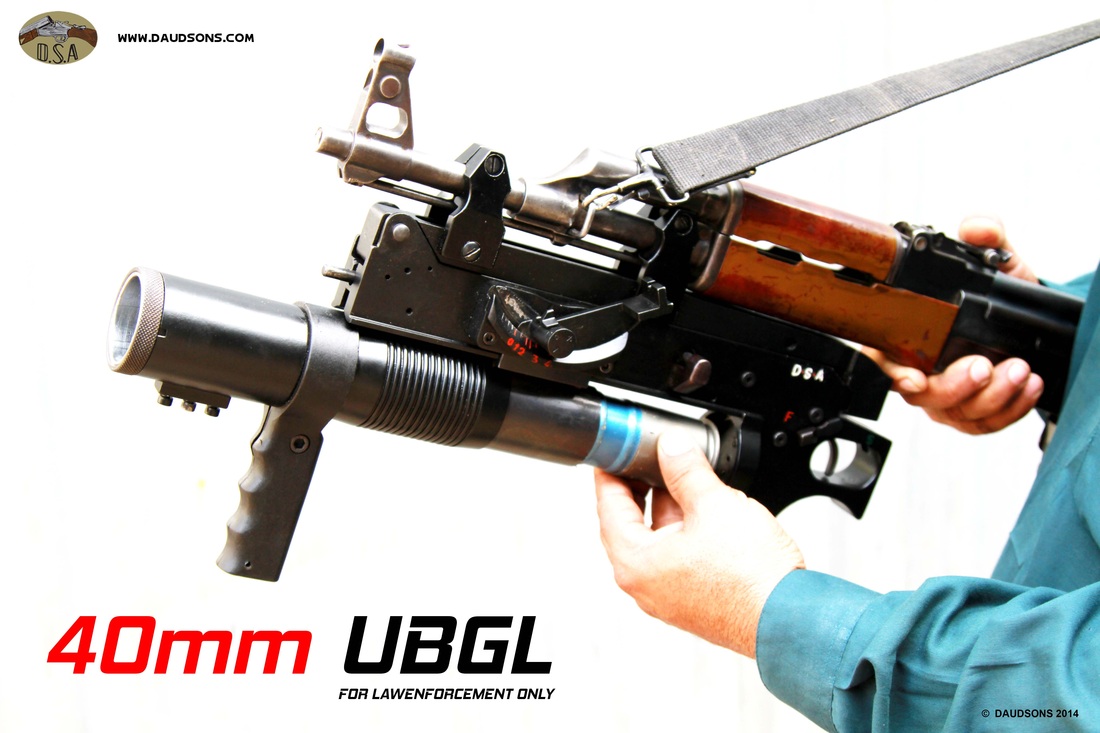

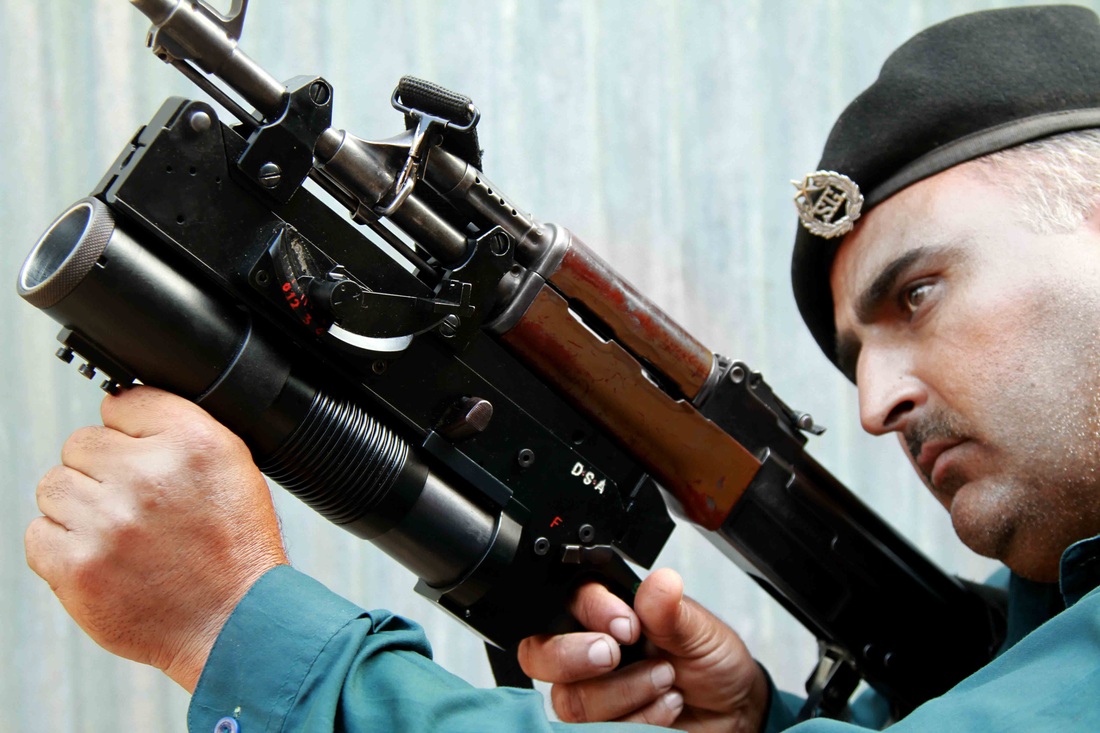

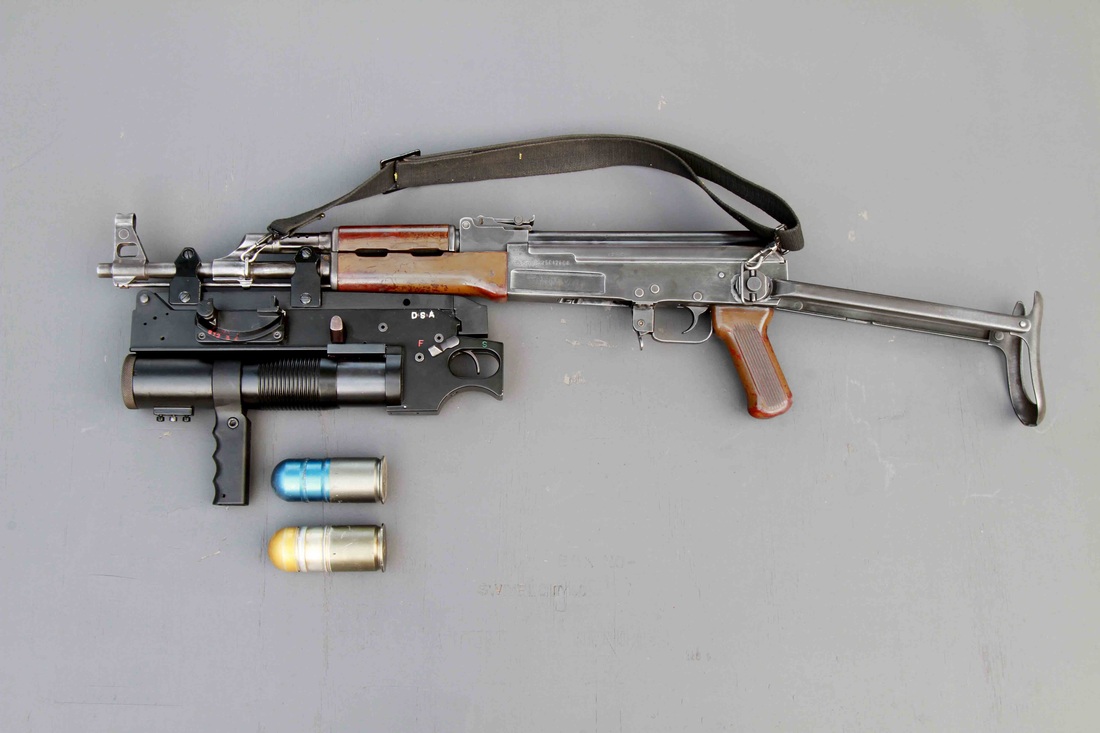

DSA HHGL UBGL 40 (UNDER BARREL GRENADE LAUNCHER)

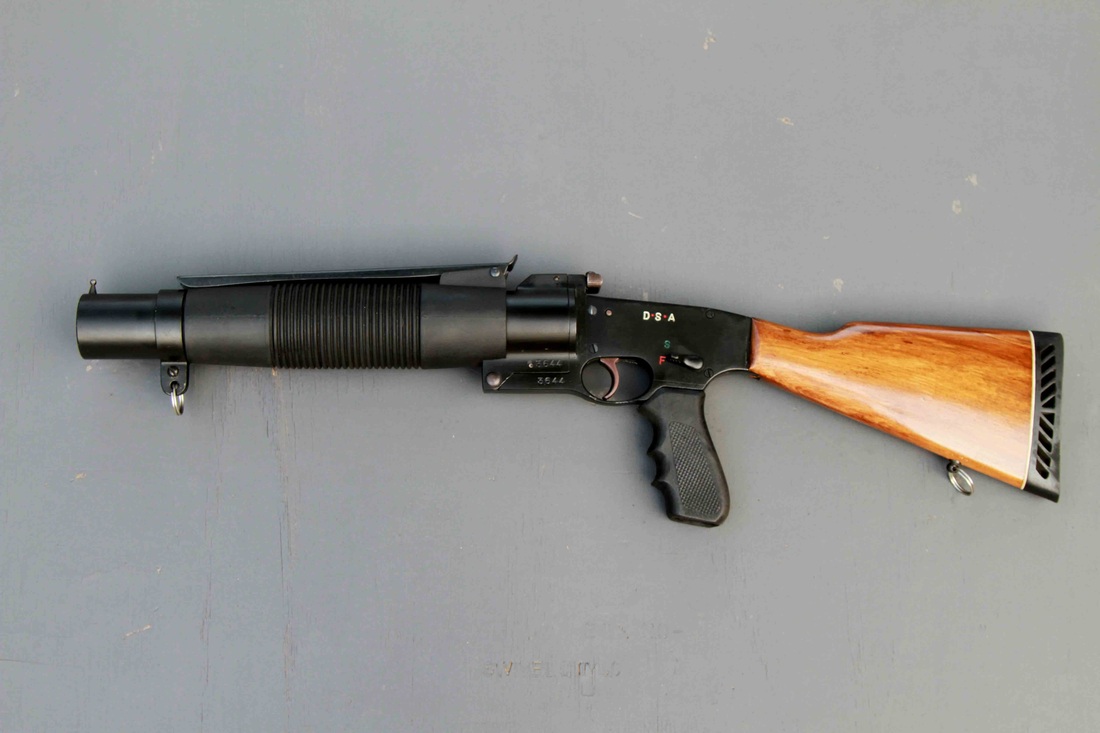

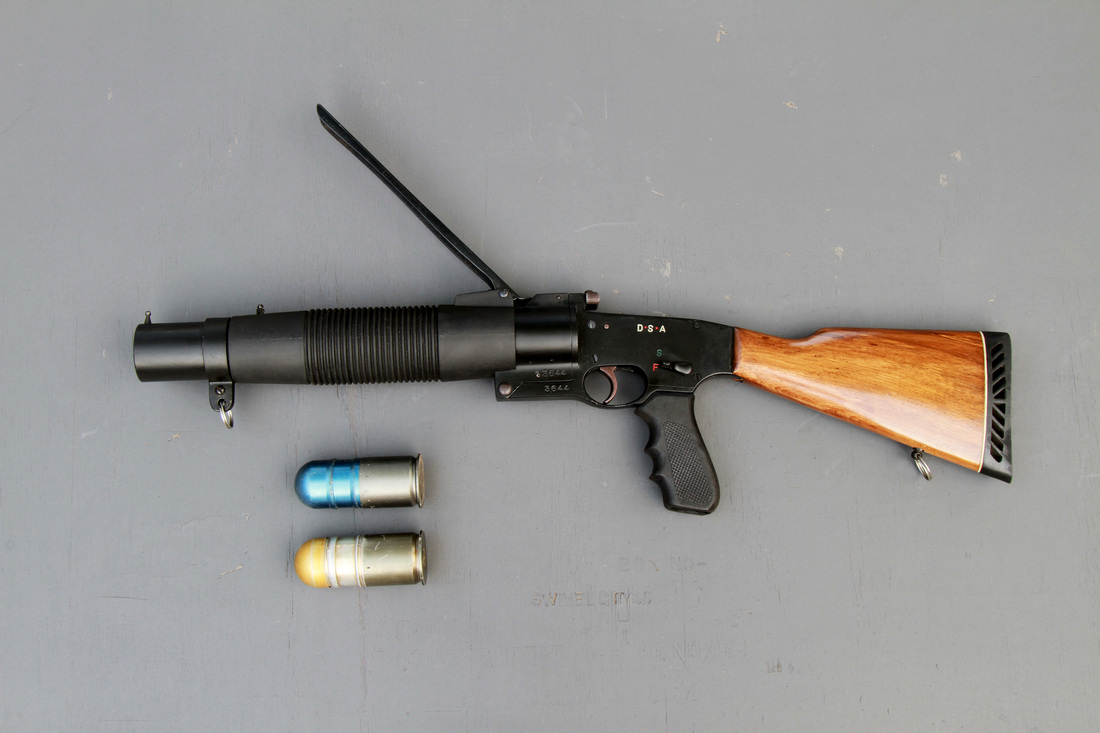

DSA HHGL 40 (STANDARD)

















GENERAL INFORMATION


Ideal weapon for close quarter combat against soft targets and in anti-personnel role. Extremely successful in anti-terrorist operations and low intensity conflicts. Uses NATO standard low velocity 40mm x 46mm ammunition. Can use all configurations of 40mm x 46mm (HE, HEDP, AP and TP).

Made of specified steel on state-of-the art CNC machines. Bright front bead and graduations of the aperture sight. Availability of spares is guaranteed. Available in both Fixed and Extendable Stock options.

SPECIFICATIONS:


Calibre; 40 x 46mm
Operation Break open - Single shot
Feeding System Manual loading
Rifling Right hand - 6 grooves
Barrel length 350mm approximately
Range 400m (depending upon the ammunition)
Muzzle velocity As per the ammunition specifications
Sights Aperture sight graduated in 50m increments
Length 710mm approximately Safety Manual safety

DOWNLOAD BROCHURE

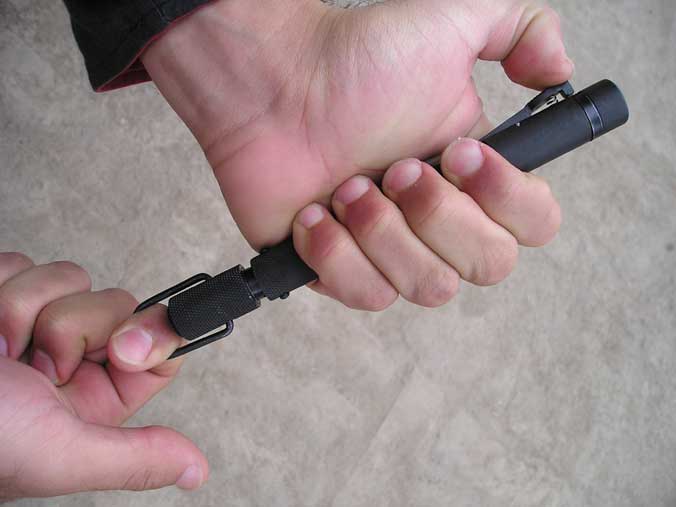

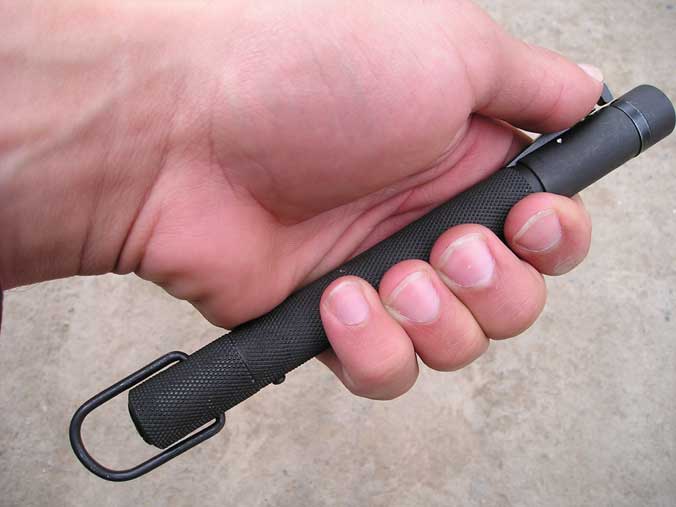

  • DSA PISTOL PYROTECHNIC

















GENERAL INFORMATION

DSA Pistol Pyrotechnic is the latest standard equipment used for coloured signalling by Pakistani military and law enforcement agencies. It replaces the earlier "very light pistols" which were heavier and harder to use than DSA Pistol Pyrotechnic.

All steel construction ensures long service life and dependable performance.

IMPROVEMENTS
The DSA Pistol Pyrotechnic ensures complete re-seating of the cocking piece before firing, thus eliminating any chances of injury to the user's hand. It also have a stout positive stop for the pull. Thereby eliminating any chances of damage to the pistol.

The earlier pistols didnt have these features and as a result injured the user's hand and the pistol got damaged quite frequently.

SPECIFICATIONS

Overall length 175mm +/- 2mm
Diameter 18.0mm at head, 17.2mm at body
Average Weight 240 g
