DGM
Digital Goniometer

The Digital Goniometer (DGM-1) is used with Laser Range Finder to precisely measure the coordinates of the target. It can be interfaced to any aiming device through a dovetail. Interface for mounting on tripod is provided by TPI 11 and diameter of 5/8 inch.


  • Digital display
  • Measuring accuracy
  • Azimuthal 1Mil (360 deg) Elevation 1 Mil
  • Weight : 4.2 kg



MFK
Mobile Field Kitchen

It is built on two wheeled trailer, strong enough to sustain cross country tow-ability by a 2.5 ton vehicle. It can cook multiple food items etc for 150 persons. It is equipped with multi fuel burner with proper exhaust system and corrosion free utensils. It can function in all weather and terrain conditions. MFK can be used for Army, Police, and Marines.
Features
  • Multi-fuel burner with proper exhaust system
  • Accessories & utensils are non injurious to human health
  • Functions in all weather & terrain conditions
  • Rust and corrosion free
  • Adopts external power source, when required
  • Accessories & utensils are firmly secured for no noise or rattling effect



Refurbishment/Range Enhancement of 122 mm MBRL Ammunition
Advance technology made it possible to refurbish and enhance the range of 122mm MBRL rockets up to 45 Km as compared to its original range of 20 Km. Refurbished extended range version of the rocket has also undergone various design improvements which guaranties reliability and greater safety during operation.


المرفقات

  • 1564121145191.png
    76.4 KB · المشاهدات: 80
Stockpile Reliability for Conventional Missiles

We offer services for assessing the reliability and shelf life of the missiles to ensure weapons in an operational-ready state. Non destructive testing through X ray, debonding test, UTS, elongation test and Tomography. A fully equipped static firing facility to measure the ballistic parameters of the Rocket Motors. Rocket Motor Propellant Grain testing is based on International Propellant and Explosive Standards.



  • Rocket motors
  • Propellants
  • Fuses (Safe and Arm)
  • Electronics
  • Guidance and control systems
  • Warhead
  • Batteries
  • Pyrotechnics

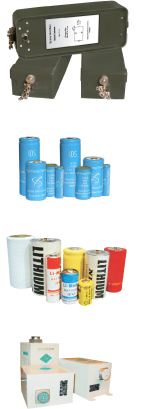

Military Batteries
We design, develop and manufacture customized batteries or power sources for military use. The batteries are rigorously tested and produced by ISO 9001:2000 certified facilities, maintaining the most stringent international quality control standards. We produce more than 30 different types of batteries.
Nickle Cadmium Cells/ Batteries
Nickel Cadmium Batteries have a rugged construction and proven reliability. Characteristics like high power capabilities, a wide operating temperature range, long life cycle and resistance to maltreatment makes them suitable for many applications.
Lithium Thionyl Chloride Batteries
Lithium Thionyl batteries have highest cell voltage and energy densities. The cells have been fabricated in variety of sizes, designs and configurations to meet particular requirements.
Zinc Silver Oxide Batteries
These batteries have numerous applications particularly where high energy density batteries are used such as power sources for tactical missiles, torpedoes, GPS and various military communication and electronic equipment
with excellent performance in range of 10 C0 to + 50 C0.

SLTA
Slim Line Towed Array Sonar for Naval Application


Detection of targets by the naval ships and submarines has always been very difficult and challenging due to the peculiar sea and associated environmental conditions. However the radiated noise from own platform makes it difficult or at times even impossible to detect weak signals from silent or remote targets. The successful design and development of the SLTA has significantly enhanced the underwater detection capability of the naval platforms.

Main features

  • Equally adaptable for surface ships or submarines
  • Enhanced detection and classification due to longer array having wide acoustic aperture, reduced flow noise and efficient processing
  • Smaller diameter for easier handling onboard to facilitate its deployment and retrieval during all weather and covert operations
Future applications

  • SLTA for Submarines & Ships in passive mode
  • Coastal defense system
  • SLTA for surface Ship Applications consist of
    • Active Towed Array Sonar
    • Stand Alone Passive Array
  • Divers, detection/ Offshore Harbour Defence Systems
  • Geophysical Exploration Applications

RIBAT
ESM System

Electronic Support Measures (ESM) system is the most important aspect of Electronic Warfare (EW), required for a variety of ground, surface and airborne applications, especially in maritime scenario. It is imperative for every surface naval platform to be equipped with ESM system for early detection and parameters measurement of friendly & hostile emitters.
RIBAT has been developed for surface applications and successfully tested and verified in the field. RIBAT covers almost all the features available in ESM systems being used by modern navies worldwide.
Features
  • 100 percent intercept probability
  • Wide operating frequency range
  • High sensitivity & dynamic range
  • Instantaneous frequency measurement.
  • High frequency accuracy & resolution
  • 360 degree spatial coverage
  • Fast reaction time
  • Threat identification
  • Mission library
  • Scan & pulse measurement analysis

BPS
Pbridge Pilotage Simulator

Bridge Pilotage Simulator (BPS) is developed for training of bridge-crew in navigation and other operational tasks. The simulator displays one large synchronised scene replicating the view from the bridge of a surface ship and provides life-like training in real time scenario to naval personnel on navigation, watch keeping and other specific bridge and sea operations.
Capabilities and main features
  • State of the art Navigation Simulator
  • Can replicates Bridge of any naval or merchant vessel
  • Controlled with ships replica consoles
  • Wide angle view as desired by the customer
  • Picture display of all types of radars
  • Provision of 3D Sounds
  • Navigational Exercises with complete bridge team
  • Implementation of Physics Engine for real time platform motions
  • Environmental Effects

ASTT
Action Speed Tactical Trainer

ASTT is a real time Simulator that provides tactical training to Naval Officers and men in surface, subsurface and air operations. Based on state of the art development techniques the Simulator ensures generation and execution of multidimensional game scenarios in the most realistic sea environments.
Capabilities and main features
ASTT replicates the principal components of the Naval Fleet. It includes all tactical facilities like:

  • Tactical Manoeuvres
  • Complete fleet operations
  • Planning and management of war scenario
  • C3I Command Centre
  • Scenario generation
  • Exercise monitoring
  • Trainees evaluation

Naval Police Boat
Policing of inshore waters against any illegal activity demands for reliable & potent harbour defence capable to neutralize any saboteur / illegal act in harbour. The boat can carry a crew of 4-5 personnel for a maximum of 8 hours at a speed of 35 knots.
Roles Of The Boat
  • Law enforcement
  • Prevention or repression of illegal activities
  • Rescue operation in inshore waters
  • Fast interception and boarding of suspect craft in inshore waters
  • Protection against sabotage
  • 190784

Naval Vessel OPS Room Simulator
Tactical training of Operations Room crew onboard naval ships is a paramount requirement of modern naval warfare. For this purpose sending of naval units at sea for longer durations is an expensive proposition. On the other hand the Ops Room Simulator provides continuous training to ships crew as convenient while remaining ashore. The system can provide integrated picture of different types of weapons and sensors and create battle scenario as per customer's requirements.
Capabilities and Main Features
  • Provides tactical training for OPS room team
  • Includes state of the art replica consoles of weapons and sensors as desired by the customer
  • Generic library structure
  • Simulation of Fire Control System, sensors, weapons etc.
  • Record/ replay feature
  • Modular & configurable architecture to meet customized needs
  • Through life support is ensured

SIMPAS
Propulsion Simulator for Submarine

Propulsion Simulator is real time simulator of propulsion control room for offshore training of crew members of AGOSTA 90B submarine. It will simulate the Propulsion Control Panel, Main AC Switchboard Panel, Main Motor Local Control and Cruising Motor Local Control.

  • Efficient and risk free training
  • Electronic logbook of entire training session for performance evaluation
  • Realism of training through simulation of sounds
  • Instructor console to manage and monitor training sessions
  • Emergency generation by the instructor at any moment during exercise
  • Real time monitoring and control of more than 800 digital and analog IOs through high-tech data acquisition system
  • Simulates emergency situations such as fire, flooding and equipment failure etc.

SIMDAS
Naval Vessel Operations Room Simulator

Diving Simulator is real time simulator of control room of Agosta 90B submarine for training of crew members. It will simulate operations of diving safety panel, steering station, air circuits and hydraulics along with other assemblies of the control room.

  • Efficient and risk free training
  • Reproduction of trim movements up to ±45° with variable speeds from 9 arc minute / sec to 9 °/ sec with accuracy of 40 arc minutes
  • Video recording and playback
  • Electronic logbook of entire training session
  • Realism of training through simulation of sounds
  • Instructor console to manage and monitor training sessions
  • Emergency generation by the instructor at any moment
  • Real time monitoring and control of more than 500 digital and analog IOs through high-tech data acquisition system

Measurement & Testing Services
We design and install Electromagnetic Shielding for military, industry, medical facilities, hospitals and R&D laboratories.
We offer a wide range of Electromagnetic Compatibility (EMC) services e.g. EMC testing of ships, submarines, other tactical platforms and electronic systems.

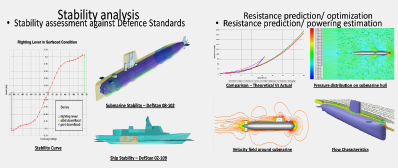

Designing of Small to Medium Size Surface Vessel
We have the capability to undertake the design of small to medium size surface vessel including missile boats, small merchant ships and coastal crafts etc. We have design labs that are equipped with latest ship design software like paramarine that enable following analysis to be undertaken:
  • Stability analysis
  • Powering calculations
  • Sea keeping analysis
  • Manoeuvring analysis
  • Detailed structural design
  • Radar Cross Section analysis
  • Vulnerability analysis etc.

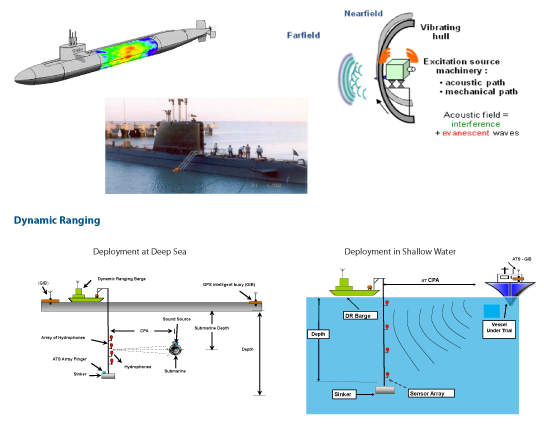

Acoustic Ranging of Naval Vessels
In today's naval warfare, knowledge of one's own acoustic signatures is the difference between the prey and the predator. Signature management facility provides own noise level in full range of audible frequency spectrum, by utilizing static and dynamic measurements of naval vessels i.e. ships, Mine Counter Measure Vessels (MCMVs) and submarines.
Acoustic Signature Management is a very specialized field which not only requires operational skills but also has a very strong proficient development and analytical aptitude. We can provide the said service to friendly navies in the region. It consists of Static Ranging known as Near Field Holography (NAH) and dynamic ranging of moving vessels in open sea.
acoustic ranging naval vessels


المرفقات

  • 1564121804195.png
    83 KB · المشاهدات: 100
NBC Defence & IPE
Nuclear Biological & Chemical Defence Suit


The NBC defence suit provides physical protection against CBW Agents for 24 hours. It provides protection against direct contact with and contamination by radioactive, biological and chemical substances. It is generally designed to be worn over extended periods to allow the wearer to fight while under threat or under actual NBC attack.

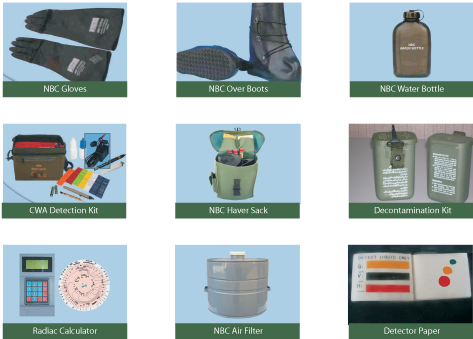

Individual Protective Equipment

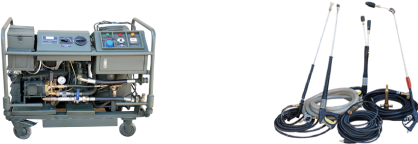

HEADS
High Efficiency Advanced Decontamination System



  • Used for decontamination / detoxification of vehicles, gears, buildings, equipment, terrain and personnel against CBW Agents
  • The equipment consist of high pressure pump and heating system and is capable to spray hot / cold water, steam and decontamination solution over the contaminated area
  • Easy transportation & moveable


المرفقات

  • 1564122080812.png
    73.4 KB · المشاهدات: 84
Water Purification Plants

Water Purification Plants are used to purify contaminated / polluted water in order to make it safe & healthy for drinking. It works on the principle of Reverse Osmosis (RO).


  • Easy maintenance & fully automatic
  • Latest & state-of-the-art Ultra Violet system for removal of harmful bacteria and viruses
  • Integrated dispensing system automatically adds Chlorine to prevent re-growth of bacteria in water
  • Setting up and operation of the system in 10 min by just one person
  • System can be easily transported on various platforms like rail, ship, trailer aircraft and helicopter
  • Back-washing of reverse osmosis through CIP system
  • Diesel generator provides the system with electricity

Ballistic Helmet

GIDS's Ballistic Helmet protects the user from bullets, fragments and provides wearing comfort due to balanced weight distribution which does not impede the performance of the user. The construction of inner suspension system ensures that a gap is always present between the head and shell which minimizes the effect of blunt trauma experienced by the user. It includes an adjustable headband and a comfortable chinstrap assembly. The helmet is relatively lightweight and provides maximum comfort, mobility & protection in its class.

Models of Ballistic Helmet

BH A140 1.36 Kg

BH A150 1.50 Kg

SBH 400 1.60 Kg
(Magnum resistant)
