N011M has a search range of 400 km and a tracking range of 200 km, with 60 km in the rear in the air-to-air mode. Detection range fighter type MIG-29 in area of review of over 300 sq. deg: - on towards course - up to 140 km; - in pursuit of - up to 60 km.[4] Up to 15 air targets can be tracked at once in track while scan mode with 4 of these engaged at once.[5] The N011M can use a number of short range and speed search modes and is capable of identifying the type and number of multiple targets. The Bars radar is compatible with R-77 and R-27 radar guided missiles providing both illumination and data-link guidance as well as the R-73 IR guided missile.[3]
In the air-to-surface mode the radar is capable of detecting ground and naval based moving targets, determining their location and maintaining a track on two surface targets at once.[1] The N011 is capable of detecting the group of tanks target to a maximum range of 40–50 km and a destroyer sized target to a range of 80–120 km.[1][4] Bars also features a mapping mode using either real beam, doppler beam sharpening or Synthetic aperture radar with a maximum resolution of 10 meters.[1] The Kh-31 anti-radiation missile is also compatible with the radar.[3]
ويكيبيديا

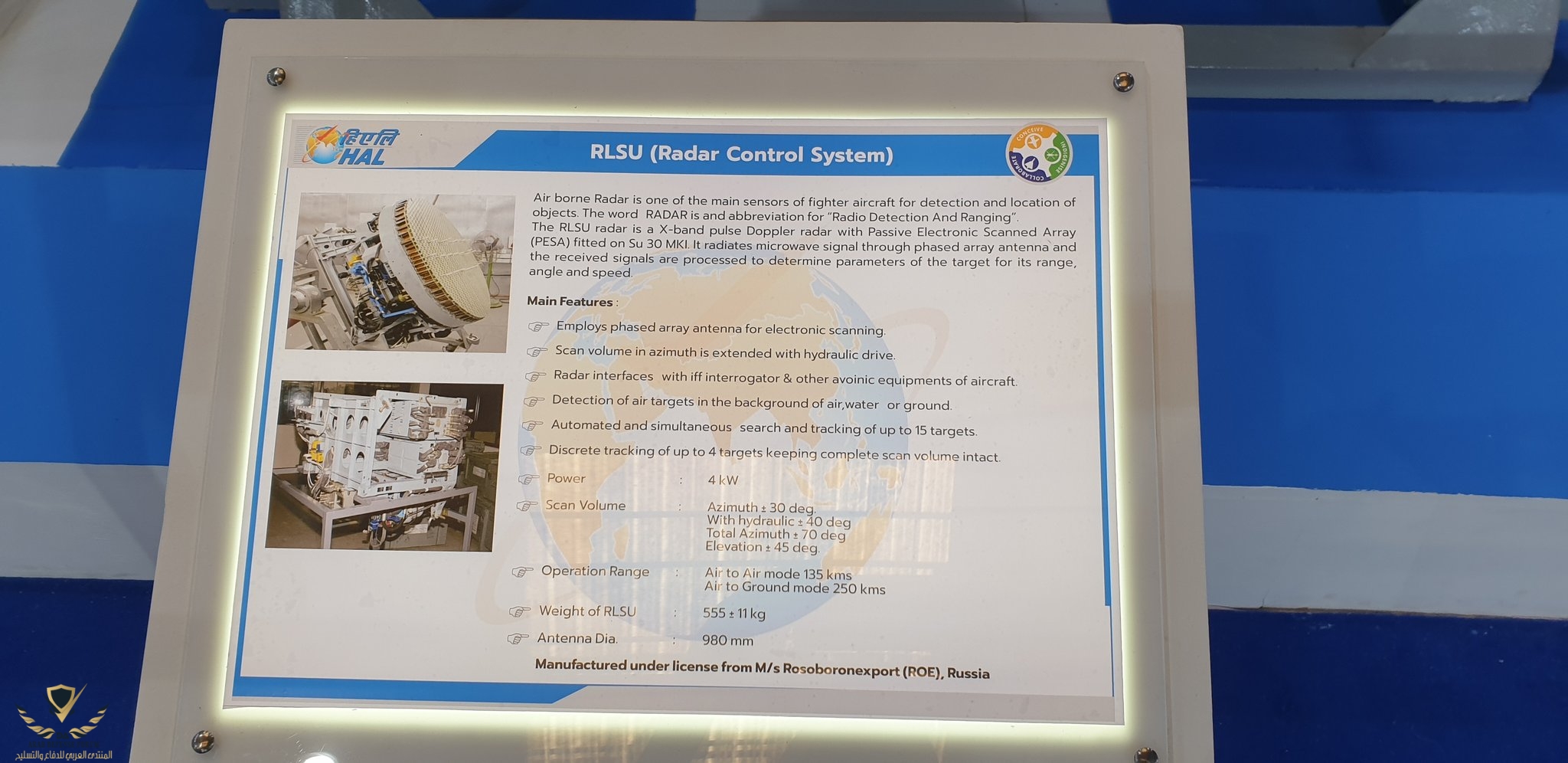

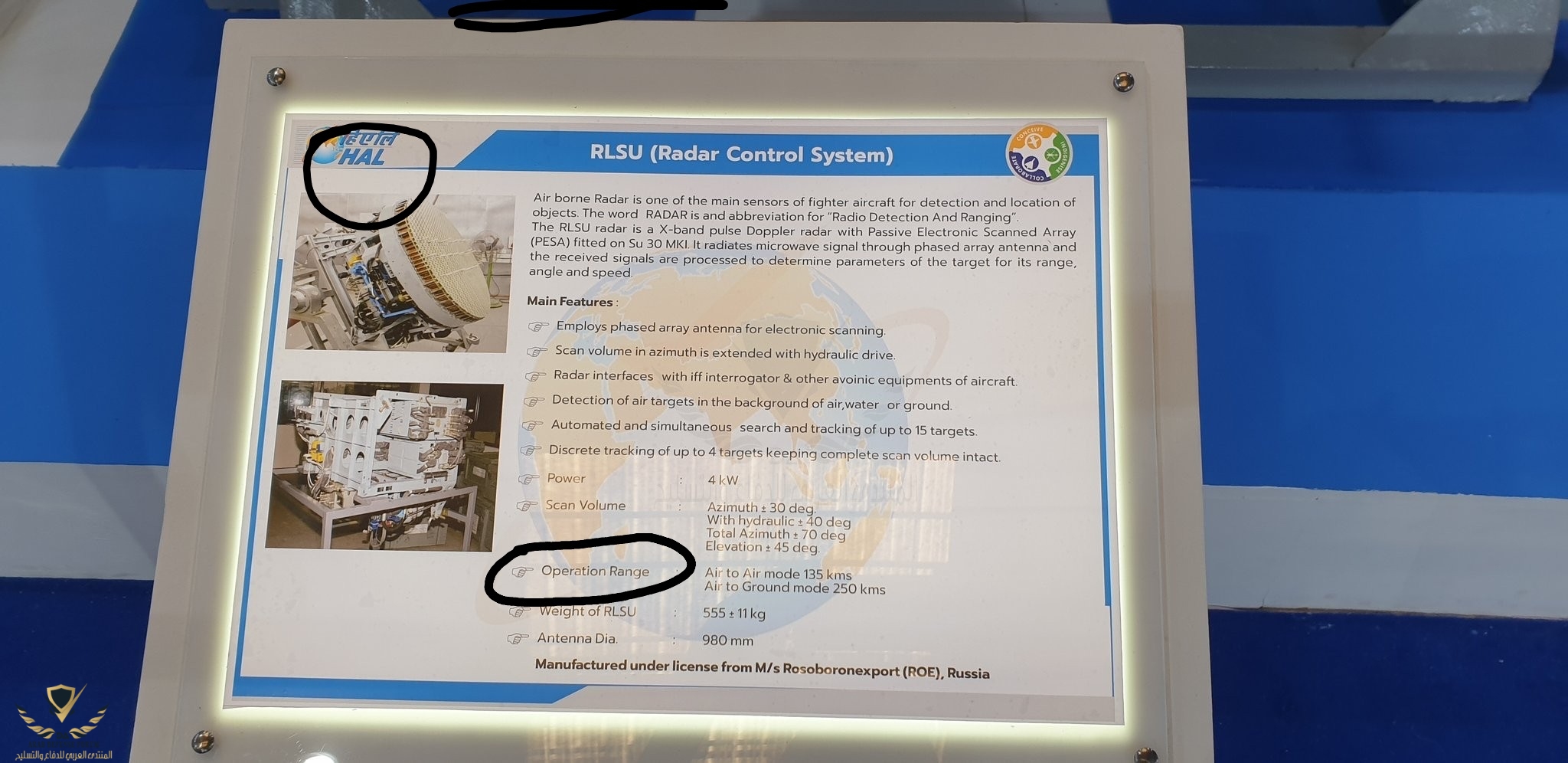

بروشور البرويطة الطائرة الدي قدمه سلاح الجو الهندي
135 كلم في نمط جو جو
بروشور البرويطة الطائرة الدي قدمه سلاح الجو الهندي
135 كلم في نمط جو جو
