ما هي اقوى مقاتلة غير شبحية في العالم ؟

ما هي اقوى مقاتلة غير شبحية في العالم ؟

  • تايفون

    الأصوات: 34 11.9%
  • رافال

    الأصوات: 30 10.5%
  • F15

    الأصوات: 104 36.5%
  • F16

    الأصوات: 7 2.5%
  • F18

    الأصوات: 4 1.4%
  • j10

    الأصوات: 0 0.0%
  • ميغ29

    الأصوات: 1 0.4%
  • سو 35

    الأصوات: 96 33.7%
  • ميغ35

    الأصوات: 7 2.5%
  • تومكات F14

    الأصوات: 2 0.7%

  • مجموع المصوتين
    285
عشق محمود يا فتى , فالنية زواج شرعي متكامل الاركان ( وبحضور الولي الشرعي ) ..

انا عن نفسي ان تدخل احد بيني وبين الجميلة رافال ( سأركله في مؤخرته لارسله الى حيث أتى )

:D


اقدر اقول انها وصلت لدرجة ( خر.ن.)؟
ماخفيك حتى انا .. طائرة جميلة بس مافي زي f-15

كلمة حق :D

الاف 15 سايلنت ايجل ( كاملة المواصفات غير منقوصة شيئا ) اراها خيار راااائع ( سرعة , حمولة , مميزات , طلاء رام , حاويات اسلحة , حرف الذيل , تحسينات محرك الخ.. ) واتمناها لبلدي الامارات العربية المتحدة ولكن!!



1- الاف 15 SE ( الـSilent Eagle ) في اساسها عبارة عن Kit تطويري للاف 15 العتيقة لاطالة عمرها اكثر ..وقد احسنت بوينج في ذلك ,, ولكن , رأى الكوريون الجنوبيون ان حرف الذيل يؤثر على اداء الطائرة العام كما انه لا يحقق الهدف منه ( تقليص RCS الطائرة ) حتى طلاء الرام الماص لاشعة الرادار .. قال فيه احد المراكز البحثية الكورية الجنوبية انه لا يضمن تقليل البصمة الرادارية ويعزو السبب في ذلك الى الـ Air frame وكون المقاتلة اساسا لم تبنى لتتبنى خصائص الخفاء منذ التصميم الاول لها .

2- بدون الذيل المائل , ستبقى المقاتلة غير قادرة على خفض الRCS من الجوانب .

3- بحسب المسؤول في المركز البحثي الكوري الجنوبي - وهنا اقتبس مع الترجمة مباشرة - بصورة عامة , الفرق بين الذيل المستقيم والذيل المائل ليس له تأثير على المقطع الرادري للطائره RCS .




Big question mark on F-15 SE
By Kang Seung-woo

Despite gaining sole eligibility to sign the 8.3-trillion-won ($7.45 billion) deal to supply Korea with next-generation fighter jets, Boeing still has to answer some critical questions about its F-15 Silent Eagle.

They include whether it can meet operational needs to counter potential threats from North Korea and other countries flexing their military muscle.

In order to get the name tag of “1970s’ aircraft” off its back, the U.S. aerospace giant has said it will add several improvements, including a stealth capability, but they do not seem enough to quiet critics, who question if the concept fighter jet is the best option.

In the “next-generation” fighter jet program, the Silent Eagle won out over the F-35 Lightning II from Lockheed Martin and the Eurofighter Tranche 3 Typhoon from the European Aeronautic Defense and Space Company (EADS) two weeks ago and it will be put before the top defense decision-making committee in mid-September following a comprehensive assessment of all the jets.

What is the biggest criticism of the Silent Eagle is whether it will be difficult to detect. The Air Force is pursuing stealth fighter jets that can pass through North Korea’s integrated air defense systems. Boeing is offering a “stealthified” version of the successful F-15E Strike Eagle, featuring a conformal weapons bay (CWB) and radar-absorbent material.

“The F-15 was not designed as a stealth jet from the beginning. The design for a stealth jet is different from that of a non-stealth aircraft. In addition, it does not fully guarantee low-detection if the airframe is treated with a radar-absorbent material,” said Lee Hee-woo, president of the ILS Research Institute.

The Chicago-based Boeing had also pitched canted tail fins as one of the key stealth-enhancing features, but Korean investment is required to do so.

“Without tilting the vertical tails, the aircraft will not be able to reduce its radar cross section (RCS) from the side,” said Shin In-kyun, president of the Korea Defense Network.

“In addition, the CWB is not expected to perform as well as touted, either.”


Given that the Silent Eagle has yet to be produced or secure a single major order, he added that the Air Force will need a comparatively higher operational cost due to the lack of economies of scale.

Lee, a former Air Force general, is also concerned that the combat plane is a paper concept. In order to evaluate the Silent Eagle, DAPA staff carried out test flights with an aircraft similar to it in terms of performance. “What if the Silent Eagle would not be able to perform as well as the tests? That is why we should not have test flights with a concept airplane,” he said.

Kim Dae-young, senior research fellow at KODEF, said, “In general, the difference in canted tails and vertical tails do not have an effect on a fighters RCS reduction. It is wrong to dub a plane a ‘paper plane’ as these fighters continuously develop, such as the F-15K being used by the ROKAF. The F-15SE and its technology has also evolved from the F-15 family and is a totally different, developed version of the F-15 than that of the past.”

Boeing sold a total of 60 F-15K Slam Eagles, an advanced derivative of the F-15E, through the first two phases of the F-X competition on the back of its large and diverse weapons payload and range.

But the proposal of the stealthy variant removes the fighter’s unique selling points.

According to Boeing, CWBs on each side of the aircraft allow it to carry weapons internally and, more importantly, do not give away the Silent Eagle’s position to radar.

“Due to the introduction of CWB, the Silent Eagle is limited in loading various weapons,” said Yang Uk, a senior research fellow at the Korea Defense and Security Forum.

“Rather than purchasing the Silent Eagle, Korea should perhaps choose the F-15K, equipped with a cutting-edge radar.”

There is also a growing need for Korea to compete with neighboring countries that will have stealth aircraft in a few years time — Japan has already signed a contract to buy 42 F-35s, while China is aggressively seeking to boost its strength by developing its own stealth jets.

“Like Japan and China, Korea needs to own stealth jets as part of war deterrence,” said a military official.

هذه المعلومات نشرتها صحيفة كوريا تايمز


****************

نعود للامارات العربية المتحدة

الامارات حريصة على الحصول على النفاذ للتكنولوجيا في المقاتلة ( والامريكيون من اصعب الناس في هذه الجزئية ,, قد يتساهلون ان موّلت برنامجا تطويريا كاملا ,, لكن كزبون دخلت المحل للتو للشراء .. Forget it )

الامارات بلا شك سترغب بباكج نقل تكنولوجيا ومشاركة صناعية في المشروع لتلبية طموحاتها الصناعية في المجال الدفاعي .. فهل ستوافق امريكا .. اشك !

هذه بعض المقتطفات حول الاف 15 النسر الخفي ولماذا هناك شكوك ( من وجهة النظر الكورية الجنوبية ) في بقائيتها امام تحديات الجيل القادم

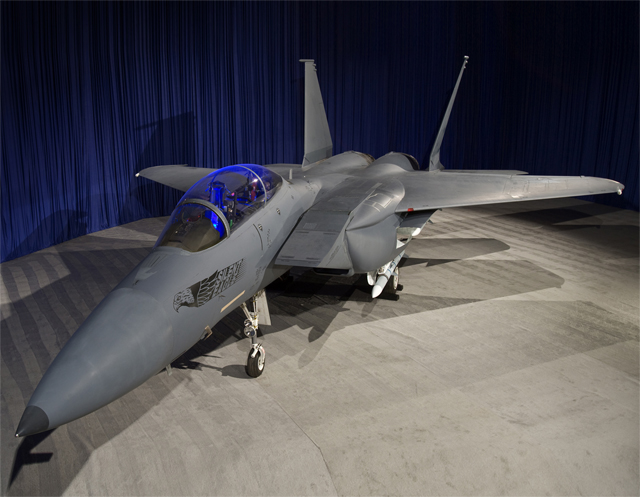

شيء هام لفت نظري في الصورة دققوا معي ماتلاحظون الذيل مائل !!!!

كاميكازي الامارات


بما انك معجب بالعروسة الفرنسية رافال ... ما رأيك بـ j10 الصينية ؟​

جميلة .. ولكن جمال صيني ( افضّل عليها الجمال الباريسي المبرهن في ساحات الحروب )

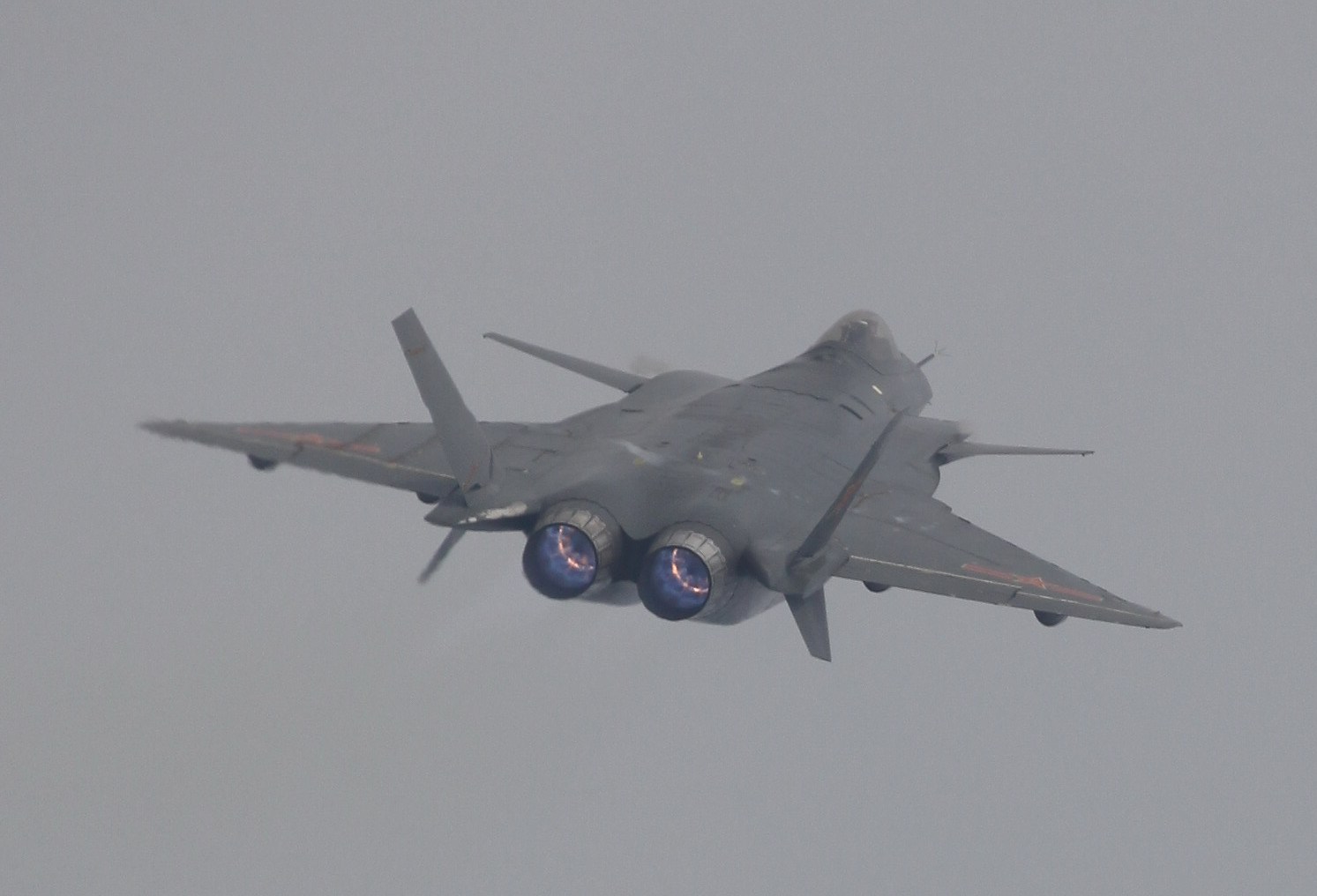

J-20+Mighty+Dragon++Chengdu+J-20+fifth+generation+stealth%252C+twin-engine+fighter+aircraft+prototype+People%2527s+Liberation+Army+Air+Force++OPERATIONAL+weapons+aam+bvr+missile+ls+pgm+gps+plaaf+%25282%2529.jpg




الصينية ينقصها ( النضج ) و ( البرهنة العملياتية )
وعندها لكل حادث حديث

اقدر اقول انها وصلت لدرجة ( خر.ن.)؟
ماخفيك حتى انا .. طائرة جميلة بس مافي زي f-15

ليس عيبا :)

فهناك قيس وليلى .. كاميكازي و رافال .. كاوكاو واف-15

وهكذا هي قصص العشق .. تتجدد في كل العصور :)

شيء هام لفت نظري في الصورة دققوا معي ماتلاحظون الذيل مائل !!!!

نعم مائل .

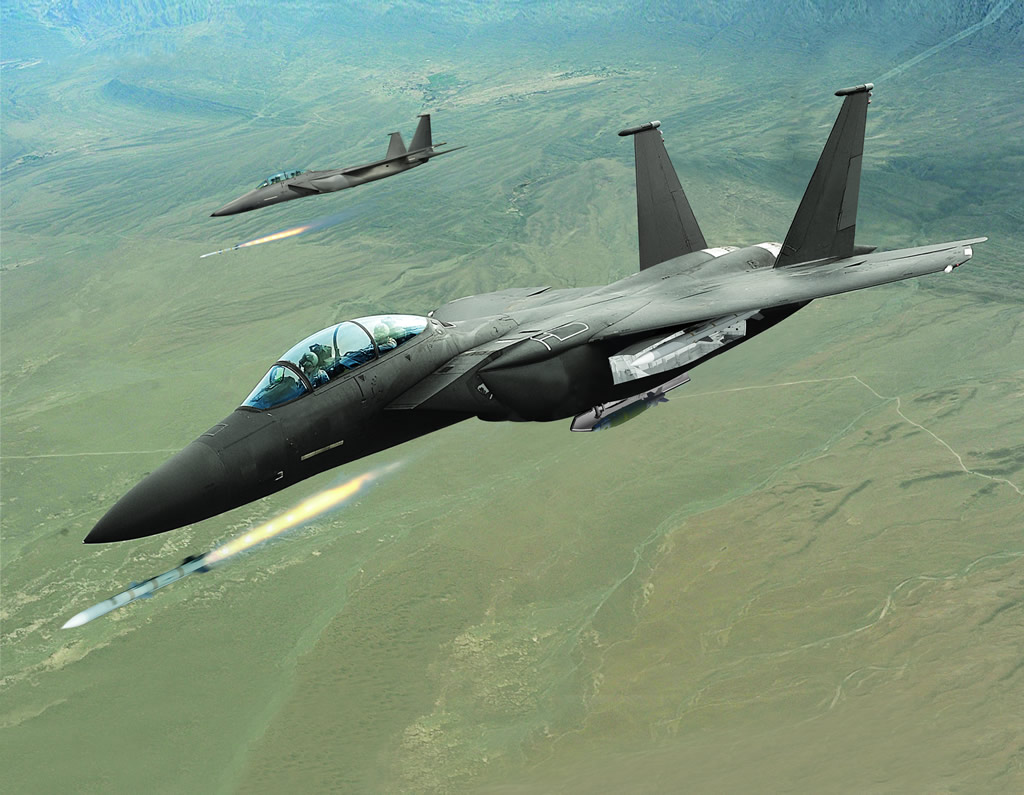

صور اوضح




والفرق بين الذيل التقليدي ( في بقية الطرازات ) والمائل ( في طراز النسر الخفي )


لاحظ استقامة الذيل .. عد هذا من مسببات ضعف خصائص الخفاء في انواع الاف 15 ( وبالنتيجة , حاولت بوينج في طراز SE تعديل المشكلة لتقليل البصمة الرادارية قدر المستطاع اضافة لطلاء الرام والاجراءات المضادة ECCM وغيرها )

جميلة .. ولكن جمال صيني ( افضّل عليها الجمال الباريسي المبرهن في ساحات الحروب )
J-20+Mighty+Dragon++Chengdu+J-20+fifth+generation+stealth%252C+twin-engine+fighter+aircraft+prototype+People%2527s+Liberation+Army+Air+Force++OPERATIONAL+weapons+aam+bvr+missile+ls+pgm+gps+plaaf+%25282%2529.jpg




الصينية ينقصها ( النضج ) و ( البرهنة العملياتية )
وعندها لكل حادث حديث
بخطوة جريئة من دول الخليج تطلب هذه المقاتلة هل تتوقع ان يقابل الطلب بالرفض وخاصة السعودية التي تتمتع بعلاقة قوية جدا مع الصين واعطتنا افضل صورايخها الاستراتيجية ؟

نعم مائل .

صور اوضح




والفرق بين الذيل التقليدي ( في بقية الطرازات ) والمائل ( في طراز النسر الخفي )


لاحظ استقامة الذيل .. عد هذا من مسببات ضعف خصائص الخفاء في انواع الاف 15 ( وبالنتيجة , حاولت بوينج في طراز SE تعديل المشكلة لتقليل البصمة الرادارية قدر المستطاع اضافة لطلاء الرام والاجراءات المضادة ECCM وغيرها )
جيد اذن بالبصمة الرادارية ستقل وهذه نقطة هامة .. , لكن ذا الشيء يثبت ان بوينغ مستعدة لإجراء تعديلات على هيكل الطائرة .. من الممكن اذن ان يكون هناك طلبات خاصة بتعديلات محددة تخفض البصمة الرادارية

كاميكازي الامارات


هل هناك نية للامارات لادخال مقاتلات روسية الى سلاح جوها؟​

حقيقة لا اعرف ولكن لا شيء مستبعد ..
الامارات عودتنا على التنويع في سلاحها الجوي ( المقاتلات : فرنسي - امريكي )

يذكرني ذلك بالخبر المنشور في 2001 بوسطة جلف نيوز ..

الامارات تقيّم طائرات شركة سوخوي ( دار الحديث حول الطراز Su-30 MK )

UAE evaluating Sukhoi fighter jets

The UAE is evaluating various fighter aircraft made by Russia's Sukhoi, officials said yesterday, but declined to confirm if the UAE was evaluating the Sukhoi 30MK fighter.

By A Staff Reporter
November 7, 2001





The UAE is evaluating various fighter aircraft made by Russia's Sukhoi, officials said yesterday, but declined to confirm if the UAE was evaluating the Sukhoi 30MK fighter.

"Although no agreement has been signed with the UAE's Ministry of Defence, there are many common points in the evaluation of various fighter aircraft made by us," said Mikhail Simonov, chief of Sukhoi Design Bureau.

"We would be glad to deliver to the UAE the Sukhoi 30MK," he commented.

While there have been no recent orders for any military aircraft from the Middle East, he said negotiations are underway with some.

Sukhoi recently bagged two contracts valued at $5.1 billion to supply military aircraft.

The countries are outside of the Middle East, and the deal was finalised at Dubai 2001, he said.

The Su-30MK twinseat multi-role fighter is designed for air superiority by destroying hostile manned and unmanned aircraft and surface targets, both ground-based and maritime.

Until now, Sukhoi has delivered to Russia and other countries, including Middle East ones, thousands of combat aircraft.

Simonov also announced that plans have been initiated to privatise Sukhoi. There are plans as well to develop civil aircraft.



وقصة الامارات والسوخوي 27 كما يرويها ميخائيل سايمونوف

How the Arabs helped ‘Su’

Simonov insists that perestroika allowed the Su-27 to become the best of the best. A lack of money in the Nineties forced the Sukhoi Company to make a desperate move – to try to sell the jet abroad. The first place they looked was the United Arab Emirates.

“At that time, their air force was headed by Colonel Khalid,” recalls Simonov. “He wasn’t a flexible man. As he looked at and flew our fighter jet, he said: ‘It’s not bad, but can it sink a destroyer?’ But these were two different things… It’s one thing to conduct air combat, and completely another to destroy underwater and ground targets.”

This could have been the end of the conversation. Intead, Simonov proposed the Arabs formulate their demands for the machine: “If you want the fighter jet to be able to hit targets at a distance of 100km – that can be done. You want it to sink destroyers – it will do.”

So, the Su-27 became a multi-function fighter – though the Arabs did not buy it. Khalid admitted that the Americans would not have allowed them to do so. It is often said that the Su-27 and Su-30 are the best, but they have not been used in a single war. So how could their superiority be proved?

“That is, of course, a secret,” smiles Simonov.

This display of equipment was not simply advertising, but a comparison with competitors – at least with the French Mirages that were part of the UAE inventory. How could they be compared? Two of their best pilots took turns flying the aircraft, the Mirage and Su. All flight information was documented and the information analysed.




لذلك اقول : لاشيء مستبعد ... وقد تقوم الامارات بمفاجأة المفاجآت


حقيقة لا اعرف ولكن لا شيء مستبعد ..
الامارات عودتنا على التنويع في سلاحها الجوي ( المقاتلات : فرنسي - امريكي )

يذكرني ذلك بالخبر المنشور في 2001 بوسطة جلف نيوز ..

الامارات تقيّم طائرات شركة سوخوي ( دار الحديث حول الطراز Su-30 MK )

UAE evaluating Sukhoi fighter jets

The UAE is evaluating various fighter aircraft made by Russia's Sukhoi, officials said yesterday, but declined to confirm if the UAE was evaluating the Sukhoi 30MK fighter.

By A Staff Reporter
November 7, 2001





The UAE is evaluating various fighter aircraft made by Russia's Sukhoi, officials said yesterday, but declined to confirm if the UAE was evaluating the Sukhoi 30MK fighter.

"Although no agreement has been signed with the UAE's Ministry of Defence, there are many common points in the evaluation of various fighter aircraft made by us," said Mikhail Simonov, chief of Sukhoi Design Bureau.

"We would be glad to deliver to the UAE the Sukhoi 30MK," he commented.

While there have been no recent orders for any military aircraft from the Middle East, he said negotiations are underway with some.

Sukhoi recently bagged two contracts valued at $5.1 billion to supply military aircraft.

The countries are outside of the Middle East, and the deal was finalised at Dubai 2001, he said.

The Su-30MK twinseat multi-role fighter is designed for air superiority by destroying hostile manned and unmanned aircraft and surface targets, both ground-based and maritime.

Until now, Sukhoi has delivered to Russia and other countries, including Middle East ones, thousands of combat aircraft.

Simonov also announced that plans have been initiated to privatise Sukhoi. There are plans as well to develop civil aircraft.



وقصة الامارات والسوخوي 27 كما يرويها ميخائيل سايمونوف

How the Arabs helped ‘Su’

Simonov insists that perestroika allowed the Su-27 to become the best of the best. A lack of money in the Nineties forced the Sukhoi Company to make a desperate move – to try to sell the jet abroad. The first place they looked was the United Arab Emirates.

“At that time, their air force was headed by Colonel Khalid,” recalls Simonov. “He wasn’t a flexible man. As he looked at and flew our fighter jet, he said: ‘It’s not bad, but can it sink a destroyer?’ But these were two different things… It’s one thing to conduct air combat, and completely another to destroy underwater and ground targets.”

This could have been the end of the conversation. Intead, Simonov proposed the Arabs formulate their demands for the machine: “If you want the fighter jet to be able to hit targets at a distance of 100km – that can be done. You want it to sink destroyers – it will do.”

So, the Su-27 became a multi-function fighter – though the Arabs did not buy it. Khalid admitted that the Americans would not have allowed them to do so. It is often said that the Su-27 and Su-30 are the best, but they have not been used in a single war. So how could their superiority be proved?

“That is, of course, a secret,” smiles Simonov.

This display of equipment was not simply advertising, but a comparison with competitors – at least with the French Mirages that were part of the UAE inventory. How could they be compared? Two of their best pilots took turns flying the aircraft, the Mirage and Su. All flight information was documented and the information analysed.




لذلك اقول : لاشيء مستبعد ... وقد تقوم الامارات بمفاجأة المفاجآت


انا عن نفسي اتمنى بان تقوم امارات بشراء الرافال و صنع الميراج2000 بنفسها او بمساعدة فرنسا او مصر .. لان الاماراتيين عرفوا جيدا لميراج

حقيقة لا اعرف ولكن لا شيء مستبعد ..
الامارات عودتنا على التنويع في سلاحها الجوي ( المقاتلات : فرنسي - امريكي )

يذكرني ذلك بالخبر المنشور في 2001 بوسطة جلف نيوز ..

الامارات تقيّم طائرات شركة سوخوي ( دار الحديث حول الطراز Su-30 MK )

UAE evaluating Sukhoi fighter jets

The UAE is evaluating various fighter aircraft made by Russia's Sukhoi, officials said yesterday, but declined to confirm if the UAE was evaluating the Sukhoi 30MK fighter.

By A Staff Reporter
November 7, 2001





The UAE is evaluating various fighter aircraft made by Russia's Sukhoi, officials said yesterday, but declined to confirm if the UAE was evaluating the Sukhoi 30MK fighter.

"Although no agreement has been signed with the UAE's Ministry of Defence, there are many common points in the evaluation of various fighter aircraft made by us," said Mikhail Simonov, chief of Sukhoi Design Bureau.

"We would be glad to deliver to the UAE the Sukhoi 30MK," he commented.

While there have been no recent orders for any military aircraft from the Middle East, he said negotiations are underway with some.

Sukhoi recently bagged two contracts valued at $5.1 billion to supply military aircraft.

The countries are outside of the Middle East, and the deal was finalised at Dubai 2001, he said.

The Su-30MK twinseat multi-role fighter is designed for air superiority by destroying hostile manned and unmanned aircraft and surface targets, both ground-based and maritime.

Until now, Sukhoi has delivered to Russia and other countries, including Middle East ones, thousands of combat aircraft.

Simonov also announced that plans have been initiated to privatise Sukhoi. There are plans as well to develop civil aircraft.



وقصة الامارات والسوخوي 27 كما يرويها ميخائيل سايمونوف

How the Arabs helped ‘Su’

Simonov insists that perestroika allowed the Su-27 to become the best of the best. A lack of money in the Nineties forced the Sukhoi Company to make a desperate move – to try to sell the jet abroad. The first place they looked was the United Arab Emirates.

“At that time, their air force was headed by Colonel Khalid,” recalls Simonov. “He wasn’t a flexible man. As he looked at and flew our fighter jet, he said: ‘It’s not bad, but can it sink a destroyer?’ But these were two different things… It’s one thing to conduct air combat, and completely another to destroy underwater and ground targets.”

This could have been the end of the conversation. Intead, Simonov proposed the Arabs formulate their demands for the machine: “If you want the fighter jet to be able to hit targets at a distance of 100km – that can be done. You want it to sink destroyers – it will do.”

So, the Su-27 became a multi-function fighter – though the Arabs did not buy it. Khalid admitted that the Americans would not have allowed them to do so. It is often said that the Su-27 and Su-30 are the best, but they have not been used in a single war. So how could their superiority be proved?

“That is, of course, a secret,” smiles Simonov.

This display of equipment was not simply advertising, but a comparison with competitors – at least with the French Mirages that were part of the UAE inventory. How could they be compared? Two of their best pilots took turns flying the aircraft, the Mirage and Su. All flight information was documented and the information analysed.




لذلك اقول : لاشيء مستبعد ... وقد تقوم الامارات بمفاجأة المفاجآت
المشكلة اخي كاميكازي من وجهة نظري الامارات لن تقتنع الا بمقاتلة تكون فعلياً ند للطائرات الحديثة والقوية حاليا مثل : f-15 و الرافال والتايفون .., والطائرة الوحيدة التي اراها تستحق هذه
الخطوة الجريئة من وجهة نظري su-35 لااقل من ذلك هذا اذا لم تضف تعديلات واضافات اصلا وبنسخ لاتقل عن الروسية !
وهذا صعب su-35 مستحيل ان تحصل عليها الامارات حالياً , قد تعرض روسيا mig-35 وsu-30 لكن الامارات لن ترضى بهم ..

بخطوة جريئة من دول الخليج تطلب هذه المقاتلة هل تتوقع ان يقابل الطلب بالرفض وخاصة السعودية التي تتمتع بعلاقة قوية جدا مع الصين واعطتنا افضل صورايخها الاستراتيجية ؟

لو فتحت باب التصدير لمقاتلتها فلم لا ..
حتى الامارات لا استبعد ان تقتنيها شريطة ان تثبت قدراتها حقيقة

لو فتحت باب التصدير لمقاتلتها فلم لا ..
حتى الامارات لا استبعد ان تقتنيها شريطة ان تثبت قدراتها حقيقة
هل تتوقع ان تتقدم الصين لتثبت سلاحها في منافسات مع اسلحة غربية ؟
هذا الشيء وحده كفيل باعطاء الثقة للسلاح الصيني

جيد اذن بالبصمة الرادارية ستقل وهذه نقطة هامة .. , لكن ذا الشيء يثبت ان بوينغ مستعدة لإجراء تعديلات على هيكل الطائرة .. من الممكن اذن ان يكون هناك طلبات خاصة بتعديلات محددة تخفض البصمة الرادارية

راجع ردي السابق .. مسؤول في مركز بحثي كوري جنوبي قال بأن الذيل المائل او المستقيم لا يؤثران على RCS الطائرة ..
المشكلة الكبرى ان كانت هذه التعديلات تؤثر ايضا ( سلبيا ) على Performance الطائرة المتعارف عليه ..

هذه وجهة النظر الكورية الجنوبية والتي عبر عنها احد قادة سلاحهم الجوي اضافة للمسؤول في المركز البحثي والذي نشرت حديثه صحيفة كوريا تايمز ( راجع الرابط )

انا عن نفسي اتمنى بان تقوم امارات بشراء الرافال و صنع الميراج2000 بنفسها او بمساعدة فرنسا او مصر .. لان الاماراتيين عرفوا جيدا لميراج

غير مستبعد

المشكلة اخي كاميكازي من وجهة نظري الامارات لن تقتنع الا بمقاتلة تكون فعلياً ند للطائرات الحديثة والقوية حاليا مثل : f-15 و الرافال والتايفون .., والطائرة الوحيدة التي اراها تستحق هذه
الخطوة الجريئة من وجهة نظري su-35 لااقل من ذلك هذا اذا لم تضف تعديلات واضافات اصلا وبنسخ لاتقل عن الروسية !
وهذا صعب su-35 مستحيل ان تحصل عليها الامارات حالياً , قد تعرض روسيا mig-35 وsu-30 لكن الامارات لن ترضى بهم ..

لا يوجد مستحيل على الامارات العربية المتحدة .. الا ان توقف خط انتاج هذه المقاتلات مثلا .

راجع ردي السابق .. مسؤول في مركز بحثي كوري جنوبي قال بأن الذيل المائل او المستقيم لا يؤثران على RCS الطائرة ..
المشكلة الكبرى ان كانت هذه التعديلات تؤثر ايضا ( سلبيا ) على Performance الطائرة المتعارف عليه ..

هذه وجهة النظر الكورية الجنوبية والتي عبر عنها احد قادة سلاحهم الجوي اضافة للمسؤول في المركز البحثي والذي نشرت حديثه صحيفة كوريا تايمز ( راجع الرابط )
لااصدق هذا الكلام مستحيل .. مستحيل شركة بوينغ تغير في هيكل طائرة جبارة عشان اخرتها مافيه تغير على البصمة الردارية

لااصدق هذا الكلام مستحيل .. مستحيل شركة بوينغ تغير في هيكل طائرة جبارة عشان اخرتها مافيه تغير على البصمة الردارية

هناك تغيير بالطبع .. ولكن لا يصل للمستوى المأمول منه .. وخاصة ان وضعنا هذه التعديلات ( المضافة ) في مقارنة بدن مبني من الاساس ليكون Stealth

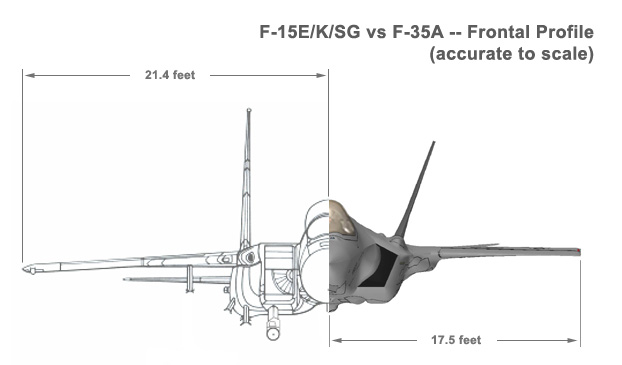

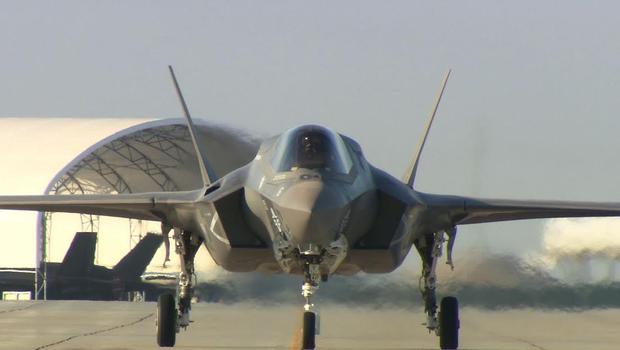

هذه الصورة تبين الفرق بين الاف 35 والاف 15 العادية

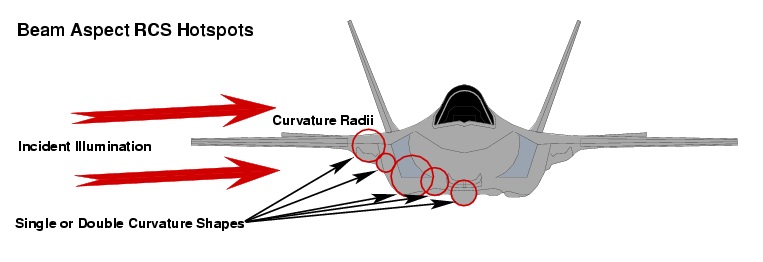

لاحظ حتى فتحات المحرك ( المستطيل وصاحب الزوايا الحاده ) , الذيل العمودي والمائل , الحجم والتصميم ككل





هذا كـ Clean Configuration

اما ان تم نزع حاويات الاسلحة الداخلية ( ولم يتم اعتماد الذيل المائل كمعيار تصميمي رئيس ) فان السايلنت ايجل ستكون ( هيكليا ) لا تفرق عن الطرز الاقدم من الاف 15 الا ببعض النظم والتحسينات الممكن اضافتها للطرز الاقدم ( مثل تحسينات المحرك , الافيونكس , نظام fly by wire وغيرها من التطويرات )

الحاويات ايضا تضع قيودا على حمولة الاف 15 التقليدية الكبيرة ..

هناك تغيير بالطبع .. ولكن لا يصل للمستوى المأمول منه .. وخاصة ان وضعنا هذه التعديلات ( المضافة ) في مقارنة بدن مبني من الاساس ليكون Stealth

هذه الصورة تبين الفرق بين الاف 35 والاف 15 العادية


لاحظ حتى فتحات المحرك ( المستطيل وصاحب الزوايا الحاده ) , الذيل العمودي والمائل , الحجم والتصميم ككل





هذا كـ Clean Configuration

اما ان تم نزع حاويات الاسلحة الداخلية ( ولم يتم اعتماد الذيل المائل كمعيار تصميمي رئيس ) فان السايلنت ايجل ستكون ( هيكليا ) لا تفرق عن الطرز الاقدم من الاف 15 الا ببعض النظم والتحسينات الممكن اضافتها للطرز الاقدم ( مثل تحسينات المحرك , الافيونكس , نظام fly by wire وغيرها من التطويرات )

الحاويات ايضا تضع قيودا على حمولة الاف 15 التقليدية الكبيرة ..

الحاويات في المعارك الجوية ستفيد بشكل كبير .. فحسب علمي البصمة الراداريةلاتقتصر على الطائرة فحسب بل حتى الحمولة تزيدها اذن تصور هذا النموذج ..
رافال مدججة بالحمولة وf-15 بالذيل المائل وحاوية تحمل اسلحة جو-جو فمن ستكون بصمته الرادارية اكثر
رافال بتصميم يقلل من البصمة الرادارية + حمولة
F-15 بتصميم يقلل البصمة الرادارية نسبياً +حاويات تخفي الحمولة
من اقل ؟
سؤال عن الحاويات ، كم صاروخ تحمل على كل جانب ؟ وهل هناك حاويات على البدن ؟

عودة
أعلى
