الرافال تحصل على رادار 10.000 مديول

رد: الرافال تحصل على رادار 10.000 مديول

Thales has been working with United Monolithic Semiconductors (UMS), a Franco-German enterprise owned by EADS and Thales, developing and producing microwave T/R modules. UMS optimized the gallium arsenide modules forming the radar’s antenna

http://defense-update.com/features/du-1-07/aesaradar_rafale.htm
ركز فى هذا الجزء ياقناص
GaN is also one of the very first research areas to receive funding from the European Defence Agency (EDA) under a 40 million [euro] programme called Korrigan that brings together 23 companies and laboratories in seven countries to accelerate the development of one or more European GaN foundries with associated supply chain by 2009. The programme leader is Thales Airborne Systems. Other participants include EADS, Selex Sistemi Integrati, Saab Ericsson and BAE Insyte. Their role initially is to define requirements for the foundries, before becoming directly involved, from 2008 onwards, in integrating the microchips into a variety of specialised modules covering a range of land-based and airborne radar applications, as well as self-protection or offensive jammers
http://findarticles.com/p/articles/mi_hb3126/is_688/ai_n29358266/.

رد: الرافال تحصل على رادار 10.000 مديول

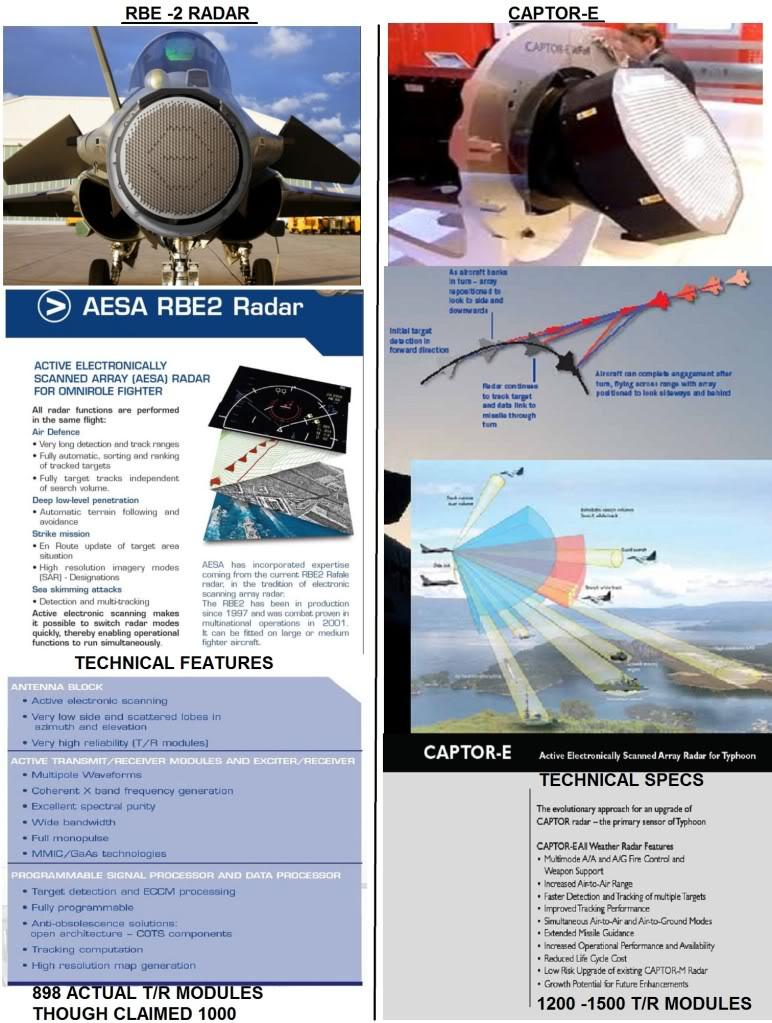

من هي شركة مصنعة لرادار RBE2 AESA اليست THALES

http://www.thalesgroup.com/Pages/PressRelease.aspx?id=7130&LangType=1036

ام تريدني ان اكذب شركة مصنعة لهدا رادار و اصدق كلام مواقع اخرى

استاذى العزيز

هلا راجعت ذلك الرابط و الجزئية الخاصة بالرادار

فهو يذكر بوضوع البدء عام 1997 اول رادار rbe2 aesa من تاليس و صاحب المصدر شكرة داسو

http://www.dassault-aviation.com/fi...teur/AUTRES_DOCS/Fox_three/Fox_Three_nr_8.pdf

رد: الرافال تحصل على رادار 10.000 مديول

Mercredi après-midi, le ministre de la Défense et des Anciens combattants s’est rendu à Étrelles sur le site de Thales Microelectronics. Pendant une heure, il a visité les locaux avant de signer le certificat « 10 000e module actif produit », élément utilisé dans la construction de l’avion de chasse Rafale
معنى الكلام صناعة 10000 موديول كإنتاج إجمالى ولايوجد مايشير أنها تخص رادار واحد يا حج محمد


بعد اعادة الترجمة


فى نقطة ال10.000 ميديول

كلامك صحيح اخى الفاضل :a030[2]:

رد: الرافال تحصل على رادار 10.000 مديول

استاذى العزيز

هلا راجعت ذلك الرابط و الجزئية الخاصة بالرادار

فهو يذكر بوضوع البدء عام 1997 اول رادار rbe2 aesa من تاليس و صاحب المصدر شكرة داسو

http://www.dassault-aviation.com/fil...three_nr_8.pdf
انا ما يهمني ما دكرته شركة مصنعة لهده رادار
تاليس بموقعها هي مصنعة rbe2 aesa تقول بموقعها انها بدات بتطوير هدا رادار في تسعينات يعني دراسات و ابحاث و قامت باول تجارب في مختبراتها على rbe2 aesa سنة 2002 و 2003 و في سنة 2004 قامت dga بتوقيع عقد مع تاليس لصناعة اول بروتوتيب
و في سنة 2006 قامت تالس بصناعة اول رادار rbe2 aesa مزود ب 1000 مديول مصنوع بتقنية gas
و قامت بتوريد اول رادار rbe aesa 1000t/r modules gas الى شركة داسو سنة 2010 و شركة داسو قامت بدمجه بطائرات رافال سنة 2011 و ستسلم اولى طائرات رافال التي تعمل برادار ايسا الى قوات فرنسية هده سنة طلبية تشمل 60 طائرة

رد: الرافال تحصل على رادار 10.000 مديول

كما قال الاخ صقر يبدو ان العدد 10 الاف هي إجمالي ما تم انتاجه كمرحلة اولى ربما .. وبالنسبة لعمليات تطوير الايسا الفرنسي فهي فعلاً ووفق لأكثر من مصدر قد بدأت في تسعينيات القرن الماضي ... ما هي اخر الاخبار المتوافرة يا شباب عن زيادة اعداد المديول ؟؟

رد: الرافال تحصل على رادار 10.000 مديول

للاسف يا اخ محمد عزت انت تريد النقاش العلمي
وبعض الاخوة يتكلمون بالعاطفة والتكهنات وانها صعبة المنال لذلك نري حجج فاضية لا معني لها
انتظرني لي عودة

رد: الرافال تحصل على رادار 10.000 مديول

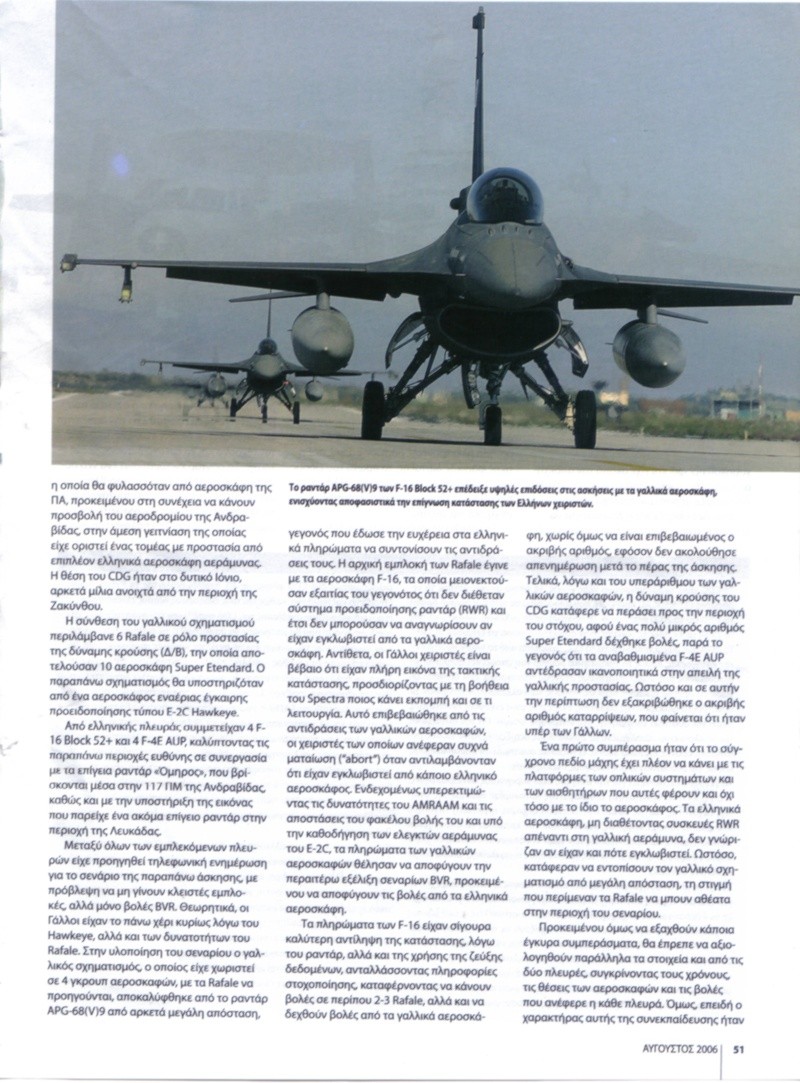

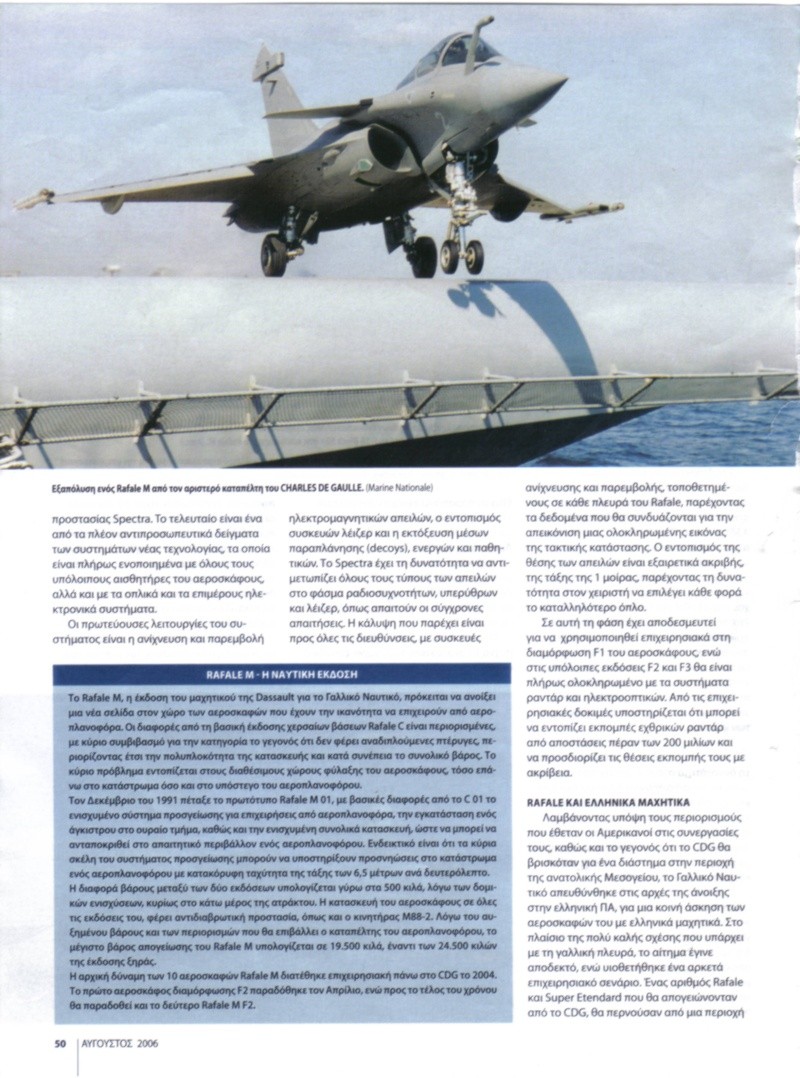

RAFALE VS F-16 BLOCK52+


May 9 2011 at 6:11 AM
No score for this post



The HAF pilots of the F-16 block52+ and F-4E AUP had the chance to train with the Rafales M of the CHARLES DE GAULLE which visited Greece


4 Rafale M(marine) F1(T1) from the CDG aircraft carrier square-off against 4 F-16 blk 52+. A Greek Erieye was feeding info to the French ACC, and monitoring the simulated battle for the Greeks. The BVR tactics of the Frech were not impressive, and after some succesful and unsuccesful launches, the Greeks were in the "no-escape" zone of their AIM 120's. The Greeks had a high percentage of launches to downings, while the French percentage was lower, but with a higher range. The Rafales can also fire on 4 targets simultaniously, while the F-16 can fire only on 2. The Rafale can track 40 targets, with prioritizing. All in all, any advantages that the Rafale's have were deemed as marginal in this AA batle with the blk 52+.



Also said the French had a fairly serious problem with the mission computer, but that was the only problem. The capabilities of the radar to locate targets, and the ECM and ECCM suites are very impressive, capable of giving a complete view of the operational combat environment without AWACS. It can locate enemy radar signals to their precise location from over 200 miles away. F2 and F3 will have many vast improuvements from experience gained from the F1.


the Rafale has also had a chance to train against US ACC, with F-14's and F-18's, as well as the F-16's. The F-14 and F-18's were easy prey. Afgainst the F-18's, the Rafale's easily out-maneuvred the F-18. The US did not want to engage the French at BVR, not wanting to compare AIM-120's to Mica's.





the aircraft our boys faced were M version F1standard


the major points....





1) The lack of RWRs in the F-16s was a problem; the French fighters aborted when they detected a lockon; the Greek fighters were not able to do that.


2) The F-16's AGP-68(V)9 worked extremely well and gave the HAF the ability to detect the French from quite a long distance and coordinate maneuvers at long range via Link-16


3) Due to its PESA architecture, RBE2 range is inferior to AESA; based on performance in the exercise HAF estimates its range is not superior to the [mechanically scanned] AGP-68(V)9. However the RBE2 was, as expected, more flexible, giving it the ability to track more targets simultaneously.


4) The French requested a second exercise after the conclusion of this one, which speaks well of 115CW and its F-16 Block52+


5) The ECCM of the 52s worked smoothly when the Rafales used their Spectra ECM system. The active jamming on the Rafales was not able to break the lock of the APG-68(V)9s.


6) The French pilots reported all their shots as a shoot-down regardless of range. The HAF improved its performance placing the majority of its shots in the "Noescape" zone of the AMRAAMs. So the French aircraft got more shots, but the HAF's ones were much more likely to result in an actual kill.


7) In all,the Rafale showed a marginal superiority but with a large numbr of low PK shots ow probability of success , unlike the Block 52s which achieved fewer shots but all in their missiles' no escape zone. All in all, the Rafale had only a marginal advantage in this exercise with the blk 52+.




Certainly, the HAF aircraft in no way dominated the Rafales. But the Rafales' performance fell far short of the claims often made about it.


8)one of our EMB-145H worked closely with the CDG carrier,testing its Link16 and Link11...After its take-off from its base,established a connection within 10 mins with the French carrier ...thus certifying its capabilities in net centric ops ,something usefull other co-trainings with the French in the future
http://www.strategypage.com/militaryforums/6-54927/page19.aspx
لي عودة​

رد: الرافال تحصل على رادار 10.000 مديول





لي عودة

رد: الرافال تحصل على رادار 10.000 مديول

PARIS --- The Anglo-French defense initiative announced last week did not mention bilateral cooperation on aircraft carriers because Britain still has to firm up its intentions in this field, according to France’s top weapons buyer.

Lauren Collet-Billon, head of the Direction Generale de l’Armement, said during a Feb. 22 press conference here that Britain still has to finalize its aircraft carrier plans, including major technical options such as the kind of catapults it wants to fit to its new aircraft carriers, and what kind of aircraft these ships will finally operate. Initially, Britain wanted to buy the F-35B STOV/L variant to replace its Harriers, but subsequently shifted to the F-35C carrier variant which, like the entire program, has run into substantial technical difficulties.

The F-35 “is an ambitious program, and like all ambitious programs it faces a number of challenges,” Collet-Billon said, adding that bilateral cooperation in the field of aircraft carriers will depend on how British programs.

“If one day we have to lend Rafale Ms to the Royal Navy, why not? Personally, I’d find that very pleasing,” Collet-Billon said.

Speaking during and after DGA’s annual results press conference, Collet-Billon and other DGA officials provided details on ongoing armament programs.

-- Britain and France have nearly completed negotiations on their joint Anti-Navires Léger (ANL) lightweight anti-ship missile program, and expect a development contract to be awarded to MBDA this year, and possibly in a matter of months.

-- The French army fully intends to buy the Watchkeeper UAV developed by Thales UK for the British Army, but this will be preceded by an in-depth evaluation. French army crews will train in Britain this year to operate the system, and will then evaluate Watchkeeper on French territory next year, with a view to awarding a procurement contract by late 2013.

-- A French order is imminent for minirobots and drones for combat engineer units, which will use them for itinerary reconnaissance and clearing.

-- Two contracts will be awarded as part of Anglo-French cooperation on UAVs. The first, worth about 50 million euros, will cover the assessment phase of the MALE drone, whose service introduction is planned around 2020. This contract will be awarded by France’s DGA on behalf of both countries, and will be overseen by a joint project office based at MoD’s procurement wing in Bristol. The goal is to firm up the project’s specifications, the industrial framework – including subcontractors and suppliers - and the development and production plans so the manufacturers will submit an offer for a fixed-price development contract by the end of 2012 or early 2013.

-- The second contract, worth about 10 million euros, will fund the initial specifications of the UCAS combat drone. It will define an unmanned combat aircraft that will follow on to the Neuron demonstrator project managed by Dassault Aviation.

-- Although it may buy tanker capacity from the Royal Air Force “if the flight hour price is affordable,” France intends to buy its own fleet of A330 tankers which are required to support the French air force’s sovereign nuclear strike mission. These will be ordered in 2013.

-- Collet-Billon was dismissive of a future role for EADS in French UAV programs. When asked if the company and DGA were still talking on the subject, he noted that EADS had provided French forces with the Harfang UAV, “and we are in constant dialogue at least on this subject.”
http://rafalenews.blogspot.com/
المملكة المتحدة تفكر في الرافال لبحريتها

رد: الرافال تحصل على رادار 10.000 مديول

إضافة ممتازة أخي محمود ,,

rafale m(marine) f1(t1)

يبدو ان هذه المواجهات حدثت مع النسخة القديمة من الرفال وهي الـf1

وكما يقول المقال المشكلة الوحيدة التي واجهها الفرنسيون كانت في كمبيوتر المهمة ..
also said the french had a fairly serious problem with
the mission computer, but that was the only problem.



The capabilities of the radar to locate targets, and the ECM and ECCM suites are very impressive,

وكما نرى هنا كلام عن قدرة ملفتة للنظر لهذا الرادار في تحديد الاهداف وقدرات ECM و ECCM ..

رد: الرافال تحصل على رادار 10.000 مديول

انظر يا اخي تم حل المشاكل التقنية في صفقة الامارات الرائعة(المشاكل التقنية والمالية)
UAE, Rafale deal technical and financial terms finalized
This week Air & Cosmos magazine confirms that all the technical and financials terms of the Rafale sale to the UAE have been settled.
The contract signature would now
, only depend on a state to state defense agreement.

Earlier this month, the National was quoting Maj Gen Khalid Al Buainnain, former commander of the UAE Air Force :

"The technical and financial and contractual discussions have been completely finished. We're … working out how we can smooth out this contract."
http://rafalenews.blogspot.com/2012/02/uae-rafale-deal-technical-and-financial.html

رد: الرافال تحصل على رادار 10.000 مديول

سعر صفقة الهند 10 مليار يعني اذا حسبناها 10/126 = 79 مليون دولار
نري بعض الاخوة تشطح خيالاتهم لدرجة اني وجدت احدهم يقول ان سعر الرافال وصل 150 مليون اورو تخيل
India picks French jet over Eurofighter in $10bn deal
Dassault Aviation, as preferred bidder, will now enter final talks before signing a deal that will supply India's air force with 126 Rafale aircraft.
Correspondents say this is one of the world's biggest defence deals and is a major setback for rival bidder, the Eurofighter Typhoon.
Eurofighter lost out in December on an $8bn deal to supply jets to Japan.
http://www.bbc.co.uk/news/world-asia-india-16809532

رد: الرافال تحصل على رادار 10.000 مديول

سعر صفقة الهند 10 مليار يعني اذا حسبناها 10/126 = 79 مليون دولار
نري بعض الاخوة تشطح خيالاتهم لدرجة اني وجدت احدهم يقول ان سعر الرافال وصل 150 مليون اورو تخيل
india picks french jet over eurofighter in $10bn deal
dassault aviation, as preferred bidder, will now enter final talks before signing a deal that will supply india's air force with 126 rafale aircraft.
Correspondents say this is one of the world's biggest defence deals and is a major setback for rival bidder, the eurofighter typhoon.
Eurofighter lost out in december on an $8bn deal to supply jets to japan.
http://www.bbc.co.uk/news/world-asia-india-16809532


ألن تشمل الصفقة التدريب وإقامة مصنع لتجميع هذه المقاتلات في الهند أيضاً ؟؟ .. بالاضافة إلى نقل تكنولوجيا يعني السعر ممتاز جداً .​

رد: الرافال تحصل على رادار 10.000 مديول

اظن لو الامارات طلبت نفس الامتيازات ستحصل عليها
الامارات تجلب اي تكنولوجيا في العالم علي ارضها فهي دولة جااااااااااااااذبة جدا للاستثمار
ولا تنسي الافعوانية الاكبر في العالم:yahoo[1]:

رد: الرافال تحصل على رادار 10.000 مديول

اخي عليك التفريق بين التجميع والتصنيع المشترك
فالهند ستجمع الرافال علي ارضها
وبينما الهند ايضا تصنع الباك فا مع روسيا
مثلا تركيا تصنع الاف 16 اذا هل يبق لها الحق في صنع ما تشاء او التصدير دون الرجوع للدولة الام
صدقني في الاول وفي الاخر الدولة الام هيا المتحكمة
+
صفقة الامارات شاملة التدريب والتسليح والدعم اللوجستي

رد: الرافال تحصل على رادار 10.000 مديول

بعد مراجعة موضوع الاخ ( الجلاد ) الخاص بتطوير رادار الرافال و نقاشنا بخصوص عدد المديولات

و كانت قناعتى الخاصة بتطوير فرنسا لنسخة خاصة فانها تغرد بعيد عن السرب

و بعديها عن الكثير من النقاشات اليكم الاتى



عم 1997 كان اول رادار ايسا فرنسى على جميلات فرنسا ا




ستجدوا التاريخ واضح


منذ 1997 وليس 2003





D e s i g n e d f r o m t h e o u t s e t t o
deploy an electronically scanned
radar, the Rafale is equipped
with the RBE2 radar from Thales.
In production since 1997, the
RBE2 is the first multi-function
electronic scanning radar developed for a combat aircraft.





و بعدها هل تتذكروا مشاركتى تلك




http://defense-arab.com/vb/showpost.php?p=651225&postcount=17





و الان فرنسا طورت رادار ب10.000 مديول للجميلة الرافال





Mercredi après-midi, le ministre de la Défense et des Anciens combattants s’est rendu à Étrelles sur le site de Thales Microelectronics. Pendant une heure, il a visité les locaux avant de signer le certificat « 10 000e module actif produit », élément utilisé dans la construction de l’avion de chasse Rafale.


رابط




وبعد ان نتاكد من هذا الرقم :walw[1]:

عن اى منافسة تتحدثون :yahoo[1]:


هههههههههههههه

ياااااااااااااااااراجل

الخبر بيحتفل برقم المنتج رقم 10000 من موقع التصنيع في مصانع تاليس

Eric Thorigné, ingénieur responsable de la production, reçoit le diplôme célébrant le 10 000e module actif produit par le site ; diplôme co-signé par le ministre Gérard Longuet (2e à droite) et Pierre-Eric Pommellet, senior vice-président des activités systèmes de mission défense (2e à gauche).

رابط

رد: الرافال تحصل على رادار 10.000 مديول

هههههههههههههه

ياااااااااااااااااراجل

الخبر بيحتفل برقم المنتج رقم 10000 من موقع التصنيع في مصانع تاليس



رابط

هههههههههههههه

علم يا استاذنا و جرى التنويه :yahoo[1]:
