بالعكس اكمل فمعرفة الأعداء والخصوم واجب على الكل وخاصة ان مشاركتك فيها معلومات وافيه وليس تطبيل

بانتظار الموضوع باللغة العربية لتحفيز الأعضاء على المشاركة وإبداء الرأي والملاحظات الفنية

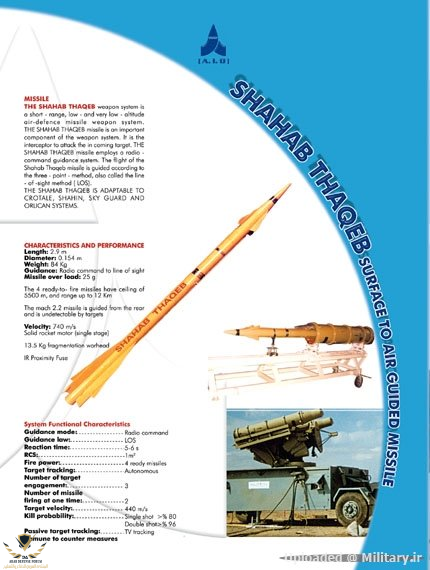

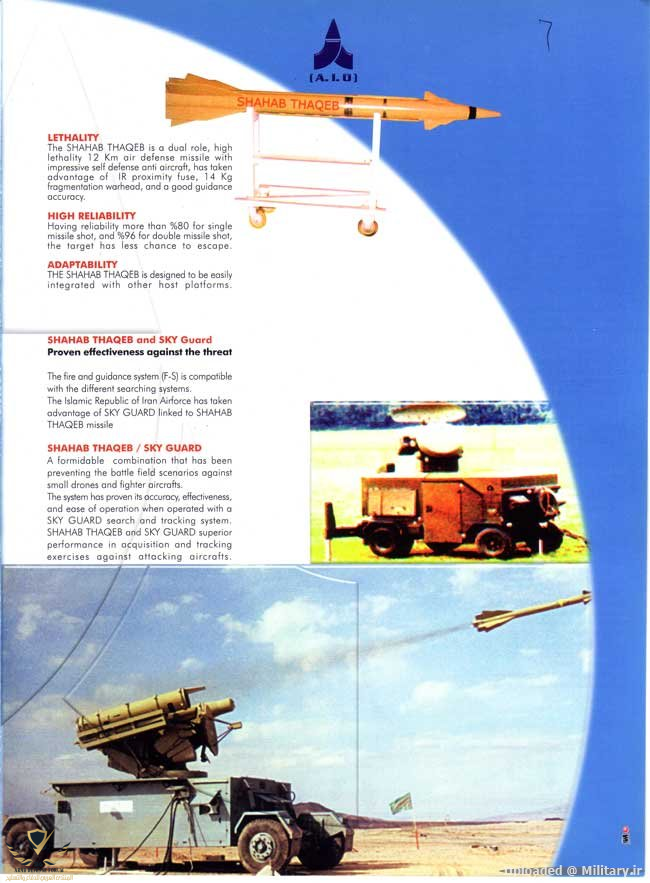

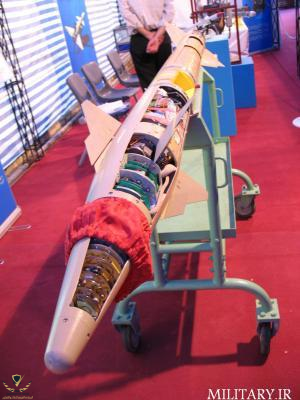

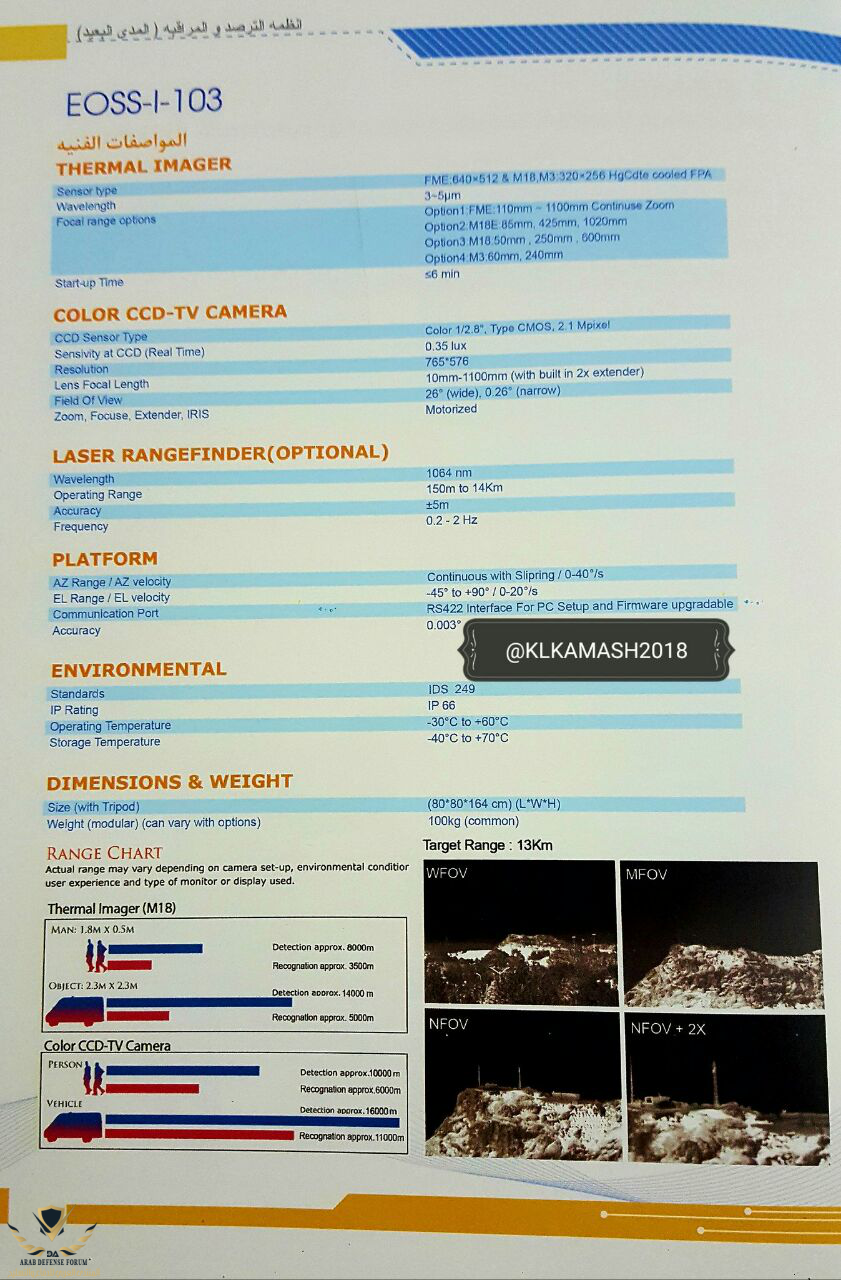

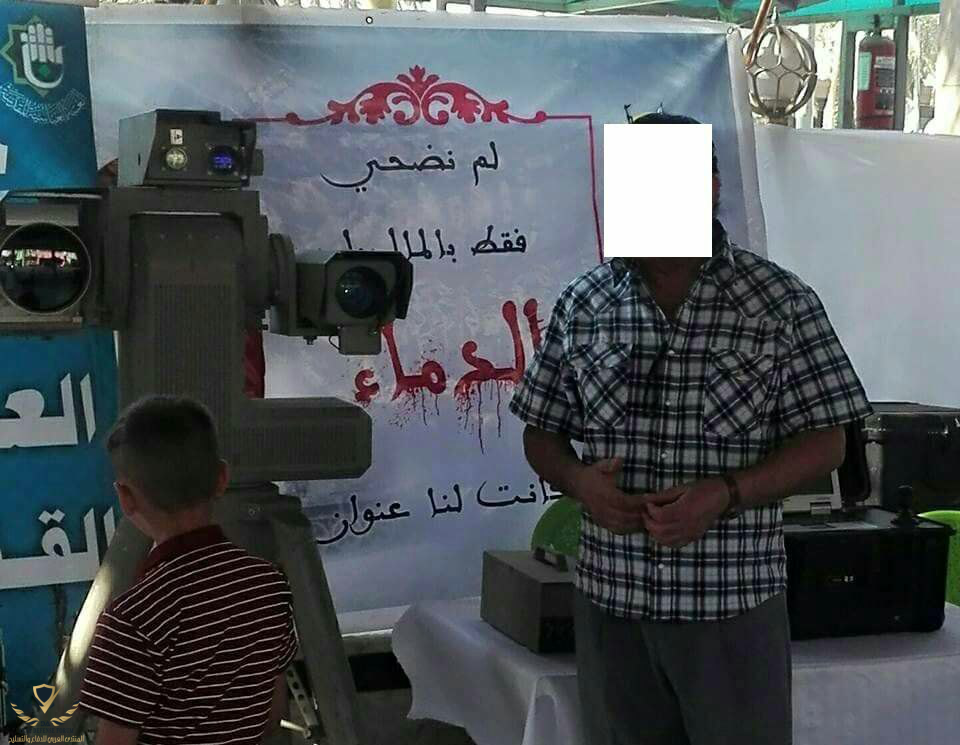

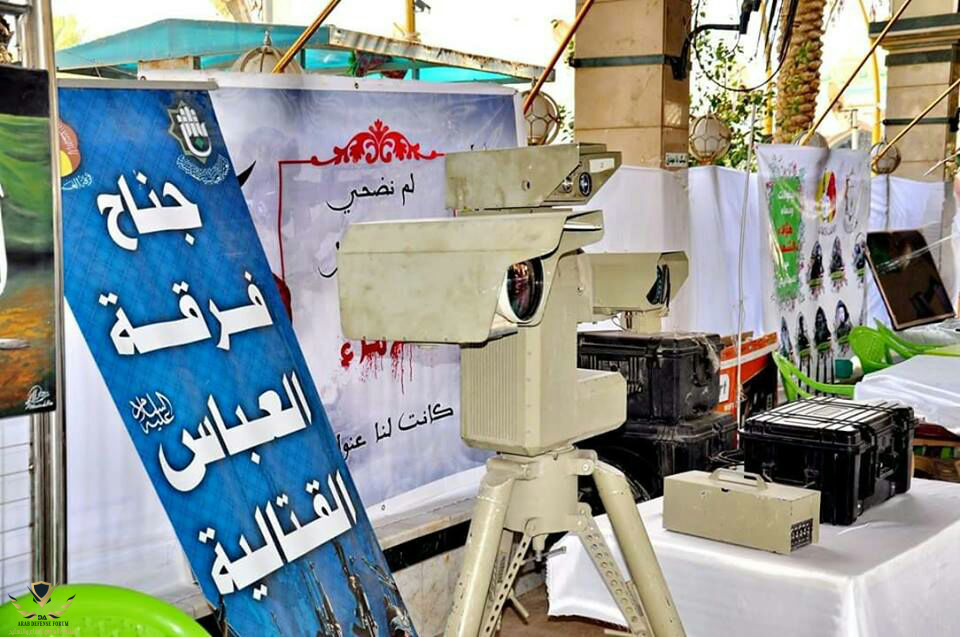

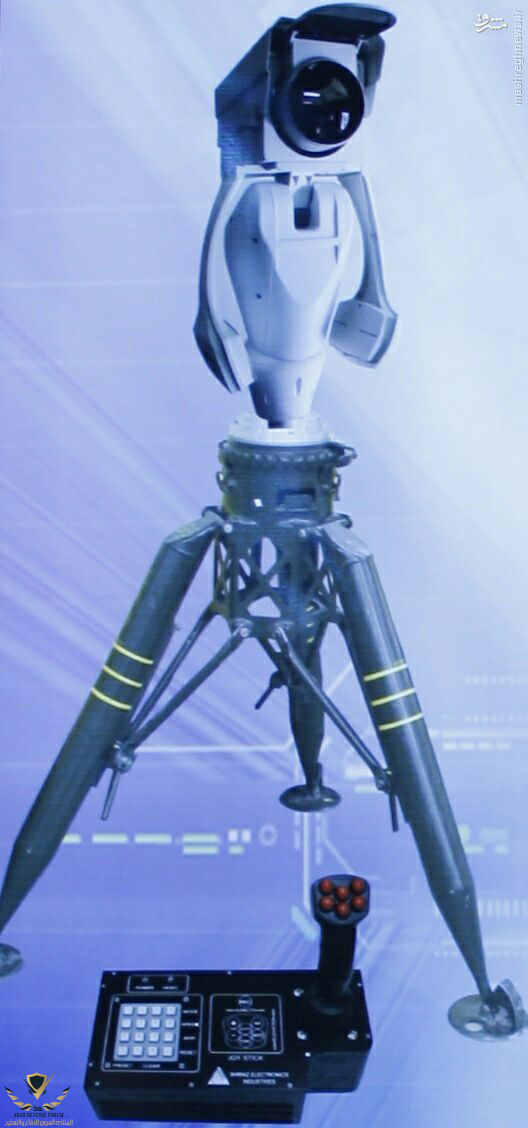

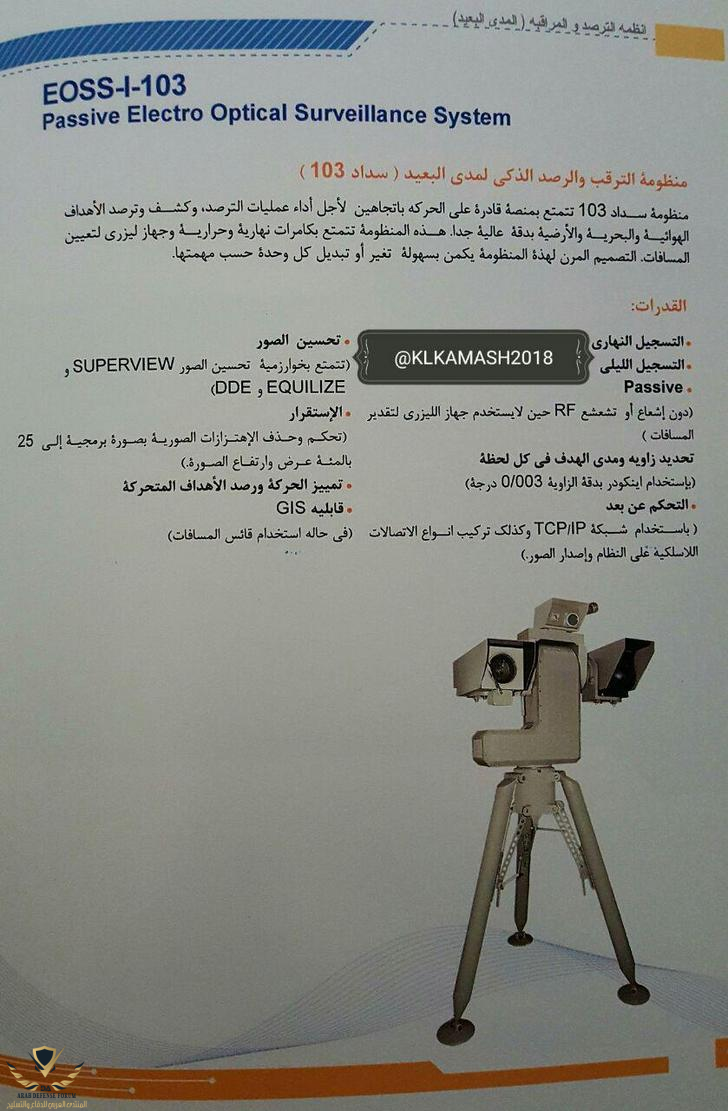

هناك منضومة محمولة مثلها
192199

192206


ضهرت لدى ميليشيات العراق

192200

192205


توفر لهم القدرة على مراقبة الطاءراة و المسيرات دون معرفة انهم مراقبون
و حتى لو وجدو مكانها و قصفوها هي يتم التحكم فيها عن بعد
يمكنك حتى الولوج لها عبر الحاسوب و الهاتف الذكي

هناك كثير من المنضومات اخرى ستحتاج موضوعها وحدها


192207



صدى الهزيم

سٌبحان من عمنا فضله
عضو مخضرم
إنضم
3 يوليو 2017
المشاركات
485
التفاعلات
1,568 5 0
الدولة
China
192222



القاعدة المستعملة كأنها قاعدة صاروخ تاو الذي قام الايرانيون باستنساخه

إنضم
13 فبراير 2018
المشاركات
7,882
التفاعلات
17,556 9 0
إنضم
13 فبراير 2018
المشاركات
7,882
التفاعلات
17,556 9 0

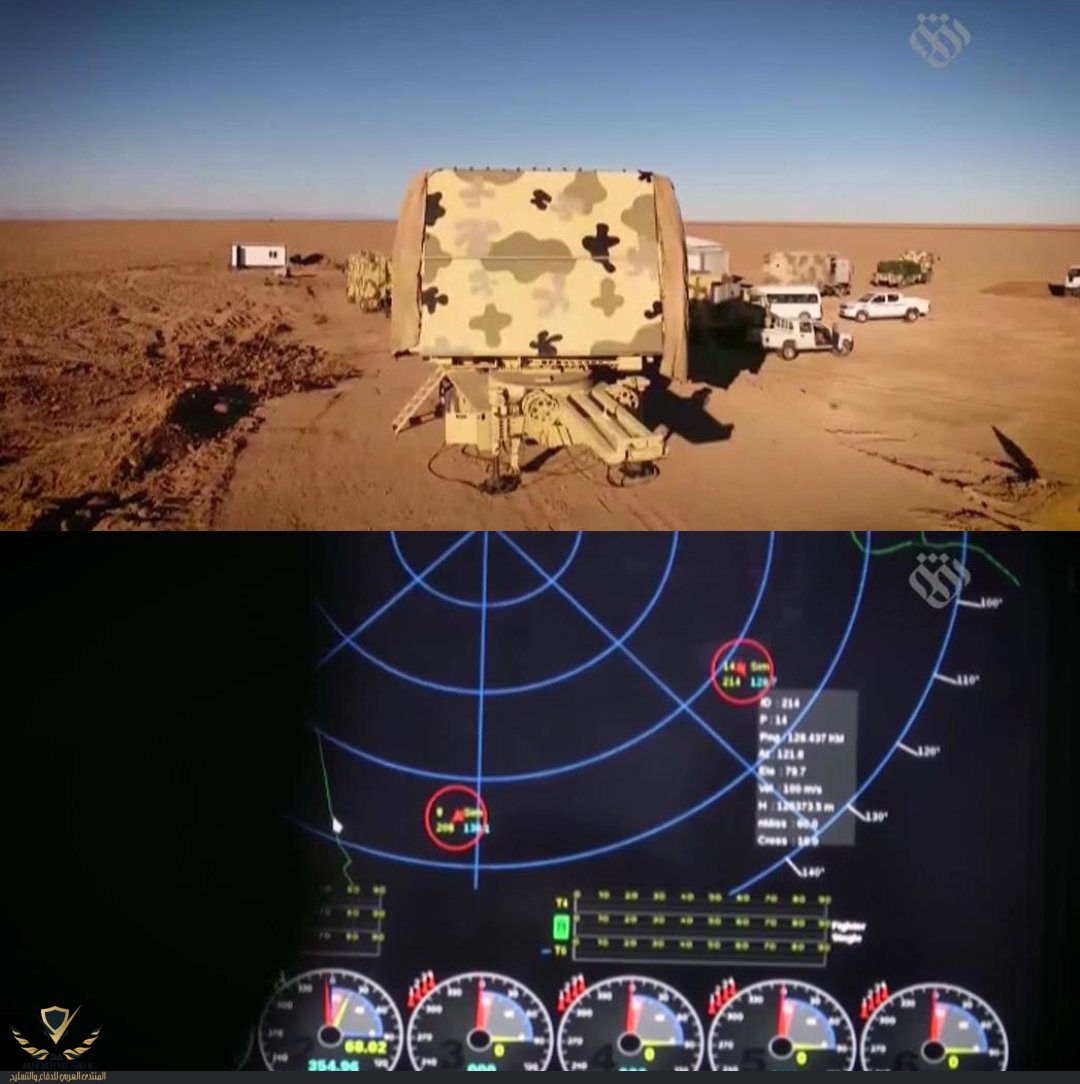

هذا الرادار بالضبط شارك في تطوير وحداته معهد ارميني خاص
كنت اضن انه ارميني الصنع لكن بعد البحث في قدرات المؤسسة و الستخدام المنطق ذلك مستبعد جدا
صدق او لا تصدق هناك ايضا مشروع رادار شارف على الإنتهاء يشبه الغرين باين​
طيب يا صديقي اطرح هذه التفاصيل في مواضيع مستقلة تكرما لا امرا
بانتظار كل جديدك


larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,285
التفاعلات
29,766 211 0
الدولة
Morocco

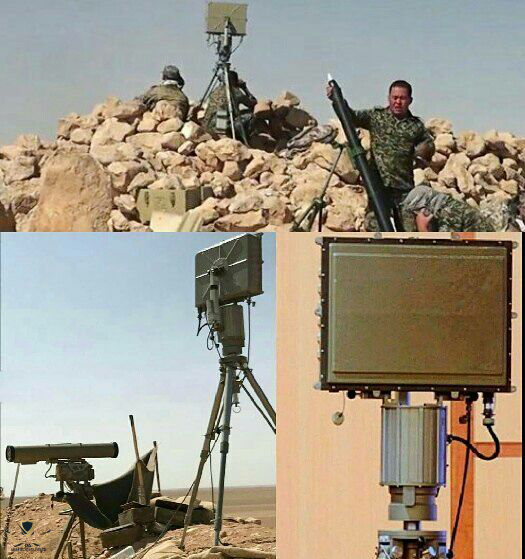

Iranian Ground Surveillance Radars in use by militias to detect ISIS terrorists

192225


larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,285
التفاعلات
29,766 211 0
الدولة
Morocco
note

there are many other variants of the two Ground Surveillance Radar
models that are shown in this thread with different performances​


larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,285
التفاعلات
29,766 211 0
الدولة
Morocco

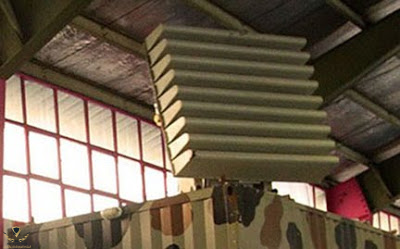

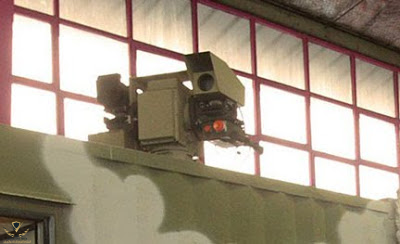

Mesbah-1 3D phased array radar

192285

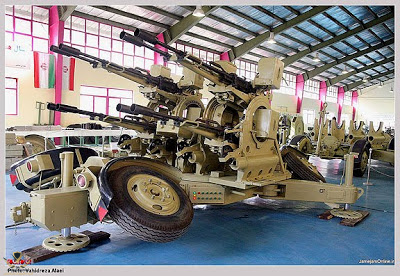

the radar is used to guide anti-aircraft artillery with a combination of an electro-optical system
192287


192286


larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,285
التفاعلات
29,766 211 0
الدولة
Morocco
the radars of the Mersad air defense system

192289


Kavosh, is an upgraded copy of the original AN/MPQ-50. The maximum range is increased to 150 km and an IFF system is added to the radar
192290

Hadi, is an upgraded version of AN/MPQ-46 with an additional EO system attached to it
The Hadi radar is equipped with an Electro-optical system to detect and track targets when the battlefield is affected by heavy jamming

the Mersad air defense system is also equipped with Hafez which is a 3D radar with 250 km range and ability to track 100 targets simultaneously
192291


this system also use the Joya CWAR to detect low flying objects
192293

التعديل الأخير:

larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,285
التفاعلات
29,766 211 0
الدولة
Morocco

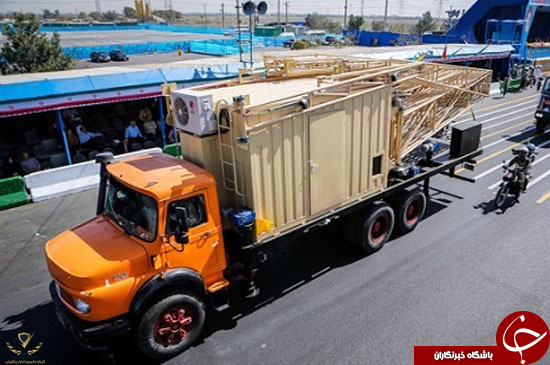

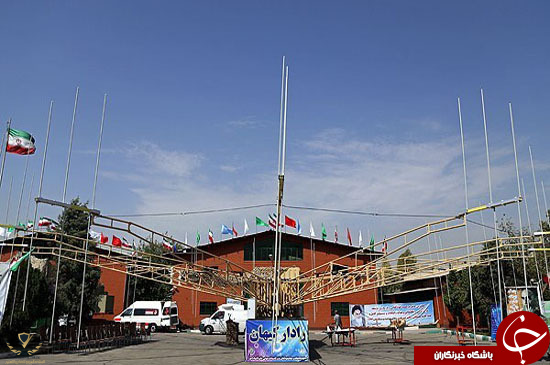

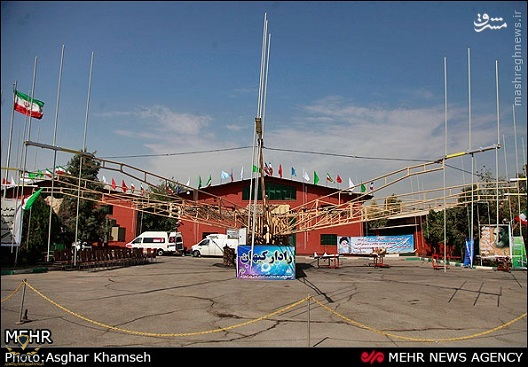

Keyhan radar system


192296

192297

192298


This radar is a 2D radar capable of detecting distance, angle, direction and radial velocity of targets and can detect and intercept aerial targets including conventional aircraft, submarines, cruise missiles, long-range stealth, bombers, and transport aircraft. according to Iranian officials, the radar was designed to detect high numbers of targets and decoys when under attack
According to press reports, operating radars in the HF frequency range are unique in the world

192299

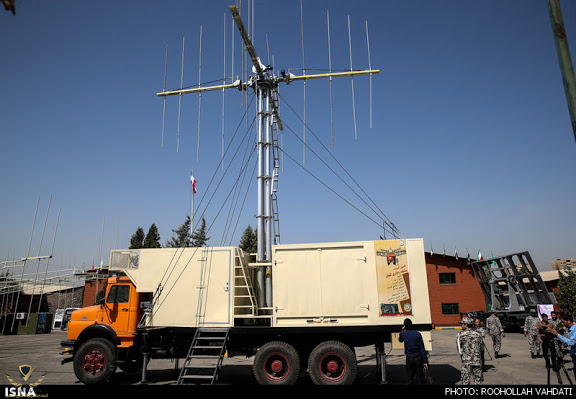

Keyhan-related radar receiver vehicle, equipped with receiver equipment, RF receiver, processing and control CPU


larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,285
التفاعلات
29,766 211 0
الدولة
Morocco
the radars of the Mersad air defense system

مشاهدة المرفق 192289

Kavosh, is an upgraded copy of the original AN/MPQ-50. The maximum range is increased to 150 km and an IFF system is added to the radar
مشاهدة المرفق 192290
Hadi, is an upgraded version of AN/MPQ-46 with an additional EO system attached to it
The Hadi radar is equipped with an Electro-optical system to detect and track targets when the battlefield is affected by heavy jamming

the Mersad air defense system is also equipped with Hafez which is a 3D radar with 250 km range and ability to track 100 targets simultaneously
مشاهدة المرفق 192291

this system also use the Joya CWAR to detect low flying objects
مشاهدة المرفق 192293

the Mersad air defense system uses an upgraded copy of the American hawk missiles

an image of the hawk missile seeker for reference

192405

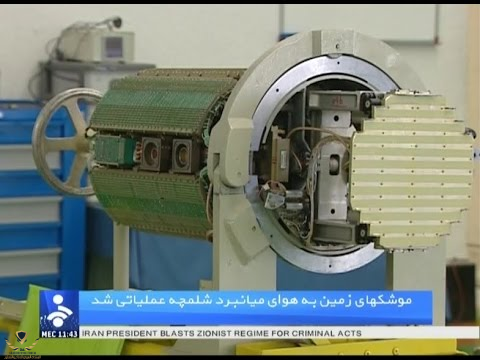

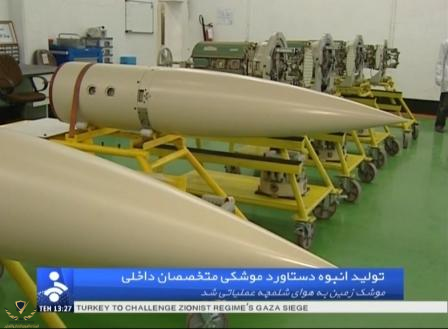

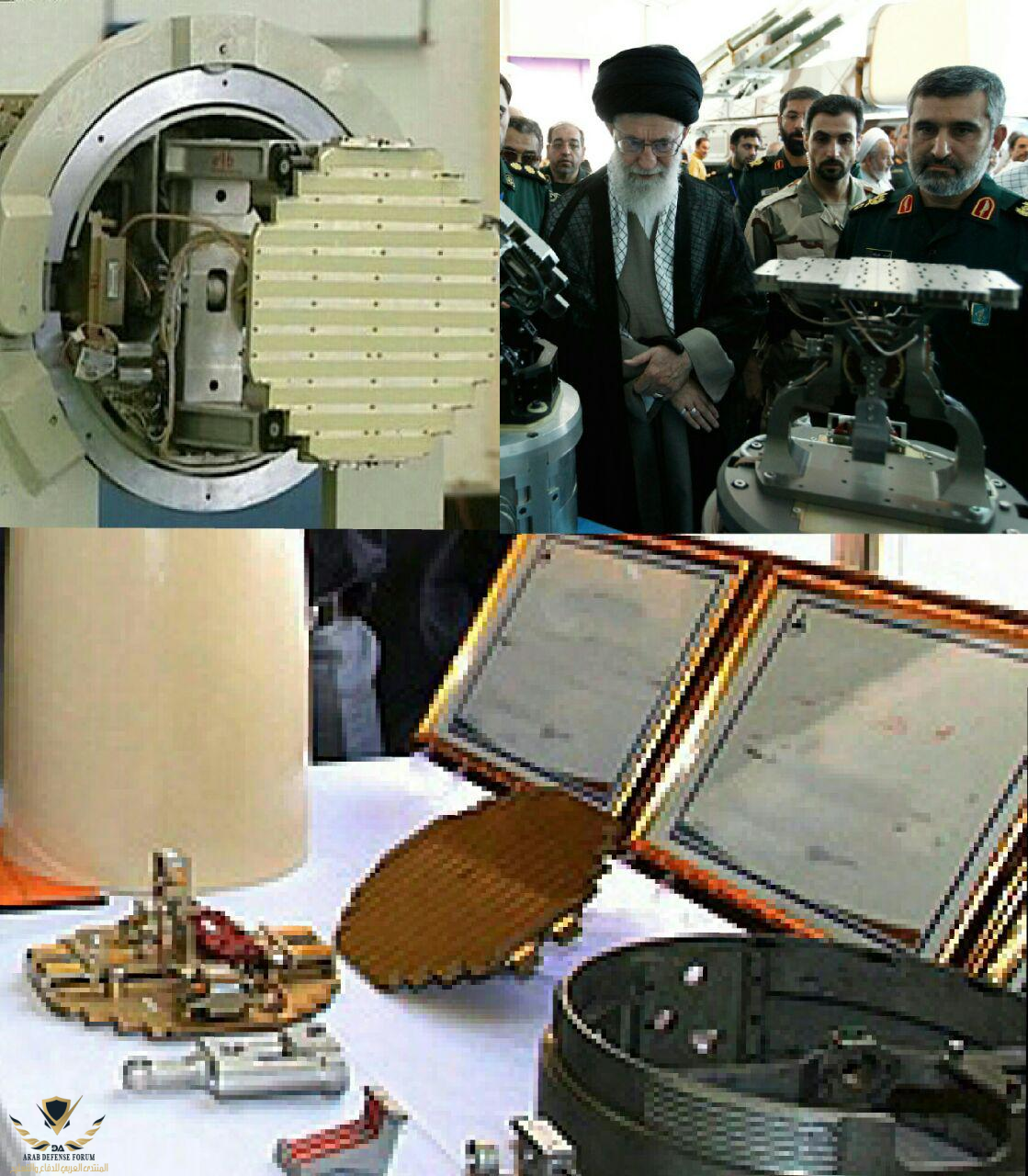

Shalamcheh missile seeker

192403
192404



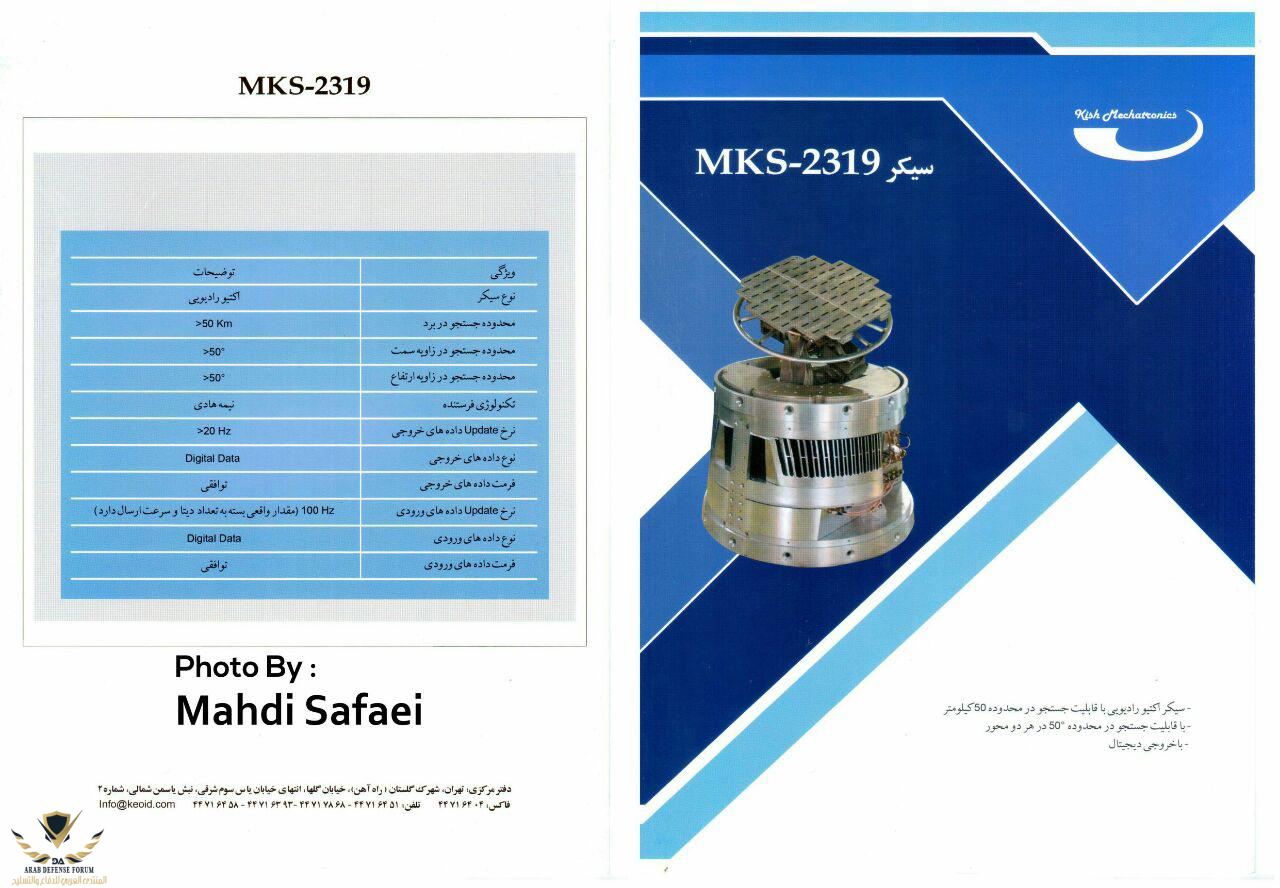

shahin Missile seeker

192408

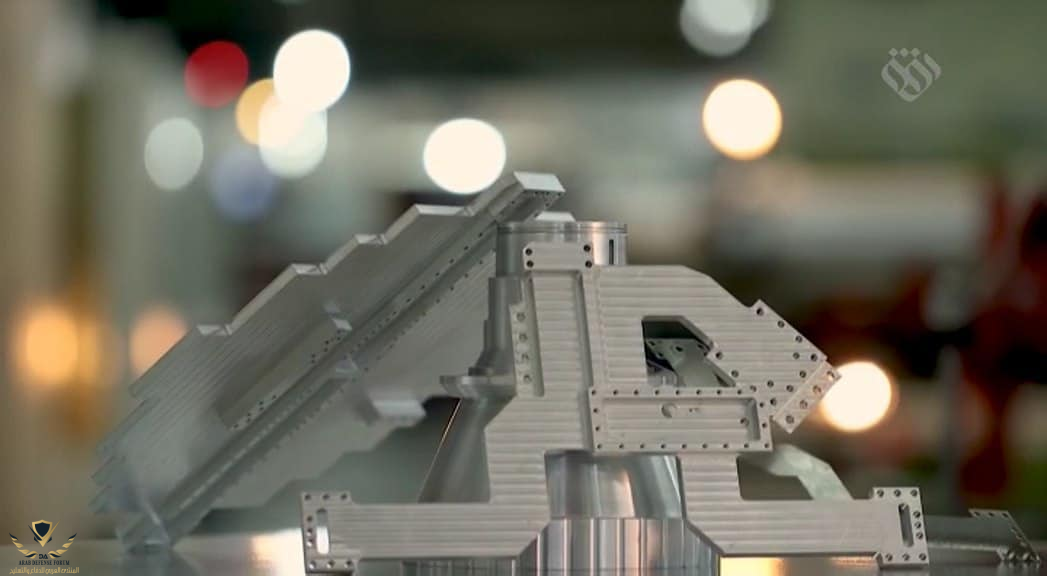

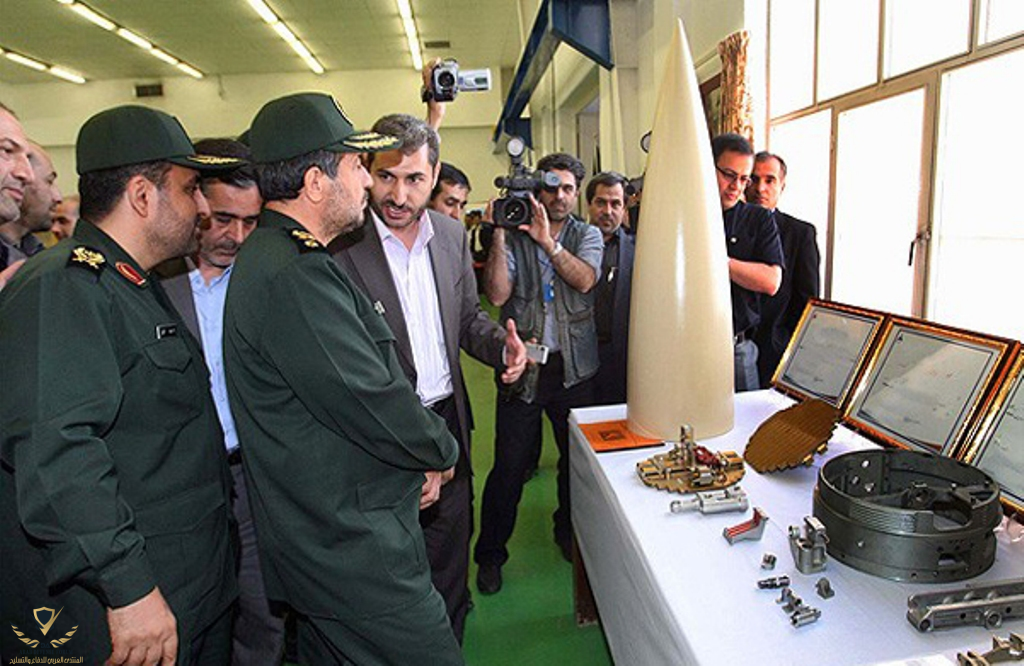

seeker base plate probably belonging to one of those missiles


192407


المرفقات

  • 1564622372763.png
    1.1 MB · المشاهدات: 15

larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,285
التفاعلات
29,766 211 0
الدولة
Morocco

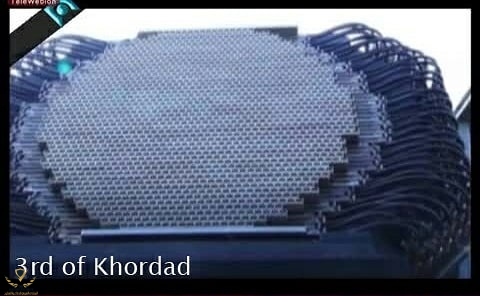

the Sevom Khordad air defense radar
192412

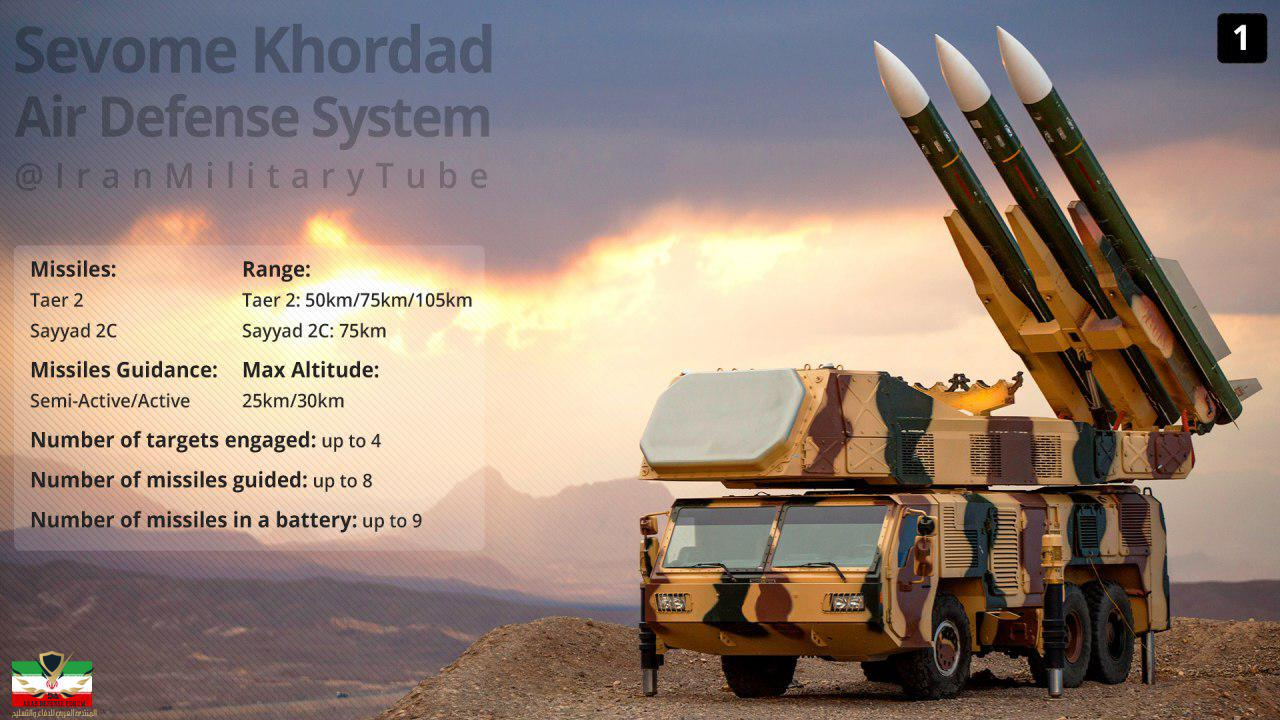

the Sevom Khordad air defense radar can control two launchers engage 4 targets and guide 8 missiles, with an estimated range of about 100 km
192413



larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,285
التفاعلات
29,766 211 0
الدولة
Morocco

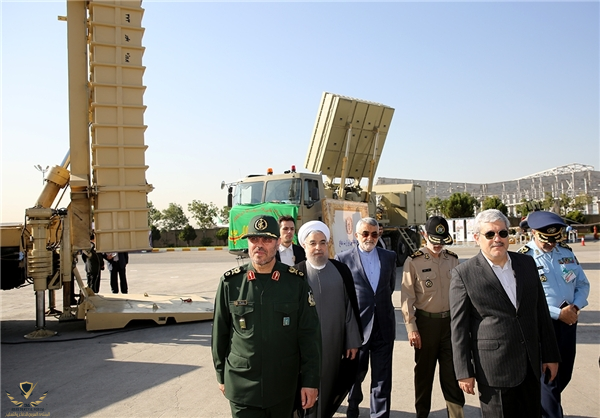

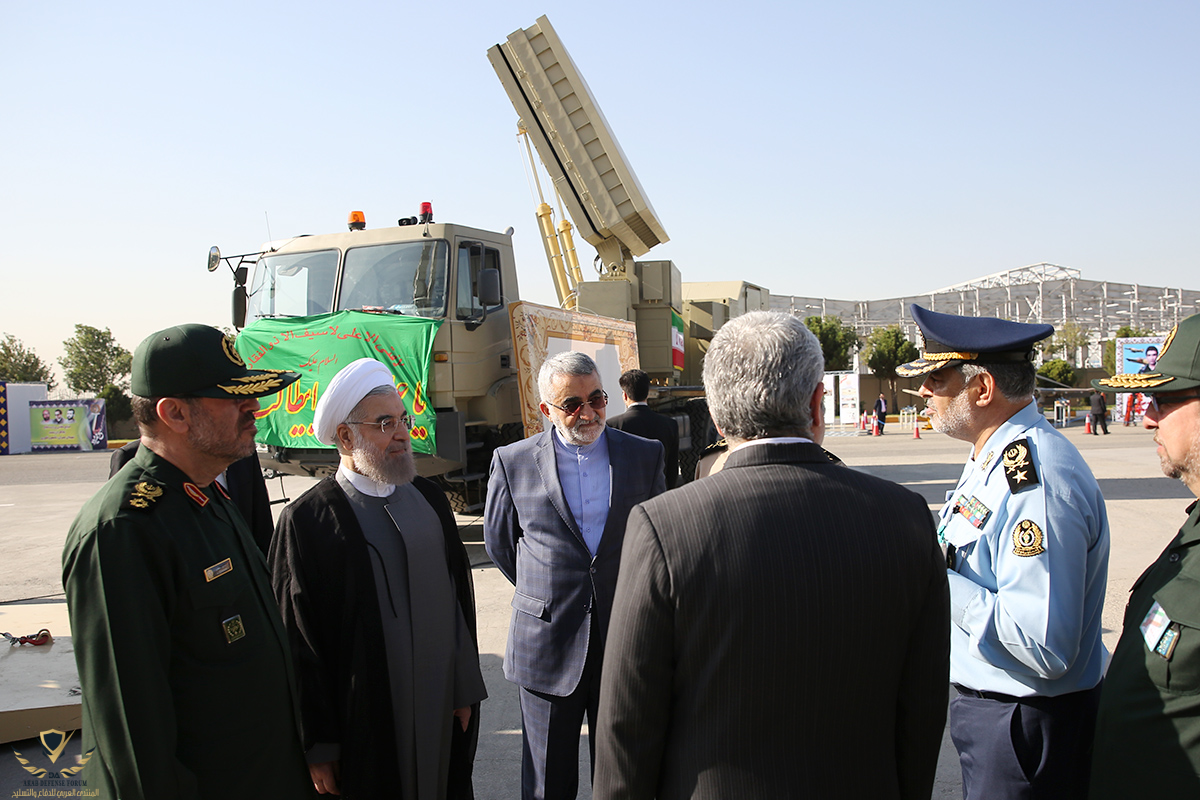

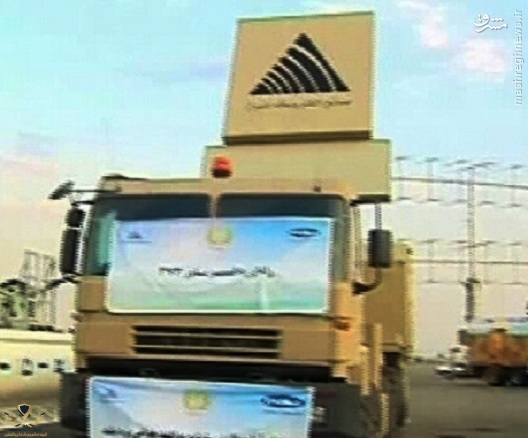

the engagement radar of the Bavar-373 air defense system
192414
192415
192416

we still don't know much about this radar other than its role in the new air defense system that is still under development


larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,285
التفاعلات
29,766 211 0
الدولة
Morocco
the Mersad air defense system uses an upgraded copy of the American hawk missiles

an image of the hawk missile seeker for reference

مشاهدة المرفق 192405


Shalamcheh missile seeker

مشاهدة المرفق 192403مشاهدة المرفق 192404


shahin Missile seeker

مشاهدة المرفق 192408


seeker base plate probably belonging to one of those missiles


مشاهدة المرفق 192407

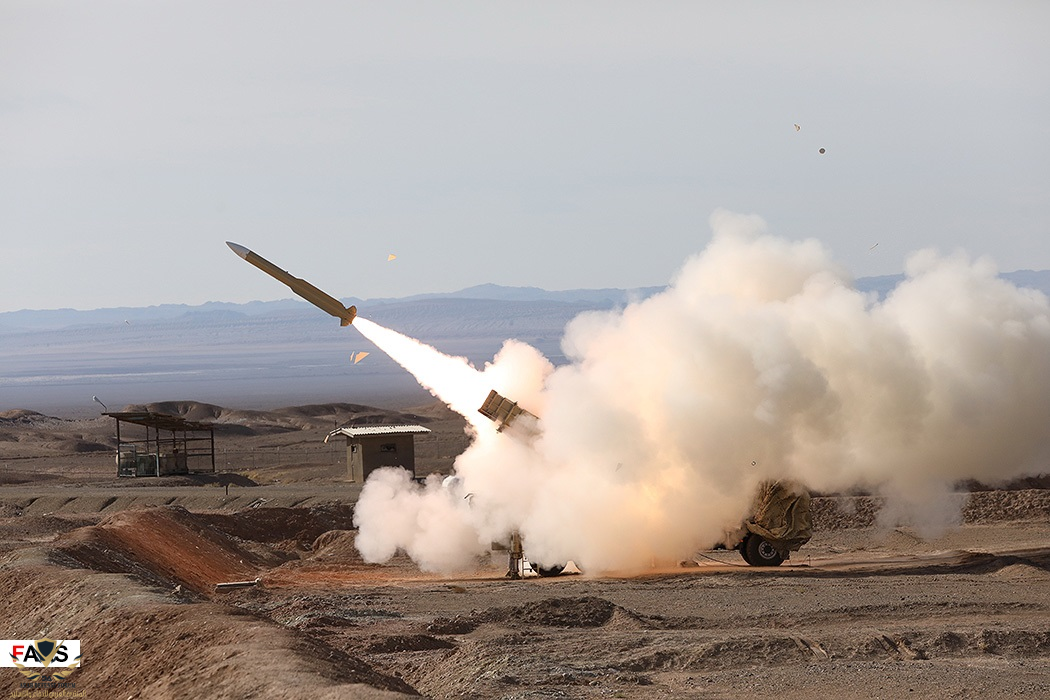

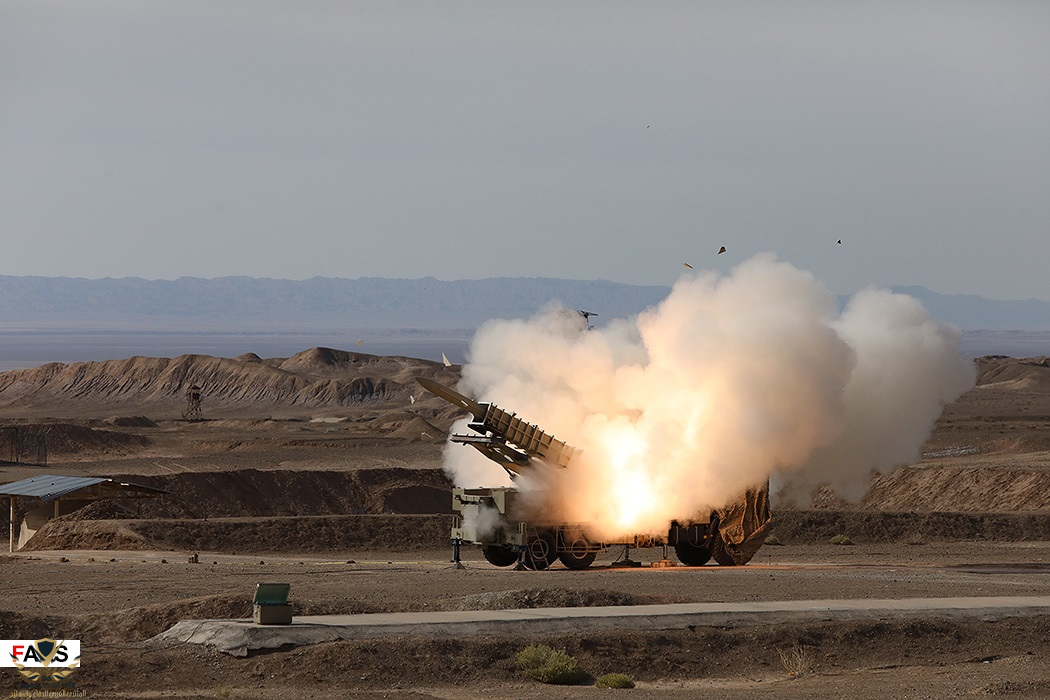

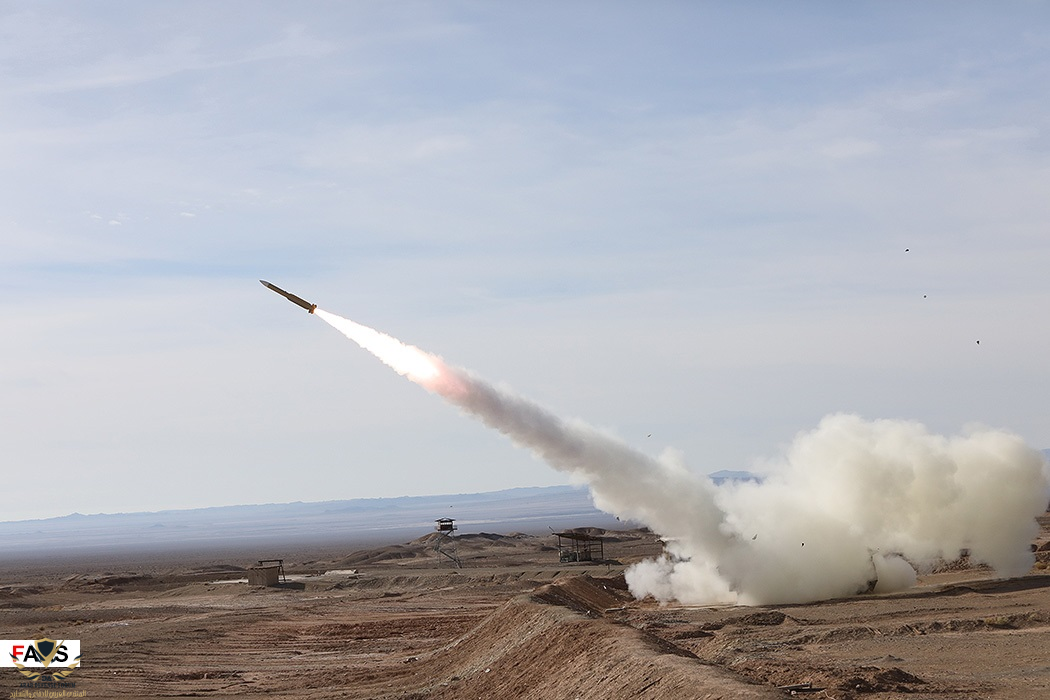

the missiles and launchers of the Mersad system have been replaced
193145
193146
193147


larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,285
التفاعلات
29,766 211 0
الدولة
Morocco
Fire Control Radar

MST-X fire control radar is responsible for detecting and tracking air and marine targets simulta- neously by using one search radar and two independent track radars in both normal and jammer conditions. The second track radar is combined with an electro optical system for better reliability in radar jamming conditions. Information of tracked targets including range, azimuth and elevation is sent to combat management system through a secure port so that calculations related to the future point are done by a ballistic computer and then, a rocket or a missile is fired against enemy targets. Stabilizer unit in the main radar compensates angular movements of the ship and provides a stable platform for radar antennas. This system acts as the main member of fire control system in warships.

Electro optical unit specifications

Vision camera

- CCD type: 1/2 inches, wavelength: 0.4 to 1 micron
- Sensitivity: 0.003 lux
- Horizontal resolution: at least 570 lines
- Number of pixel: at least 600*800
- Focal length: 10 to 1000 mm
IR camera
- Wavelength: 3 to 5 micron
- Resolution: 258*320
- Frame frequency: 25
- Field of view: narrow: 1.7*2.3 and wide:5.5*6.9
- IFOV: 0.1 mr
Target range finder
- Wavelength: 1540 micron
- Range: 0.5 to 18 km
- Accuracy: 5m
- Repetition frequency: 12.5 Hz
- Resolution: 14 bit
Target Designator
Optical site Day Vision
- Zoom: 3 Times
- Accuracy on 100 meter: 13 millimeter
- Visibility : 11 meter on 100 meter
- Optical opening Diameter: 32 millimeter
- Reticle Color: Red , Green , Blue
Optical site Night Vision
- Visibility : 40 Degree
- Resolution: 0.76 Cycle per Mill radian
- Diopter Adjustment: (+2 to -6) Diopter
Movement pedestal:
- in azimuth :360 Degree
- in elevation: ( 0 to 45) Degree

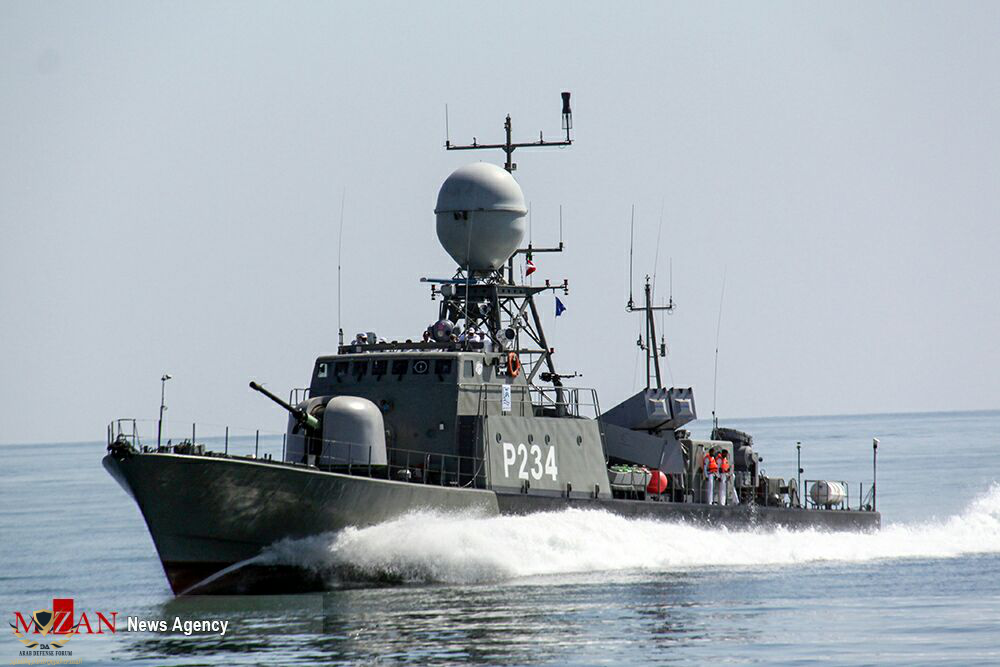

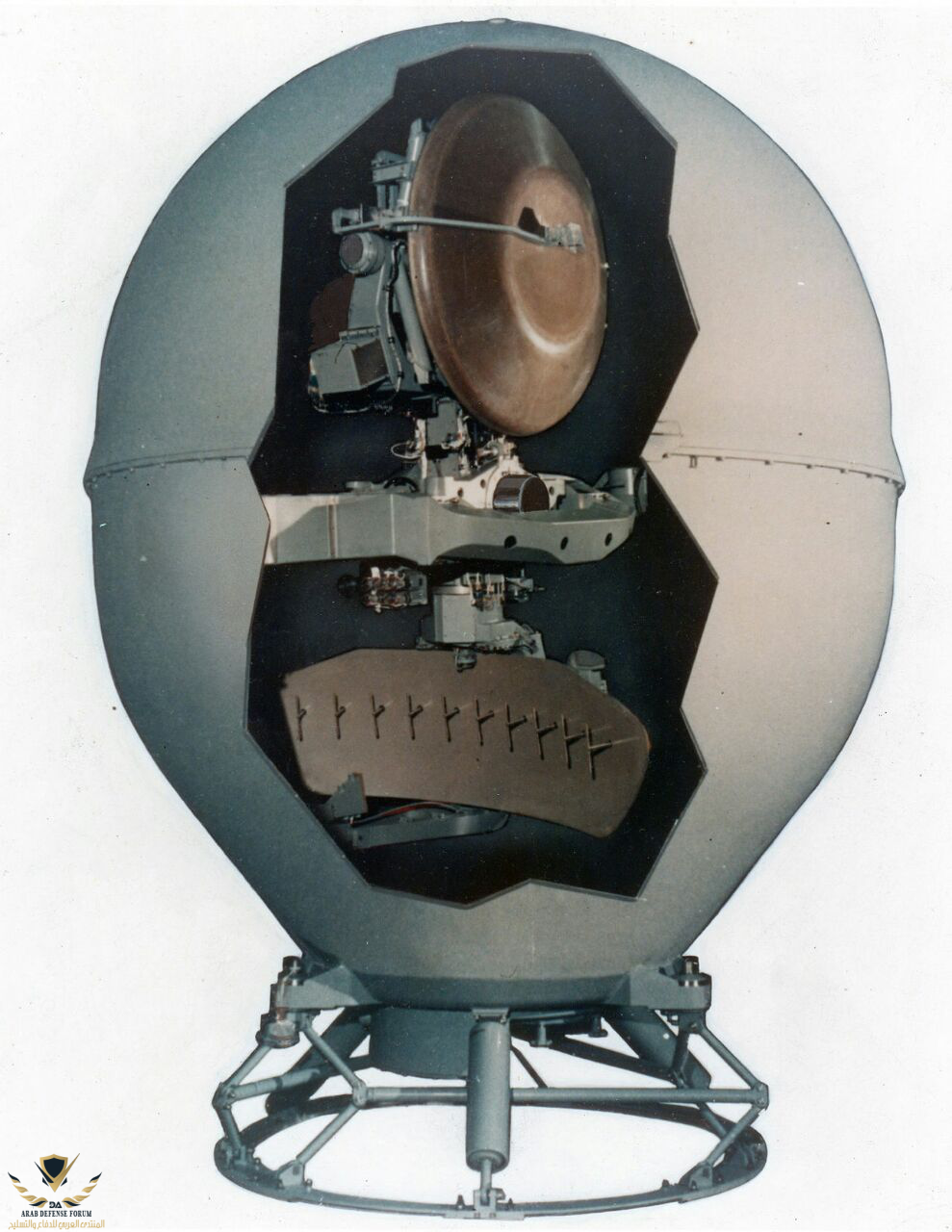

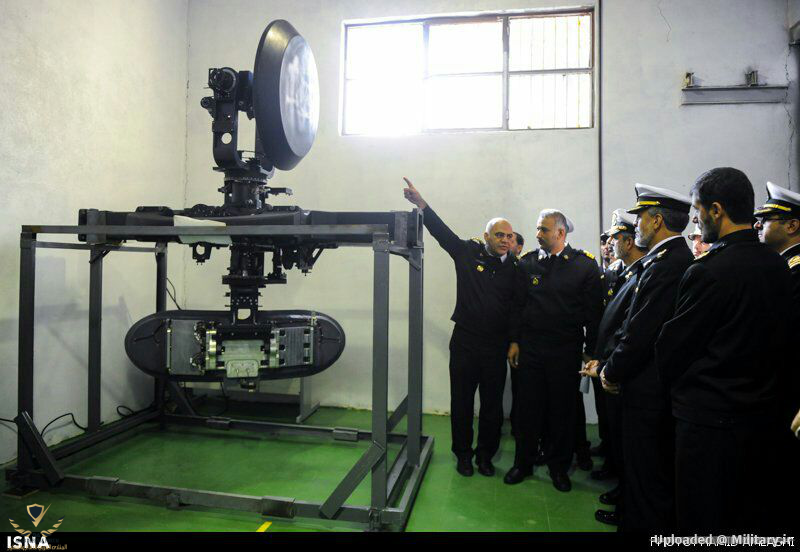

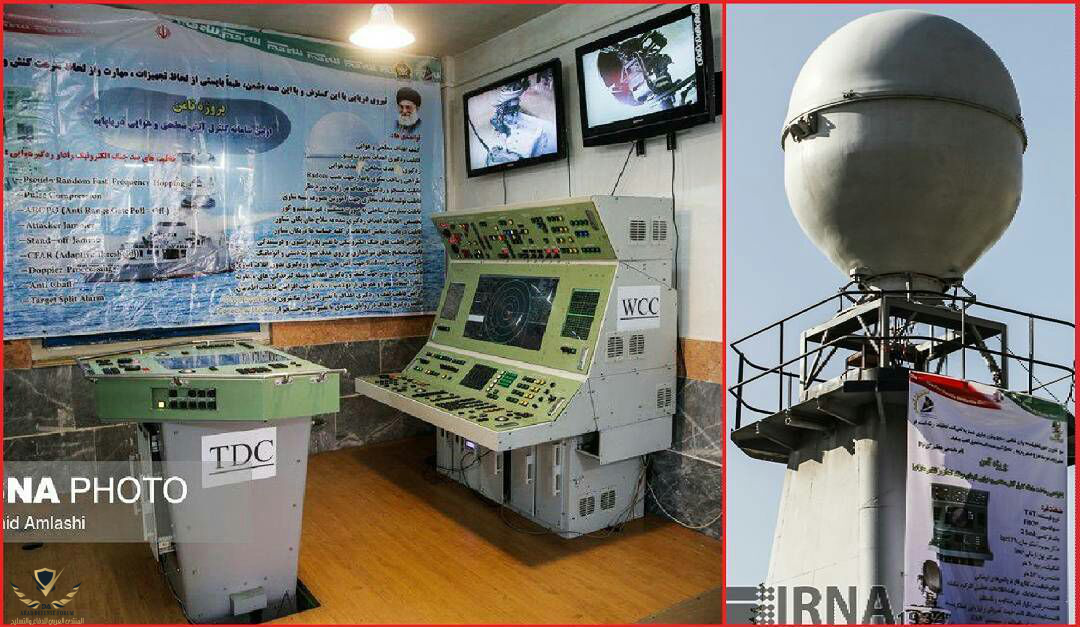

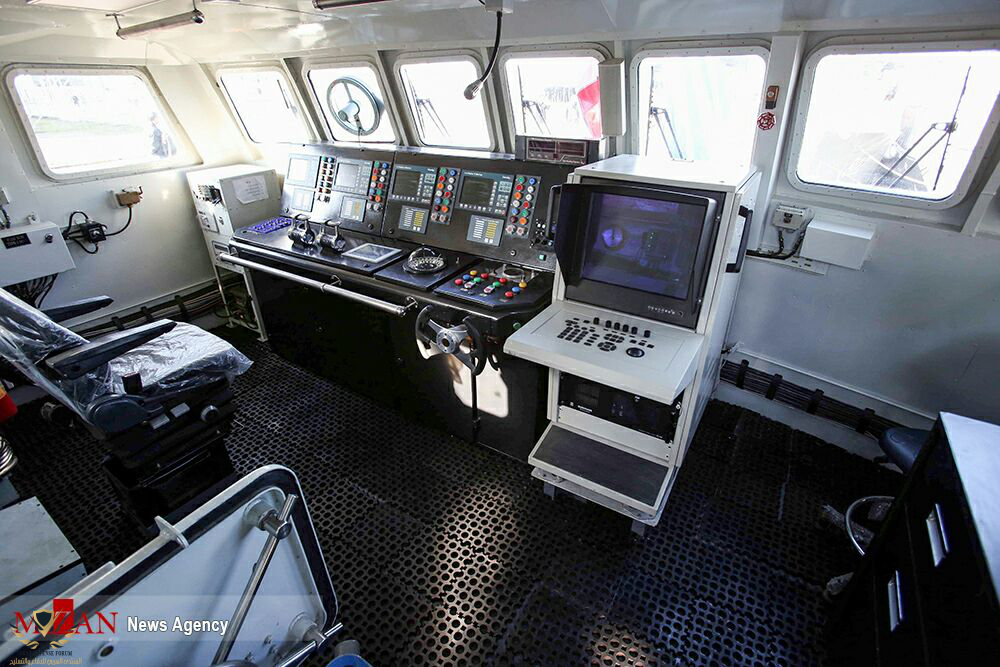

real images of the MST-X fire control radar radar
193514
193515
193516
193517
193518
