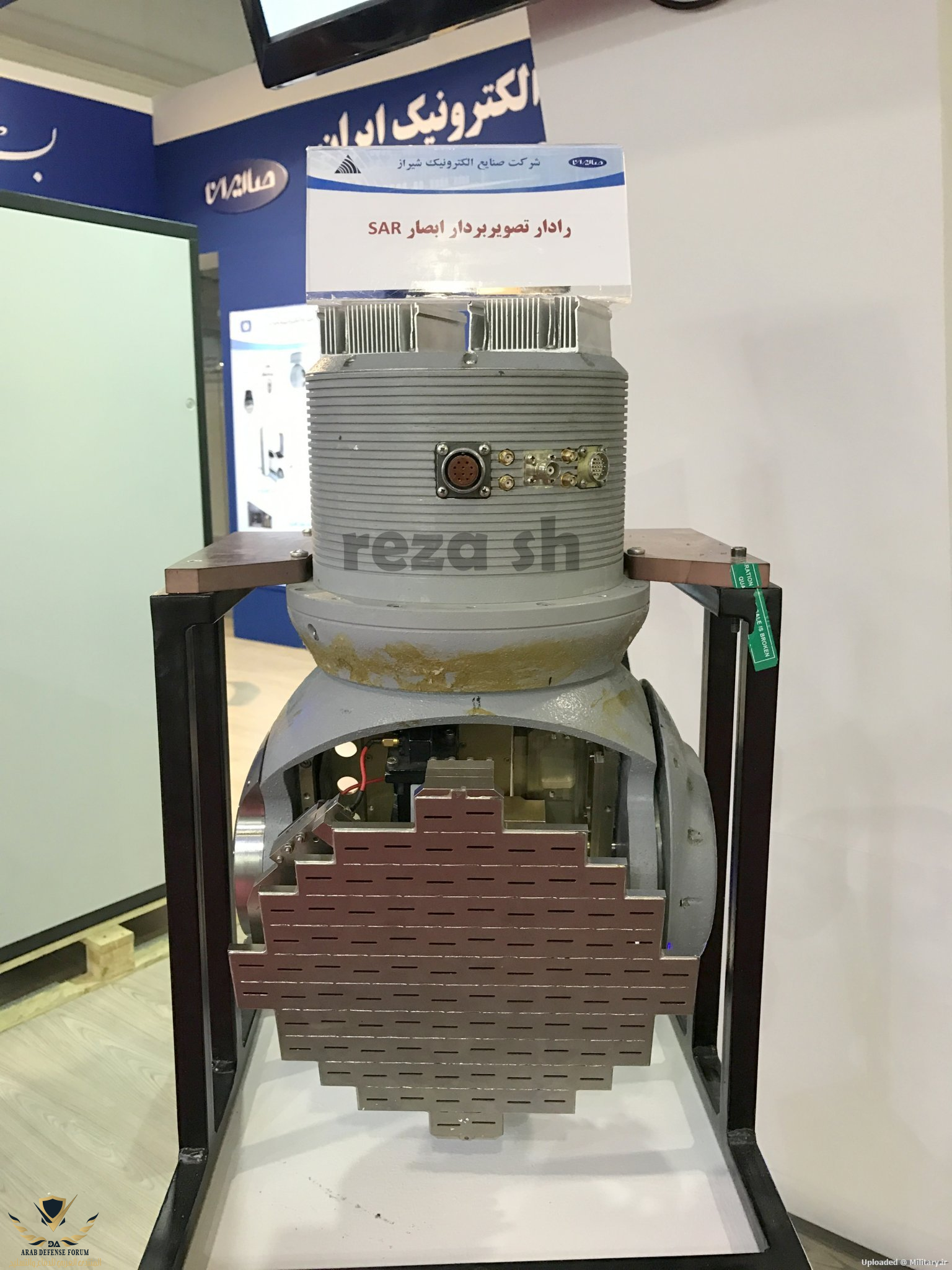

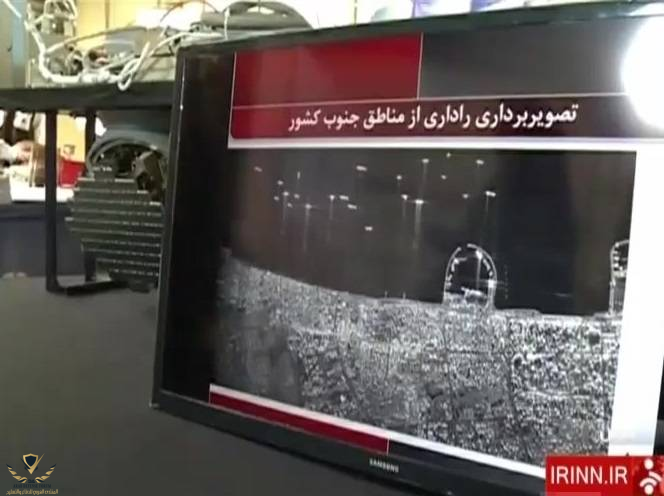

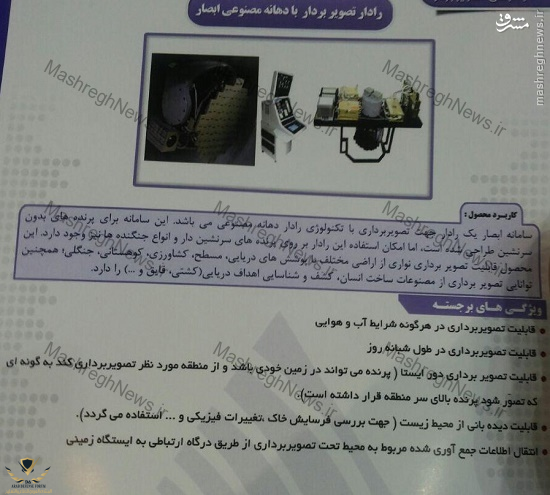

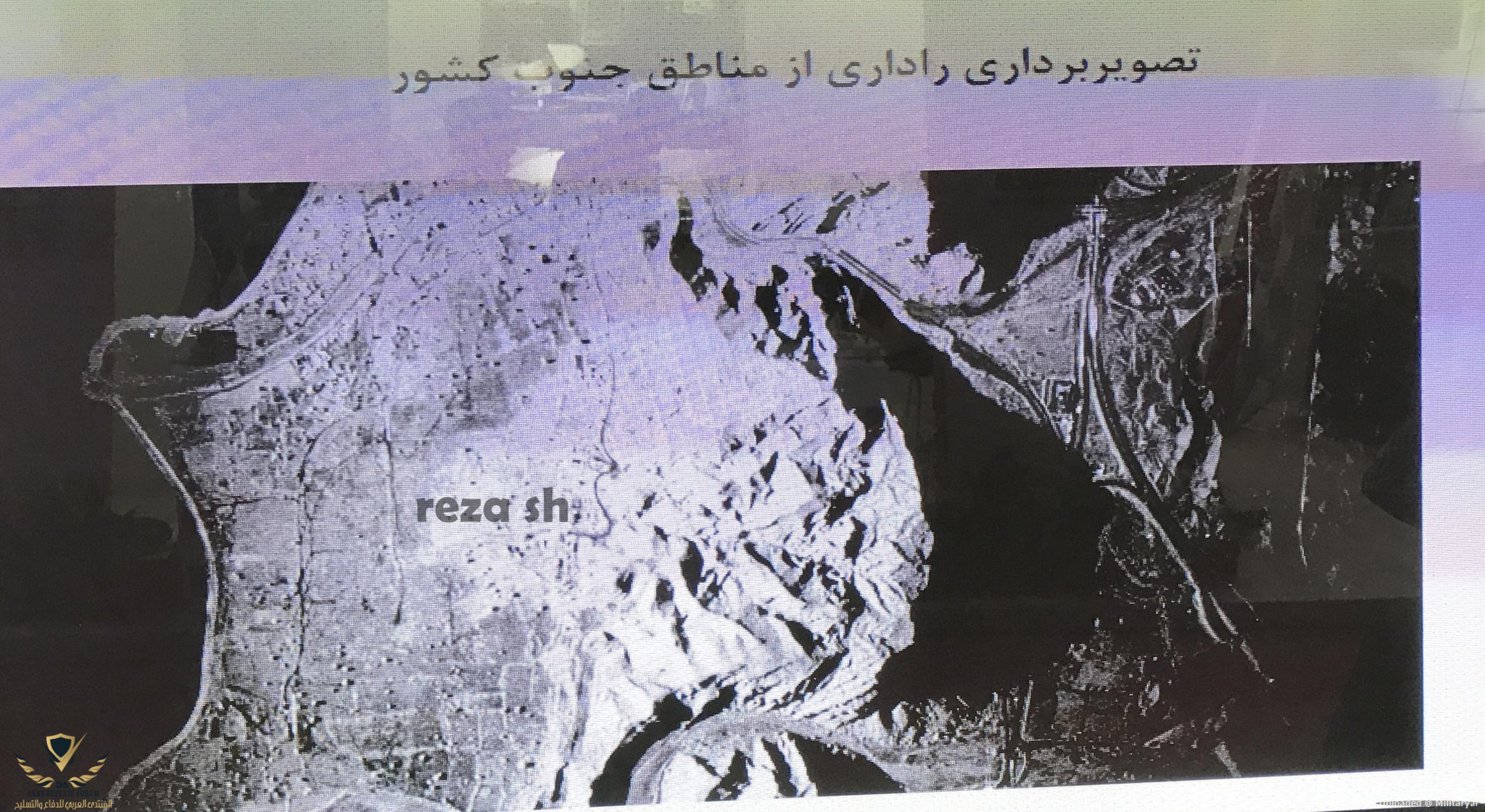

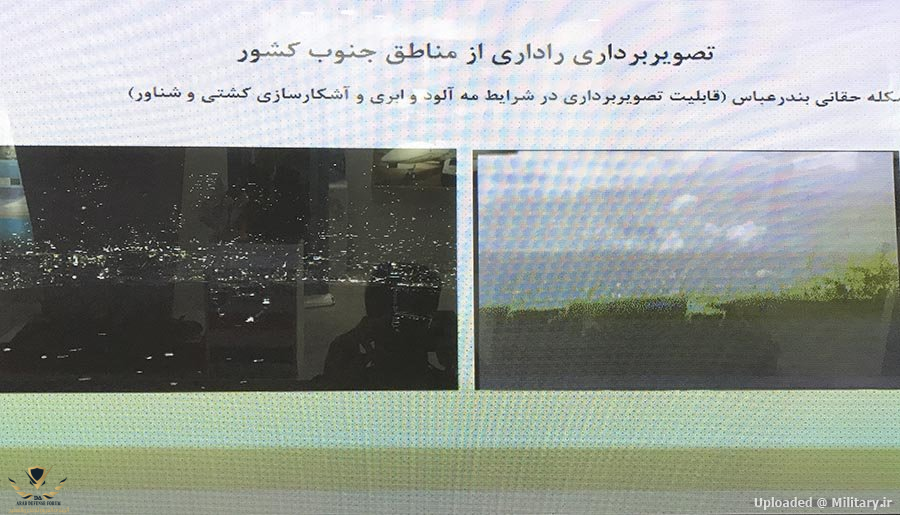

المسافة حالها سهل المشكلة في الإرتفاع اضن يتم حسابه بالإعتماد على تحديد دقيق لمكان المنضومة
هناك ايضا منضومة من هذا النوع بمدى اكبر و خصاءص افضل
بالمناسبة اخ درويش هل اكمل اضافت الرادارات الإيرانية ام انه ليس هنا داع
باستخدام الحسابات المثلثية , trigonometric calculations .


larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
7,635
مستوى التفاعل
20,541
النقاط
2,050
ASR naval radar

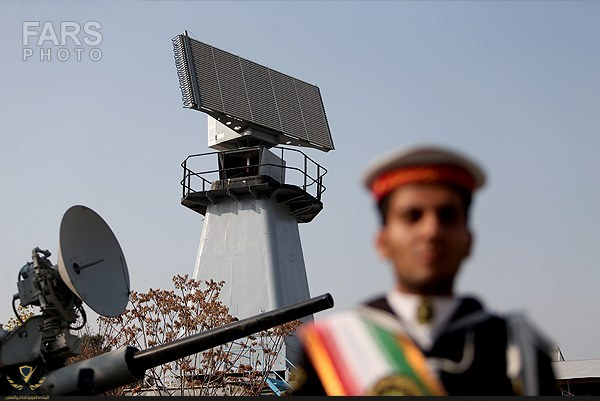

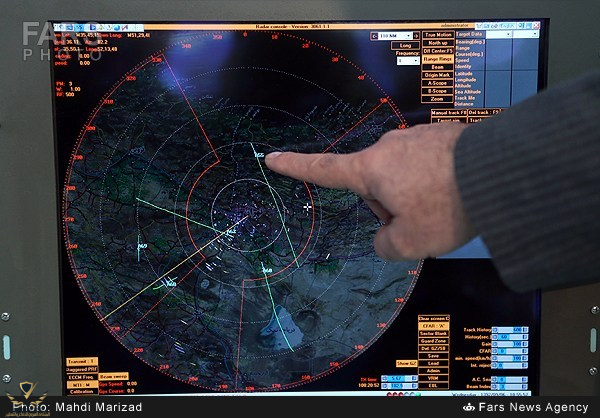

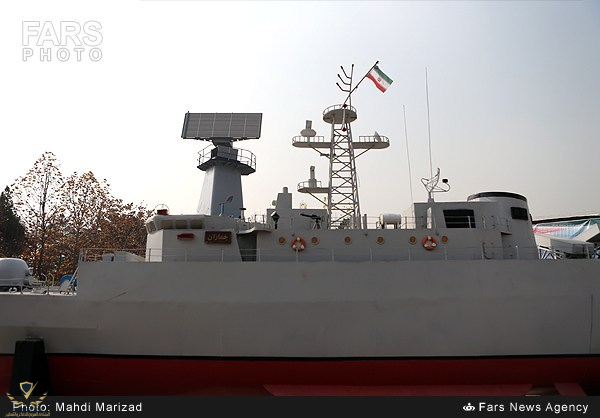

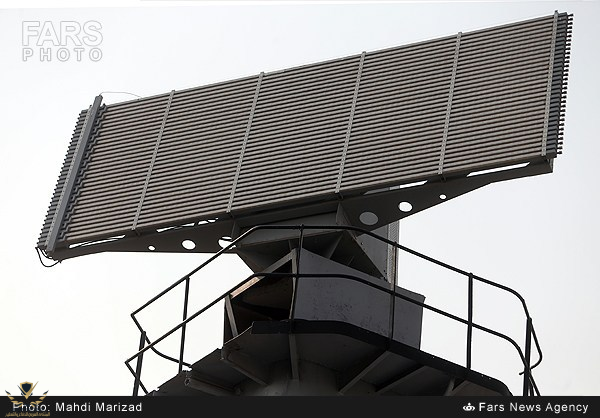

مشاهدة المرفق 192155مشاهدة المرفق 192156
مشاهدة المرفق 192158مشاهدة المرفق 192159
مشاهدة المرفق 192161

features

The Air Surveillance Radar or ASR is a 3-D solid-state passive electronically scanned array, capable of detecting boats, low flying aircraft, and missiles between 5 and 110 nautical miles (200 km)away
In addition to being entirely indigenously developed, being a “passive radar“. This makes it invulnerable to anti-radar missiles that would otherwise use its radar signal to home in on the ASR
the radar can also be used to surveil shores
?نسل جدید رادار عصر

?این رادار آرایه فازی سالهای قبل با مشخصاتی مانند برد 200 کیلومتری و عملکرد در باند فرکانسی S با توان ردگیری 100 هدف معرفی شده بود.

?در مدل جدید با برد 300 کیلومتر و فعالیت در باند فرکانسی X معرفی شده و همچنین توان بکارگیری در سیستم کنترل پدافندی ناو جنگی نیز در مشخصات جدید آن به چشم میخورد.

the Iranian navy has introduced an improved version of the ASR radar, with a 200km+ detection range and operating in the X band frequency


التعديل الأخير:

TariqE77

Reichsmarschall
طاقم الإدارة
مشرف قسم
إنضم
12 يوليو 2018
المشاركات
4,846
مستوى التفاعل
16,916
النقاط
675
الدولة
Saudi Arabia


?نسل جدید رادار عصر

?این رادار آرایه فازی سالهای قبل با مشخصاتی مانند برد 200 کیلومتری و عملکرد در باند فرکانسی S با توان ردگیری 100 هدف معرفی شده بود.

?در مدل جدید با برد 300 کیلومتر و فعالیت در باند فرکانسی X معرفی شده و همچنین توان بکارگیری در سیستم کنترل پدافندی ناو جنگی نیز در مشخصات جدید آن به چشم میخورد.

the Iranian navy has introduced an improved version of the ASR radar, with a 300km detection range and operating in the X band frequency

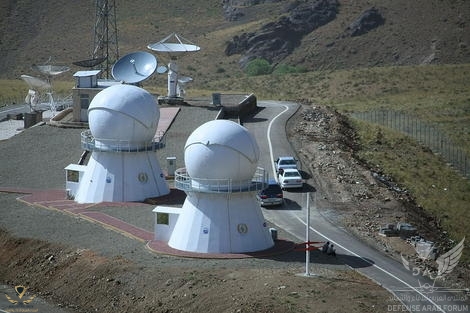

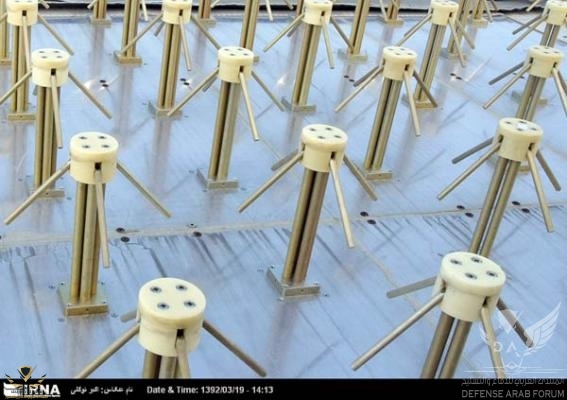

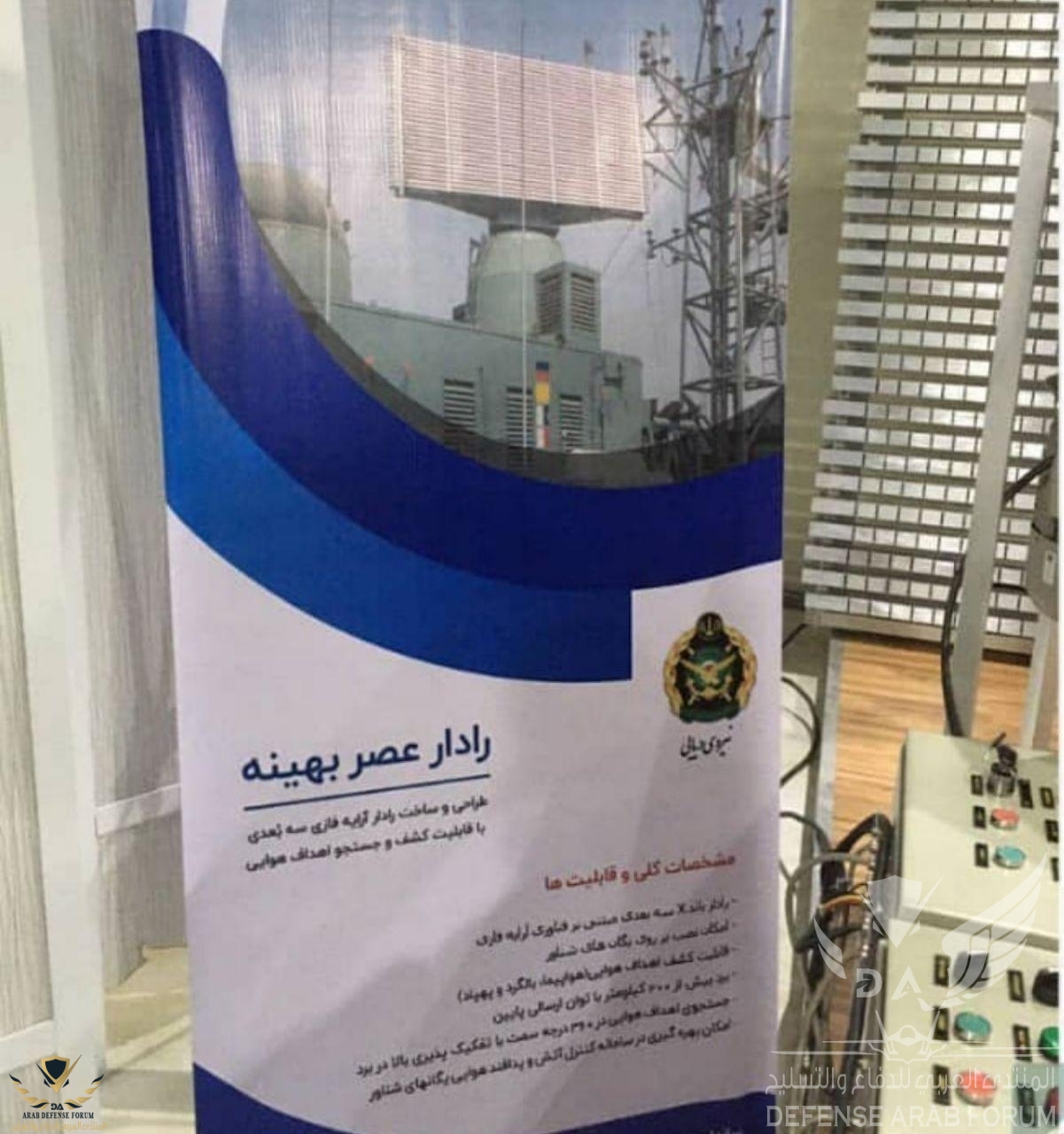

مشاهدة المرفق 219634
فيه رادار بعد مغرب هه

  • إعجاب
التفاعلات: F-15C

larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
7,635
مستوى التفاعل
20,541
النقاط
2,050

larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
7,635
مستوى التفاعل
20,541
النقاط
2,050
Ground Surveillance Radars

GSR-110S Medium Range Ground Surveillance Radars

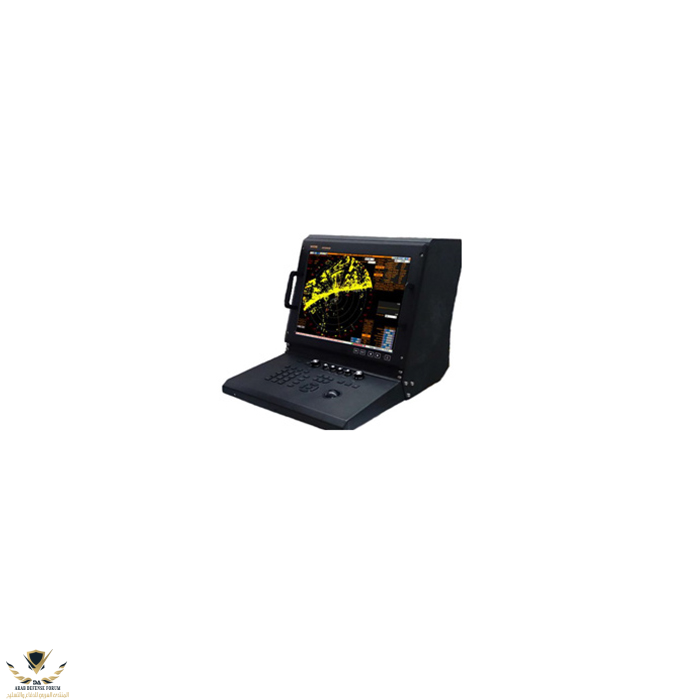

مشاهدة المرفق 191859

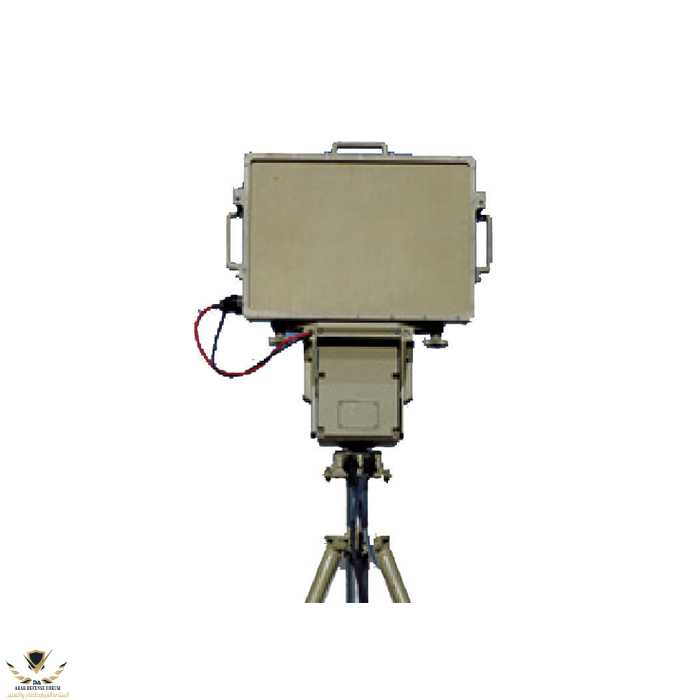

مشاهدة المرفق 191858

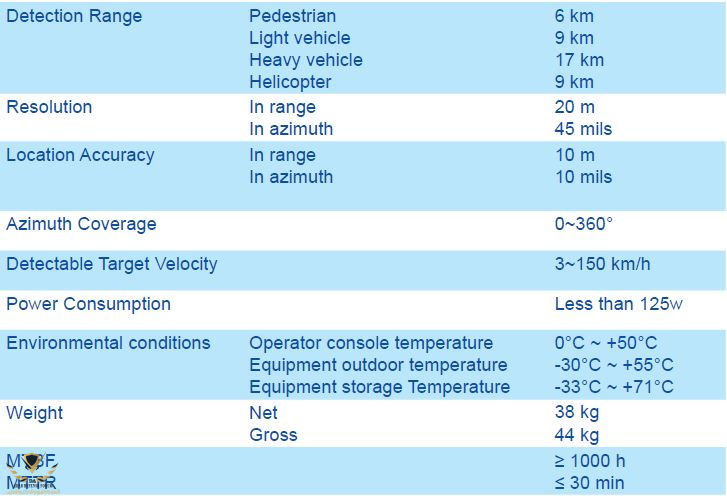

GSR-110S is an advanced new generation of medium-range tactical radar which is high performance, low cost with low power of intercept. This system is man-portable and can be easily carried by two soldiers. A lightweight, solid-state & low power have made it one of the most effective and efficient battlefield surveillance radars available in the military market. It is also capable of fulfilling tactical surveillance mission efficiency as fixed-site surveillance radar
GSR-110S is used to detect and track any moving target on the ground such as pedestrians, vehicles or low flying helicopters during day and night in all weather conditions such as fog, smoke, snow and etc. This system can be installed both on the ground and on the vehicle

Features

Pulse radar
(Low probability of intercept (LPI
Doppler processing
High mobility and fast set-up
Modular design
CFAR processing
Audible detection alarm
Digital waveform generation & pulse compression
Fully solid state transceiver
(Automatic target tracking (TWS
Rugged computer as a radar terminal
(Full function remote control (FFRC
Sectorial rotation with selectable sector width
Light weight
Area management
Low output power
Separation of radar unit and operator unit up to 30m by a network cable
(Excellent ECCM capability (Frequency agility, PRF jitter, Low side lobe, Pulse compression

Applications

Battlefield frontier reconnaissance & surveillance
Border surveillance for police squadron
Periphery protection of strategic zones
Military force deployment monitoring
Coastal surveillance, environmental protection

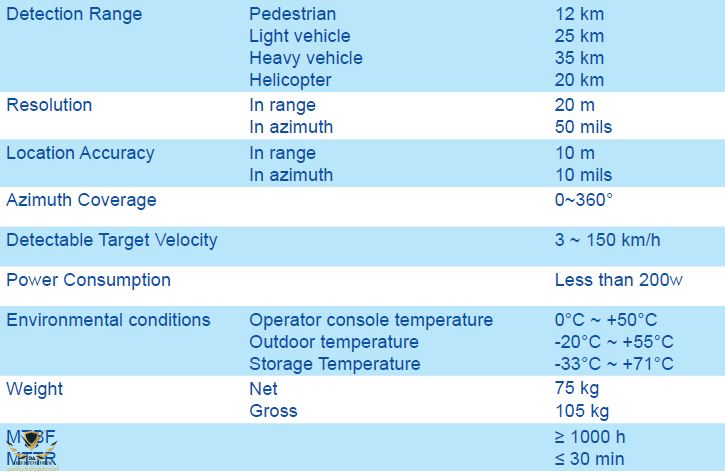

مشاهدة المرفق 191860

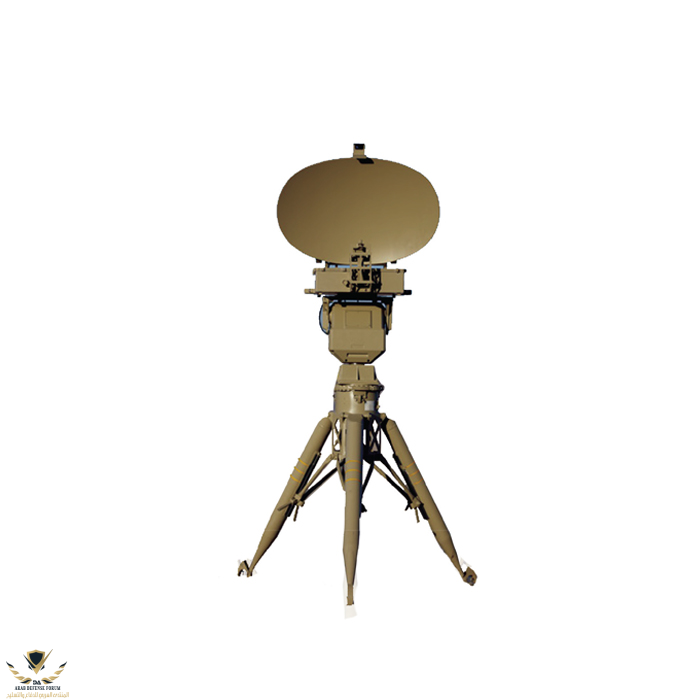

GSR-110 N Long Range Ground Surveillance Radar

مشاهدة المرفق 191861


Battlefield awareness is the key to battlefield dominance. The field commander who knows the enemy’s location and the types of forces being deployed enjoys a great tactical advantage. GSR-110N radar is a long-range ground surveillance radar system developed for detecting, locating, and tracking ground moving targets like pedestrian, light and heavy vehicles and air moving targets at low altitude like helicopters. It is a fully coherent pulse radar system that works in X-band and uses Doppler Effect to detect targets. The control and monitoring operation is performed on a laptop computer and processing operation is performed by a powerful processing platform. This system sits on a tripod. It can be installed both on the ground and on the vehicle and carried by 2 people

Features

Pulse radar
(Low probability of intercept (LPI
Fully solid state transceiver
High RF band width
Audible detection alarm
(Automatic tracking of targets (TWS
Displaying at least 10 tracked targets directions
Alarming when the searching target appears
Displaying of echo map zone
Displaying of Cartesian and Polar coordinates
Excellent ECCM capability (Frequency agility, PRF
(jitter, Low side lobe, Pulse compression
(Full function remote control (FFRC
Sectorial rotation with selectable sector width
Area management
Classification
Applications

Battlefield frontier reconnaissance & surveillance
Border surveillance for police squadron
Protection of important zones
Military force deployment monitoring
Guidance of ground forces and airborne attack units

مشاهدة المرفق 191862

MST-X


Fire Control Radar

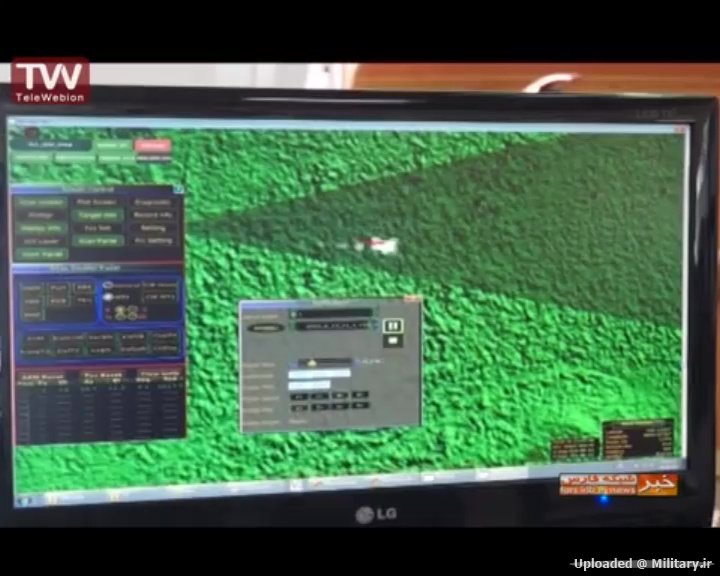

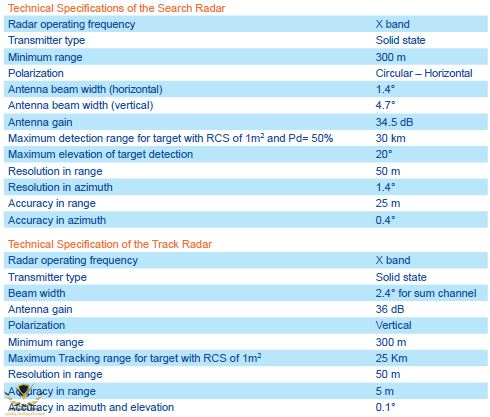

MST-X fire control radar is responsible for detecting and tracking air and marine targets simulta- neously by using one search radar and two independent track radars in both normal and jammer conditions. The second track radar is combined with an electro optical system for better reliability in radar jamming conditions. Information of tracked targets including range, azimuth and elevation is sent to combat management system through a secure port so that calculations related to the future point are done by a ballistic computer and then, a rocket or a missile is fired against enemy targets. Stabilizer unit in the main radar compensates angular movements of the ship and provides a stable platform for radar antennas. This system acts as the main member of fire control system in warships.

Electro optical unit specifications

Vision camera

- CCD type: 1/2 inches, wavelength: 0.4 to 1 micron
- Sensitivity: 0.003 lux
- Horizontal resolution: at least 570 lines
- Number of pixel: at least 600*800
- Focal length: 10 to 1000 mm
IR camera
- Wavelength: 3 to 5 micron
- Resolution: 258*320
- Frame frequency: 25
- Field of view: narrow: 1.7*2.3 and wide:5.5*6.9
- IFOV: 0.1 mr
Target range finder
- Wavelength: 1540 micron
- Range: 0.5 to 18 km
- Accuracy: 5m
- Repetition frequency: 12.5 Hz
- Resolution: 14 bit
Target Designator
Optical site Day Vision
- Zoom: 3 Times
- Accuracy on 100 meter: 13 millimeter
- Visibility : 11 meter on 100 meter
- Optical opening Diameter: 32 millimeter
- Reticle Color: Red , Green , Blue
Optical site Night Vision
- Visibility : 40 Degree
- Resolution: 0.76 Cycle per Mill radian
- Diopter Adjustment: (+2 to -6) Diopter
Movement pedestal:
- in azimuth :360 Degree
- in elevation: ( 0 to 45) Degree

مشاهدة المرفق 191864


ADS-M2
Medium Range Air Defense System

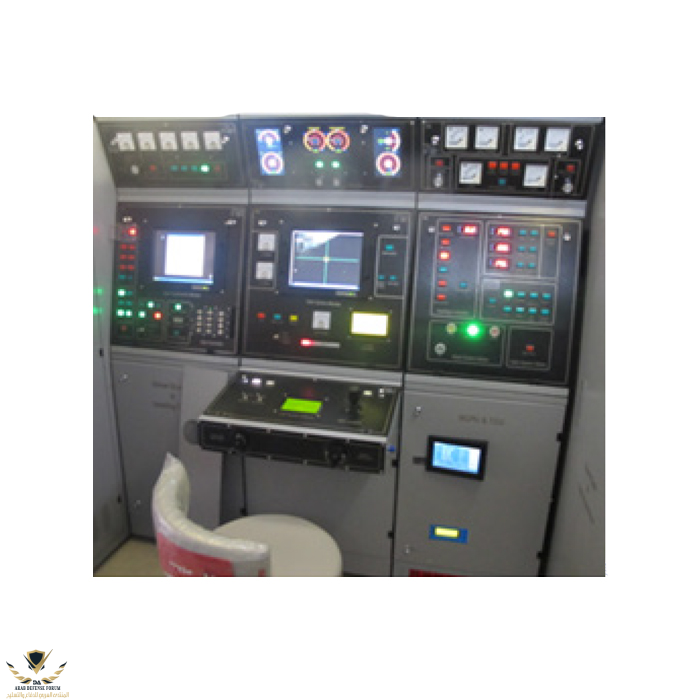

مشاهدة المرفق 191866

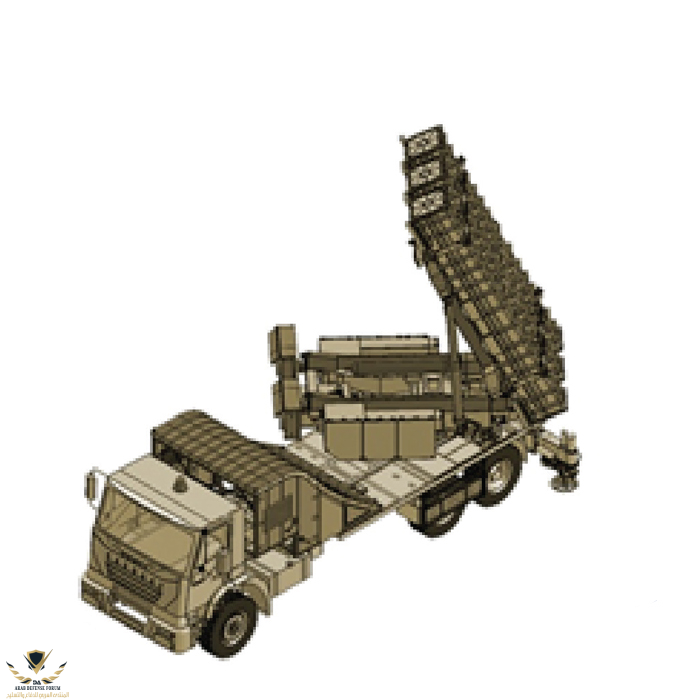

مشاهدة المرفق 191867مشاهدة المرفق 191868مشاهدة المرفق 191869

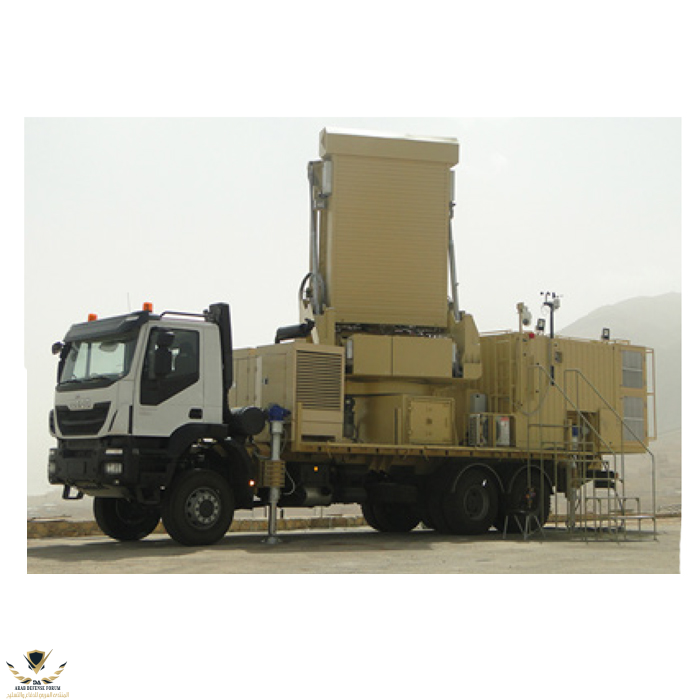

ADS-M2 is a medium range air defense missile system used effectively against the extensive invasion of air attacks such as low and medium altitude flying fighters and UAVs. It is used in all-weather and jamming conditions. This system is capable of detecting 150 targets while simultaneously engaging with and killing two targets. ADS-M2 consists of one command and control center, one low/ medium altitude detection radar, two tactical trackers, six missile launchers, three loaders for carrying and loading the missile and five 64Kw power generators.

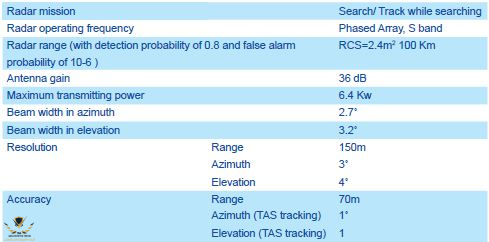

مشاهدة المرفق 191865



CSR-X270
Coastal Surveillance Radar

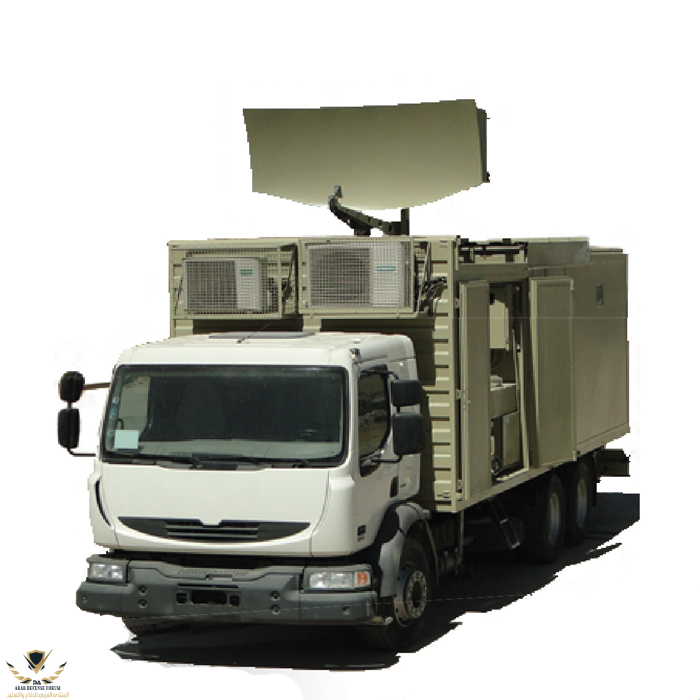

مشاهدة المرفق 191870


CSR-X270 is a surveillance marine radar, highly mobile, two-dimensional, tactical air (low-altitude) and naval/coastal surveillance radar operating in X band. It is mainly used for detecting air (low-altitude) and marine targets. This radar system incorporates in reconfigurable transmitting Peak Power control for decreasing the probability of interception. Besides, this radar employs modern radar technologies widely such as, low side lobe antenna, air-cooled solid state transmitter, DDS-based waveform generator, digital pulse compression, AMTI processing, JATS, High level of system automation, automatic set-up/tear-down. Therefore, it exhibits an excellent operational performance.

Features

Reconfigurable transmitting peak power control, wide dynamic range and wide bandwidth for receiving with excellent performance
Light weight, low side lobe level, low loss, Reflector antenna
Desirable site compatibility due to self-elevated operation function
Highly efficient and highly reliable transmitter system, air-cooled, distributed solid-state transmitters using high power modules of the same kind
Integrated, modular receiver
Networked and computerized radar terminal and control/monitoring system
Rapid set-up and tear-down realized by automatic antenna leveling
High level of system automation
High performance, compact structure, transportable by road, rail, air and sea
Excellent air (low-altitude) and marine target detection performance
High mobility, rapid set-up/tear-down
High reliability
High survivability, multiple operation modes, various anti-jamming measures

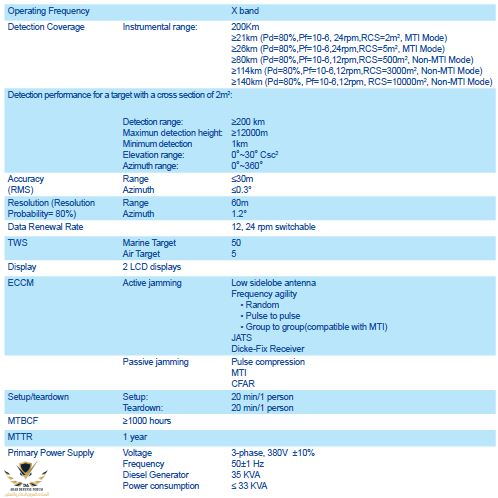

مشاهدة المرفق 191871


M4
Ground Controlled Interception (GCI) Radar

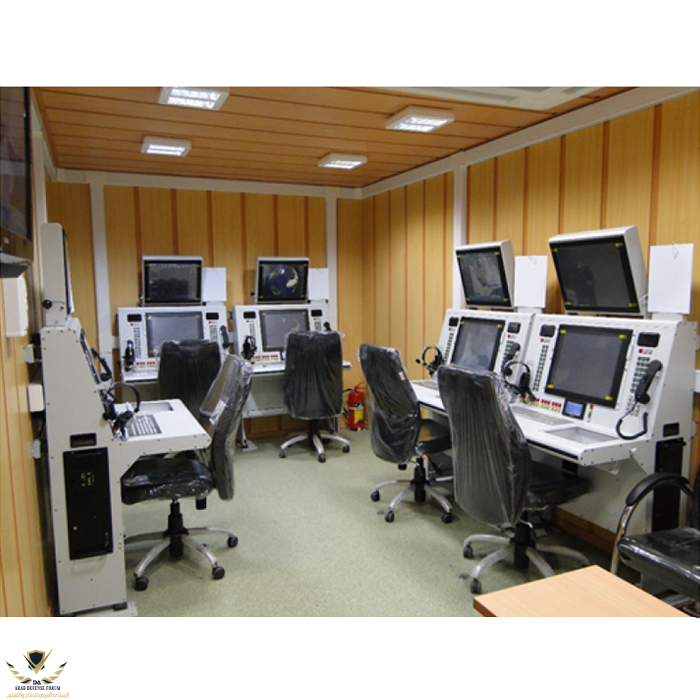

مشاهدة المرفق 191872مشاهدة المرفق 191873

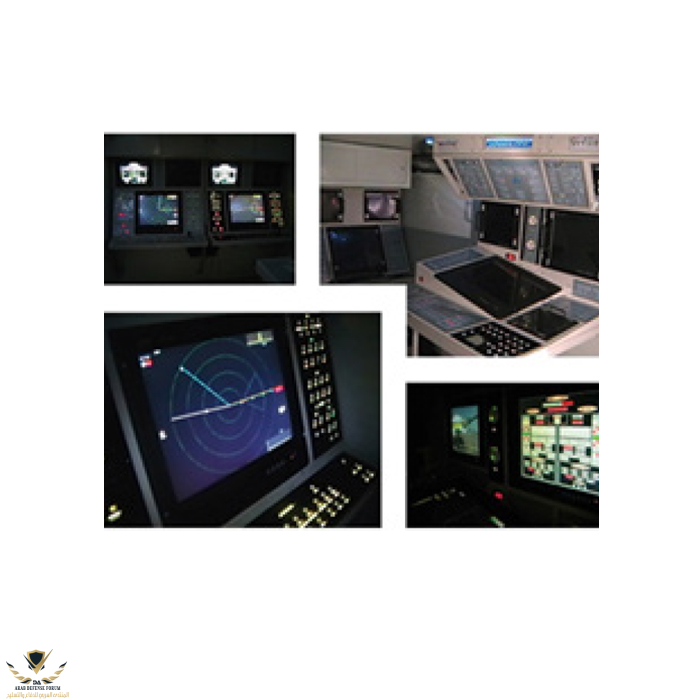

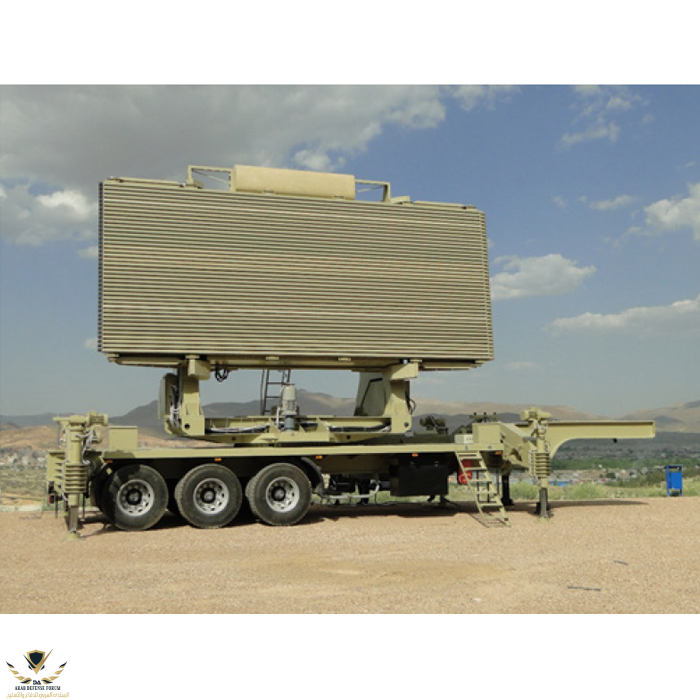

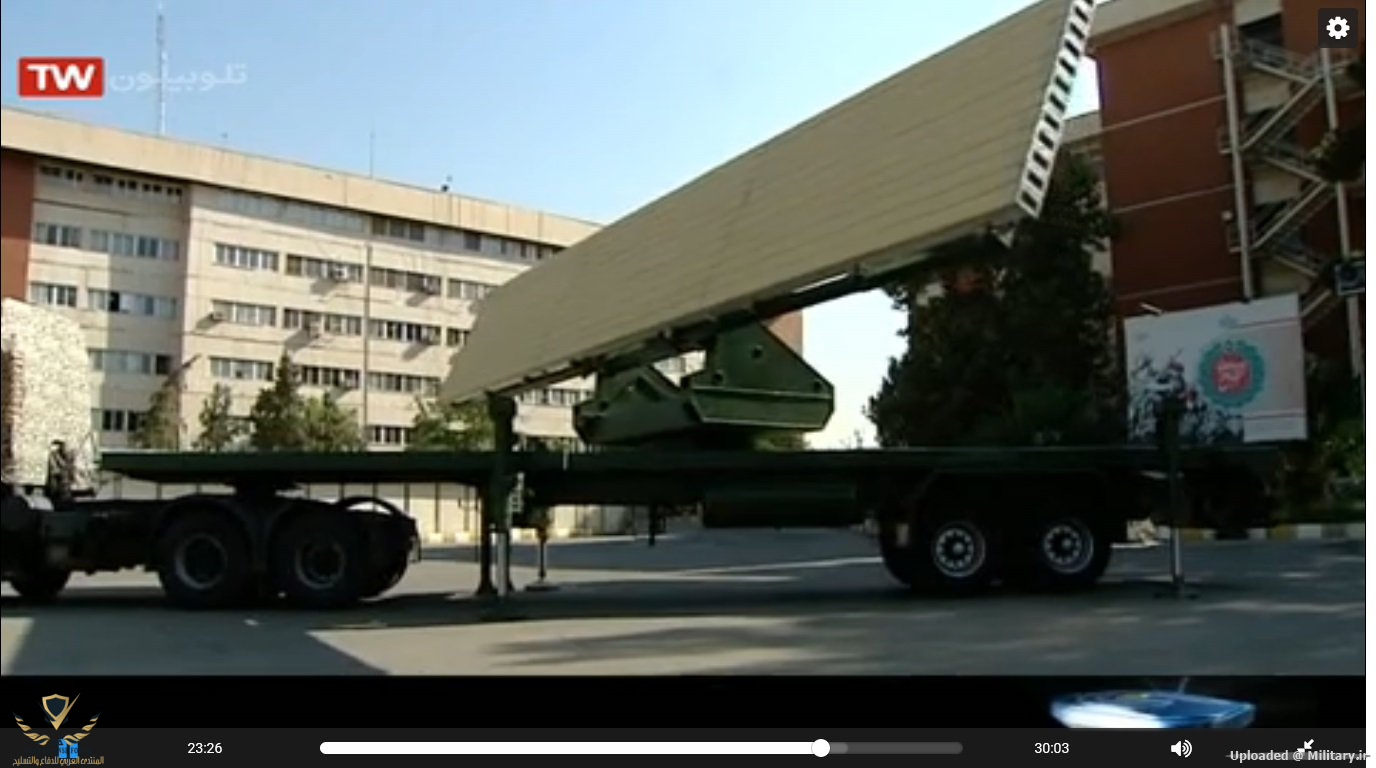

M4 radar is three dimensional (3D), long range, ground-based, tactical, phased array radar working as an air control, guidance and surveillance radar system. In this radar, waveguide slotted array antenna technology and digital beam forming technique in receiving have been used for the purpose of height finding. This radar system operates in S frequency band. The main mission of the system is to detect and track while scan (TWS) the air targets and also to control the fighters in Air Defense Systems (ADS) as a Ground Controlled Interception (GCI) Radar. This radar can be designed as a stationary system as well. Command Post (CP) shelter of this system can act as a control center of Control Report Center (CRC) in air defense network and merge the information of several radars or sensors.


Features

Using waveguide slotted array antenna with low side lobe
Using Air Cooling Solid State Power Amplifier
Height finding by using multi beam digital processing in receiver
Forming Csc2 pattern and Burn Through beam in transmission by using Phase Only distribution on transmitter array
Capability of amplitude and phase calibration in transmitting path and receiving path
Being modular with low maintenance average time
Equipped with IFF sub-system, IFF/SSR (Identifying Friend of Foe)
Using digital pulse compression technique to reduce transmitting peak power
High mobility, automatic leveling system and automatic antenna seat and stand mechanism
Capable of being placed in a network in air defense systems
Main ECCM capabilities

Burn Through, SLB and SLC, Frequency Hopping, PRF Jitter, PRF Staggering, JATS, Pulse Compression, MTI, CFAR, Clutter Map, Low SLL Antenna

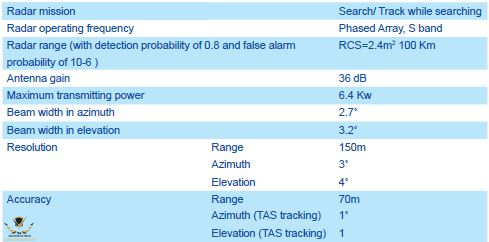

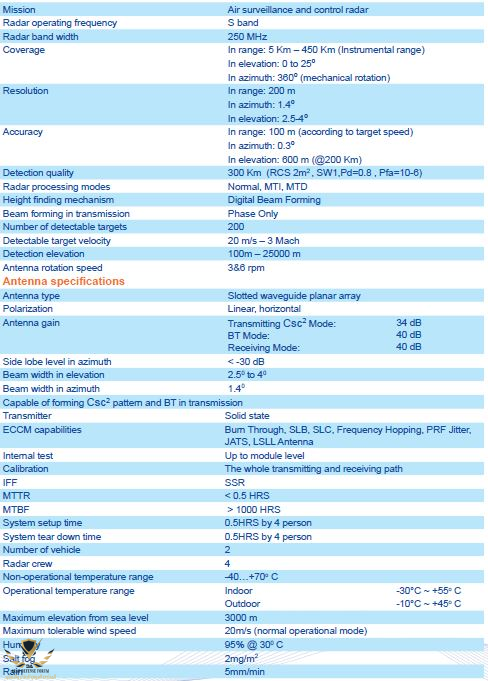

مشاهدة المرفق 191874

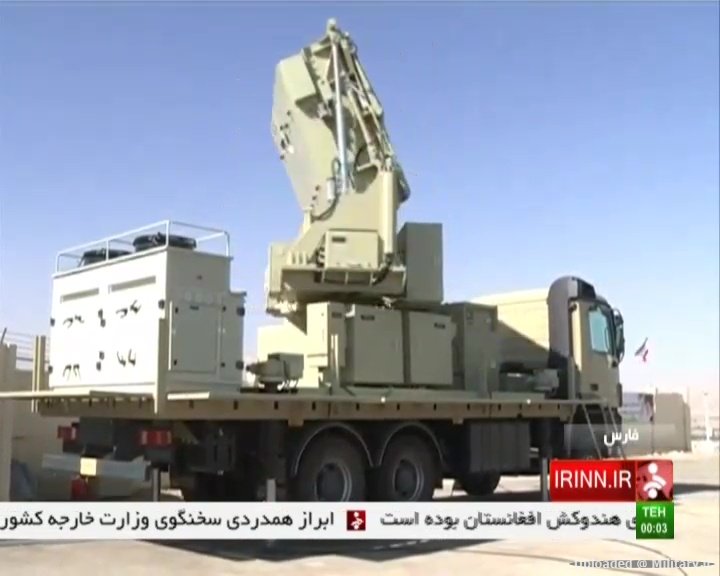

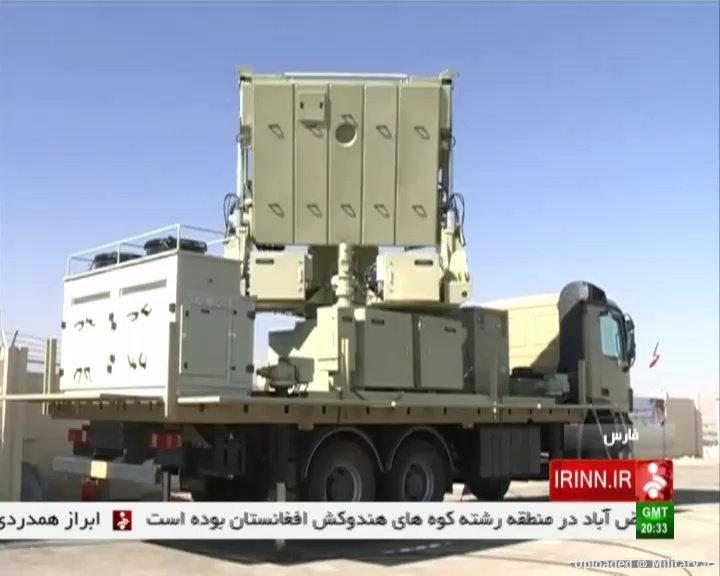

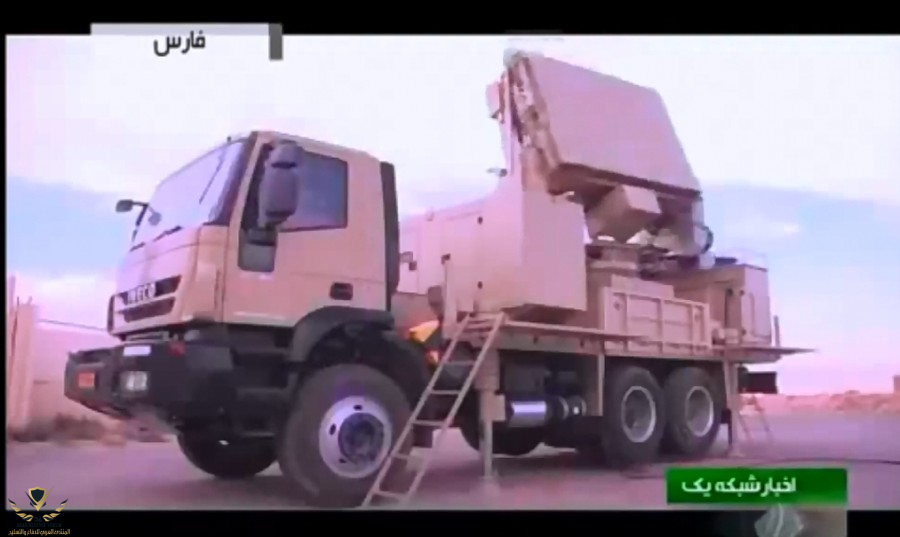

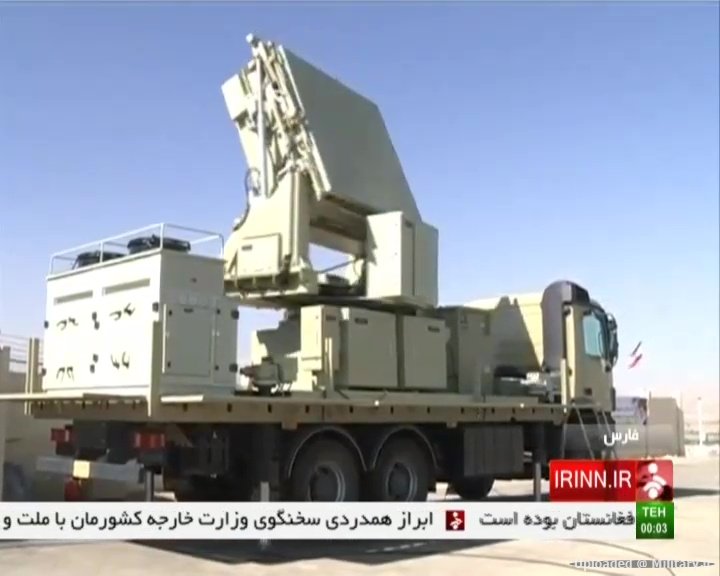

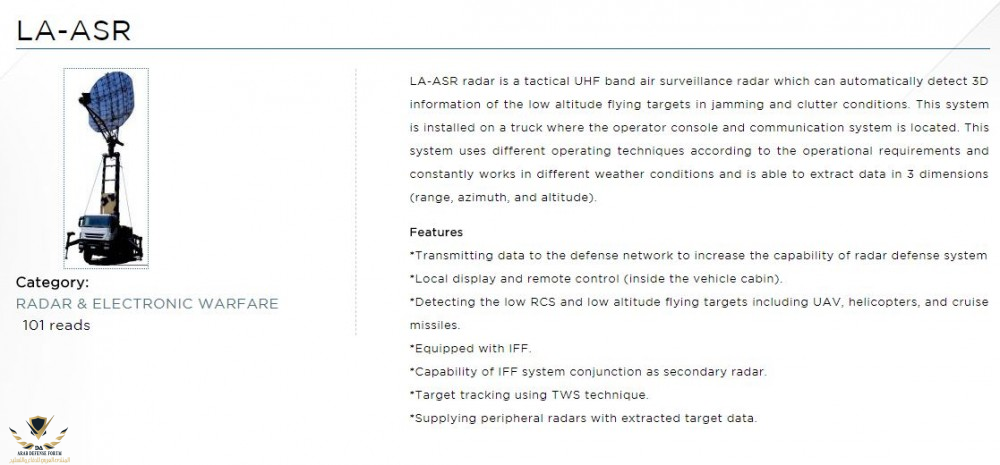

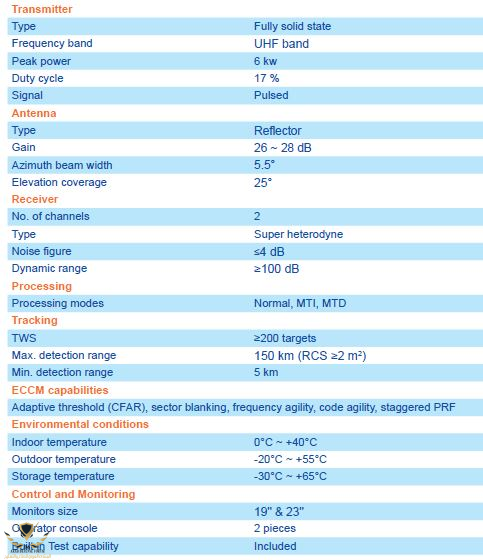

LA-ASR
مشاهدة المرفق 191875

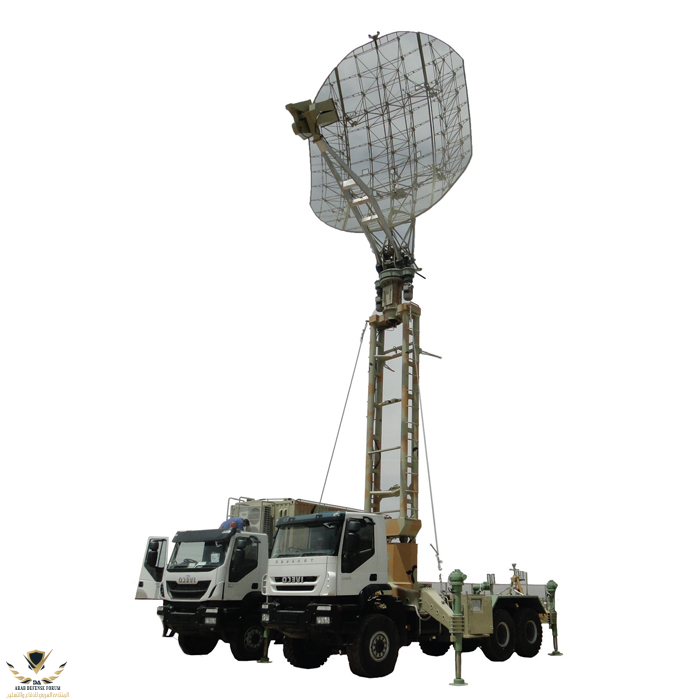

LA-ASR radar is a tactical UHF band air surveillance radar which can automatically detect 2D
information of the low altitude flying targets in jamming and clutter conditions. This system is installed on a truck where the operator console and communication system is located. This system uses different operating techniques according to the operational requirements and constantly works in different weather conditions and is able to extract data in 2 dimensions (range and azimuth).


Features

Transmitting data to the defense network to increase the capability of radar defense system
Local display and remote control (inside the vehicle cabin)
Detecting the low RCS and low altitude flying targets including UAV, helicopters, and cruise missiles
Equipped with IFF
Capability of IFF system conjunction as secondary radar
Target tracking using TWS technique
Supplying peripheral radars with extracted target data
مشاهدة المرفق 191876

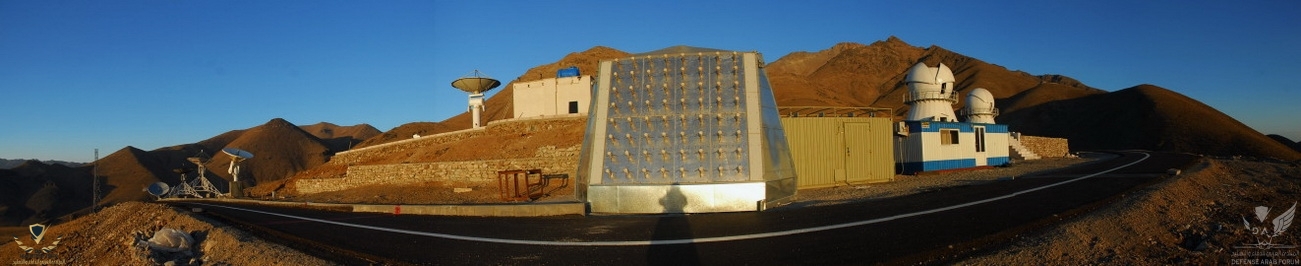

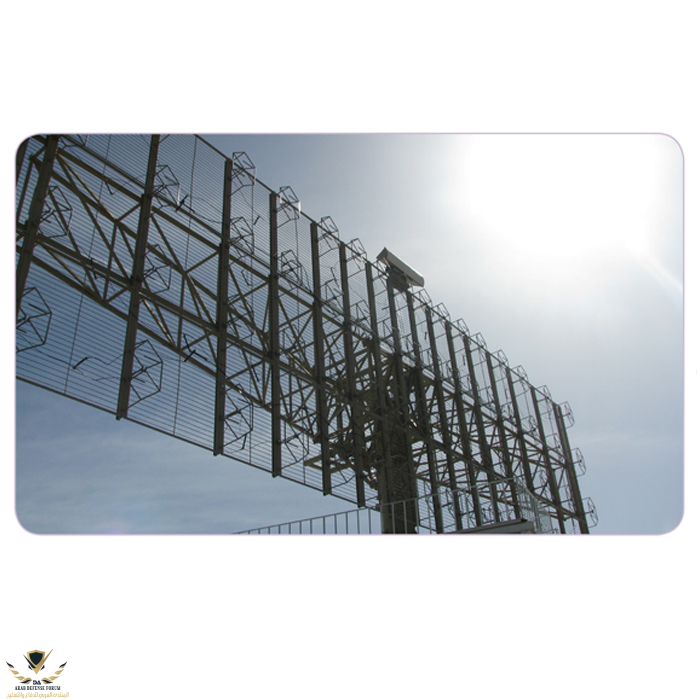

SEW-14
Early Warning Radar
مشاهدة المرفق 191877

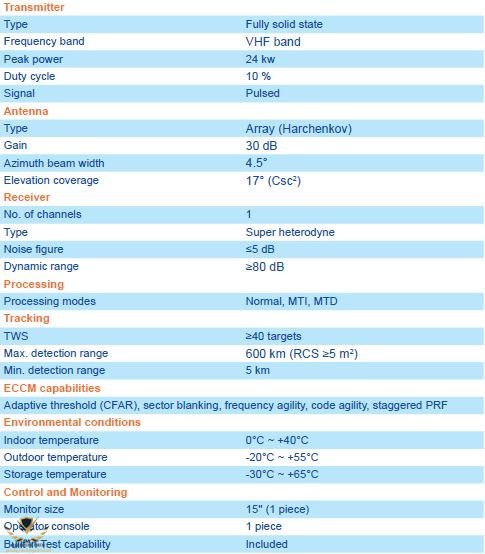

SEW-14 is a long range, stationary VHF search radar which is based on an array of directive antenna to detect the targets, specially stealth types as an early warning radar in a defense network system. All subsystems such as transmitter, receiver, antenna, control and processors have been manufactured based on the latest technologies and are upgradable as well. The radar subsystems such as related transmitter, receiver, processor and monitors are installed in a tactical shelter. The mechanical parts of the system including mast, antenna, and rotator are installed on the roof of a building as a stationary part of the radar. SEW-14 is used as an early warning radar in a defense network to cover other defense network necessities and infirmities.


Features

Advanced ECCM capabilities
Advanced signal processing and data extraction
Early detection of air targets and determination of their coordinates including range and azimuth
Capability of IFF system conjunction as secondary radar
Target tracking using TWS technique
Supplying peripheral radars with extracted target data
High reliability and maintenance
Low RCS and stealth target detection (such as UAVs)
Modular designed system

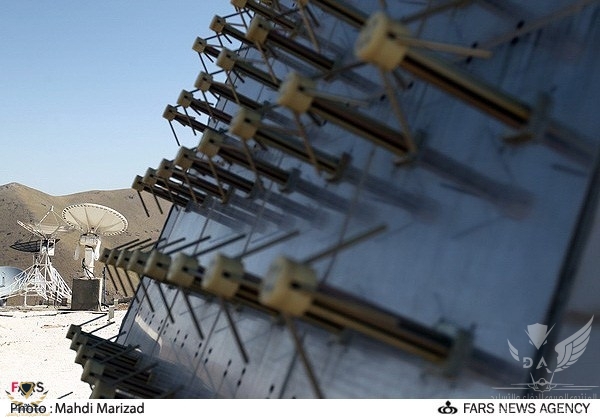

مشاهدة المرفق 191880
SEW-14

(Fat’h 14)



larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
7,635
مستوى التفاعل
20,541
النقاط
2,050
:) نسخة من الموضوع في منتدى اخر


abo alqasem

الـقـائــد الأعـلـى للــقـوات الـمـسـلـحــة
إنضم
25 أغسطس 2016
المشاركات
3,706
مستوى التفاعل
13,146
النقاط
675
الدولة
Egypt

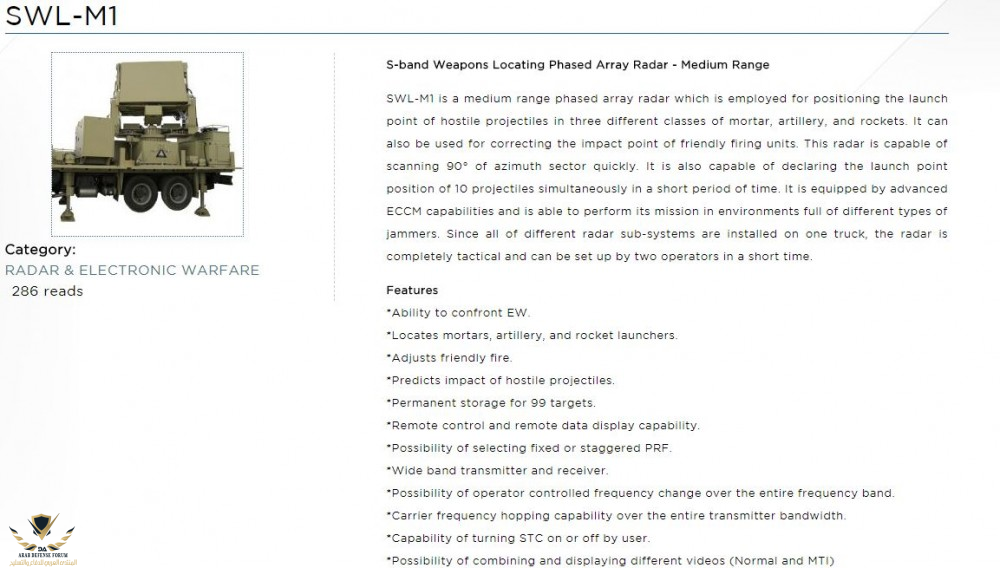

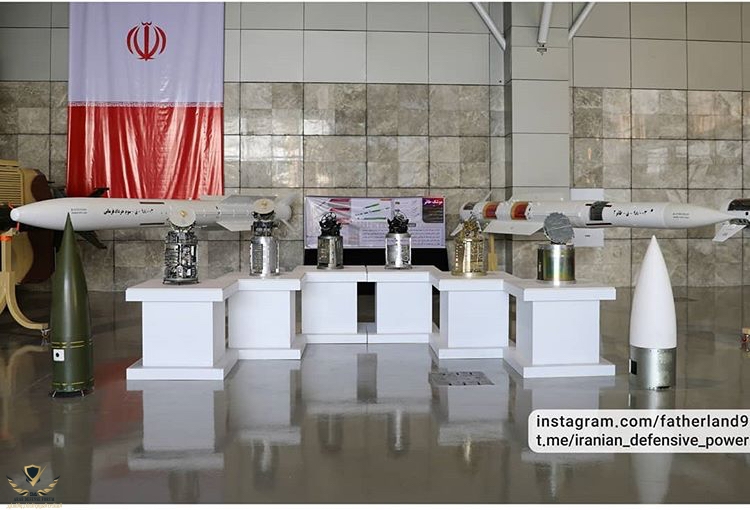

إيران فى مجال الدفاع الجوى حققت إنجازات كبيرة


larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
7,635
مستوى التفاعل
20,541
النقاط
2,050

larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
7,635
مستوى التفاعل
20,541
النقاط
2,050
