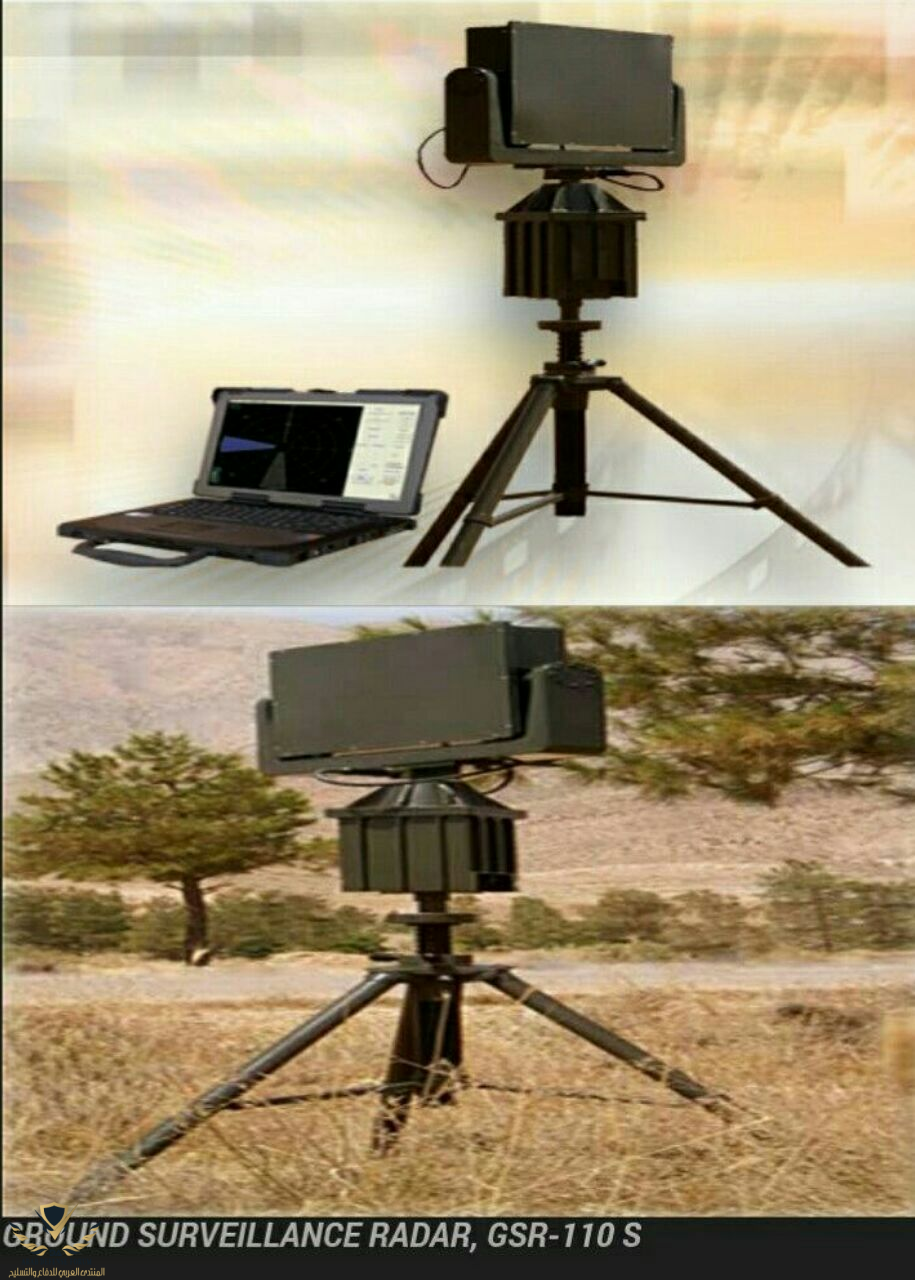

⬇️Ground Surveillance Radars ⬇️



larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,810
التفاعلات
30,542 233 1
الدولة
Morocco







المرفقات

  • 1609563334838.png
    2.4 MB · المشاهدات: 8
التعديل الأخير:

Medic

وَأْمُرْ أَهْلَكَ بِالصلَاةِ وَاصْطَبِر عَلَيها
إنضم
16 أكتوبر 2011
المشاركات
6,299
التفاعلات
24,312 404 0
الدولة
Canada
موضوع جميل وغني بالمعلومات المهمه. ياليتك حطيته في القسم العربي واضفت ترجمة لو بسيطة.

يعطيك الصحة في كلا الحالتين...اضافة جيدة للمحتوى العسكري في المنتدى.


TNTDZ

عضو
إنضم
29 نوفمبر 2020
المشاركات
919
التفاعلات
1,455 16 0
الدولة
Algeria
ايران استثمرت كثير قدراتها في تصنيع وتطوير وبتكار في الرادارات و الصواريخ


larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,810
التفاعلات
30,542 233 1
الدولة
Morocco

larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,810
التفاعلات
30,542 233 1
الدولة
Morocco

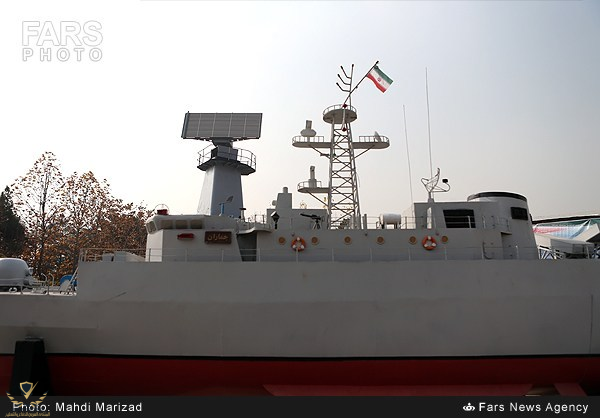

ASR naval radar
مشاهدة المرفق 192155مشاهدة المرفق 192156
مشاهدة المرفق 192158مشاهدة المرفق 192159
مشاهدة المرفق 192161

features

The Air Surveillance Radar or ASR is a 3-D solid-state passive electronically scanned array, capable of detecting boats, low flying aircraft, and missiles between 5 and 110 nautical miles (200 km)away
In addition to being entirely indigenously developed, being a “passive radar“. This makes it invulnerable to anti-radar missiles that would otherwise use its radar signal to home in on the ASR
the radar can also be used to surveil shores

EqtfiZrXEAAUEjh


التعديل الأخير:

larbi

صقور الدفاع
إنضم
10 مارس 2019
المشاركات
11,810
التفاعلات
30,542 233 1
الدولة
Morocco

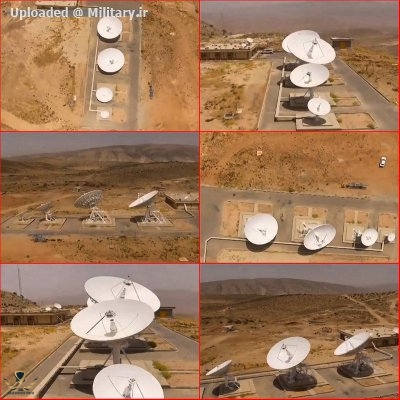

مشاهدة المرفق 344510مشاهدة المرفق 344511مشاهدة المرفق 344512مشاهدة المرفق 344513مشاهدة المرفق 344515

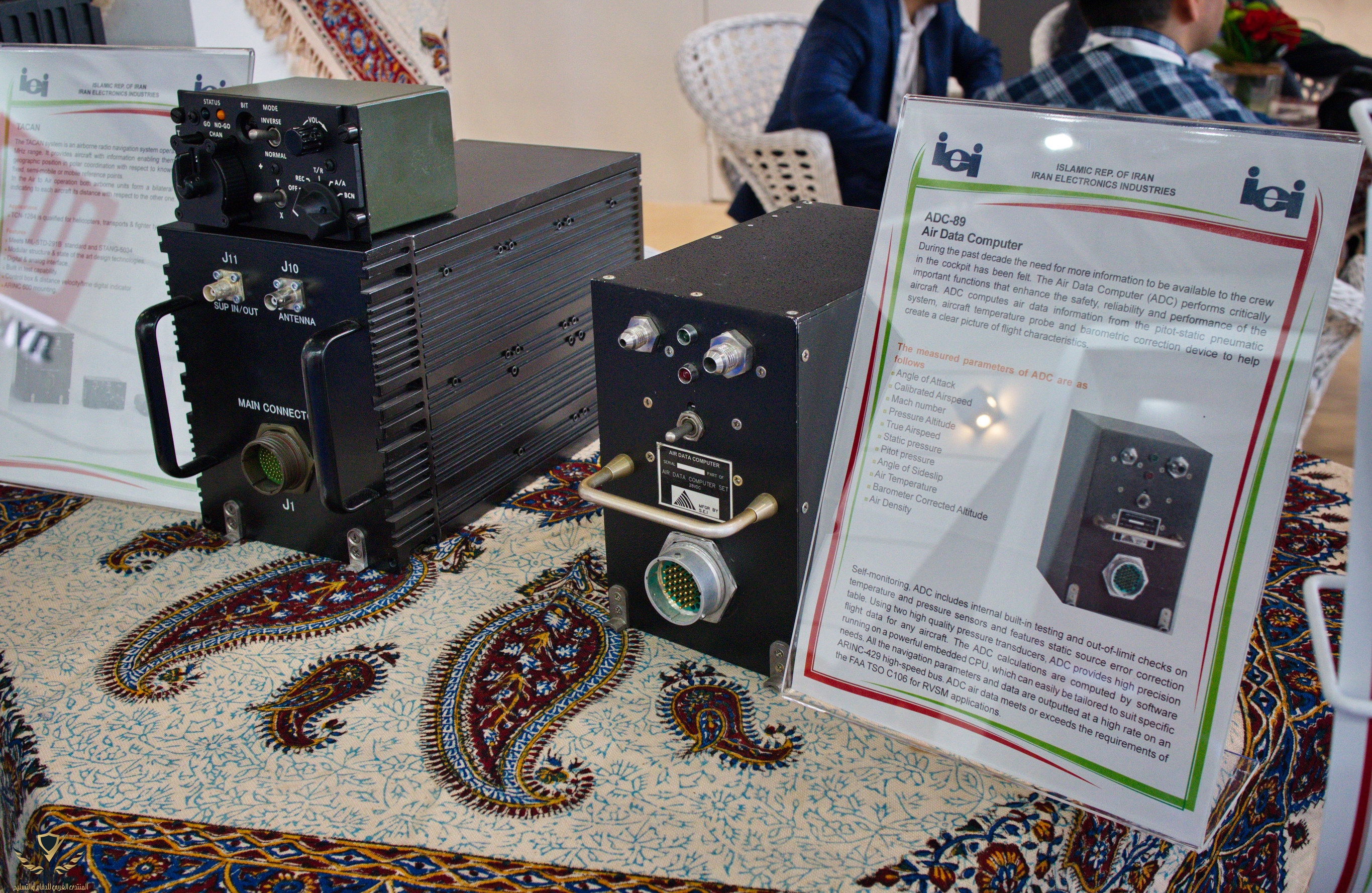

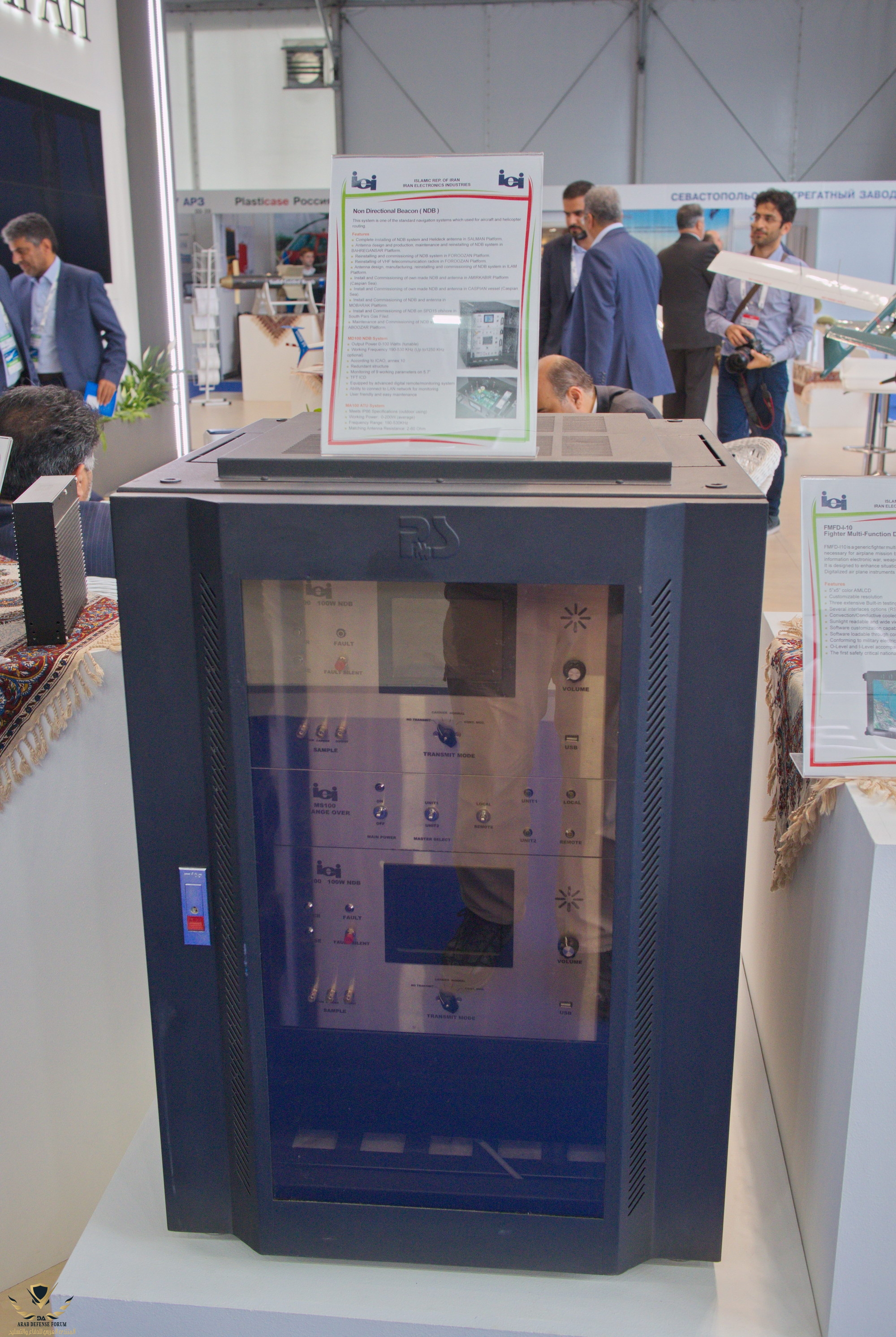

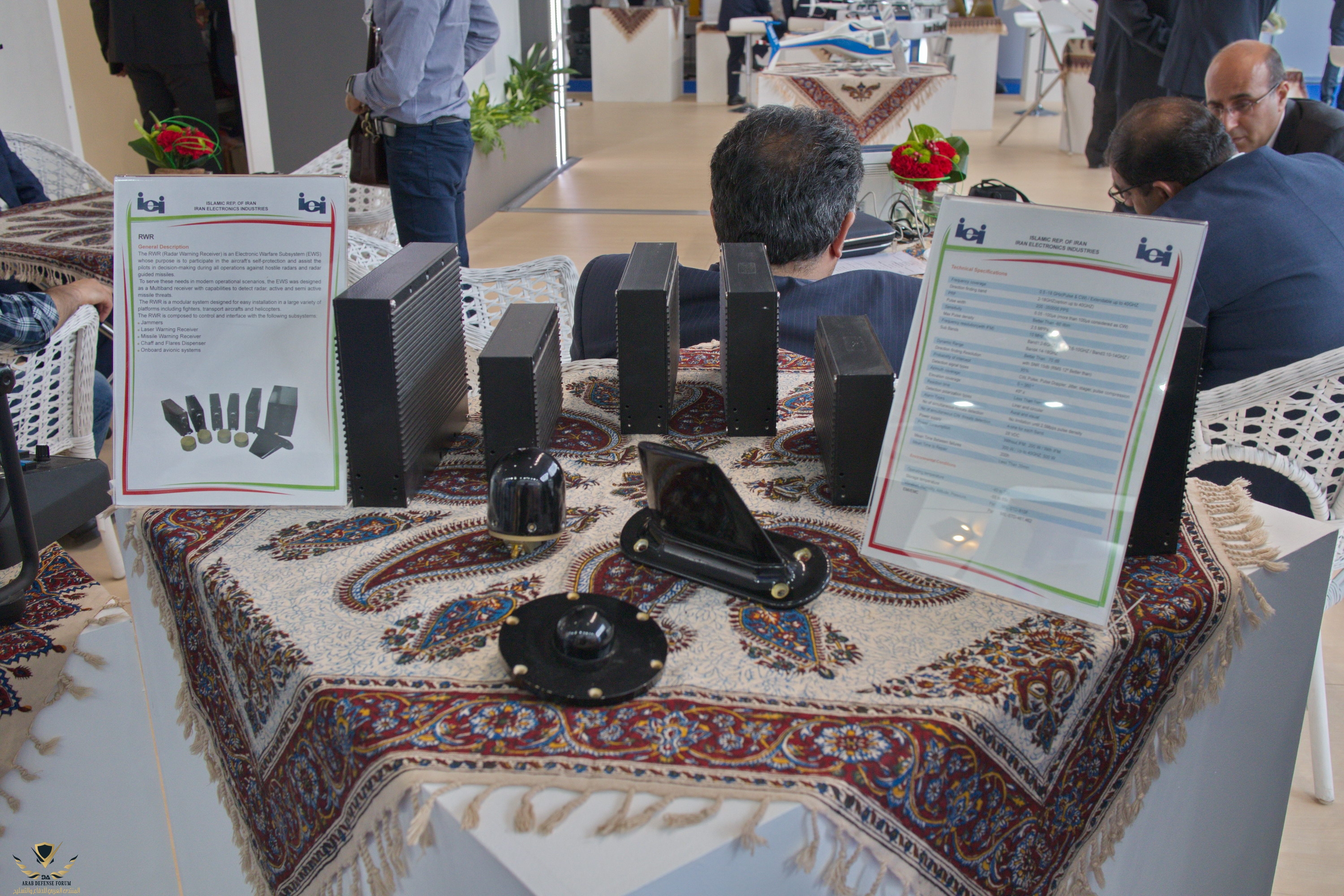

*IEI ايضا لديها انظمة رصد حرارية و راردارات جوية *


Su-57

عضو
إنضم
1 نوفمبر 2019
المشاركات
1,951
التفاعلات
4,293 25 1
الدولة
Egypt
X-MR
X-band Marine Radar

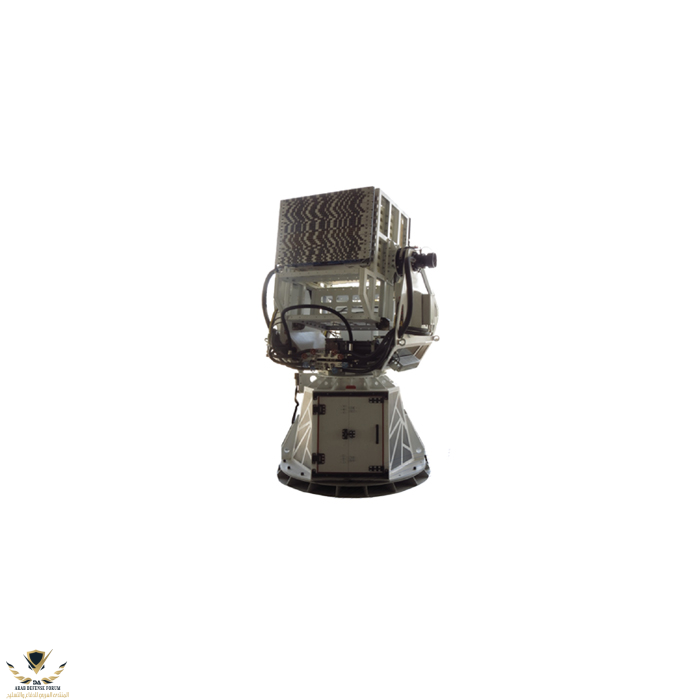

مشاهدة المرفق 191899

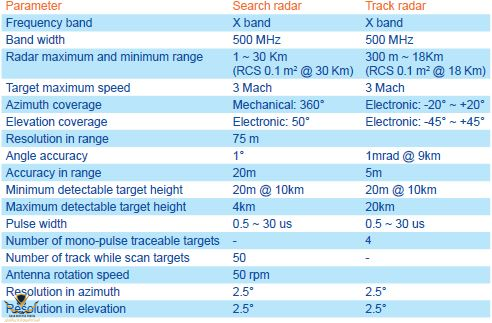

X-MR is 3D active phased array radar working in X frequency band capable of detecting and tracking low and high altitude (up to 4km) targets on the ground and over the sea. This system is capable of scanning 360° of azimuth coverage mechanically. It can also scan an azimuth sector electronically. X-MR has a wide coverage in elevation by using electronic scan. The radar can estimate target position in elevation by using multiple simultaneous digital electronic beams. Narrow pencil beams of this radar make it possible to track targets with high accuracy that is suitable for guiding different types of weapons and missiles. Modular design helps radar to be easily repaired.



Features

Multifunction Radar with the ability to detect and track multiple targets simultaneously.
- TWS up to 50 targets with fine accuracy
- Track up to 4 targets with high accuracy (2 targets and 2 missiles depending on missiles guiding algorithm)

Radar surveillance of air and surface situation
Detection of air targets, including small size, diving and low altitude flying targets
Determination of coordinates (Azimuth, Elevation and Range) and motion parameters of the tracked targets
Classification of the tracked targets according to their trajectories
Threat evaluation of the tracked targets
Digital Beam forming radar
ECCM capabilities
Operating in multi-sensor networks

مشاهدة المرفق 191900

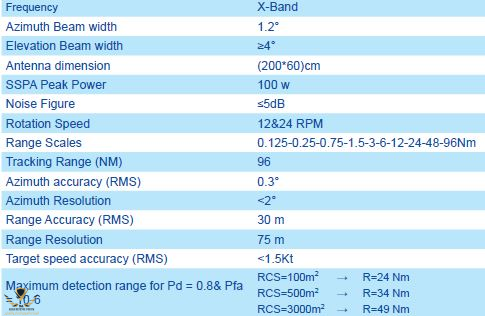

MVSR-X1
Marine Vessel Solid State Radar (X band)
مشاهدة المرفق 191901


MVSR-X1 is digital X-band marine Solid State radar designed to detect sea vessels within the radar coverage, determine their range, azimuth and velocity and transmit radar information to the related network. MVSR-X1 is new generation radar which combines advanced radar developments, modern digital technologies and hardware with constructive technological solutions. MVSR-X1 is digital surveillance radar developed based on the operation demands of naval forces. The radar is characterized by good performances such as high automation.


Features

Enhancing radar performance,user-friendly operation and visibility
Full range tracking (100 Targets)
Standard ports for data transmission
High speed data transmission via Ethernet LAN
High reliability and maintainability
ECCM capabilities (random PRF, CFAR, Pulse Compression, Frequency Hopping, Integrator and sector blanking)
Defining the specified regional Guard Zone (for each desired target)
Capable of recording and retrieving all daily operational events in computer
Capable of target classification
Capable of displaying the target history and Echo trail
Applying sea clutter and rain clutter techniques (STC & FTC)
Capable of changing the length of tracking vector
Capable of connecting to analog and digital navigation systems (such as Gyro, Gps, AIS, meteorological, …) via standard serial port (RS422/232) with NMEA 0183 format
Capable of changing the wave form of the Pulse Compression (BPSK or LFM)
Operating in radar network
BIT (Built-In-Test
مشاهدة المرفق 191904

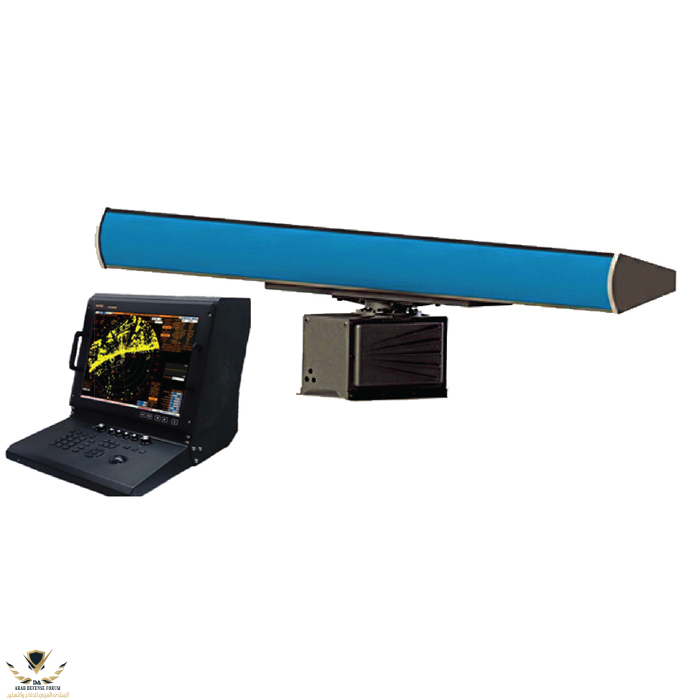

MVMR-S1
Marine Vessel Microwave Radar (S-band)
مشاهدة المرفق 191902


MVMR-S1 is digital S-band marine vessel radar designed to detect sea vessels within the radar coverage, determine their range, azimuth and velocity and transmit radar information to the related network. MVMR-S1 is new generation radar that combines advanced radar developments, modern digital technologies and hardware with constructive technological solutions. MVMR-S1 is digital surveillance radar developed based on the operation demands of naval forces. The radar is characterized by good performances such as high automation.


Features

Enhancing radar Performance,user-friendly operation and visibility
Full range tracking (100 Targets)
Standard ports for data transmission
High speed data transmission via Ethernet LAN
High reliability and maintainability
Defining the specified regional Guard Zone (for each desired target)
Capable of recording and retrieving all daily operational events in computer
Capable of target classification
Capable of changing the Pulse Width
Manual tracking: capable of selecting automatic tracking in overall region of surveillance
Capable of displaying the target history and Echo trail
Applying sea clutter and rain clutter techniques (STC & FTC)
Capable of changing the length of tracking vector
Capable of connecting to analog and digital navigation systems (such as Gyro, Gps, AIS,
meteorological, …) via standard serial port (RS422/232) with NMEA 0183 format
Operating in radar network
BIT (Built-In-Test)

مشاهدة المرفق 191903
