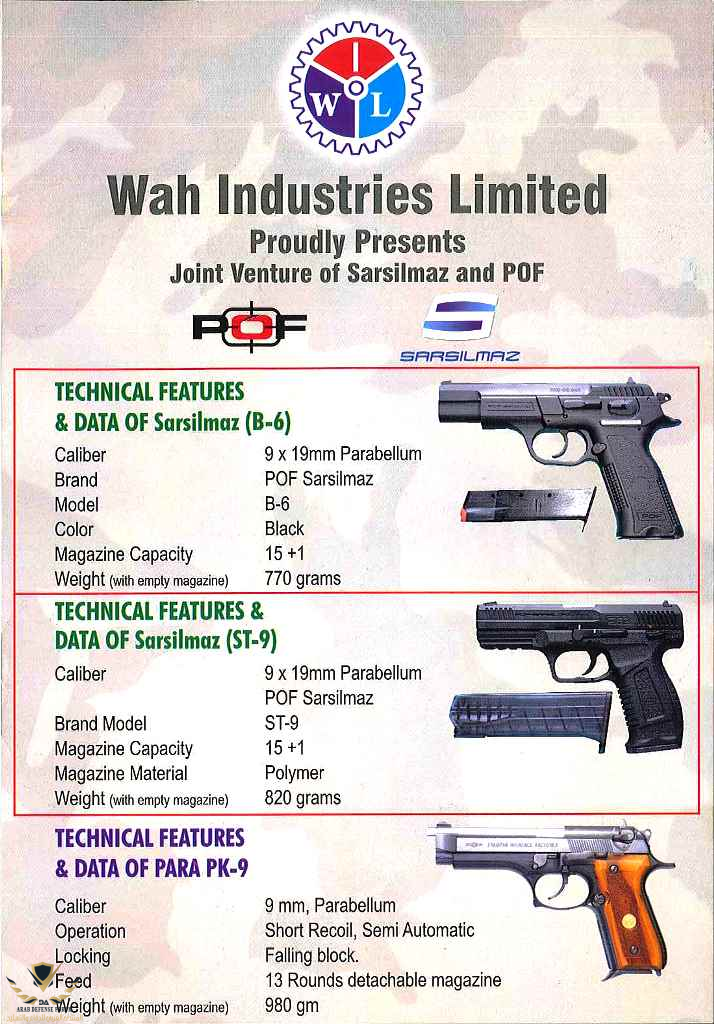

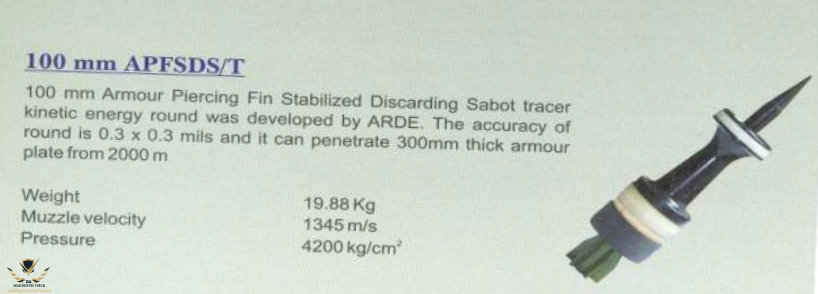

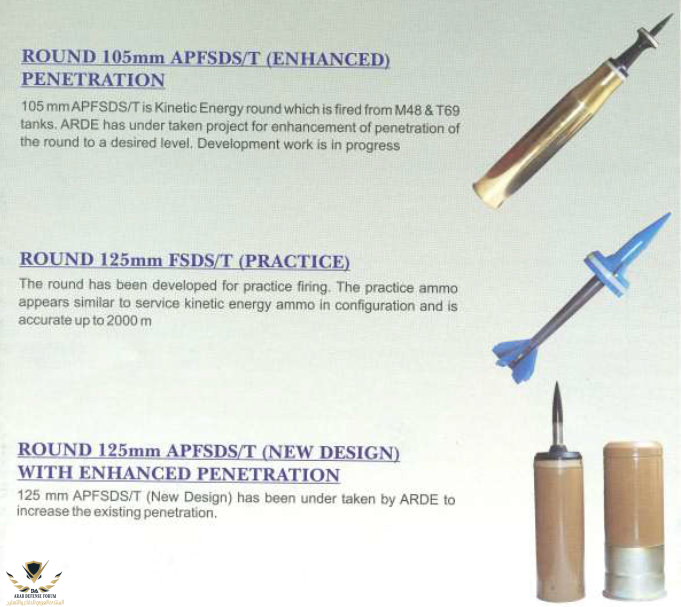

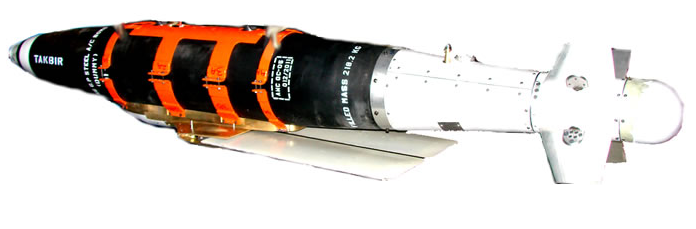

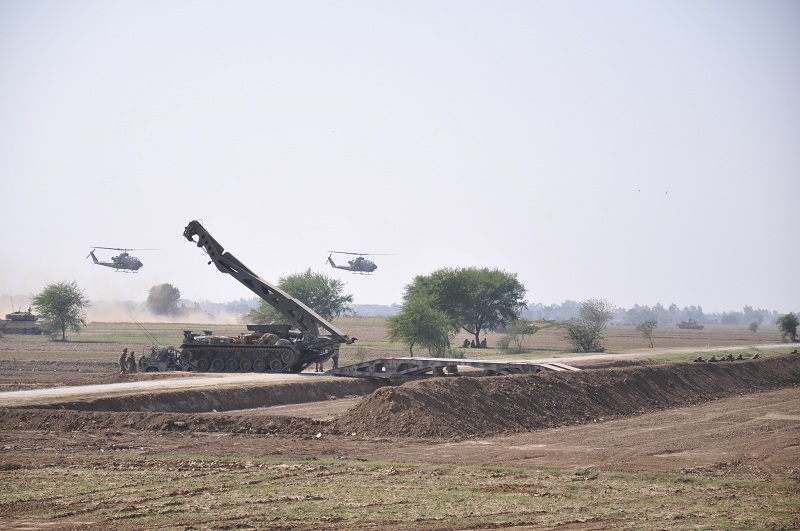

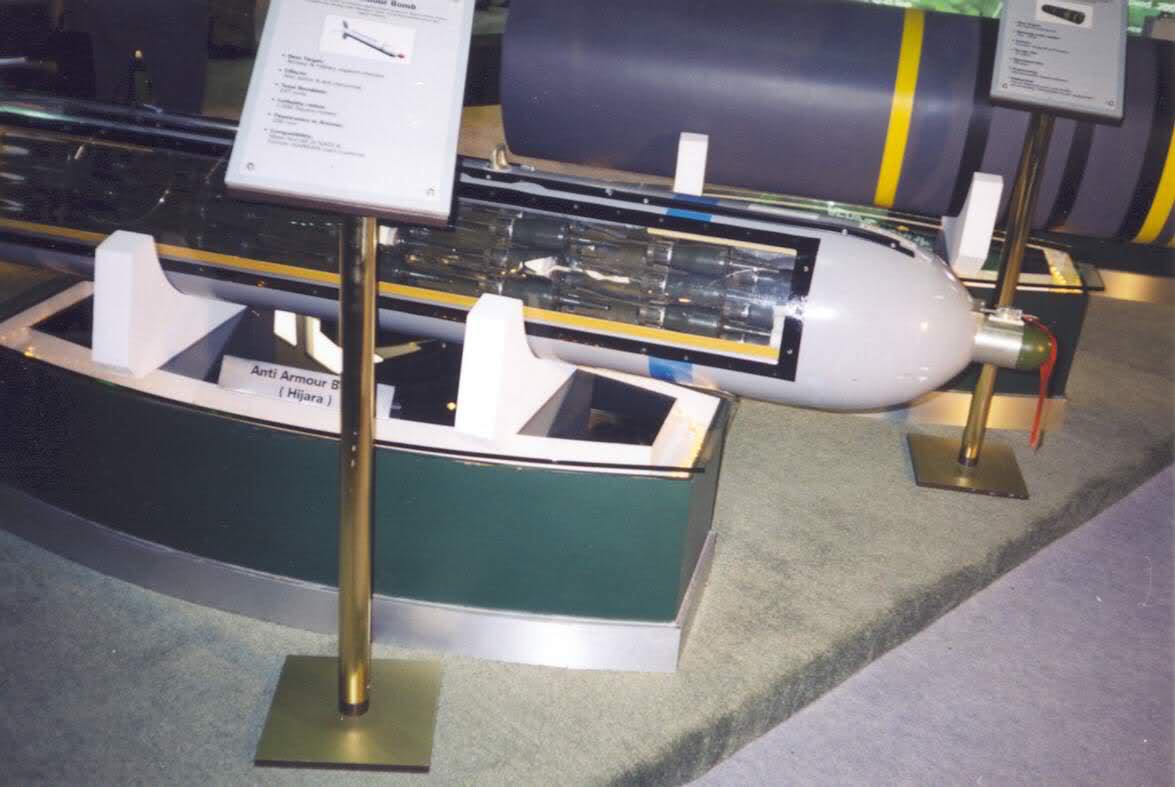

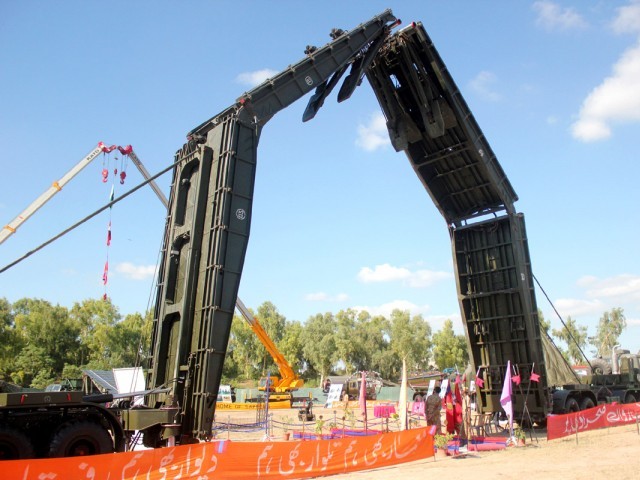

MVDE built AVLB


Mortarbombs

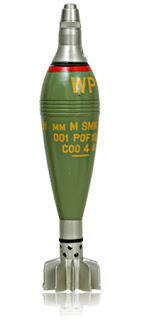

120 MM Smoke WP M44A1
This bomb is suitable for use with Mortar AM-50 (Brandt) with 1.75 meter barrel length and produces smoke for screening and spotting purposes.
[IMG]

TECHNICAL DATA
Complete Round

Weight with fuse, pry/aug ctge
13.0 kg. (as fired)
Length with fuse
676 mm
Projectile
Body material
Forged steel
Color
Eau de nil
Main charge
White phosphorus, 2.6 kg
Fuse
V 19 P A2 Super quick and delay settings
Other Components
Primary cartridge
CL 3 ballistite 74 gm
Augmenting charge
7 charges of 75 gm. each of Ballistite GB Pa in cellunyl horseshoe container
Tail unit
6 steel fins
Max Pressure
820 kg/sq.cm.
Chamber pressure for performance proof tests:
Strength
920 + 20 kg/sq. cm.
Charge stability
920 + 20 kg/sq. cm.
Detonation
820 kg/sq. cm.
Max. range
6,745 meters

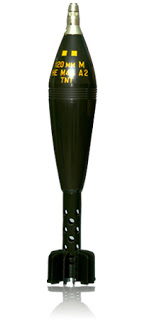

120 MM He M44A2
This bomb is suitable for use with Mortar AM-50 (Brandt) with 1.75 metre barrel length and is used against personnel and light material creating fragmentation and blast effect.
[IMG]

TECHNICAL DATA
Complete Round

Weight with fuse, pry/aug ctge
13.0 kg. (as fired)
Length with fuse
676 mm.
Projectile
Body material
Forged steel
Color
Deep bronze Green
Exploder charge
C.E.
Main charge
TNT 2.6 kg
Fuse
Super quick & delay settings
Other Components
Primary cartridge
CL 3 ballistite 74 gm
Augmenting charge
7 charges of 75 gm. each of ballistite GB Pa in cellunyl horseshoe container
Tail unit
6 steel fins

Pressure
820 kg/sq.cm.
Chamber pressures for performance proof tests:
Strength
920 + 20 kg/sq. cm.
Charge stability
920 + 20 kg/sq. cm.
Detonation
820 kg/sq. cm.
Max. range
6,745 meters.



81 MM HE M 57 D A2

These bombs are produced for use with Hotchkiss Brandt mortars, of the following types:
1.MO-81-61 C Short barrel
2.MO-81-61 L Long barrel
The bomb is used against personnel and light material providing both fragmentation & blast effect.
[IMG]



TECHNICAL DATA
Complete Round

Weight with fuse
3.2 kg
Length with fuse
382 mm
Projectile
Body Material
Forged Steel
Color
Olive drab or deep bronze green
Explosive charge
650 gm of TNT
Fuze
Detonating direct action type with optional delay of 0.05 sec
Other Components
Primary cartridge
Double base propellant GBPa 0.15x1x1 in rolled paper tubes weighing 8.2 gm. (Type Z 58C)
Augmenting charge
7 horseshoe charges containing double base propellant GB Pa 0.25x2.5x2.5 each weighing 10.5 gm.
Tail unit
10 Aluminum alloy fins

81 MM Smoke WP

This bomb is suitable for use with Hotchkiss Brandt mortars, of the following types:

i) MO-81-61 C Short barrel
ii) MO-81-61 L Long barrel

It produces smoke for screening and spotting purposes.
[IMG]


81MM Illuminating, Signal (Red & Green)
CANNISTER DESIGN BUILT IN FIXED DELAY (NO FUZE)
These bombs are used with 81 mm mortar, and are available in three types i.e. illuminating bombs provide illumination during night missions, while red & green bombs are used for signaling.

Illuminating rounds are assembled with nylon parachute of 1,000 mm diameter linked with a star, through a zinc/cadmium/chromium plated steel wire.
[IMG]

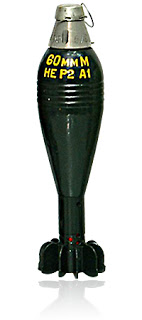

[ 60 MM HE
This bomb is fired from 60 mm Mortar Model 1979 for use against personnel, providing fragmentation and blast effect.

[IMG]


60 MM Smoke WP
This bomb is fired from 60 mm Mortar Model 1979 and is used to produce smoke for screening and spotting purpose.
[IMG]


TECHNICAL DATA

Complete Round


Weight with fuse
1.5 kg

Length with fuse
238.70 mm (approx)

Projectile

Body Material
Forged steel or Graphite cast iron

Color
Sea green or Eau de nil

Explosive
White Phosphorus

Charge
150±20 gm (approx)

Fuse
MP-7 (Point detonating) or V9P2/A2

Other Components

Primary cartridge
Double base propellant WD 615 3.2 gm

Augmenting Charge
Double base propellant 3 ring shaped charges 0.10 x 24/48 mm each weighing 3.1 gm

Percussion Primer
No. 303

Tail Unit
10 steel fins



Rockets
Rocket 122 MM He (MBRL) YARMUK
Rocket 122mm HE (MBRL) is a ground to ground free flight artillery rocket fired from multi-tube or single-tube launcher. It is used against personnel and light material, providing both fragmentation and blast effect.
[IMG]


73 MM FSRA Heat SPG9 (RAAD)
73 mm FSRA Heat round is a Fin Stabilized Rocket Assisted High Explosive Anti-Tank ammunition fired from its smooth bore Recoilless Launchers, 73 mm.
[IMG]

40 MM Heat P1 MK1 (RPG-7P)
This is an anti armor grenade usable against tanks, self propelled guns and fortifications. It is fired from the 40mm recoilless rocket launcher, type 1969-1 or equivalent by loading through the muzzle end.
[IMG]
Air Burst Anti Personnel Rocket Caliber 40 mm RGP-7AP
This is a shoulder fired rocket propelled grenade lethal enough to kill soldiers and damage equipment within 15 meters radius. At ranges of 1500 meters it is fired from the 40 mm recoilless rocket launcher type 1969-1 or equivalent.
[IMG]


Grenade

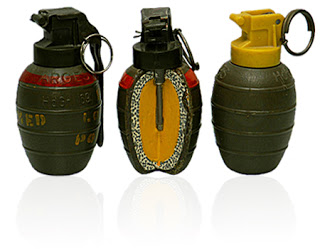

Plastic Hand Grenade Arges 84 - P2A1

[IMG]

TECHNICAL DATA

Weight of the grenade
480 gm

Body
Plastic with steel balls

No. of steel balls
5000 approx. dia 2-2.3 mm

Weight of the explosive
95 gm. of plasticized P.E.T.N.

Effective range
20 meters radius

Activation
Safely lever operated b a pin with delay of 3.5 to 5.5 Secs.

Length
115 mm

Diameter
60 mm

Packing

Each grenade packed in a cardboard container, 12 containers in a steel box:

Size of box
33.5 x 26.5 x 14.5 cm

Weight of box
11 kg

Color & marking
Service brown with yellow / white stenciling


Shooting Pencil Type
These cartridges are meant for firing by a shooting pencil and are used for signaling during day or night. On firing, the star is propelled to the prescribed height and emits the specific color of light.
[IMG]

TECHNICAL DATA

Available in the following colors:
Red
Green
Illuminating
Red Green (Bio - Color)
Green Red (Bio - Color)

Burning time
Max. 5.5 sec

Height to which ejected
70 - 84 meters

[/QUOTE]
