هل حصلت مصر على صواريخ "إسكندر" الباليستية الروسية الخارقة؟ (صور)
- بادئ الموضوع matrax00
- تاريخ البدء
لو كنت اتكلم معك بصفتي مشرف لن تجد هذا الرد بل ستجد رسالة مخالفة في الحال المرة القادمة تكلم ب اذب ابلع قلها لواحد في الشارع وليس في منتدى محترمهل تتكلم بصفتك عضو مثلما هو الحال من يعلق حول الموضوع او بصفتك مشرف
- إنضم
- 21 ديسمبر 2019
- المشاركات
- 1,862
- التفاعل
- الدولة
من الشركة الام KBM
https://www.kbm.ru/en/production/otrk/352.html
Iskander-E tactical ballistic missile system
The Iskander-E high-precision missile system is intended for concealed preparation for and delivery of effective missile attacks on priority smalls-size and area targets in the operational depth of enemy formations.
Major targets:
- command posts and communications centres;
- large concentrations of troops;
- fire power assets;
- air defence and ATBM facilities;
- parked rotary-wing and fixed-wing aircraft.
Major features of missile system:
- high-precision and effective destruction of various target types with penetration of ATBM defence;
- concealed launch preparation, combat alert and effective delivery of missile attacks;
- automatic calculation and entry of missile flight data through launcher equipment;
- high probability of the missile's failure-free operation during prelaunch activities and in flight;
- high tactical manoeuvrability due to cross-country capability of combat vehicles based on all-wheel drive chassis;
- strategic mobility due to transportability of system vehicles by all means of transportation;
- automated combat control of missile units, quick processing of intelligence data and its forwarding to appropriate control authorities.
The Iskander-E missile system provides for accomplishment of combat missions in all modes of army combats, in various theartres of war, round the clock, in ATBM and electronic war environment.
Functionally, the system can be devided in:
- combat equipment: missiles, transporters-erectors-launchers (TEL), transloaders;
- battlefield management and information systems integrated in the command post vehicle (CPV);
- maintenance and repair facilities: scheduled maintenance vehicle and depot equipment set;
- crew life support vehicle for the personnel on the combat alert at the launch site;
- training aids: missile's training mock-up, equipment sets for TEL and CPV training classrooms, set of instructional charts.
The missile system ensures combat operation with the launch site and target at an altitude of up to 3,000 m above sea level, the TEL taking either an open position or being positioned in an emplacement without survey and weather support and without engineering organization of the launch site.
High precision at a significant range, short readiness time (between 4 and 16 minutes depending on the system readiness state), powerful combat payload and high probability of ATMB penetration ensure that the system is capable to quickly defeat any target type by launching one missile or two in salvo.
System's major specifications:
A) Missile
B) Transporter-erector-launcher:
C) Transloader:
D) Command post vehicle:
https://www.kbm.ru/en/production/otrk/352.html

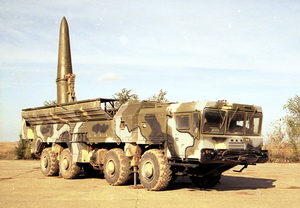

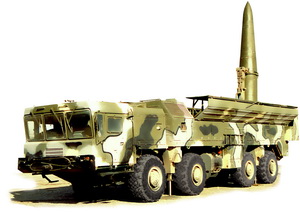

Iskander-E tactical ballistic missile system
The Iskander-E high-precision missile system is intended for concealed preparation for and delivery of effective missile attacks on priority smalls-size and area targets in the operational depth of enemy formations.
Major targets:
- command posts and communications centres;
- large concentrations of troops;
- fire power assets;
- air defence and ATBM facilities;
- parked rotary-wing and fixed-wing aircraft.
Major features of missile system:
- high-precision and effective destruction of various target types with penetration of ATBM defence;
- concealed launch preparation, combat alert and effective delivery of missile attacks;
- automatic calculation and entry of missile flight data through launcher equipment;
- high probability of the missile's failure-free operation during prelaunch activities and in flight;
- high tactical manoeuvrability due to cross-country capability of combat vehicles based on all-wheel drive chassis;
- strategic mobility due to transportability of system vehicles by all means of transportation;
- automated combat control of missile units, quick processing of intelligence data and its forwarding to appropriate control authorities.
The Iskander-E missile system provides for accomplishment of combat missions in all modes of army combats, in various theartres of war, round the clock, in ATBM and electronic war environment.
- combat equipment: missiles, transporters-erectors-launchers (TEL), transloaders;
- battlefield management and information systems integrated in the command post vehicle (CPV);
- maintenance and repair facilities: scheduled maintenance vehicle and depot equipment set;
- crew life support vehicle for the personnel on the combat alert at the launch site;
- training aids: missile's training mock-up, equipment sets for TEL and CPV training classrooms, set of instructional charts.
High precision at a significant range, short readiness time (between 4 and 16 minutes depending on the system readiness state), powerful combat payload and high probability of ATMB penetration ensure that the system is capable to quickly defeat any target type by launching one missile or two in salvo.
System's major specifications:
A) Missile
| Effective launch range, km: maximum minimum | 280 50 |
| Launch weight, kg | 3,800 |
| Combat payload weight, kg | 480 |
| Launcher weight with missiles | 42,300 |
| Warhead: | - fragmentation - blast & fragmentation - penetrating HE |
| Missile engine | Solid propellant |
| Control system | strapdown inertial, integratable with optical seeker and cosmic navigational systems Glonass and GPS |
| Chassis | cross-country, wheeled |
| Full weight, incl. crew and load, kg | 42,300 |
| Road speed, max., km/h | 80 |
| Fuel range, km | 1,000 |
| Number of missiles, pcs. | 2 |
| Crew, persons | 3 |
| Chassis | cross-country, wheeled |
| Full weight, incl. crew and load, kg | 40,000 |
| Road speed, max., km/h | 80 |
| Fuel range, km | 1,000 |
| Number of transported missiles, pcs. | 2 |
| Crew | 2 |
| Chassis type | KAMAZ-43101 |
| Full weight of complete and filled item, kg | 14,000 |
| Range coverage of radio set on the move, km: USW short waves | up to 25 up to 40 |
| Time for solving calculation tasks, s, max | 10 |
| Crew | 3 |
| Operation life of system components | 10 years, incl. 3 years in the field |
| Operation temperature range, °C | minus 50 to +50 |
- إنضم
- 21 ديسمبر 2019
- المشاركات
- 1,862
- التفاعل
- الدولة
من الشركة الام KBM
https://www.kbm.ru/en/production/otrk/351.html
Tochka-U high-precision tactical ballistic missile system
Purpose:
The Tochka-U high-precision missile system is intended for effective destruction of priority smalls-size and area targets in the tactical depth of enemy formations round the clock, in any weather and season:
- large command centres and control posts;
- communications centres;
- electronic warfare units;
- air defence, ATBM and Air Force assets;
- major concentration of enemy troops.
Components:
- missile with a fragmentation or blast & fragmentation warhead;
- transporter-erector-launcher (TEL);
- transloader vehicle (TLV);
- transportation vehicle (TV);
- automated test vehicle (ATV);
- maintenance vehicle (MV);
- depot equipment set (DES);
- training aids.
The missile has a single-stage solid-propellant motor and an inseparable warhead, is guided throughout its flight.
The TEL provides for:
- missile warhead interchange;
- co-ordinate finding of the own location;
- pre-launch missile check and aiming;
- calculation of flight mission data;
- missile launch from an unorganised position from inside the TEL cab or from a trench using a remote control panel.
The automated test vehicle is used to check all missile systems and localize faulty units/modules.
The transloader vehicle is intended for missile transportation, loading/unloading and attachment of missiles and warheads.
The maintenance vehicle is designed for servicing TEL and ATV equipment, autonomous checks of devices and their repair.
The transportation vehicle carries and stores one or two containerised missiles or up to four containerised warheads.
https://www.kbm.ru/en/production/otrk/351.html
Tochka-U high-precision tactical ballistic missile system
Purpose:
The Tochka-U high-precision missile system is intended for effective destruction of priority smalls-size and area targets in the tactical depth of enemy formations round the clock, in any weather and season:
- large command centres and control posts;
- communications centres;
- electronic warfare units;
- air defence, ATBM and Air Force assets;
- major concentration of enemy troops.
Components:
- missile with a fragmentation or blast & fragmentation warhead;
- transporter-erector-launcher (TEL);
- transloader vehicle (TLV);
- transportation vehicle (TV);
- automated test vehicle (ATV);
- maintenance vehicle (MV);
- depot equipment set (DES);
- training aids.
The missile has a single-stage solid-propellant motor and an inseparable warhead, is guided throughout its flight.
The TEL provides for:
- missile warhead interchange;
- co-ordinate finding of the own location;
- pre-launch missile check and aiming;
- calculation of flight mission data;
- missile launch from an unorganised position from inside the TEL cab or from a trench using a remote control panel.
The automated test vehicle is used to check all missile systems and localize faulty units/modules.
The transloader vehicle is intended for missile transportation, loading/unloading and attachment of missiles and warheads.
The maintenance vehicle is designed for servicing TEL and ATV equipment, autonomous checks of devices and their repair.
The transportation vehicle carries and stores one or two containerised missiles or up to four containerised warheads.
System specifications
| Range, km: minimum maximum | 15 120 |
| Weight, kg: missile warhead TEL | 2,010 480 18,000 |
| Launch preparation time, min.: from Readiness No.1 from travelling position | 2 16 |
| TEL, TLV chassis | Three-axle, cross-country, amphibious |
| Maximum TEL, TLV speed, km/h: on road on water | 60 8 |
| TEL, TLV fuel range (fully loaded), km | 650 |
| CV kilometrage life, km | 15,000 |
| Crew | 4 |
| Operating temperature range, deg.C | From minus 40 to +50 |
| Service life, years | 10 at the least, incl. 3 years in the field |
- إنضم
- 20 أغسطس 2019
- المشاركات
- 1,473
- التفاعل
- الدولة
من الشركة الام KBM
https://www.kbm.ru/en/production/otrk/351.html
Tochka-U high-precision tactical ballistic missile system
٢
Purpose:
The Tochka-U high-precision missile system is intended for effective destruction of priority smalls-size and area targets in the tactical depth of enemy formations round the clock, in any weather and season:
- large command centres and control posts;
- communications centres;
- electronic warfare units;
- air defence, ATBM and Air Force assets;
- major concentration of enemy troops.
Components:
- missile with a fragmentation or blast & fragmentation warhead;
- transporter-erector-launcher (TEL);
- transloader vehicle (TLV);
- transportation vehicle (TV);
- automated test vehicle (ATV);
- maintenance vehicle (MV);
- depot equipment set (DES);
- training aids.
The missile has a single-stage solid-propellant motor and an inseparable warhead, is guided throughout its flight.
The TEL provides for:
- missile warhead interchange;
- co-ordinate finding of the own location;
- pre-launch missile check and aiming;
- calculation of flight mission data;
- missile launch from an unorganised position from inside the TEL cab or from a trench using a remote control panel.
The automated test vehicle is used to check all missile systems and localize faulty units/modules.
The transloader vehicle is intended for missile transportation, loading/unloading and attachment of missiles and warheads.
The maintenance vehicle is designed for servicing TEL and ATV equipment, autonomous checks of devices and their repair.
The transportation vehicle carries and stores one or two containerised missiles or up to four containerised warheads.
الجد توشكا لديه نسخة سلبية راكبة للشعاع .. في حالة تطوير اسكندر بنسخة سلبية ستكون صدمة كبيرة على انظمة الدفاع الجوي

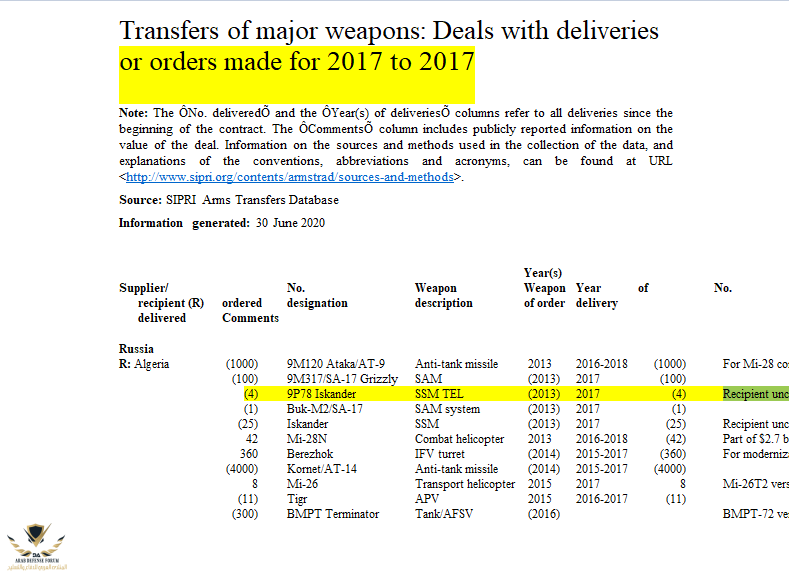

تقرير ال Sipri احدث من مصدرك يشير لإستلام غير مؤكد عندما يتأكد ستزيل Sipri ان شاء الله تلك العبارة من تقريرها السنويهل اطلعت على المصدر ام مازلت تراوغ
- إنضم
- 20 أغسطس 2019
- المشاركات
- 1,473
- التفاعل
- الدولة
- إنضم
- 21 ديسمبر 2019
- المشاركات
- 1,862
- التفاعل
- الدولة

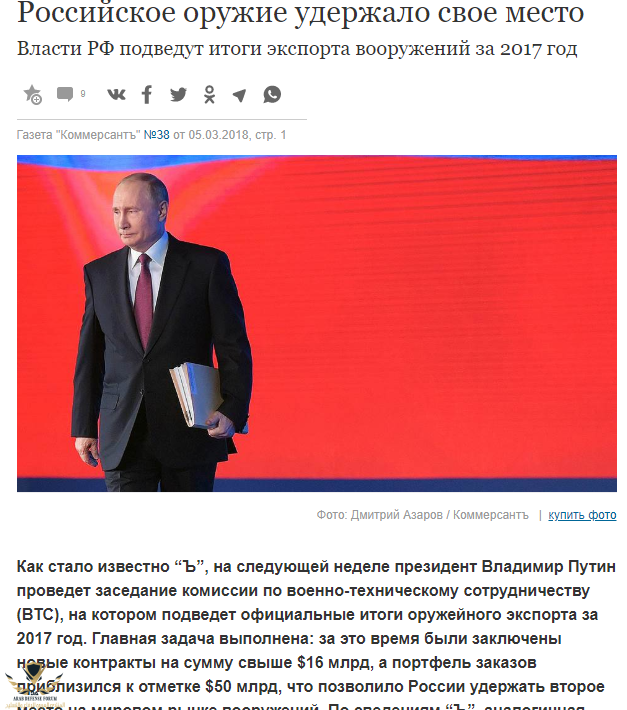

رواد المنتديات يعرفون قيمة موقع kommersant.ru ومصداقيته العالية . قولو ل sipri يصحح معلومته حول اعداد maxxxpro التي لدينا
ويعرفون قيمة SIPRI أيضا
وكم عندكم منها 1000 ام 2000؟؟
- إنضم
- 19 نوفمبر 2018
- المشاركات
- 6,672
- التفاعل
- الدولة
من شدة الخيبة ...البعض صاروا يكذبون الكذبة و يصدقونها
- إنضم
- 21 ديسمبر 2019
- المشاركات
- 1,862
- التفاعل
- الدولة

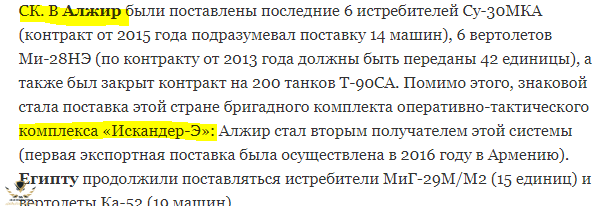

ليس مشكلتي ان كان sipri لا يحدث معلوماته. في 2017 اعلن عن دولة من منطقة mena حصلت على الاسكندر. الاحتمالات تراوحت بين الجزائر ومصر لهذا sipri في تقريره لسنة 2017 توقع الجزائر وكتب في ملاحظاته Recipient uncertain. لكن بعد سنة اي 03/05/2018 kommersant قطعت الشك باليقين انه للجزائر
https://www.defenceweb.co.za/land/land-land/mena-country-has-acquired-iskander-e-ballistic-missiles/
https://www.kommersant.ru/doc/35660...J2S7CoFTILH6yDRlWnHtE1o3alfJXC3-c_sbhi9YqJuTI
- إنضم
- 3 أبريل 2010
- المشاركات
- 26,711
- التفاعل
- الدولة
@نمر
استاذ نمر قرأت كل الردود لكن قضية سكاي غارد يصد توشكا لم تدخل رأسي ولا وجدت أي دليل من كلامك يتبت القصة
سرعة التوشكا أكتر من 5 ماخ أي يمكنه قطع أكتر من 1,4 كلم بالتانية
كيف ستتصدى قذائف السكاي غارد لمتل هذه السرعة الكبيرة ؟؟
كيف سيستطيع السكاي غارد تتبع متل هذه السرعة الكبيرة ؟؟
مدى قذائف السكاي 4 كلم و الارتفاع 3 كلم
مدى صواريخ السكاي 7 كلم
مدى رادار السكاي 20 كلم
عفوا اخير الكريم لكن انت لم تنتبه إلى أهم مقومات النسخه السعوديه
وهو ارتباطها العملياتي بمنظومه متكامله تضمن لها بيانات كشف وتتبع طويله المدى في الزمن الفعلي
وبفضل الذخيره المتشظيه المشبعه بالتجستن يصبح ضرب هدف ضخم ليس أمر صعب إطلاقا
الأمر الأهم الصاروخ المهاجم هو من دخل دائره عمليات المنظومه لاستهداف قوات خارج مناطق التغطيه الدفاعيه
تحياتي
- إنضم
- 3 أبريل 2010
- المشاركات
- 26,711
- التفاعل
- الدولة
فعليا لم يفوتو
وجميع المجتمعات العسكريه القريبه من روسيا أو حتى تحالفات الشرق الأوسط تعلم تماما أن الهراء الإيراني دحضه الروس لكل عملائهم
- إنضم
- 28 أبريل 2019
- المشاركات
- 4,987
- التفاعل
- الدولة
انتوا تاعبين نفسكم ليه كده
الجزائر عندها توبول ام
والمغرب عندها ترايدينت
ريحوا دماغكم بقي
الجزائر عندها توبول ام
والمغرب عندها ترايدينت
ريحوا دماغكم بقي
والmuzzle velocity التي اصلا تنقص عند استعمال قذاءف ال AHEAD
استاذ نمر قرأت كل الردود لكن قضية سكاي غارد يصد توشكا لم تدخل رأسي ولا وجدت أي دليل من كلامك يتبت القصة
سرعة التوشكا أكتر من 5 ماخ أي يمكنه قطع أكتر من 1,4 كلم بالتانية
كيف ستتصدى قذائف السكاي غارد لمتل هذه السرعة الكبيرة ؟؟
كيف سيستطيع السكاي غارد تتبع متل هذه السرعة الكبيرة ؟؟
مدى قذائف السكاي 4 كلم و الارتفاع 3 كلم
مدى صواريخ السكاي 7 كلم
مدى رادار السكاي 20 كلم
واصلا اسرع muzzle velocity باسرع ذخيرة ستبقى بطيءة جدا !
وقدرات الرادار على اكتشاف و تتبع الاهداف ?
الپانتسير حتا بصواريخ اسرع و موجهة ورادار افضل لن يستطيع فعل ذلك
الخلاصة ، حتا وفي امر بديهي مثل هذا ، ستجد المكابرة لآخر رمق والتضاهر بعلو الشان ومن انت لتشكك في ما اقوله? ?
التعديل الأخير:
piece of cake للپاتريوت ???
المواضيع المشابهة
