بسم الله الرحمن الرحيم

في مواصلة لهذه السلسلة نتطرق اليوم الى التحف الامريكية او المشروع الامريكي Mcdonnell Douglas - JSF proposal

لا توجد معلومات كثيرة حول البرنامج

المشروع يهدف الى ايجاد تصميم جديدة سواء تخص المحرك او الاجنحة

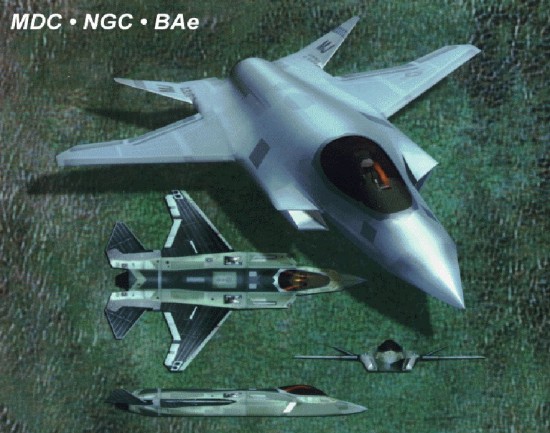

Joint Advanced Strike Technology (JAST) proposal from McDonnell Douglas, Northrop Grumman and British Aerospace

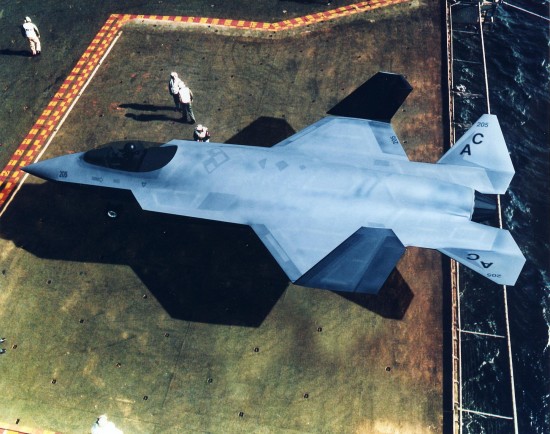

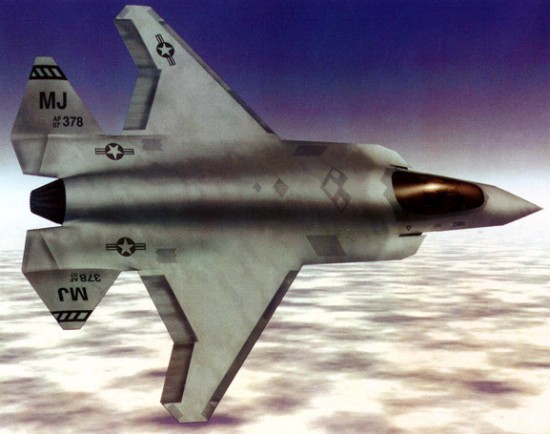

Wing planform and combined vertical/horizontal tails of the McDonnell Douglas JAST design

McDonnell Douglas JAST concept showing its wing reminiscent of the F-101

Folding wingtips for carrier suitability of the McDonnell Douglas JAST design

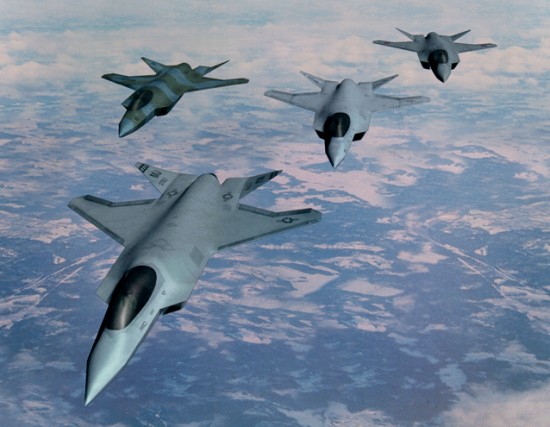

Comparison of JAST variants developed by the McDonnell Douglas team for the Marines, Navy, Air Force, and Royal Navy

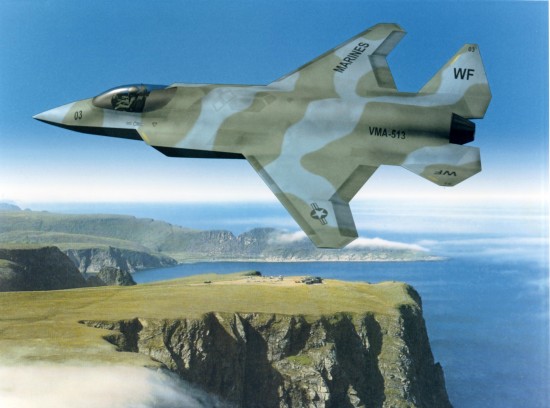

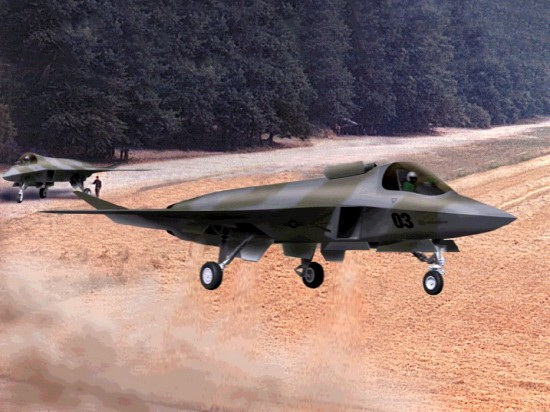

US Marines STOVL model of the JAST design offered by McDonnell Douglas, Northrop Grumman and British Aerospace

يتبع
​



[snt]

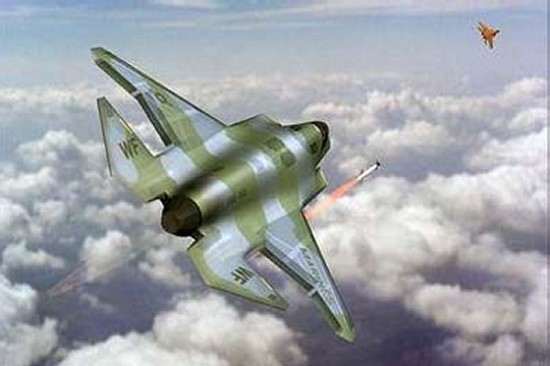

McDonnell Douglas JAST proposal launching a missile from an internal weapons bay

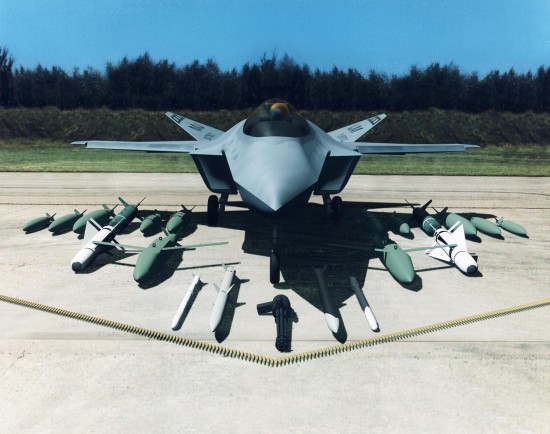

Weapons to be carried by the McDonnell Douglas JAST proposal

JAST STOVL variant from McDonnell Douglas with a lift fan and twin side nozzles used for vertical flight

Twin engine inlets of the McDonnell Douglas JAST proposal

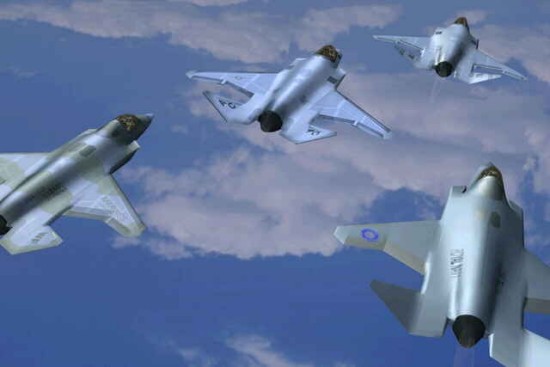

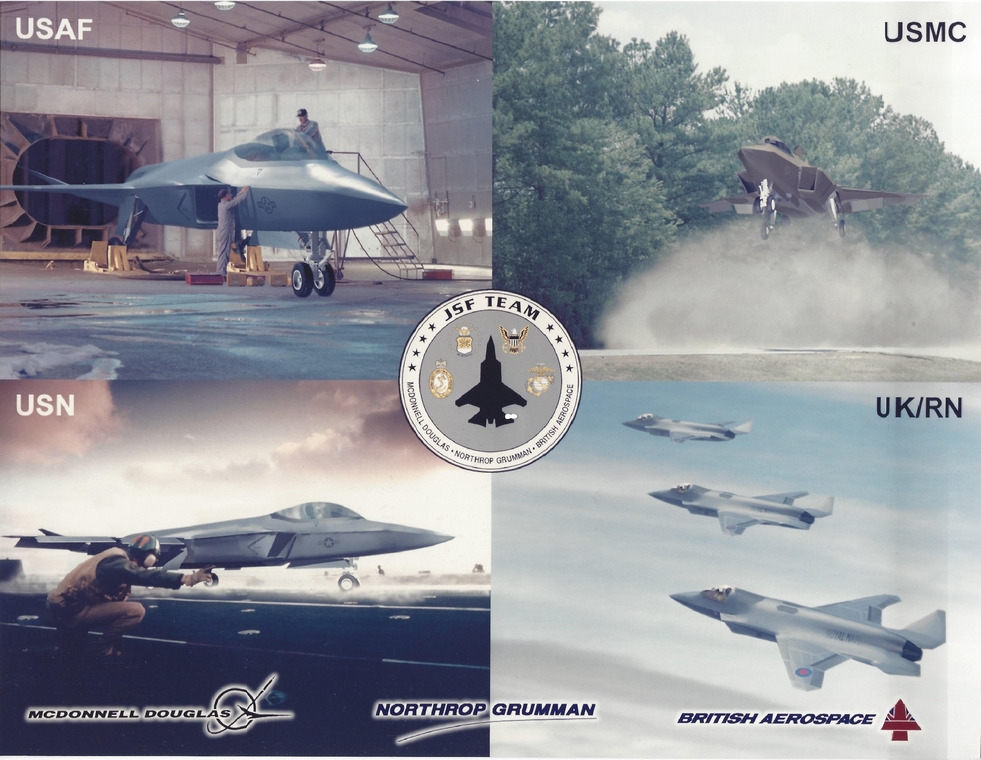

JAST variants for the four primary customers developed by the McDonnell Douglas team

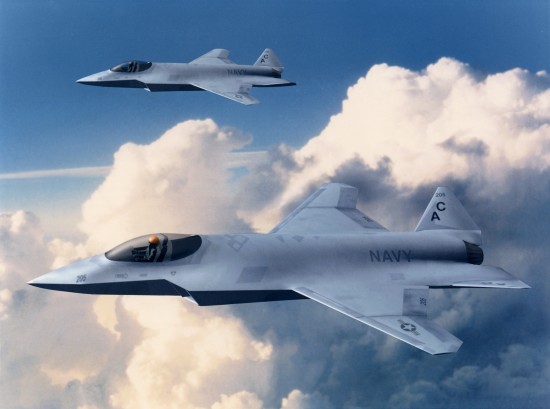

US Navy JAST variant designed by McDonnell Douglas, Northrop Grumman and British Aerospace

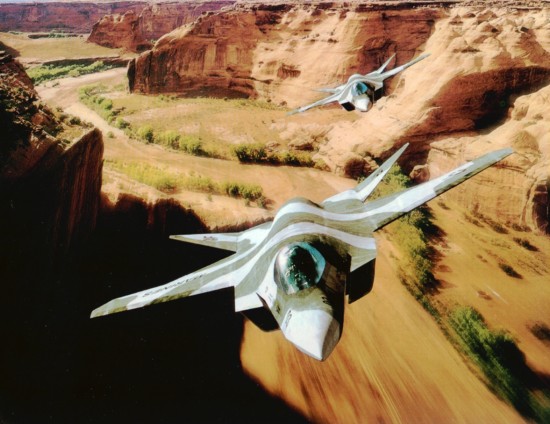

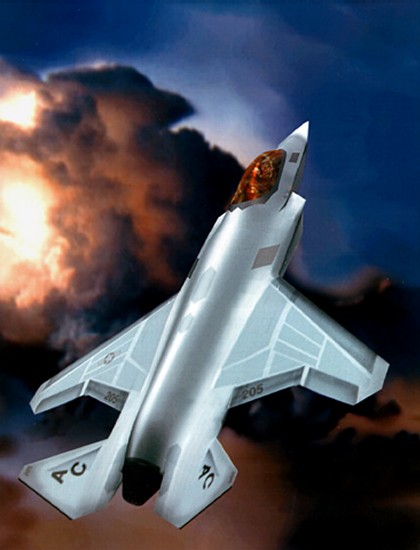

صور منوعة من المشروع



[حكم مصارعه]

موضوع جميل جدآ
لكن يوجد شبه كبير بينها وبين f35
