تغطية معرض DSEI 2015 في لندن
- بادئ الموضوع ahmedessa
- تاريخ البدء
- إنضم
- 3 يناير 2010
- المشاركات
- 7,991
- التفاعل

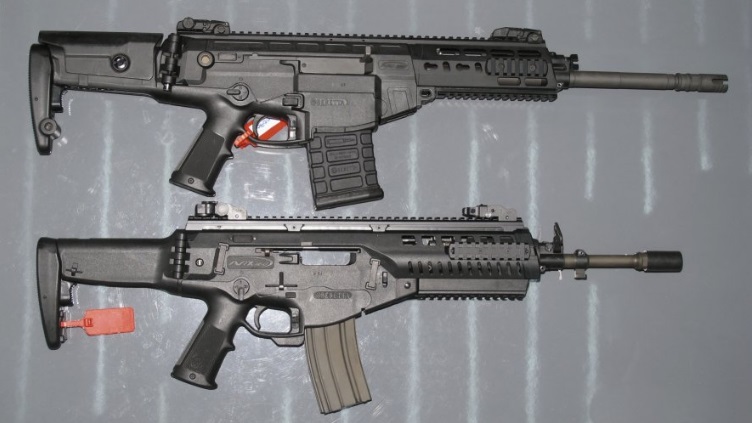

DSEI 2015: Beretta ARX-200 battle rifle
رشاشي المفضل
Beretta Defense Technologies showed off its awaited ARX-200 7.62x51 mm combat rifle at DSEI 2015 in London.
Developed to the requirements of the Italian Army, the ARX 200 is currently being qualified according to NATO AC 225/LCG1 rules.
The new rifle draws on the experience acquired with the ARX-160A3 5.56x45 mm rifle, adopted by the Italian Army and numerous other export customers.
Although not based on the ARX-160, the ARX-200 maintains a family look and feel with the earlier rifle, with many features such as the magazine release, the hold-open, and others remaining the same to facilitate training in services using both rifles.
A gas-piston operated weapon with locked breech and rotating bolt, the ARX-200 has no double-side expulsion, brass being always ejected on the left. However the cocking handle can be switched left or right dismounting the rifle, and the three-position fire selector (safe-single shot-automatic) is available on both sides.
The ARX-200 does not feature an immediate change barrel system, a quick change system having been adopted in the form of a single bolt under the handguard, fixing the heavy 16-inch free-floating cold hammer forged barrel to the bolt assembly.
Beretta took care to minimise weight, the upper rail and the forehand being made of a single aluminium piece, which is coupled with a reinforced techno-polymer insert hosting the bolt. The rifle uses the KeyMod system on the forehand in order to install side rails when needed. The ARX-200 has a weight of 4.5 kg, without magazine.
In terms of accuracy the new 7.62x51 mm rifle exceeded company expectations, obtaining a 1.5 MOA accuracy at 100 m using match-grade ammunition, a performance in line with designated marksman rifles. In fact Beretta will soon start developing a DMR [designated marksman rifle] version, modularity allowing the replacement of the fire selector and trigger assemblies; the former will be replaced by a two-position (safe and single shot) selector while the current single-stage trigger, whose pull should be around 3 kg, will be replaced by a dual-stage trigger with a pull of around 2 kg.
رشاشي المفضل
Beretta Defense Technologies showed off its awaited ARX-200 7.62x51 mm combat rifle at DSEI 2015 in London.
Developed to the requirements of the Italian Army, the ARX 200 is currently being qualified according to NATO AC 225/LCG1 rules.
The new rifle draws on the experience acquired with the ARX-160A3 5.56x45 mm rifle, adopted by the Italian Army and numerous other export customers.
Although not based on the ARX-160, the ARX-200 maintains a family look and feel with the earlier rifle, with many features such as the magazine release, the hold-open, and others remaining the same to facilitate training in services using both rifles.
A gas-piston operated weapon with locked breech and rotating bolt, the ARX-200 has no double-side expulsion, brass being always ejected on the left. However the cocking handle can be switched left or right dismounting the rifle, and the three-position fire selector (safe-single shot-automatic) is available on both sides.
The ARX-200 does not feature an immediate change barrel system, a quick change system having been adopted in the form of a single bolt under the handguard, fixing the heavy 16-inch free-floating cold hammer forged barrel to the bolt assembly.
Beretta took care to minimise weight, the upper rail and the forehand being made of a single aluminium piece, which is coupled with a reinforced techno-polymer insert hosting the bolt. The rifle uses the KeyMod system on the forehand in order to install side rails when needed. The ARX-200 has a weight of 4.5 kg, without magazine.
In terms of accuracy the new 7.62x51 mm rifle exceeded company expectations, obtaining a 1.5 MOA accuracy at 100 m using match-grade ammunition, a performance in line with designated marksman rifles. In fact Beretta will soon start developing a DMR [designated marksman rifle] version, modularity allowing the replacement of the fire selector and trigger assemblies; the former will be replaced by a two-position (safe and single shot) selector while the current single-stage trigger, whose pull should be around 3 kg, will be replaced by a dual-stage trigger with a pull of around 2 kg.
- إنضم
- 6 ديسمبر 2014
- المشاركات
- 10,359
- التفاعل
- الدولة
DSEI 2015: Beretta ARX-200 battle rifle
رشاشي المفضل
Beretta Defense Technologies showed off its awaited ARX-200 7.62x51 mm combat rifle at DSEI 2015 in London.
Developed to the requirements of the Italian Army, the ARX 200 is currently being qualified according to NATO AC 225/LCG1 rules.
The new rifle draws on the experience acquired with the ARX-160A3 5.56x45 mm rifle, adopted by the Italian Army and numerous other export customers.
Although not based on the ARX-160, the ARX-200 maintains a family look and feel with the earlier rifle, with many features such as the magazine release, the hold-open, and others remaining the same to facilitate training in services using both rifles.
A gas-piston operated weapon with locked breech and rotating bolt, the ARX-200 has no double-side expulsion, brass being always ejected on the left. However the cocking handle can be switched left or right dismounting the rifle, and the three-position fire selector (safe-single shot-automatic) is available on both sides.
The ARX-200 does not feature an immediate change barrel system, a quick change system having been adopted in the form of a single bolt under the handguard, fixing the heavy 16-inch free-floating cold hammer forged barrel to the bolt assembly.
Beretta took care to minimise weight, the upper rail and the forehand being made of a single aluminium piece, which is coupled with a reinforced techno-polymer insert hosting the bolt. The rifle uses the KeyMod system on the forehand in order to install side rails when needed. The ARX-200 has a weight of 4.5 kg, without magazine.
In terms of accuracy the new 7.62x51 mm rifle exceeded company expectations, obtaining a 1.5 MOA accuracy at 100 m using match-grade ammunition, a performance in line with designated marksman rifles. In fact Beretta will soon start developing a DMR [designated marksman rifle] version, modularity allowing the replacement of the fire selector and trigger assemblies; the former will be replaced by a two-position (safe and single shot) selector while the current single-stage trigger, whose pull should be around 3 kg, will be replaced by a dual-stage trigger with a pull of around 2 kg.
عيش يا صديقي .. عيار كبير شرقي اهو ظهر مخصوص منها ... يلا نعممها بقى على الجيش ملناش حجة
- إنضم
- 6 ديسمبر 2014
- المشاركات
- 10,359
- التفاعل
- الدولة
batteryneon
انا كان ليا الحظ اني مسكت Beretta ARX 160
صدقني مش هانساها في حياتي من القوة والمهابة اللي فيها
عايز اقولك تستاهل كل مليم ادفع فيها شغل عالي جدا ومعمولة بكل حرفية
وهو شكر فيها جدا خصوصا في تدريباته العملية عليها
حاسس بيك
بيريتا شركة مهولة لا تقل عن هيكلر ان كوك او سميث ان وسن .. اعتمادية روعة و تصميمات متقدمة
كنت رايت فيديو تطويرها فعلا بندقية عصرية جدا و دقيقة و سرعة فوهتها جيدة و اهم ما فيها بساطة تطوريها و تصميمها للاصلاح و التنظيف و التركيب و تقليل الحركة الميكانيكية لتقليل الاعطال
و سعرها مش كبير على فكرة
هو بس فكرة تبديل كامل للبندقية الهجومية للجيش المصري كله خطوة صعبة و استراتيجية جدا لا تقل عن شراء الرافال
هل ظروف تشغيلها حتصلح في كل الظروف للجندي العادي .. هل تكلفة ذلك مناسبة ... هل دمجها برخصة في المصانع مقبول و هل تصنيها هيديني نفس الكفاءة و في قد ايه حيحصل دا
طيب الذخيرة حعملها ايه .. عندي ملايين الاطنان من الذخيرة الحالية حرميها .. طيب هل حطلب عليها انبوبة اطلاق تناسب عياري الحالي ... طيب هل عياري الحالي مناسب لي حاليا ام يحتاج لتغير و الاهم السلاح الحالي الكلاش حعمل بيه ايه
آلية سحبو حتبقى ازاي و اللي سحبتو حودي فين ... و العملية كلها كتطوير حتندمج ازاي في خطة تطويري للقوات المسلحة و عناصرها و مراحلها مثلا تقسيم العيارات على القوات بما يحقق التغطية النيارنية المطلوبة في كل المواقف .. هل سيكون هنالك منظومة شاملة جديده للجندي المصري تتناسب معه البندقية .. حتلاقي الموضوع اتفرع كتيييير اوي و الكلاش نوعا ما مناسب بالنسبة للقيادة كفلسفتها لعموم الجنود او بالاصح المجندين لانهم مش حيعدو اكتر من سنة فخسارة ماليا بالنسبالهم اهلاك سلاح كالبريتا عليهم .. الضباط انسب او بعض الوحدات عموما
- إنضم
- 3 يناير 2010
- المشاركات
- 7,991
- التفاعل

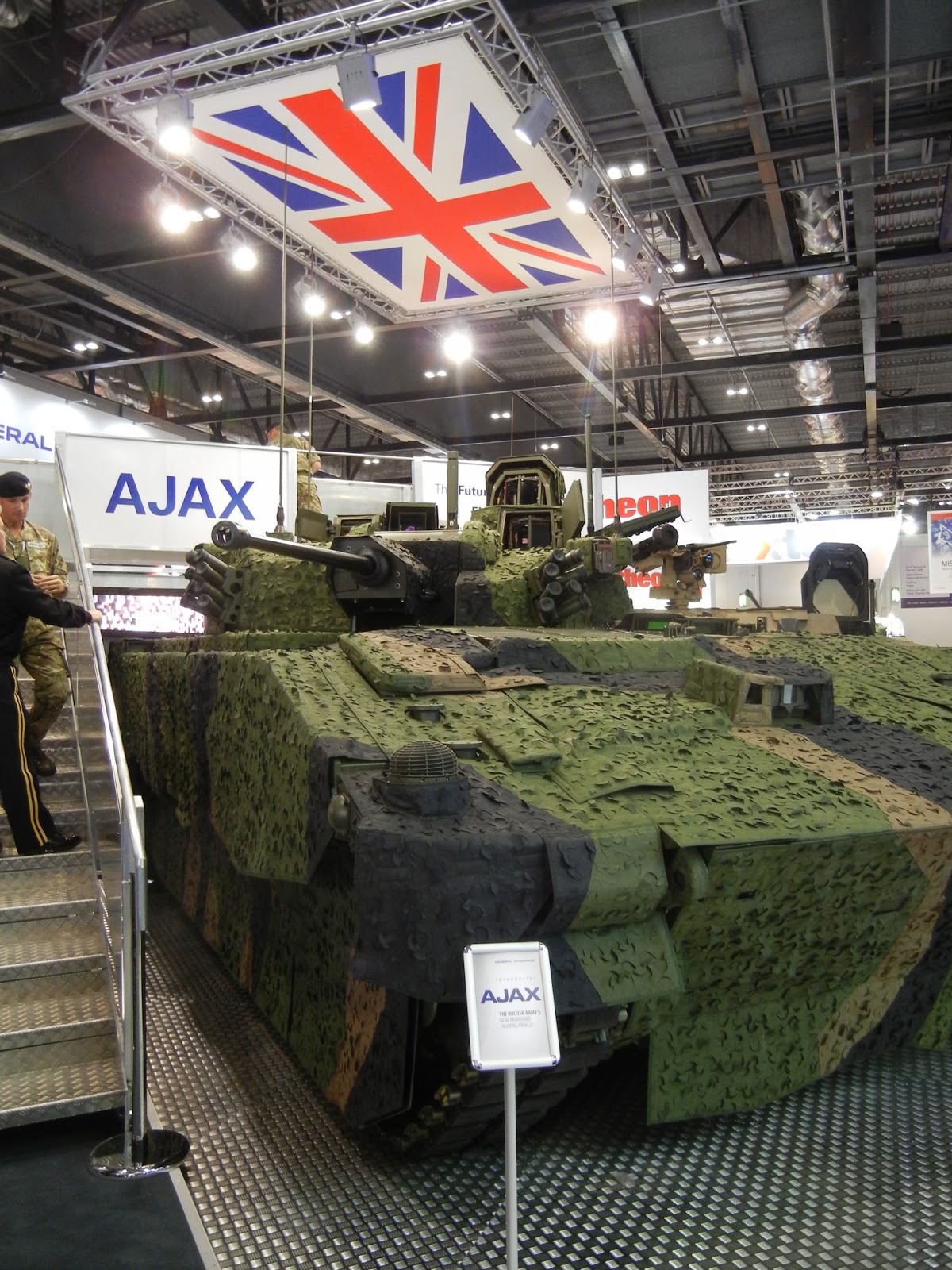

British Army Chief Gen. Nick Carter and Philip Dunne Minister of State for Defence Procurement at the Ministry of Defence discussing the AJAX.

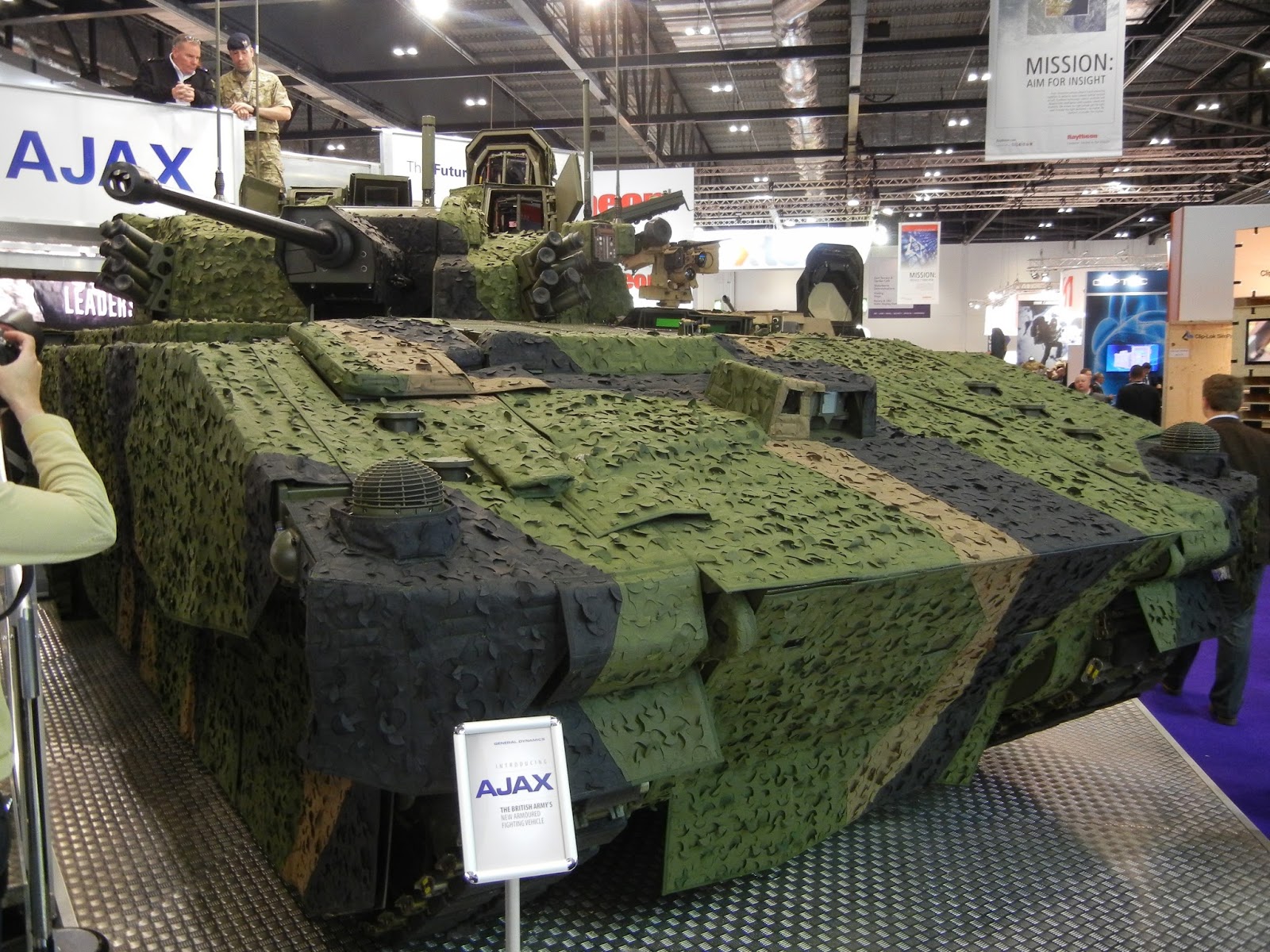

GDUK's AJAX platform at DSEI features Lockheed Martin UK/Rheinmetall's turret, armed with a stabilised 40mm Case Telescoped Cannon (CTC) being provided as government furnished equipment by the UK MoD, and a 7.62mm coaxial machine gun.
