IMI Negev

[Танк "Тяжелая Густав]

The standard LMG of the Israel Defense Forces. High reliability and versatility that suits a large variety of operations.

Models:

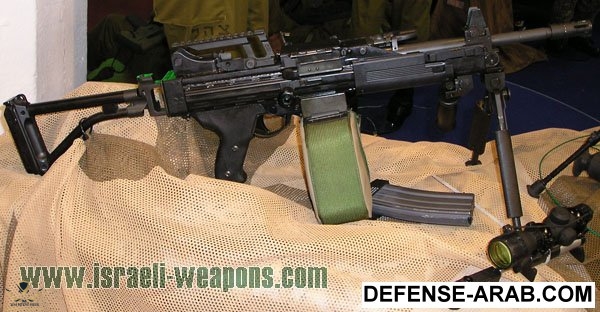

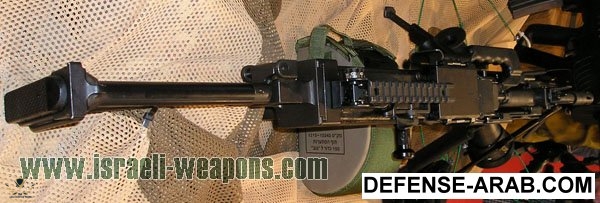

NEGEV LMG Standard version

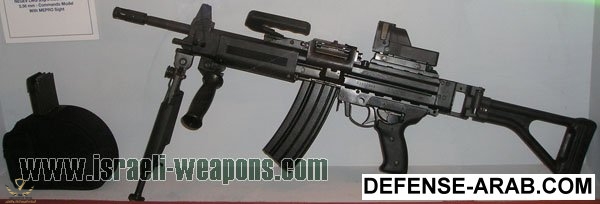

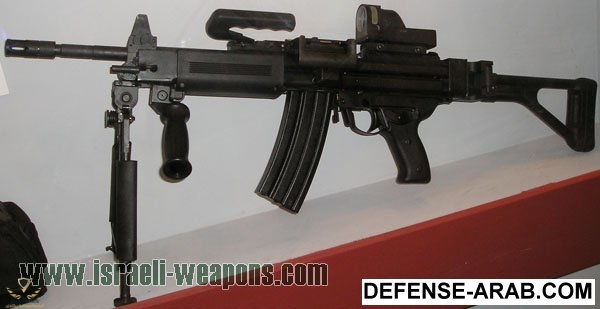

NEGEV LMG Commando version
The NEGEV LMG is the standard LMG of the IDF (including the Special Forces).
The NEGEV LMG is characterized by high reliability and versatility that is adjusted to a large variety of tasks.


Caliber
5.56 x 45 mm
Ammunition
SS109 / M855
Operation
gas, open bolt system
Locking method
rotating bolt

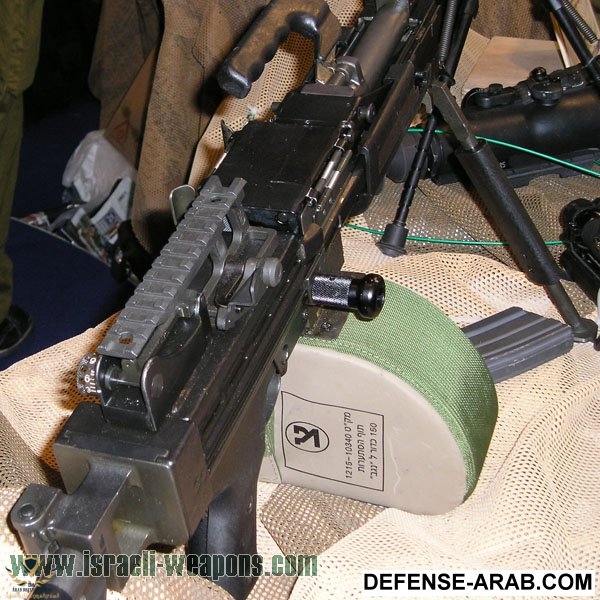

Feed
belt, magazine (Galil or M16)
Barrel
6 grooves 1:7" twist
Weight (gr.)
LMG with barrel & bipod
7600
Assault pouch with 150 rd.
2100
Empty magazine (Galil)
320
Loaded magazine (Galil)
720
Dimensions (mm)
Overall length
1020
With stock folded
780
Barrel length
460
Short barrel (optional)
330
Sight line radius
440
Width
60

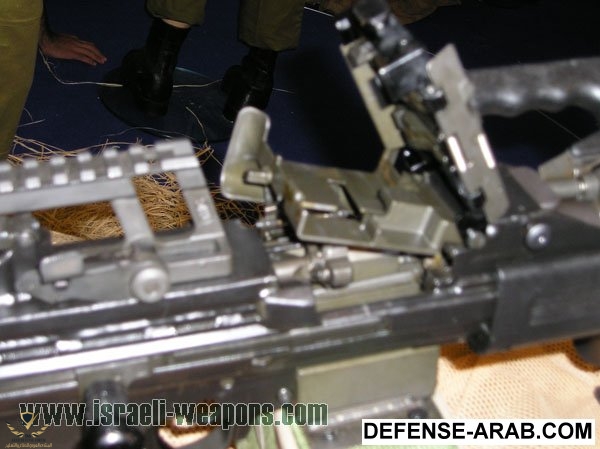

Sights
Front
post
Rear
aperture, drum adjustable:
300 - 1000 m
Night sight
folding with tritium light
Firing Characteristics
Trigger pulling force (kg)
semi-automatic: 6.0 automatic: 2.5
Muzzle velocity (m/sec)
915
Rate of fire (rd./min.)
Position "1" (magazine)
700 - 850
Position "2"
700 - 850
Position "3"
850 - 1000
