المصدر الذي وضعته أنت بنفسك من خلال الجدول نجد أن إرتفاع الاس 400 يصل إلى 185 كلم أكثر من الثاد الذي لايتعدى 150 كلم .
Patriot and THAAD
- Defenseworld.net Analysis
- Thursday, August 16, 2018 @ 01:35 PM
- 253444
S-400 Triumf air defense system (Image: Russian MoD)
The American-made Patriot and Russian S-400 Triumf air defense systems are currently hogging international orders despite their price tags running into billions of dollars. While the Patriot has more or less a captive market within United States allies, the S-400 has had to sell on its capabilities alone having won orders from Turkey and China, countries which compete with Russia in the international arms market.
Further orders for the S-400 is likely to come from India which has internally approved the acquisition with only a formal signature on the contract awaited to set the procurement process in motion. In addition, Saudi Arabia, Morocco and Iraq are said to be in negotiations to buy the system.
Another US-made system, the THAAD (Terminal High Altitude Area Defense) missile defense system that is designed to intercept ballistic missiles at high altitude is also a competitor for the S-400 regarding some of its features, though not in terms of direct international sales.
Deployment of S-400 Triumph air defence systems (Video: Russian MoD Youtube Channel)
Defenseworld.net takes a look at the features of all three systems to determine relative advancement and suitability for various missions.
Quantitative analysis of the three missile defense systems:
Characteristics | S-400 | PAC-3 | THAAD |
Max. target speed | 4.8 kilometres per second (17,000 km/h; 11,000 mph; Mach 14) | 1.38 kilometers per second (5,000 Km/h; 3106mph; Mach 4.1) | 2.8 kilometers per second (10080 km/h; 6263 mph; Mach 8.24) |
Operational Range (km) | 400 km (40N6 missile)
250 km (48N6 missile)
120 km (9M96E2 missile)
40 km (9M96E missile) | 20, PAC-3 MSE- 35 | >200 km |
Guidance System | Active Radar Homing | Inertial/Active millimeter-wave radar terminal homing | Indium-antimonide imaging infra-redseeker head |
Flight Altitude | 185 km for 40N6
30 km for 9M96 and 9M96E2
20 km for 9M96E | 24.2 km | 150 km |
Propellant | YAMZ-8424.10 Diesel V12
400 HP/294kW Engine | Single-stage solid
propellant rocket motor with special attitude-control mechanism for in-flight maneuvering | Pratt and Whitney Solid-fuel rocket |
Warhead | directed explosion warhead | proximity fused warhead | No Warheads |
Launchers | At least eight launchers with 32 missiles and a mobile command post | eight-round
Mobile trainable semi-trailer | Consists of at least six launcher vehicles, each equipped with eight missiles, with two mobile tactical operation centers and a ground based radar |
Warhead Weight (kg) | 24 to 180 | 90 | NA |

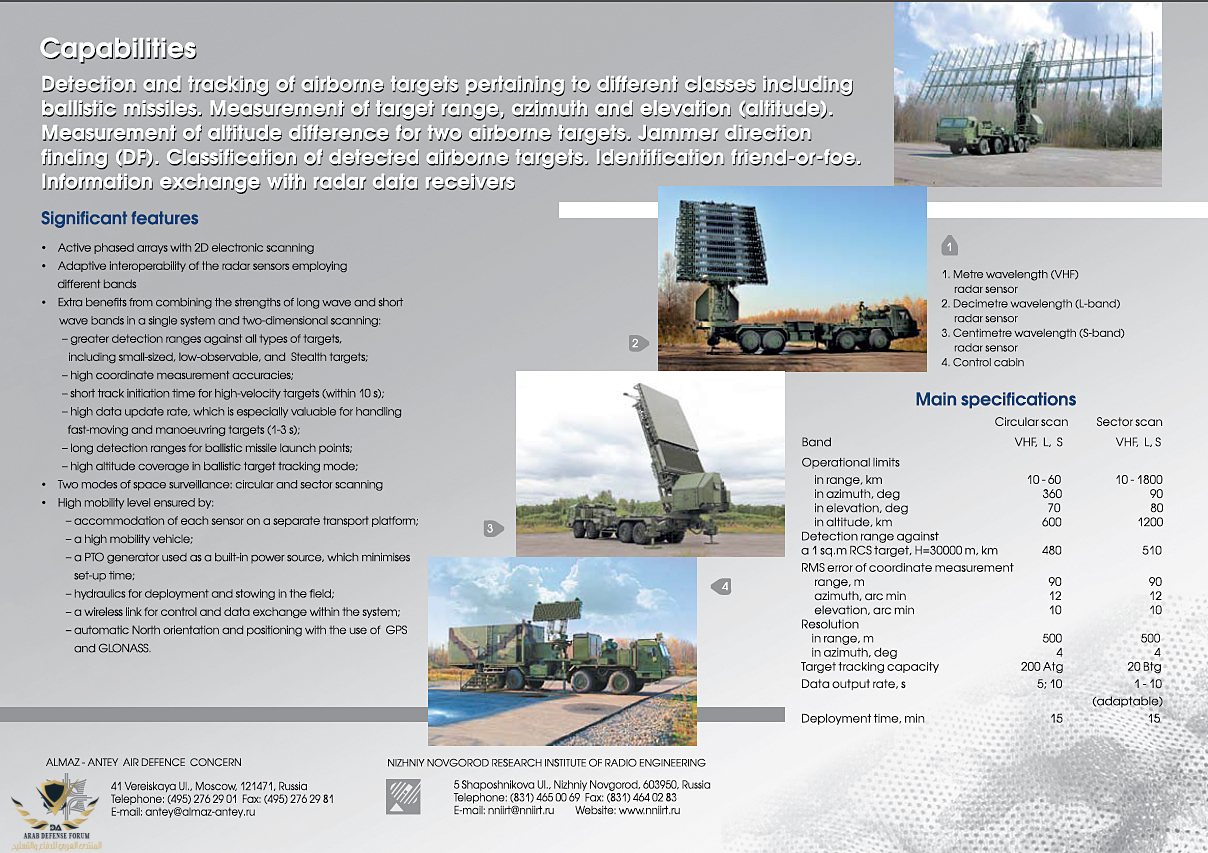

أما من حيث الردارات فإن الاس 400 لايستخدم فقط رداره المدمج البالغ مداه 600 كلم بل يستخدم عدة ردارات لواحق بشبكته الدفاعية ومنها الردار Nebo-M الذي يبلغ مداه 1800 كلم
مشاهدة المرفق 429305
