تلقت البحرية الباكستانية الثاني من اثنين ATR-72

pakistani eagle

قيادة القوات الجوية
عضو مميز
إنضم
2 ديسمبر 2009
المشاركات
4,270
الإعجابات
3,545
النقاط
945
تلقت البحرية الباكستانية الثاني من اثنين ATR-72


The Pakistan Navy received in late June the second of two ATR-72 twin-engine turboprops converted into MPAs (seen here). Source: Rheinland Air Service

The Pakistan Navy (PN) has received the second of two ATR-72 twin-engine turboprops converted into maritime patrol aircraft (MPA) under a contract signed in 2015.

In a 10 July press release Germany-based company Rheinland Air Service (RAS) said that it handed over the second example of the type, which is now known as the RAS 72 Sea Eagle, during a ceremony held at RAS headquarters in Mönchengladbach shortly after the platform was introduced to the general public at the Paris Air Show 2019, which was held from 17 to 23 June.

The first aircraft, which was handed over by RAS in June 2018, re-entered service with the PN on 12 December 2018 in a ceremony held at naval air station PNS Mehran in Karachi (both ATR-72s had previously been in service with the PN as transports).

The RAS 72 Sea Eagle is equipped with a long-range, active electronically scanned array (AESA) multimode radar, as well as electro-optic/infrared (EO/IR) sensors to deliver aerial, maritime, and ground surveillance, according to RAS.

The platform also features an acoustic processing system, sonobuoy launchers, a broadband satellite communications system, an electronic support measures suite, a self-protection suite, and two weapon hard-points, enabling anti-submarine warfare (ASW) and maritime patrol capabilities. The PN's two RAS 72 Sea Eagles also feature Aerodata's mission management system, called AeroMission, for ASW.

"The variety of state-of-the-art on-board sensors enable operators and decision makers to detect and identify sensitive targets above or below the surface of the ocean, while transmitting all the information captured on-board in real-time to the dedicated command centre," said the company, adding that the RAS 72 Sea Eagle offers operational flexibility as it can be used not only for ASW and maritime patrol missions but also for search-and-rescue and other humanitarian operations.

Want to read more? For analysis on this article and access to all our insight content, please enquire about our subscription options at ihsmarkit.com/janes


مارشــال

خـــــبراء المنتـــــدى
إنضم
25 مايو 2008
المشاركات
24,255
الإعجابات
32,779
النقاط
20,251
الدولة
Egypt
هنا سؤال
لماذا لم تحذو باكستان حذو تركيا وإيطاليا في طائرات ATR-72 MPA/ASW لديها واتجهت لل Rheinland Air Service الألمانية ..؟
هل من مواصفات تقنية ..؟


pakistani eagle

قيادة القوات الجوية
عضو مميز
إنضم
2 ديسمبر 2009
المشاركات
4,270
الإعجابات
3,545
النقاط
945
هنا سؤال
لماذا لم تحذو باكستان حذو تركيا وإيطاليا في طائرات ATR-72 MPA/ASW لديها واتجهت لل Rheinland Air Service الألمانية ..؟
هل من مواصفات تقنية ..؟
هذا قد يساعد سيدي

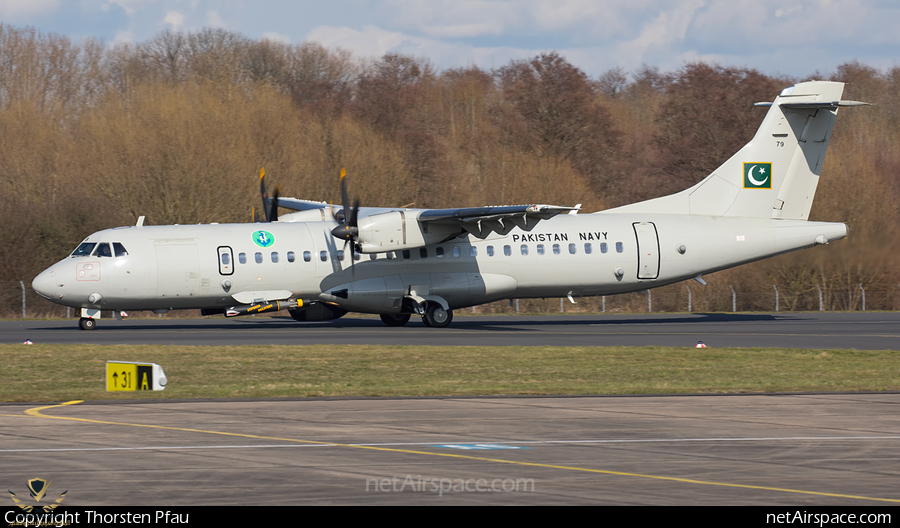

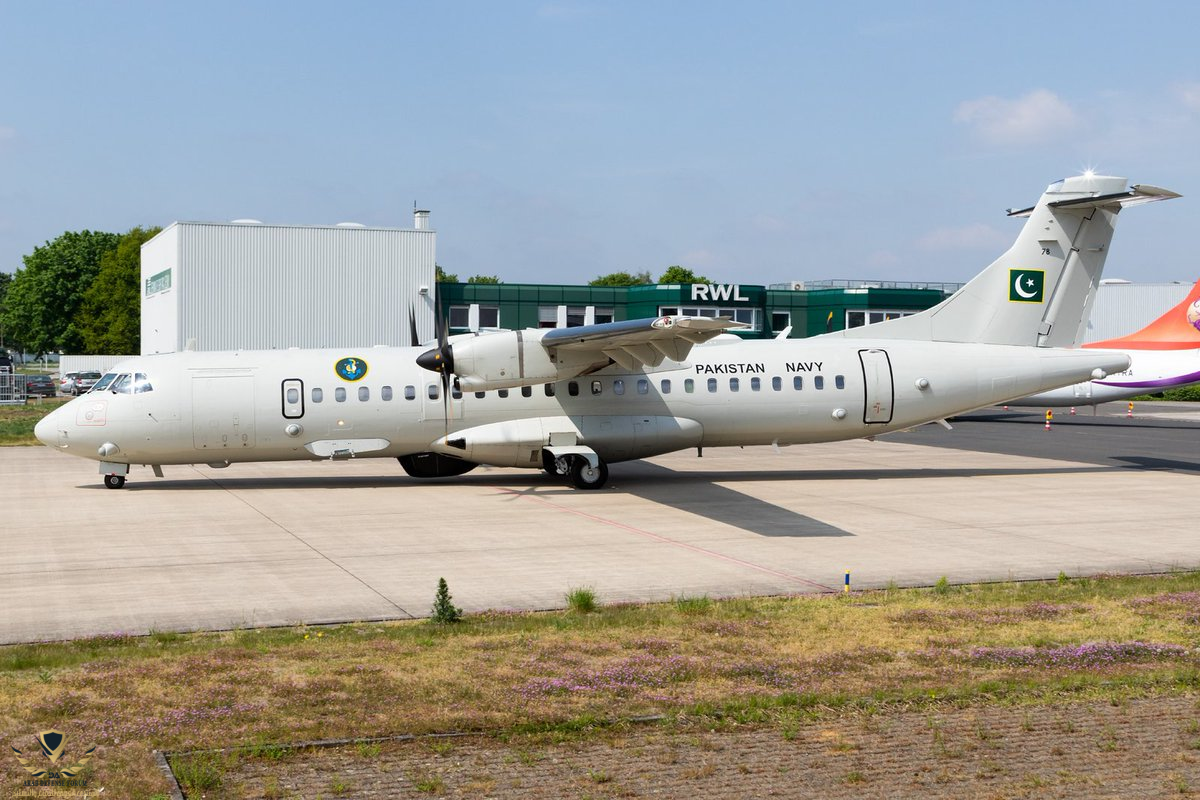

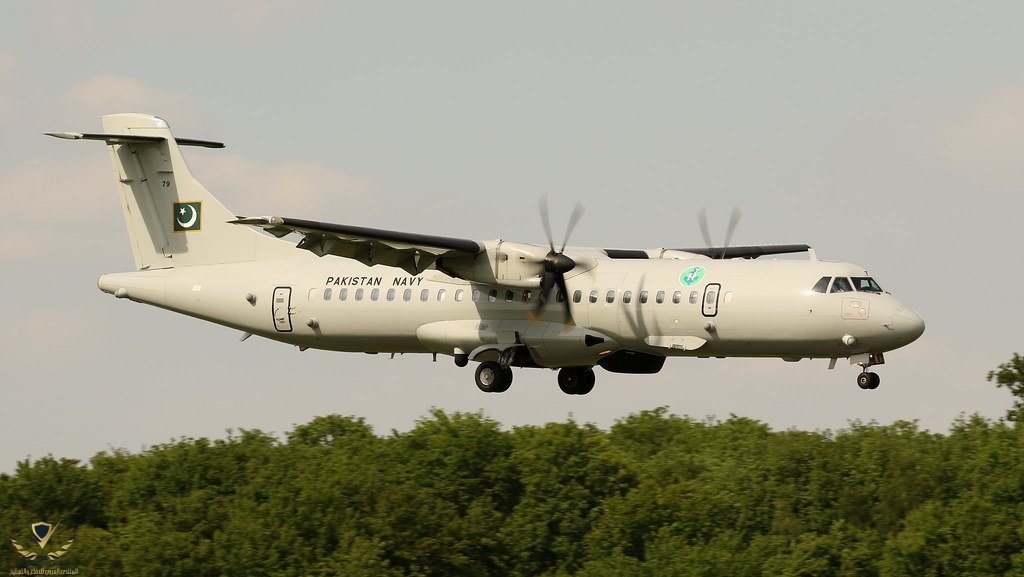

Pakistan Navy ATR 72 at Dusseldorf Monchengladbach Airport - Germany

by Vaqar Khan » Wed Jul 13, 2016 10:22 pm


GERMAN FIRM RECEIVES CONTRACT TO CONFIGURE PAKISTANI ATR-72S

Rheinland Air Service (RAS), a German firm specializing in airliner maintenance, repair and overhaul (MRO) as well as other support tasks, was awarded a contract by the Pakistan Navy to convert two ATR-72 aircraft for anti-submarine warfare (ASW).

Although the company did not explicitly note that the ATR-72 would be converted, Pakistan Navy ATRs were spotted at RAS’s facilities in Germany in recent weeks. RAS was contracted to re-configure two Pakistani ATR-72s, with the first slotted for delivery by the end of 2017.

RAS expects additional Pakistani orders in the coming years.

Comment and Analysis

The current iteration of the ATR-72 ASW – currently on offer by Italian vendor Leonardo-Finmeccanica – uses the ATR-72-600 as its base platform. This aircraft is capable of ASW operations through the use of a fitted sono-buoy launcher (for underwater acoustic detection) and pylons for lightweight ASW torpedoes.

The Pakistan Navy operates the slighter smaller ATR-72-500, but this should not impact its likelihood of being an ATR-72 ASW. RAS made very explicit mention of the aircraft’s use as a ASW platform, and it is worth noting that Turkey did intend to use the ATR-72-500 as the basis for its program, before shifting to the ATR-72-600 (which is currently serving as the basis for the Turkish Maritime Patrol Aircraft or TMPA).

ATR-72 ASWs will be a welcome addition to the Pakistan Navy’s maritime patrol aircraft (MPA) fleet, which has yet to fully recover from the loss of two Lockheed Martin P-3C Orion in 2011 (from an insurgent attack on the naval base PNS Mehran). It currently has seven P-3Cs in service.

Derived from a widely used commercial platform, the ATR-72 ASW is a relatively feasible and accessible platform for building a sizable MPA fleet. In fact, while Alenia Aermacchi (now Leonardo) was the first to offer the ATR-72 ASW, it is not the only available avenue. Rather, the Pakistan Navy could (and likely did) select subsystems from a variety of vendors (with RAS being selected to undertake the integration work).

If Pakistan’s ATR-72 ASWs are similar in their general configuration to Turkey’s ATR-72 TMPA, then it is likely the following subsystems are being integrated: a search radar, electro-optical sensors, electronic support measures (ESM), magnetic anomaly detector (MAD), integrated self-protection suite, sono-buoy launcher, and hardpoints for the fuselage sides (for lightweight ASW torpedoes).

Source: http://quwa.org/2016/07/11/german-firm- ... i-atr-72s/


المرفقات

مارشــال

خـــــبراء المنتـــــدى
إنضم
25 مايو 2008
المشاركات
24,255
الإعجابات
32,779
النقاط
20,251
الدولة
Egypt
هذا قد يساعد سيدي


Pakistan Navy ATR 72 at Dusseldorf Monchengladbach Airport - Germany

by Vaqar Khan » Wed Jul 13, 2016 10:22 pm


GERMAN FIRM RECEIVES CONTRACT TO CONFIGURE PAKISTANI ATR-72S

Rheinland Air Service (RAS), a German firm specializing in airliner maintenance, repair and overhaul (MRO) as well as other support tasks, was awarded a contract by the Pakistan Navy to convert two ATR-72 aircraft for anti-submarine warfare (ASW).

Although the company did not explicitly note that the ATR-72 would be converted, Pakistan Navy ATRs were spotted at RAS’s facilities in Germany in recent weeks. RAS was contracted to re-configure two Pakistani ATR-72s, with the first slotted for delivery by the end of 2017.

RAS expects additional Pakistani orders in the coming years.

Comment and Analysis

The current iteration of the ATR-72 ASW – currently on offer by Italian vendor Leonardo-Finmeccanica – uses the ATR-72-600 as its base platform. This aircraft is capable of ASW operations through the use of a fitted sono-buoy launcher (for underwater acoustic detection) and pylons for lightweight ASW torpedoes.

The Pakistan Navy operates the slighter smaller ATR-72-500, but this should not impact its likelihood of being an ATR-72 ASW. RAS made very explicit mention of the aircraft’s use as a ASW platform, and it is worth noting that Turkey did intend to use the ATR-72-500 as the basis for its program, before shifting to the ATR-72-600 (which is currently serving as the basis for the Turkish Maritime Patrol Aircraft or TMPA).

ATR-72 ASWs will be a welcome addition to the Pakistan Navy’s maritime patrol aircraft (MPA) fleet, which has yet to fully recover from the loss of two Lockheed Martin P-3C Orion in 2011 (from an insurgent attack on the naval base PNS Mehran). It currently has seven P-3Cs in service.

Derived from a widely used commercial platform, the ATR-72 ASW is a relatively feasible and accessible platform for building a sizable MPA fleet. In fact, while Alenia Aermacchi (now Leonardo) was the first to offer the ATR-72 ASW, it is not the only available avenue. Rather, the Pakistan Navy could (and likely did) select subsystems from a variety of vendors (with RAS being selected to undertake the integration work).

If Pakistan’s ATR-72 ASWs are similar in their general configuration to Turkey’s ATR-72 TMPA, then it is likely the following subsystems are being integrated: a search radar, electro-optical sensors, electronic support measures (ESM), magnetic anomaly detector (MAD), integrated self-protection suite, sono-buoy launcher, and hardpoints for the fuselage sides (for lightweight ASW torpedoes).

Source: http://quwa.org/2016/07/11/german-firm- ... i-atr-72s/
لكني لا أرى MAD هنا
