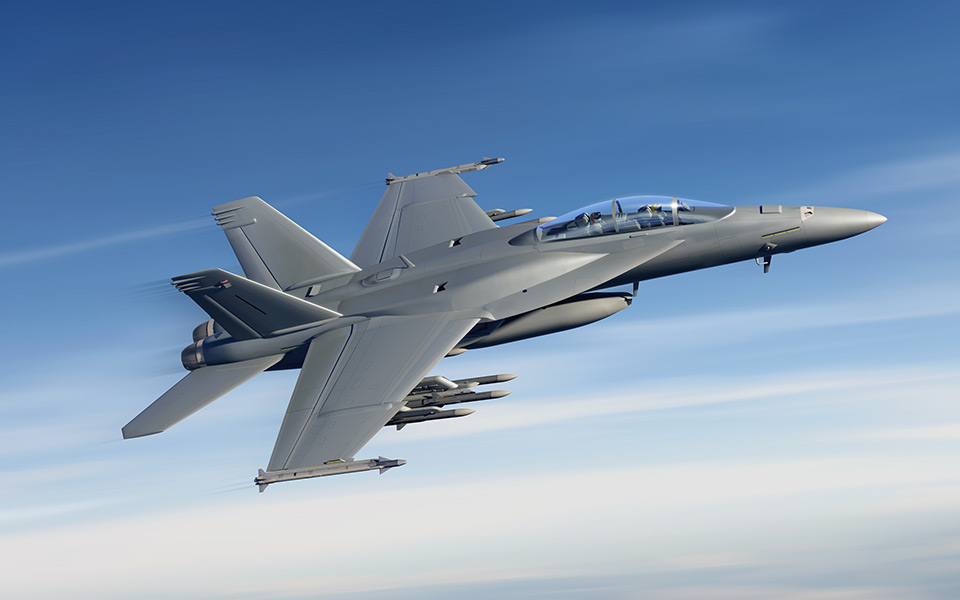

  • fa18_block3_gallery2_960x600.jpg



    F/A-18






    المواصفات التقنية


    Empty WeightF/A-18E: 32,100 lb (14,552 kg)Max Takeoff Weight66,000 lb (29,937 kg)
    ThrustEach engine up to 17,000 lbsCarrier Bringback PayloadF/A-18E: 9,900 lb (4,491 kg)
    F/A-18F: 9,000 lb (4,082 kg)
    Field Landing WeightField Landing WeightSpeedMach 1.6

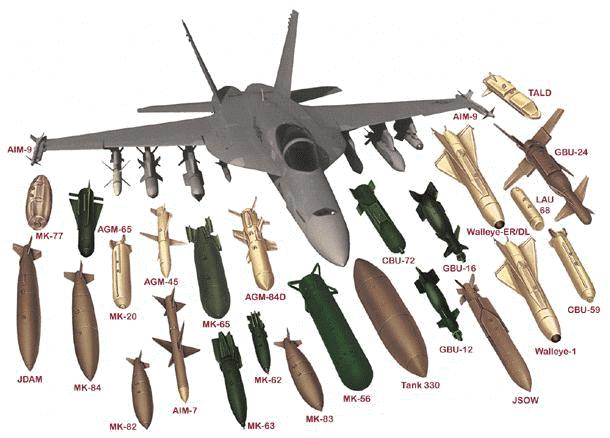

    التسليح



    المشغلون

    استراليا



    الكويت



    الولايات المتحدة الامريكية




    External Dimensions
    F/A-18C/D
    F/A-18E/F

    Wing span11.43 m
    Wing span over missiles12.31 m
    Wing chord (at root)4.04 m
    Wing chord (at tip)1.68 m
    Wing aspect ratio3.52
    Width, wings folded8.38 m
    Length overall17.07 m
    Height overall4.66 m
    Tailplane span6.58 m
    Distance between fin tips3.60 m
    Wheel track3.11 m
    Wheelbase5.42 m

    Wing span over missiles 13.62 meters
    Wing aspect ratio4.00
    Width wings folded9.32 m
    Length overall18.31 m
    Height overall4.88 m
    Areas
    F/A-18C/D
    F/A-18E/F

    Wings, gross37.16 m2
    Ailerons (total)2.27 m2
    Leading-edge flaps (total)4.50 m2
    Trailing-edge flaps (total)5.75 m2
    Fins (total)9.68 m2
    Rudders (total)1.45 m2
    Tailerons (total)8.18 m2

    Wings, gross 46.45 sq. meters
    Weights and Loadings
    F/A-18C/D
    F/A-18E/F

    Weight empty10,810 kg
    Maximum fuel weight:
    4,926 kg
    External: F/A-18 (JP5)
    3,053 kg
    4,245 kg
    Maximum external stores load7,031 kg
    Take off weight:
    Fighter mission
    16,651 kg
    Approx 23,541 kg
    Approx 25,401 kg
    Maximum wing loading (attack mission)156,80 kg/kN

    Weight, empty
    Design target13.387 kg
    Specification limit13.865 kg
    Maximum fuel weight:
    6.531 kg
    4.436 kg
    Maximum external stores load (JP5)
    8.051 kg
    T-O weight, attack mission29.937 kg
    Maximum wing loading620.0 kg/m2
    Maximum power loading147.1 kg /kN
    Performance (At Maximum Takeoff Weight)
    F/A-18C/D
    F/A-18E/F

    Max level speedMore than Mach 1.8
    Max speed, intermediate powerMore than Mach 1.0
    Approach speed134 knots
    Acceleration from 460 knots to 920 knots at 10,670 munder 2 min
    Combat ceilingapprox 15,240 m
    T-O runLess than 427 m
    Minimum wind over deck:
    35 knots
    19 knots
    Combat radius, interdiction, hi-lo-lo-hi290 nm
    Combat endurance, CAP 150 nm from aircraft carrier1 h 45 min
    Ferry range, unrefueledMore than 1,800 nm

    Maximum level speed at altitudemore than Mach 1.8
    Combat ceiling13,865 m
    Minimum wind over deck:
    Launching30 knots
    Recovery15 knots
    Combat radius specification:
    Interdiction with four 1,000 lb bombs, two Sidewinders,
    and two 1,818 liter (480 U.S. gallon: 400 Imp gallon) external tanks,
    navigation FLIR and targeting FLIR: Forward Looking Infra-Red
    hi-lo-lo-hi
    390 nm
    Fighter escort with two Sidewinders and two AMRAAMs
    410 nm
    Combat endurance: maritime air superiority, six AAMs,
    three 1,818 liter external tanks, 150 nm from aircraft carrier.
    2h 15 min
