تعديل بسيط
البلاك هوك فكرة قلبها الى باتل هوك كانت من الامارات

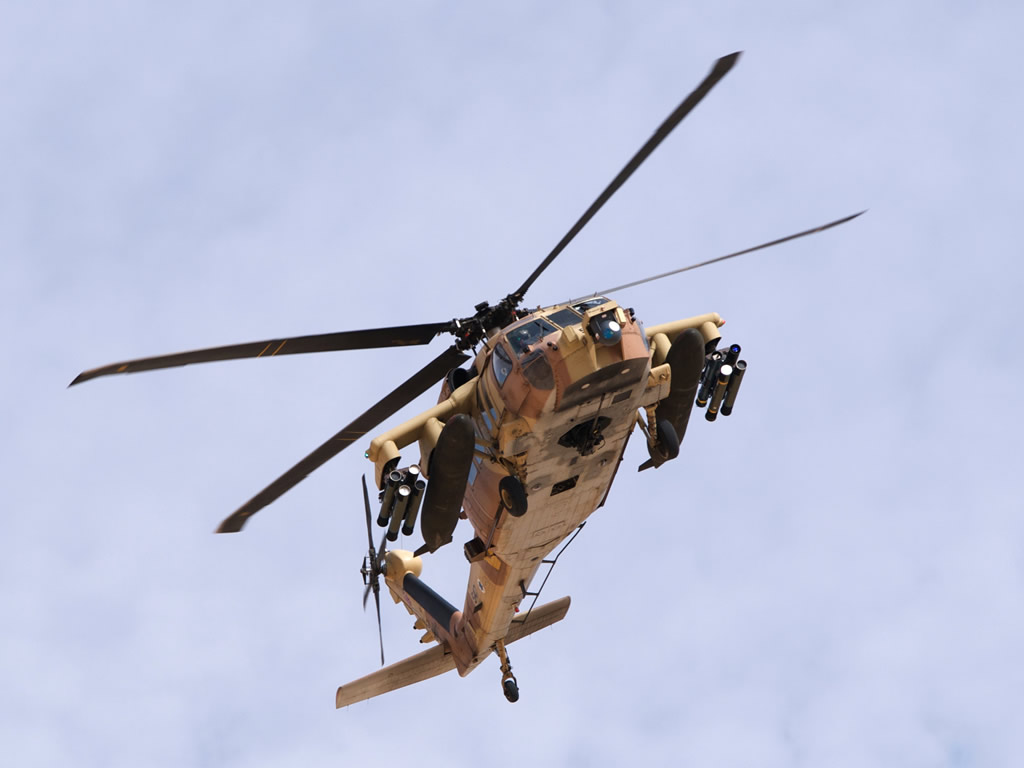

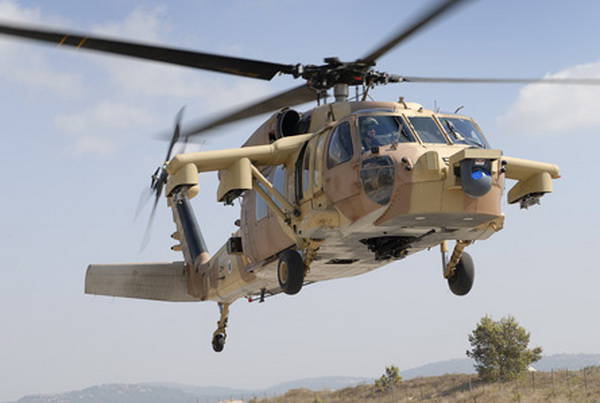

دور اسرائيل كان تطبيق حزمة تطويؤية عندها مماثلة للامريكية
however, the UH-60’s operational armament is generally limited to door guns. That may be about to change, thanks to a UAE initiative.
جملة تانيه
فكرة امريكية اصيلة لم تجد رواج في استراليا ووجدته في الامارات

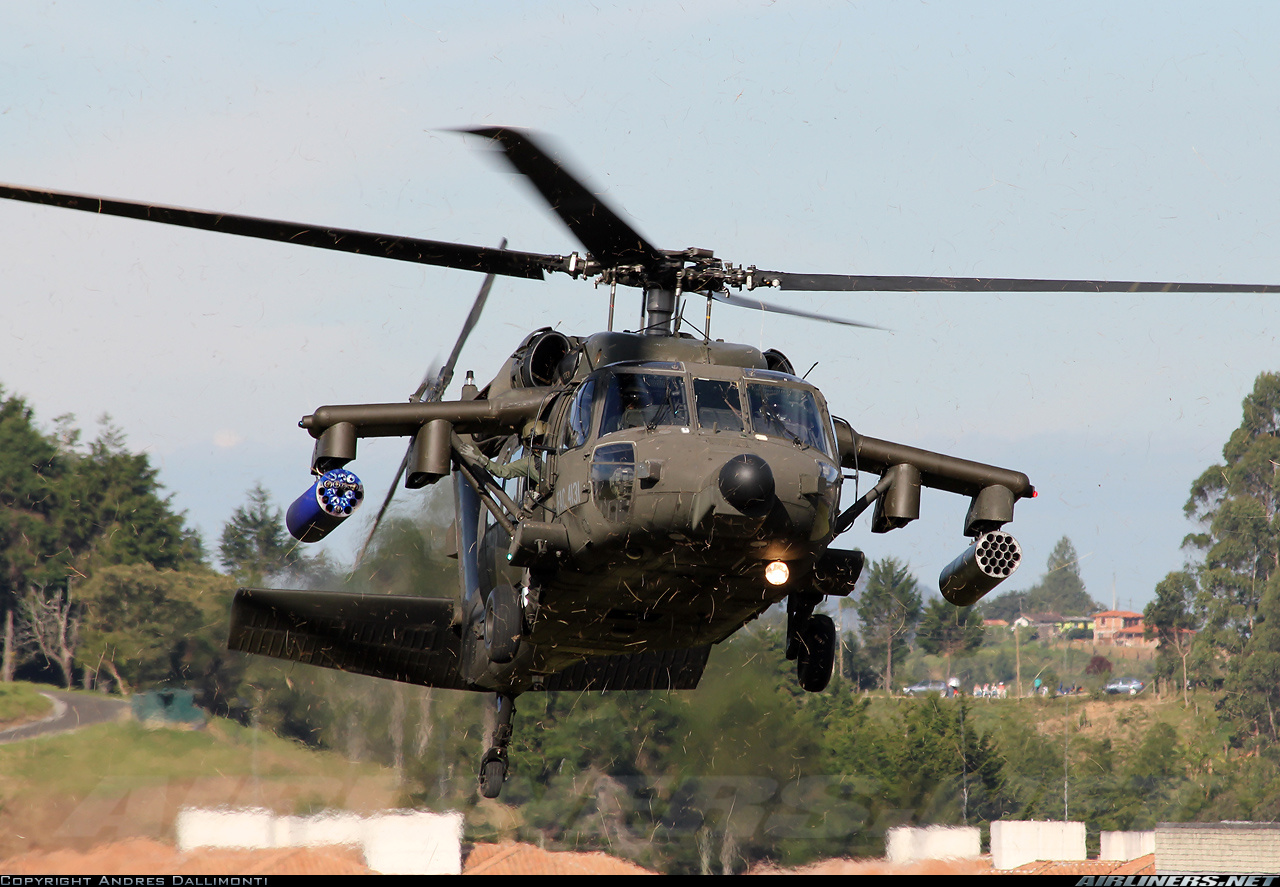

Colombia currently flies the armed S-70 “Arpia III” , and Sikorsky has worked on armed “AH-60″ versions as an offering in some foreign competitions, but efforts to sell the concept in Australia and elsewhere were less successful. Nevertheless, Sikorsky executives see considerable potential for multi-role helicopters and conversion kits, in an era of global insurgencies, tight budgets, and limited helicopter numbers. Now, the UAE has become their launch customer. What is Sikorsky’s Battlehawk, and what are their plans?
طيبب
at the 2006 Farnborough international air show, and interest from Israel and the UAE led to a refined 3-level set of kits
حزم التطوير

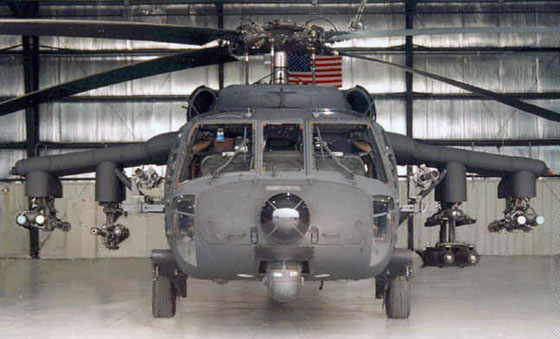

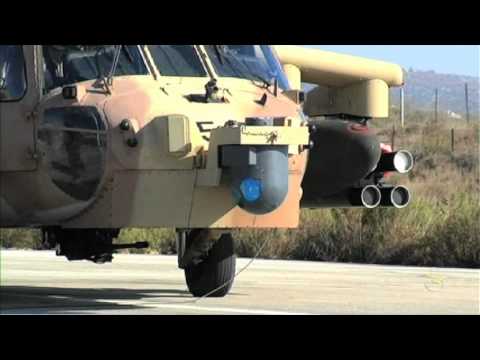

Level 1 Kits already exist, in Colombia’s UH-60L/ S-70 Arpia models. They were fitted with surveillance turrets under the nose, and added stub wings to mount fixed weapons like gatling guns or unguided rockets, but these helicopters have no guided weapon capabilities. This is the cheapest kit conversion, and the most proven. The helicopter retains its full cabin capacity, and may retain its full soldier load, depending on the weight of the weapons fitted and ammunition carried.Level 2 Kits would add guided weapons, including optical and laser guided anti-armor missiles like TOW, Spike, and Hellfire, and emerging laser-guided rockets. The baseline under consideration in 2009 would mount 12.7mm/.50 caliber gatling guns on the inboard pylon pair, and either missiles or a 19-rocket launcher on the outboard pylons. This will include laser-guided missiles and rockets, and combat optics are upgraded accordingly; the baseline configuration’s AN/AAQ-22E BRITE Star II turret or L-3 WESCAM MX-15Di include laser targeting, as well as surveillance. The armed kit be integrated with the helicopter’s flight and weapons management systems, which will link to a day/night capable helmet-mounted display.A helicopter with this kit retains its full cabin capacity for 11 soldiers, but its ability to carry that many on a specific mission will depend on the weight of the weapons it’s fitted with. Owners may also choose to devote some of its space and weight limits to mounted and/or in-cabin ammunition and weapons, extra fuel on board, 2 door gunners with 7.62mm gatling miniguns, etc. As equipment is added, troop carrying capacity will decline.Battlehawk Level 3Level 3 Kits would add all Level 2 features, plus a gun turret on its underside for 180 degree firepower. The Israelis tested a French 20mm turret from Nexter, which has been developed to equip a number of helicopter types around the world. Unlike other conversions, the Level 3 kit does eat into the helicopter’s forward cabin space, reducing the number of soldiers it can carry.Over time, Sikorsky personnel expect that the options available under the 3 weapon kits will grow. As a simple example, special operations helicopters can add fuel tanks to extend the helicopter’s range or staying power. As of December 2009, however, Sikorsky representatives said that “wet pylon” capabilities weren’t part of their program. Other options will likely present themselves, as customers show interest.
