لماذا لا يتم التعاقد على انظمة شرقية طويلة المدى فيما مضى قراءة خبر امكانية التعاقد على الاس 400 من اقوى انظمة الدفاع الجوي في العالم مدى وسرعة وتغطية
هذه صورة مع المواصفات الباتريوت باك 3
مواصفات نظام الاس 400
نظام البوك ام 2
والجميع يعرف قصتة في اسقاط الطائرة الماليزية في شرق أوكرانيا التي كانت على ارتفاع 33 الف قدم
Tor m2
Type
Surface-to-air missile
Place of origin
Soviet Union
Service history
In service1986-present
Used bySee list of
operators
Production history
DesignerFakel
Variants9M330, 9M331, 9M338
[18][19]
Specifications (9M331
[21])
Weight167 kg
Length2900 mm
Diameter235 mm
WarheadFrag-HE
Warhead weight15 kg
Detonation
mechanism
RF Proximity
Propellant
Solid-fuel rocket
Operational
range
12 kilometres (7.5 mi)
[20]
Flight altitude6,000 metres (20,000 ft)
Boost timeCold launch ejection for 20 m
Speed850 m/s
Guidance
system
Radio
command
Steering
system
Gas dynamic control system, with four control surfaces
Launch
platform
9A331 combat vehicle
TransportGM-569 tracked vehicle
Weighing in at 167 kg (368 lb), the 9M330 missile is 3.5 m (11.5 ft) long, carries a 15 kg (33 lb) warhead and has a peak speed of around
Mach 2.8. Utilizing
command guidance and radar controlled
proximity fuzes, the missiles can maneuver at up to 30
Gs and engage targets flying at up to Mach 2. Cold launched, the missiles are propelled out of the vehicle before the
solid fuel rocket motor fires and the gas-dynamicmaneuvering system turns them toward their target. Missiles can also be fired against surface targets. Each missile is a
sealed round, stored in two groups of four. Engagement range is up to 12 km (0.8-6.47 nm) with minimum range varying between 100–2000 m (328-5,621 feet), depending upon version and an effective altitude of 10–6000 m (33-20,000 ft).
[20]
Kill probabilities for later versions are quoted as:
- 0.92-0.95 against aircraft
- 0.80-0.96 against helicopters
- 0.60-0.90 against cruise missiles (with an effective range of around 5 km/3 miles)
- 0.70-0.90 against precision munitions (LGBs, glide bombs, etc.)
- 0.90 against UAVs
A new 9M338 missile has been developed by Almaz Antey offering improved range and precision, its smaller size also enables the modified Tor-M2 to be equipped with 16 missiles as opposed to the original 8.
[18][19]
البانتسير اس 1
Pantsir s1
الامارات جميع نظم دفاعها الجوي غربية ومغ ذلك تملك هذا النظام السفاح
Aster 30 الفرنسي

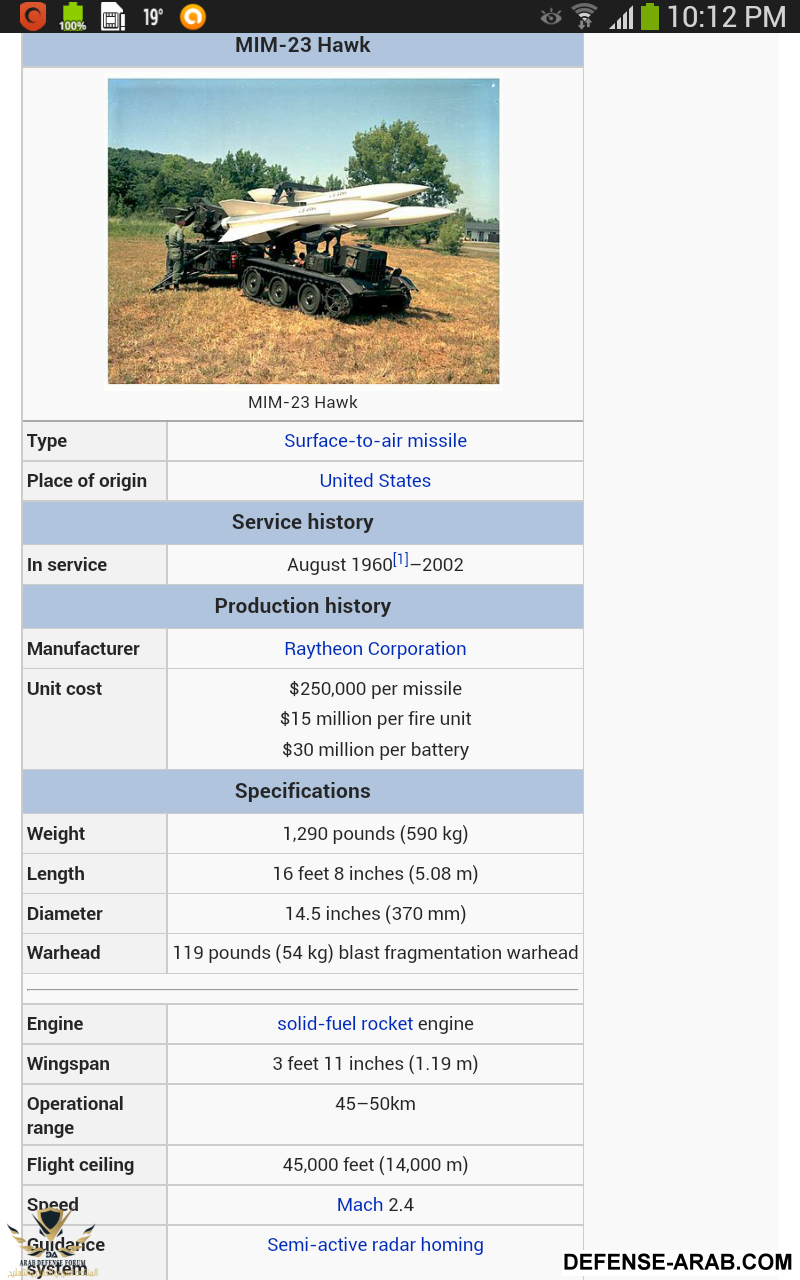

يوجد لدينا نظام دفاع جوي متوسط المدى توقف انتاجه منذ عام 2002 وهو نظام الهوك الامريكي
مشاهدة المرفق 9684
منظومة الدفاع الجوي طويلة ومتوسطة المدى بحاجة الي عمل كثير .
كل عام وانتم بخير .
