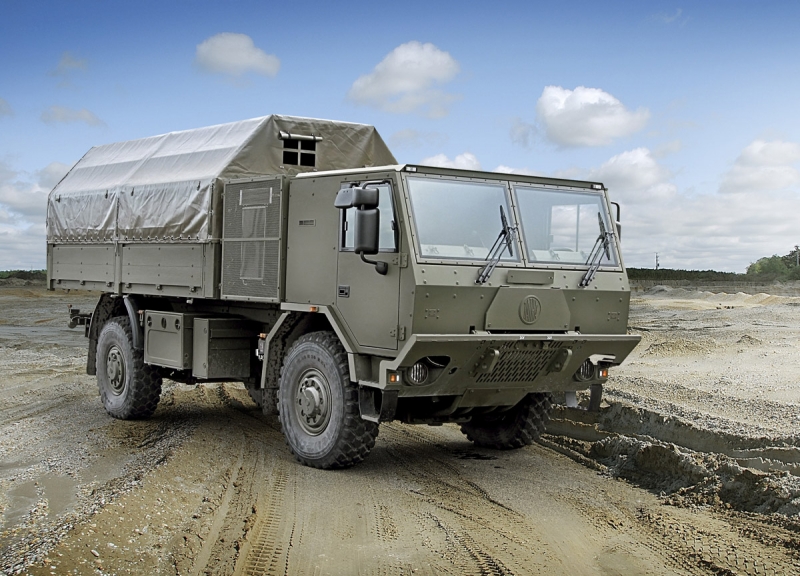

4x4 HIGH MOBILITY HEAVY DUTY CARGO/TROOP CARRIER
T 815-7L0R59 19 257 4x4.1R
Independent suspension
8,500 kg payload
4x4 drive
257 kW
Engine Cummins ISLe+ 350, EURO 3, 257 kW (345 bhp), 1,550 Nm/1,400 RPM
Transmission Allison MD 3200 SP, automatic, 6-speed
Cab 2+1 seats, C-130 transportability, prepared for add-on armoring
Wheelbase 4,350 mm
Gross vehicle weight (max.) 19,000 kg
Payload (max.) 8,500 kg
Top speed 115 km/h
Superstructure Platform, foldable benches for 16 soldiers, rolled up sides of tarp, access through the rear. Transport of 6 or 10 ft ISO containers.

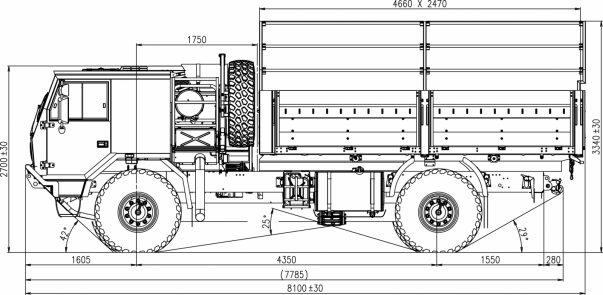

Truck dimensions

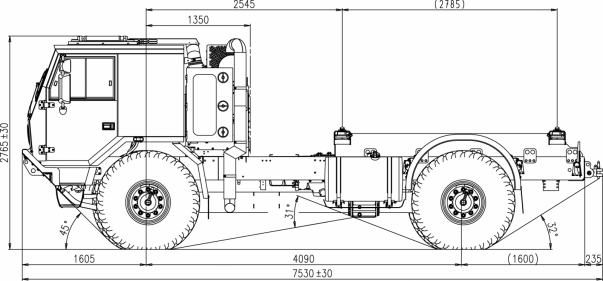

4x4 HIGH MOBILITY HEAVY DUTY UNIVERSAL CONTAINER CARRIER
T 815-780R59 19 270 4x4.1R
Independent suspension
8,130 kg payload
4x4 drive
270 kW
Engine
TATRA T3C-928-81, EURO 3, 270 kW, 1,850 Nm/1,000 RPM
Transmission
TATRA 14 TS 210L, semiautomatic split, 14-speed
Cab 1+3 seats, C-130 transportability, add-on armoring
Wheelbase 4,090 mm
Gross vehicle weight (max.) 19,000 kg
Payload (max.) 8,130 kg
Top speed 115 km/h
Superstructure
Container grips, designed for ISO 1D container or shelter of 4,700 mm lenght
Truck dimensions

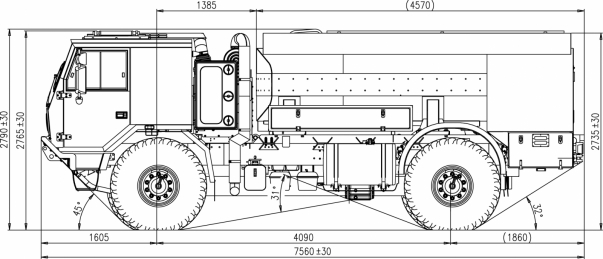

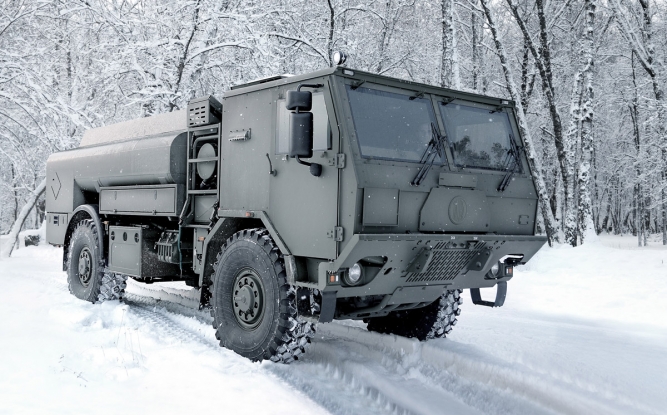

4x4 HIGH MOBILITY HEAVY DUTY FUEL FILLER 5,300 Liters
T 815-780R59 19 270 4x4.1R
Independent suspension
4,500 kg payload
4x4 drive
270 kW
Engine
TATRA T3C-928-81, EURO 3, 270 kW, 1,850 Nm/1,000 RPM
Transmission
TATRA 14 TS 210L, semiautomatic split, 14-speed
Cab 1+3 seats, C-130 transportability, add-on armoring
Wheelbase 4,090 mm
Gross vehicle weight (max.) 19,000 kg
Payload (max.) 4,500 kg (5,300 l of fuel)
Top speed 110 km/h
Superstructure
The vehicle can be used for refueling of vehicles, special military vehicles and other machines and equipment by diesel or gasoline. Aluminium alloy tank body, special design with one crossing baffle. One chamber, geometrical volume 6,060 l, pump output 40 – 500 l/min. Four hose reels hydraulically powered.
Truck dimensions

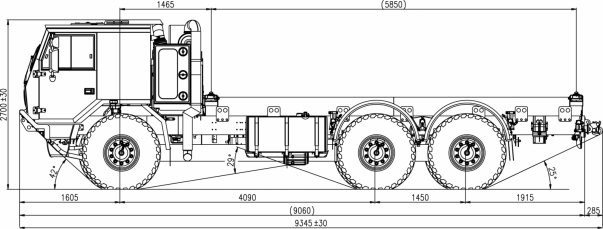

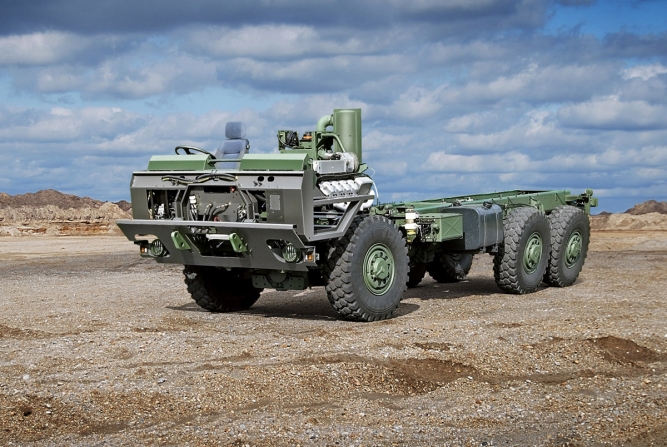

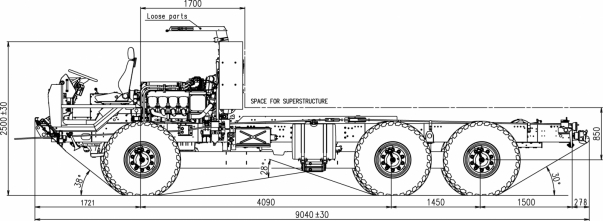

6x6 HIGH MOBILITY HEAVY DUTY CHASSIS
T 815-79PR39 29 300 6x6.1R
Independent suspension
18,760 kg payload
6x6 drive
300 kW
Engine
TATRA T3C-928-90, EURO 3, 300 kW, 2,100 Nm/1,000 RPM
Transmission
TATRA 14 TS 210L, semiautomatic split, 14-speed
Cab without standard TATRA cab
Wheelbase 4,090 + 1,450 mm
Gross vehicle weight (max.) 29,000 kg
Payload (max.) 18,760 kg
Top speed 110 km/h
Superstructure Chassis is built as a platform for various kinds of special vehicles that need: - superior drive-ability in difficult terrain - heavy armoured protection on top of the chassis - reliable chassis with low life-cycle costs.
Truck dimensions

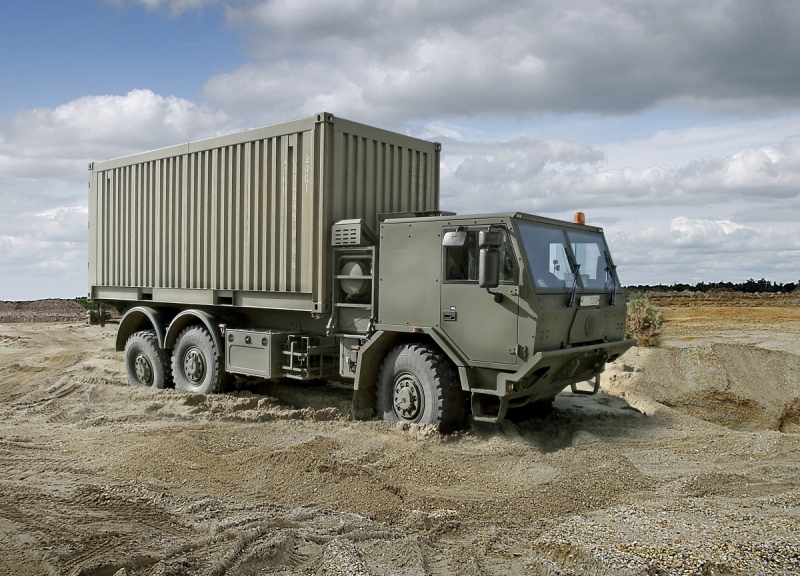

6x6 HIGH MOBILITY HEAVY DUTY UNIVERSAL CONTAINER CARRIER
T 815-790R39 29 300 6x6.1R
Independent suspension
15,900 kg payload
6x6 drive
300 kW
Engine
TATRA T3C-928-90, EURO 3, 300 kW, 2,100 Nm/1,000 RPM
Transmission
TATRA 14 TS 210L, semiautomatic split, 14-speed
Cab 2 seats, C-130 transportability, prepared for add-on armoring
Wheelbase 4,090 + 1,450 mm
Gross vehicle weight (max.) 29,000 kg
Payload (max.) 15,900 kg
Top speed 105 km/h
Superstructure Container grips, designed for ISO 1C container or shelter of min. 6,100 mm lenght.
Truck dimensions

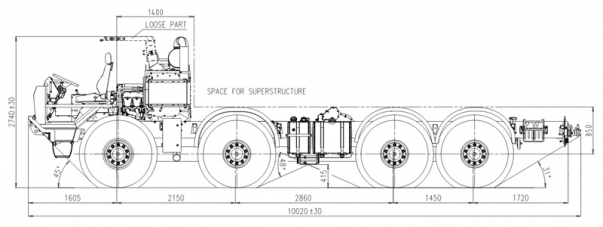

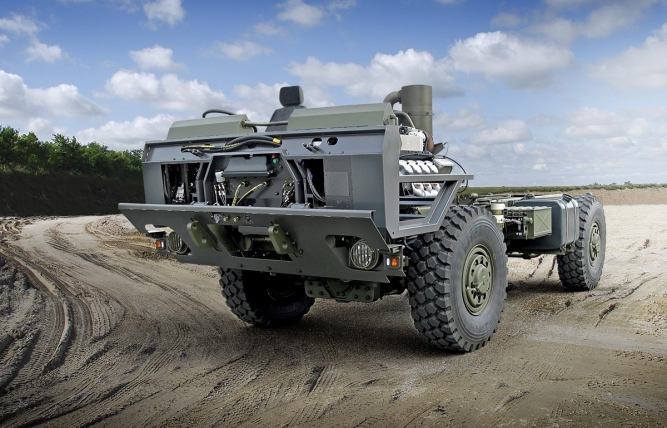

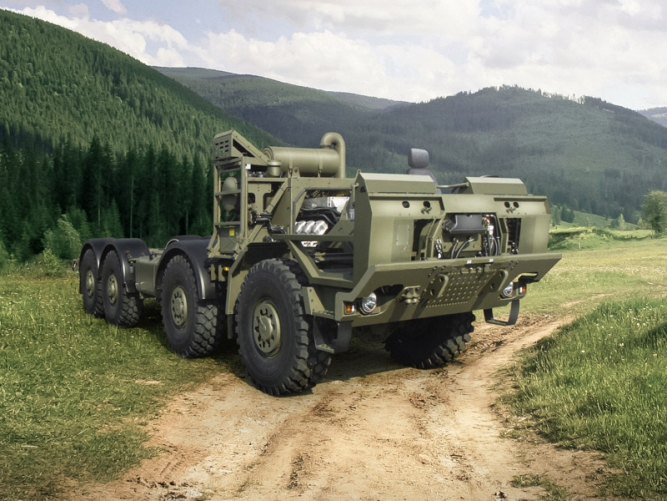

8x8 HIGH MOBILITY HEAVY DUTY CHASSIS
T 815-790R99 38 300 8x8.1R
Independent suspension
25,000 kg payload
8x8 drive
300 kW
Engine
TATRA T3C-928-90, EURO 3, 300 kW, 2,100 Nm/1,000 RPM
Transmission
TATRA 14 TS 210L, semiautomatic split, 14-speed
Cab The chassis is delivered without standard TATRA cab. A frame holding dashboard, pedals, steering and seat is mounted on the chassis instead of the cab. Other equipment delivered as loosing parts. Cab tilting mechanism with hydraulic cylinder
controlled electrically.
Wheelbase 2,150 + 2,860 + 1,450 mm
Gross vehicle weight (max.) 38,000 kg
Payload (max.) 25,000 kg (chassis)
Top speed 115 km/h
Truck dimensions

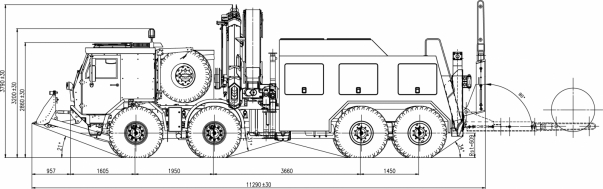

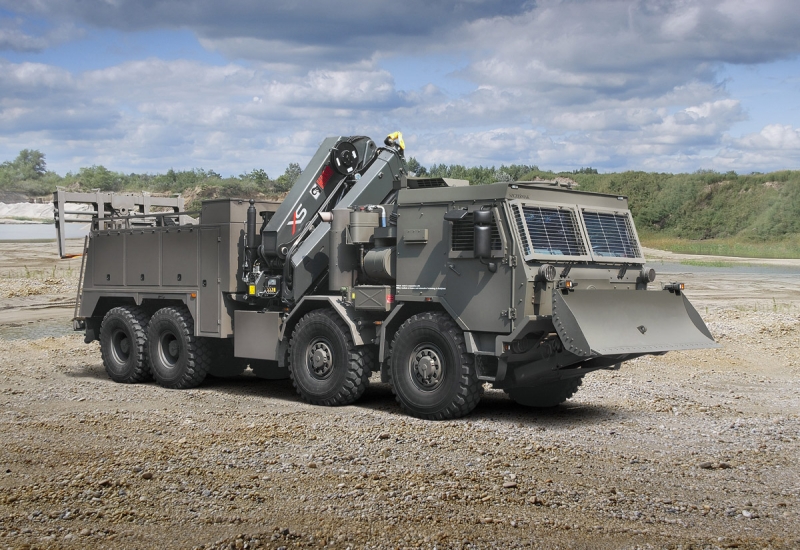

8x8 HIGH MOBILITY HEAVY DUTY RECOVERY VEHICLE
T 815-7Z0R9T 44 440 8x8.1R
Independent suspension
14,000 kg rear fork capacity
8x8 drive
440 kW
Engine
Deutz TCD 2015 V08, EURO 3, 440 kW, 2,720 Nm/1,400 RPM
Transmission
Allison 4800 SP, automatic, 7-speed
Cab 4 seats, C-130 transportability, armoured
Wheelbase 1,950 + 3,660 + 1,450 mm
Gross vehicle weight (max.) 44,000 kg
Top speed 100 km/h
Superstructure CRANE – capacity 43.9 Tm, lifting capacity 5,200 kg/8.4 m to 12,000 kg/3.5 m.
WINCHES – 2 x 24 t constant pull, rope 100 m.
DOZER BLADE
REAR FORK – capacity 14,000 kg.
Truck dimensions

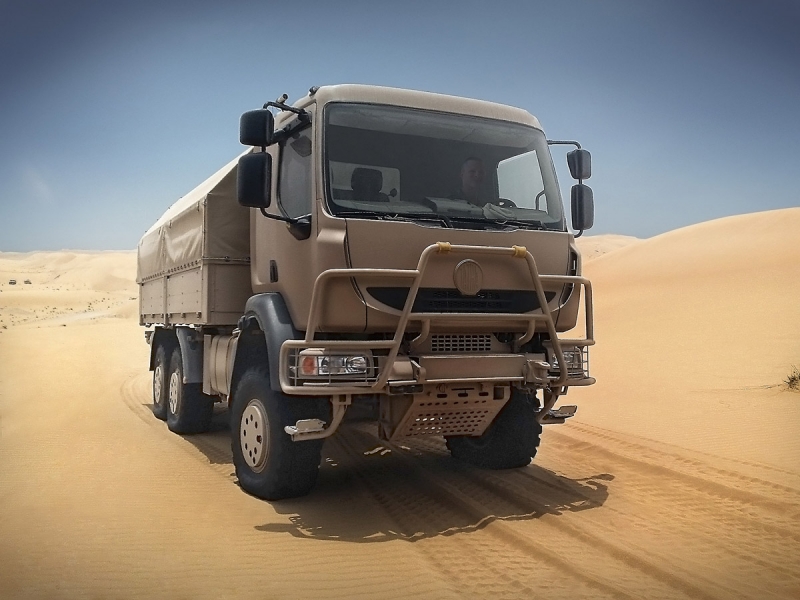

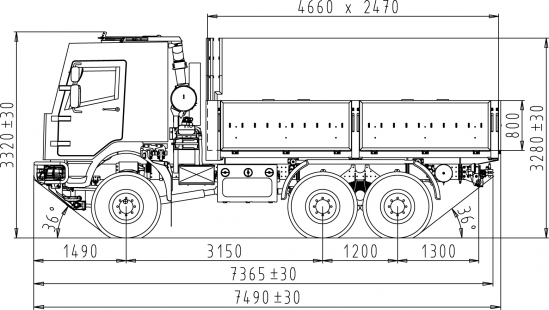

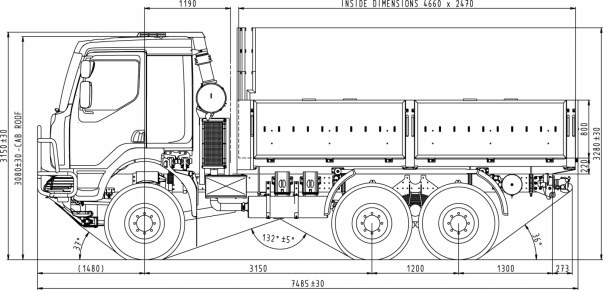

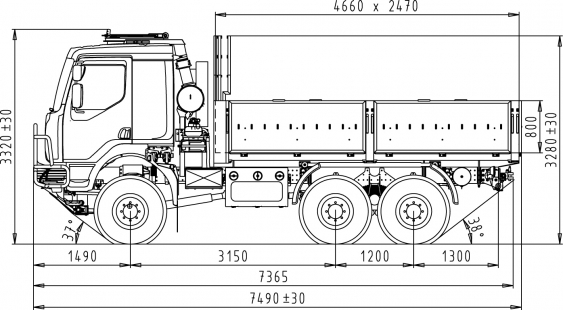

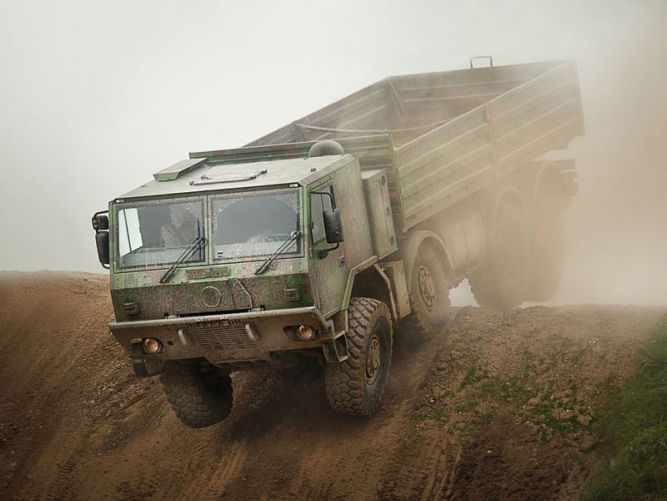

6x6 CARGO TRUCK/TROOP CARRIER
T 810-1R0R26 13 177 6x6.1R
TATRA portal axles
5,100 kg payload
6x6 drive
177 kW
Engine
Renault Dxi7, EURO 3, 177 kW, 920 Nm/1,200-1,700 RPM
Transmission ZF 6S 1000 T0, 6-speed
Cab 1+2 seats,
Wheelbase 3,150 + 1,200 mm
Gross vehicle weight (max.) 13,000 kg
Payload (max.) 5,100 kg
Top speed 106 km/h
Superstructure Cargo body with tarpaulin, foldable benches for 16 troops, rear foldable access. Inside dimensions 4,660 x 2,470 mm.
Truck dimensions

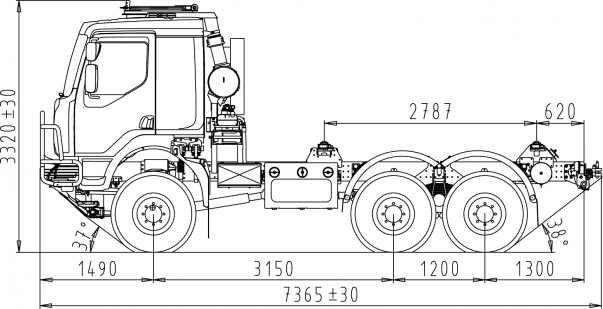

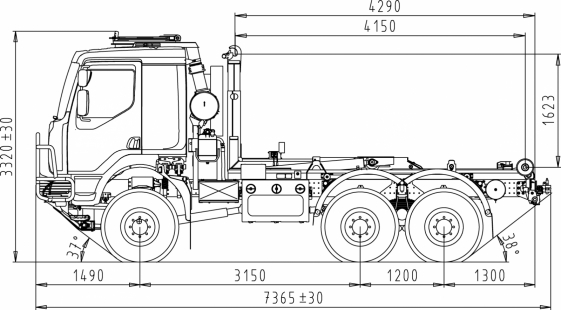

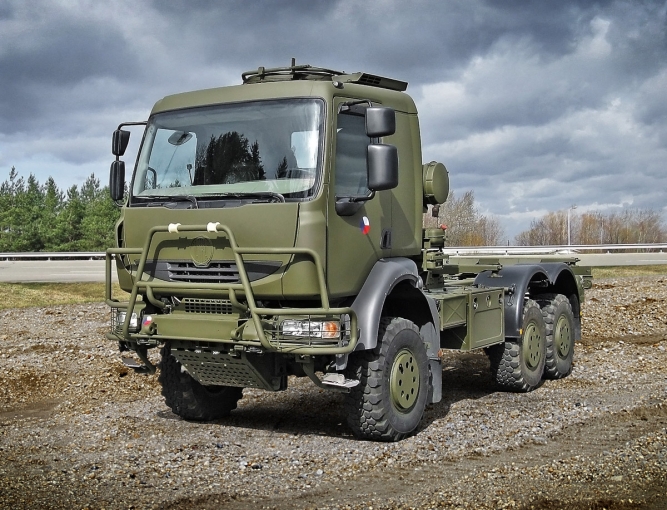

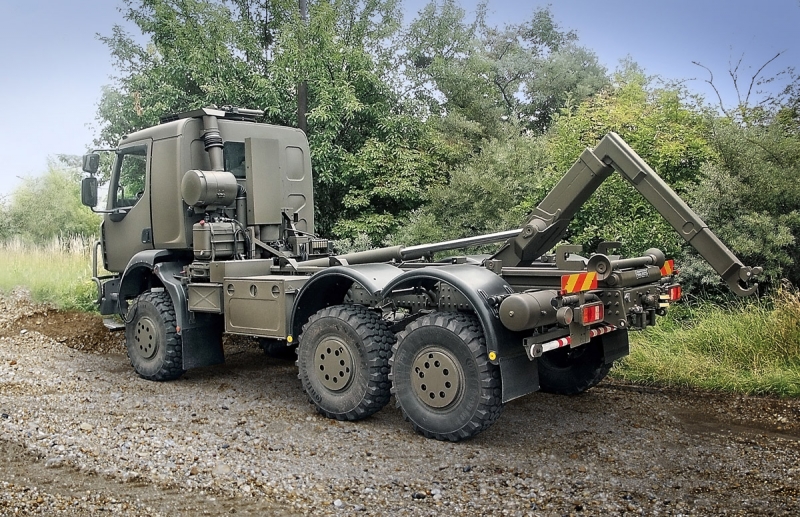

6x6 CHASSIS-CAB WITH LOAD HANDLING UNIT
T 810-1R0R26 13 177 6x6.1R
Portal axles - TATRA
3,900 kg payload
6x6 drive
177 kW
Engine Renault Dxi7, EURO 3, 177 kW, 920 Nm/1,200-1,700 RPM
Transmission ZF 6S 1000 T0, 6-speed
Cab 1+2 seats, armoured floor
Wheelbase 3,150 + 1,200 mm
Gross vehicle weight (max.) 13,000 kg
Payload (max.) 3,900 kg
Top speed 106 km/h
Superstructure Load handling unit is able to operate with containers up to 4,900 mm lenght and 8,000 kg weight. Can carry shelters, or standard containers.
Truck dimensions

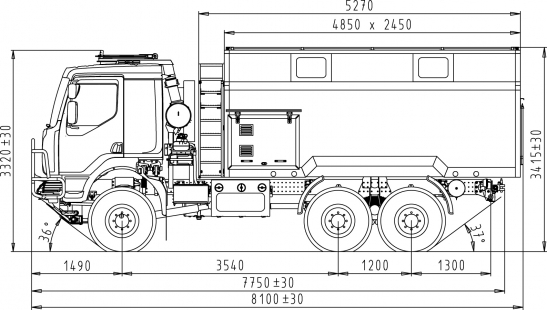

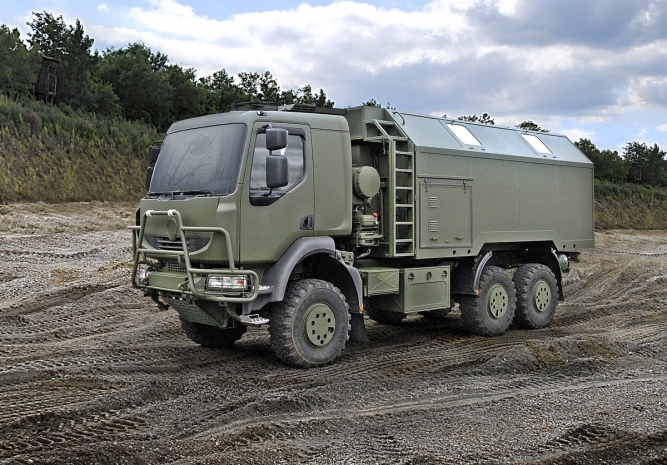

6x6 SHELTER CARRIER
T 810-1R0R26 13 177 6x6.1R
Portal axles - TATRA
3,850 kg payload
6x6 drive
177 kW
Engine Renault Dxi7, EURO 3, 177 kW, 920 Nm/1,200-1,700 RPM
Transmission
ZF 6S 1000 T0, 6-speed
Cab 1+2 seats, armoured floor
Wheelbase 3,540 + 1,200 mm
Gross vehicle weight (max.) 13,000 kg
Payload (max.) 3,850 kg
Top speed 106 km/h
Superstructure Shelter fixed to the chassis frame through flexible points. Dimensions 5,270 x 2,500 mm.
Truck dimensions

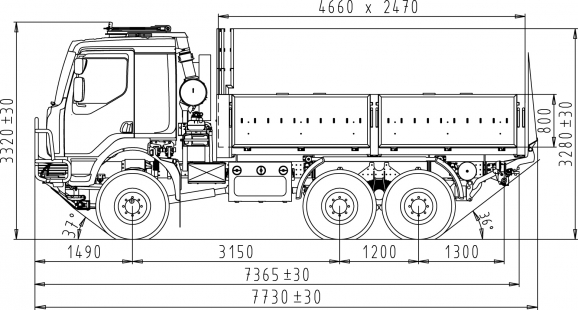

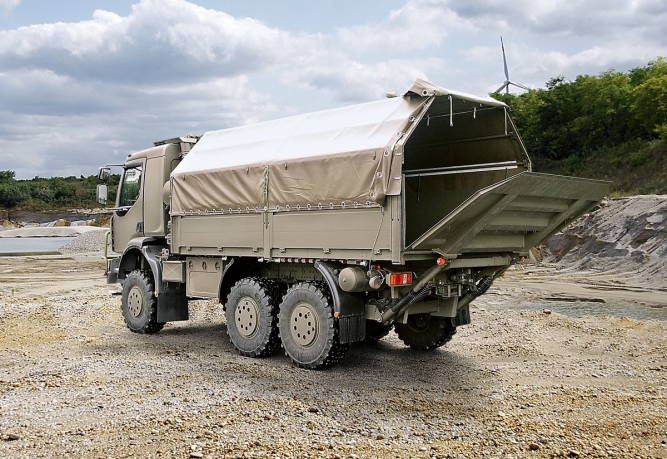

6x6 CARGO TRUCK WITH CARGOLIFT PLATFORM
T 810-1R0R26 13 177 6x6.1R
Portal axles - TATRA
4,050 kg payload
6x6 drive
177 kW
Engine Renault Dxi7, EURO 3, 177 kW, 920 Nm/1,200-1,700 RPM
Transmission ZF 6S 1000 T0, 6-speed
Cab 1+2 seats, armoured floor
Wheelbase 3,150 + 1,200 mm
Gross vehicle weight (max.) 13,000 kg
Payload (max.) 4,050 kg
Top speed 106 km/h
Superstructure Cargo body with tarpaulin and rear cargolift platform of 1,500 kg capacity and 1,500 mm lift. Inside dimensions 4,660 x 2,470 mm.
Truck dimensions
6x6 CONTAINER CARRIER
T 810-1R0R26 13 177 6x6.1R
Portal axles - TATRA
5,000 kg payload
6x6 drive
177 kW
Engine
Renault Dxi7, EURO 3, 177 kW, 920 Nm/1,200-1,700 RPM
Transmission
ZF 6S 1000 T0, 6-speed
Cab 1+2 seats, armoured floor
Wheelbase 3,150 + 1,200 mm
Gross vehicle weight (max.) 13,000 kg
Payload (max.) 5,000 kg
Top speed 106 km/h
Superstructure
Container grips designed for ISO 1D container or shelter of 4,700 mm lenght.
Truck dimensions

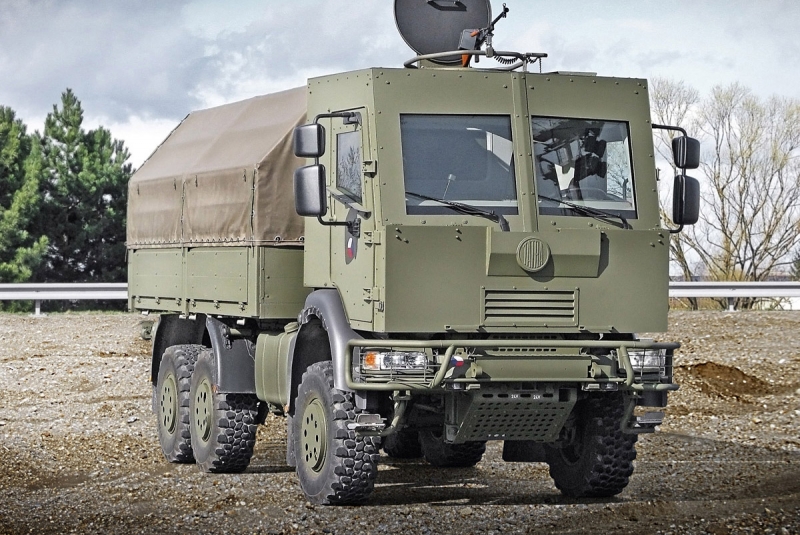

6x6 CARGO TRUCK/TROOP CARRIER, ARMOURED CAB
T 810-1R0R26 13 177 6x6.1R
TATRA portal axles
3,250 kg payload
6x6 drive
177 kW
Engine Renault Dxi7, EURO 3, 177 kW, 920 Nm/1,200-1,700 RPM
Transmission
ZF 6S 1000 T0, 6-speed
Cab 1+2 seats, armoured floor, add-on armouring Level 1 STANAG 4569
Wheelbase 3,150 + 1,200 mm
Gross vehicle weight (max.) 13,000 kg
Payload (max.) 3,250 kg
Top speed 106 km/h
Superstructure Cargo body with tarpaulin, foldable benches for 16 troops, rear foldable access. Inside dimensions 4,660 x 2,470 mm.
Truck dimensions
