موسوعة الذخائر والصواريخ السعودية

ذخيرة شركة عرين الاسد
ــــــــــــــــــــــــــــــــــــــــــــــــــ

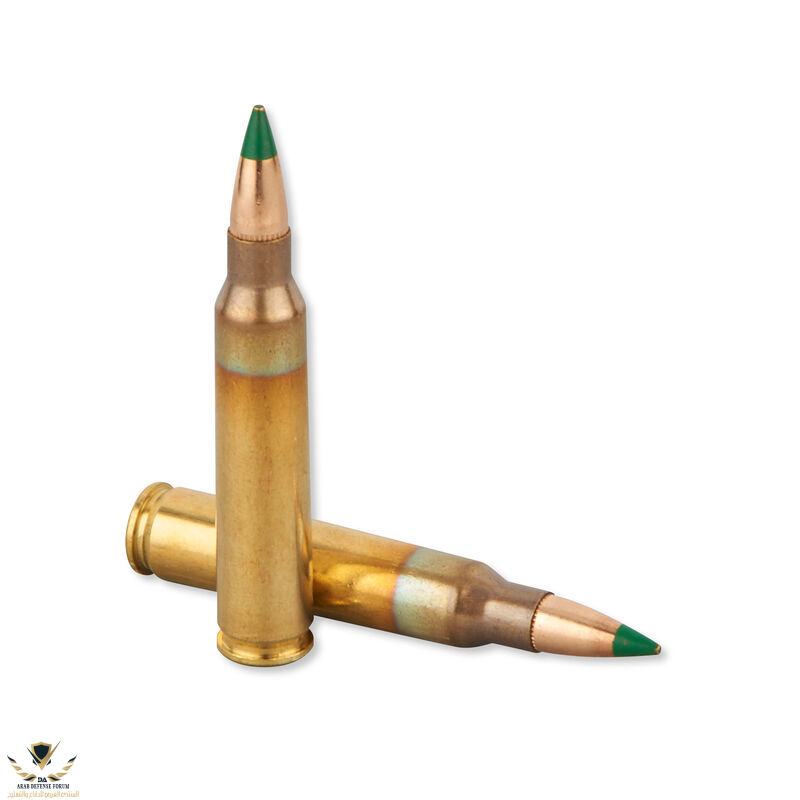

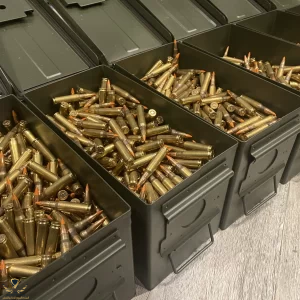

5,56x45-SS109/M855, .308 Winchester, 7,62x51-M80 9x19 NATO, .223 Remington, 7,62x39 12,7x99 (.50 BMG).



ومن منتجاتهم

المؤسسة العامة للصناعات العسكرية

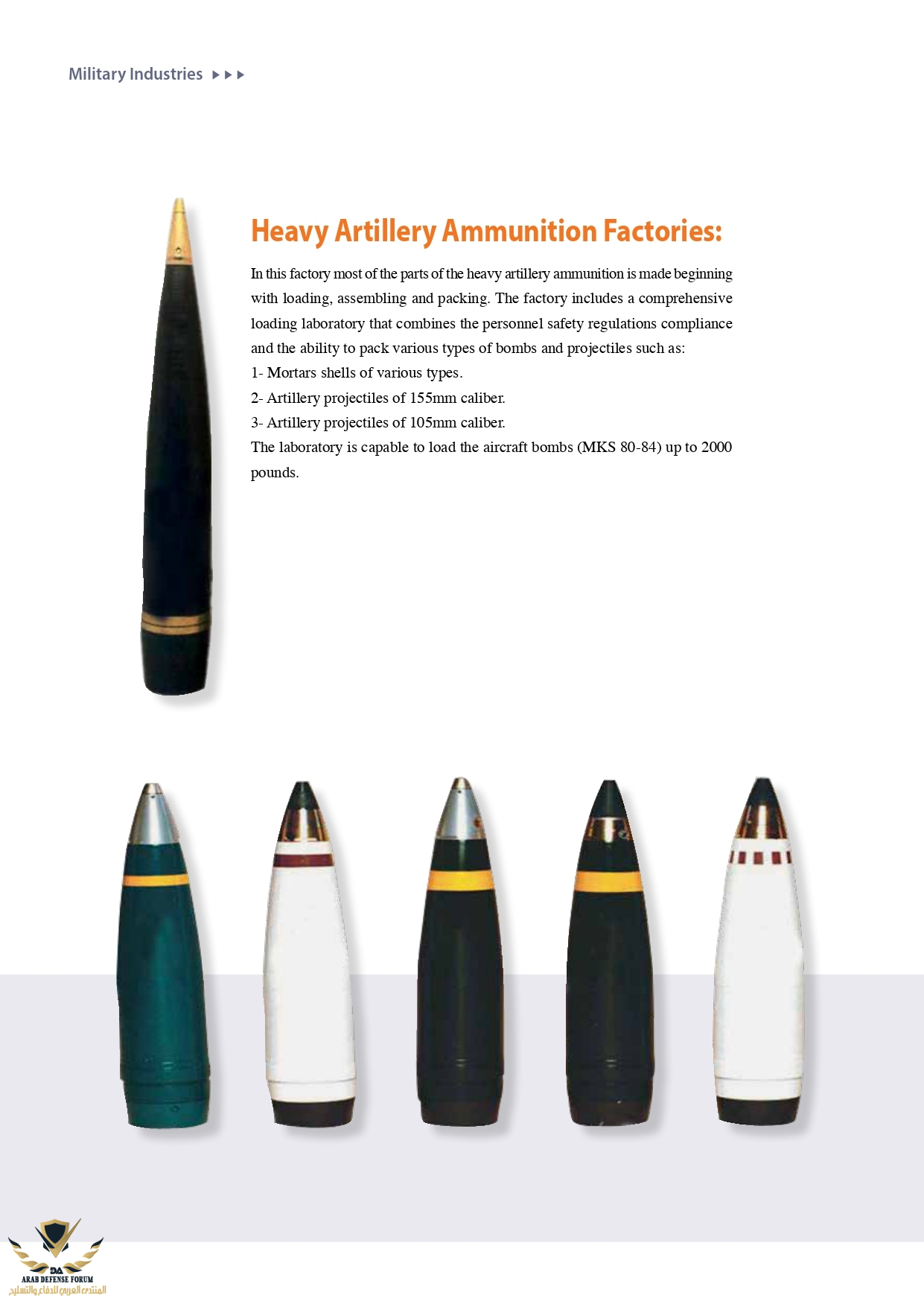

الذخيرة الثقيلة

105MM ILUM IR BE M0235A1
105MM HE M2019A1 TNT 3
105MM HE PFF M2020A1 TNT 3
105MM ILUM BE M0102A1
105MM PRAC M2019A1 HE SUB


شركة سرب للصناعات المتقدمة (SERB) تحصل على عقد انتاج "درونات الانتحارية" الجيش السعودي

GL8ATUyWgAA7khL

موقع janes خلال معرض معرض WDS 2024

أكدت شركة سرب للصناعات المتقدمة أنها تنتج كميات كبيرة من (UAVs) للجيش السعودي.

Saudi Arabia's Serb Advanced Industries confirmed that it is mass-producing small unmanned aerial vehicles (UAVs) for the Saudi military

GL8Ml-lWQAAtKIo



وقال مسؤول في الشركة لموقع janes إن كلاً من Jaser وSamil قيد الإنتاج، على الرغم من أنه رفض تسمية فرع الجيش السعودي الذي طلبهما.

A company official told Janes that both the Jaser and larger Samil are in production, although he declined to name which branch of the Saudi military has ordered them.

GL8Bf5jWwAAUwdv




طائرة Jaser متعددة المهام يمكنها حمل حمولات مختلفة، ,يبلغ الحد الأقصى 13 كجم، ويبلغ طول جناحيها 2.08 مترًا، وقدرتها على التحمل 45 دقيقة، أقصى ارتفاع 4000 متر.

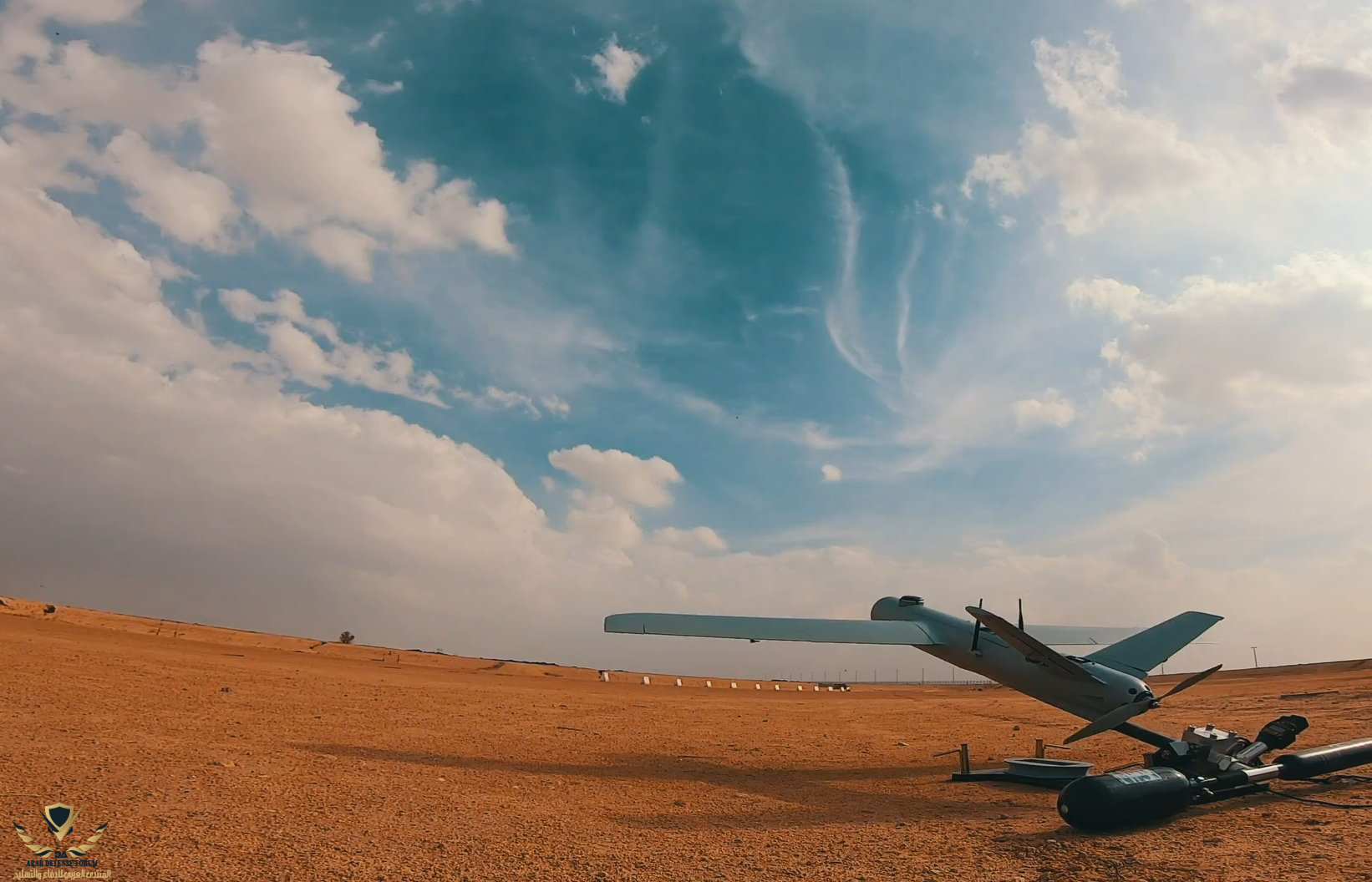

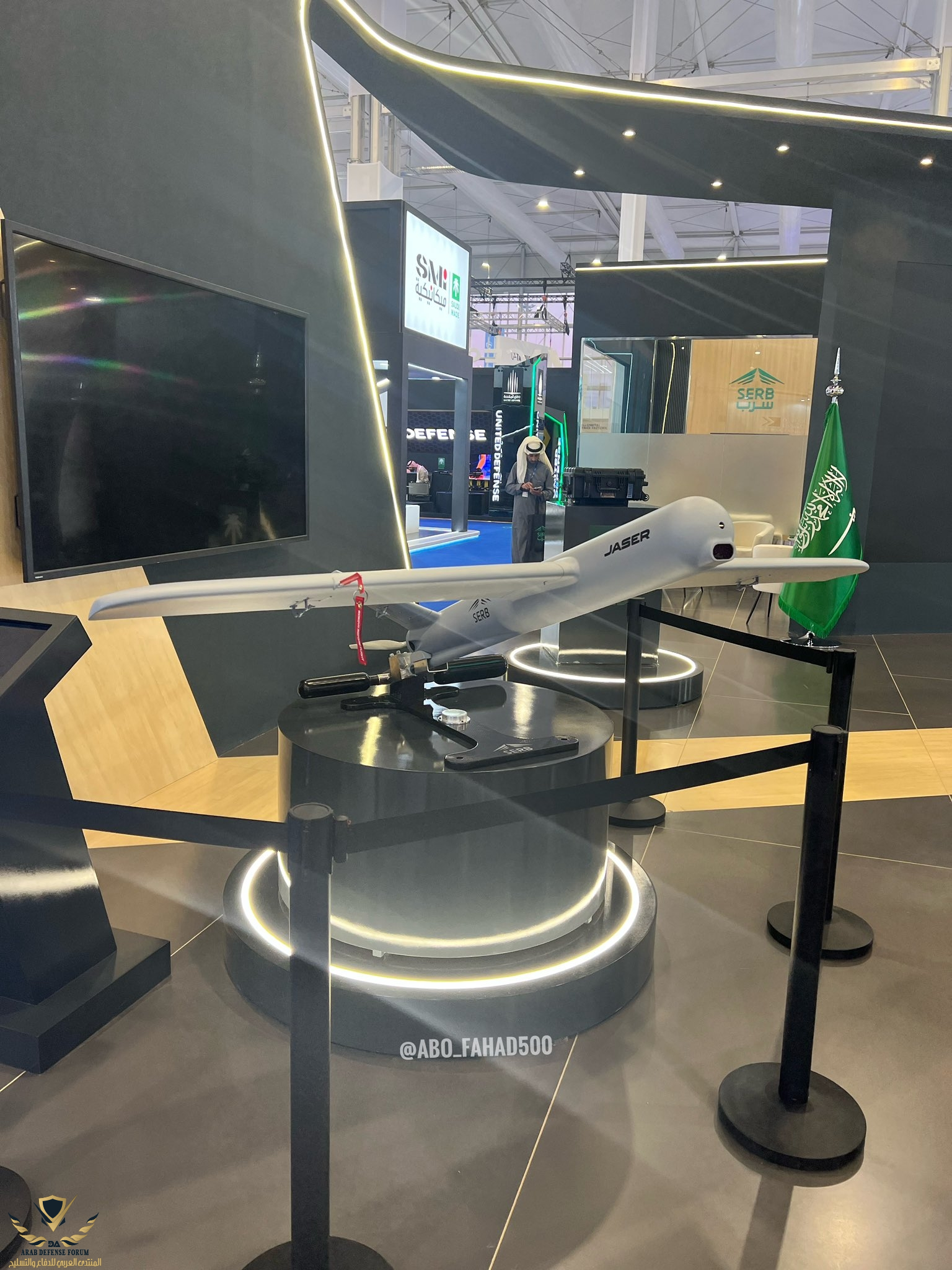

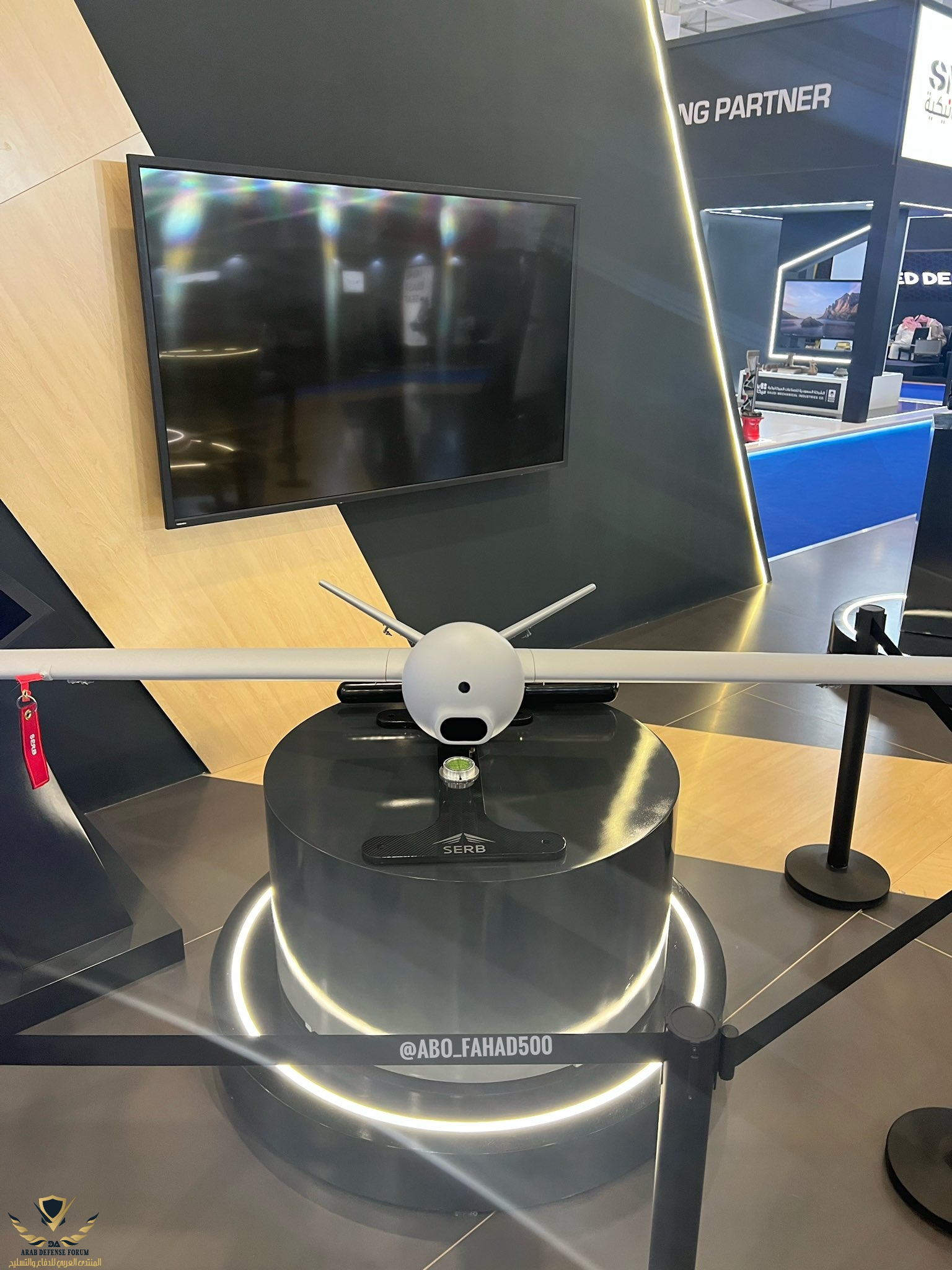

Serb identified the UAV as the Jaser during WDS, where one was displayed on its pneumatic launcher. The company described it as a multi-purpose UAV that can carry different payloads, including an electro-optical/low-wave infrared system. It has a maximum take-off weight (MTOW) of 13 kg, a wingspan of 2.08 m, an endurance of 45 minutes, and a service ceiling of 4,000 m.

662634



طائرة Samil الأكبر حجمًا قال مسؤول الشركة إنه تم تطويره من عام 2022 بما يتماشى مع المتطلبات الجيش السعودية ، تم بدء عمليات التسليم في نهاية عام 2023.

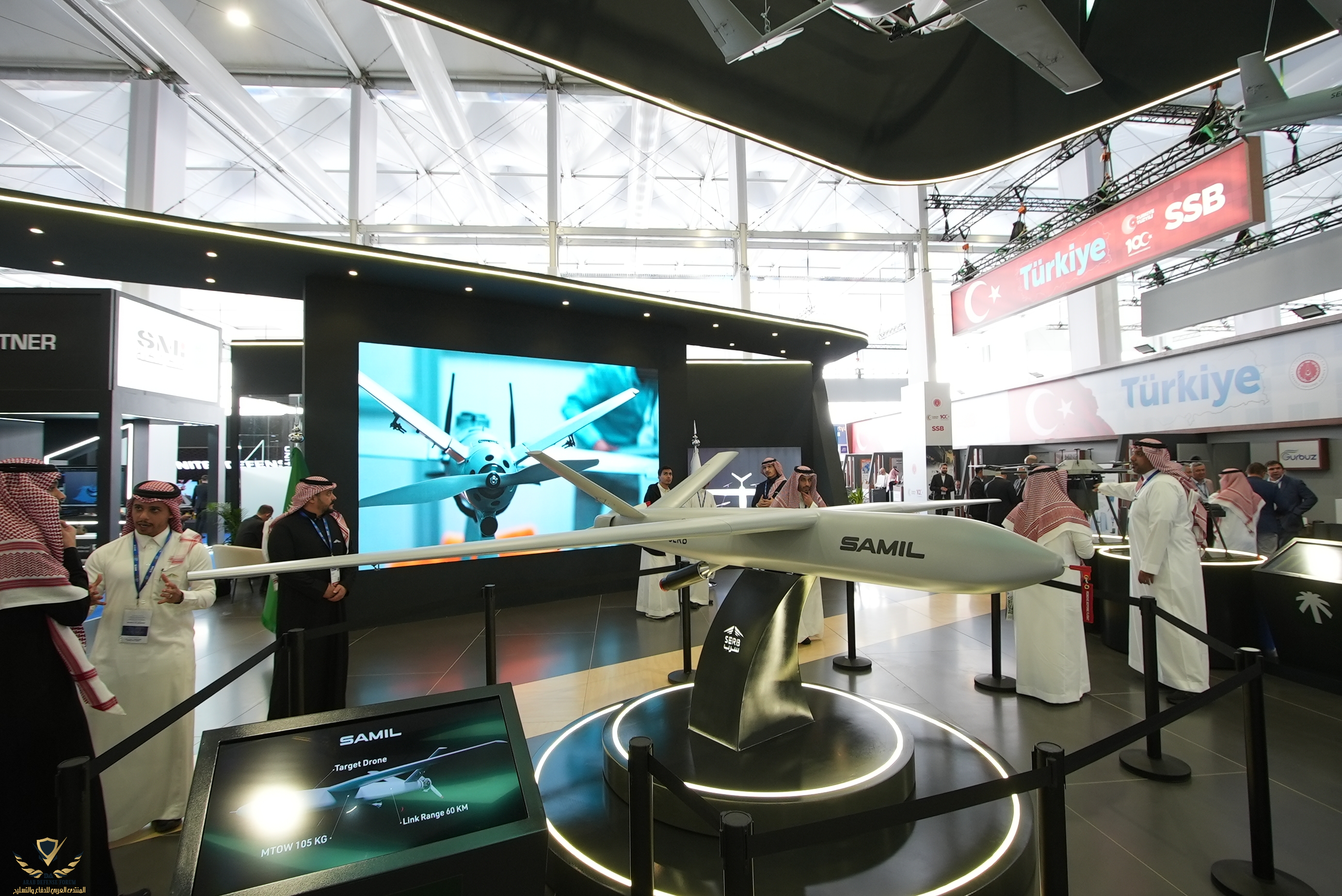

Serb also displayed the larger Samil, which the company official said was developed from 2022 in line with Saudi military requirements for an aerial target, with deliveries beginning at the end of 2023.


GGUptcpXMAA5Qdd



طائرة Samil يبلغ طوله 3 أمتار ويبلغ طول جناحيه 4.67 مترًا اقصى و الحد الأقصى 105 كجم يتم إطلاقه باستخدام معزز صاروخي ومدعوم بمحرك مكبس مما يمنحه سرعة قصوى تبلغ 250 كم / ساعة ، وقصى ارتفاع يبلغ 4500 متر ، ونطاق يبلغ 60 كم. وقال المسؤول إن الطائرة يمكنها حمل حمولة 18 كجم


It has an MTOW of 105 kg, a length of 3 m, and a wingspan of 4.67 m. It is launched using a rocket booster and powered by a piston engine, giving it a top speed of 250 km/h, a service ceiling of 4,500 m, and a datalink range of 60 km. The official said it can carry an 18 kg payload although it is a disposable target.


المصدر

https://www.janes.com/defence-news/news-detail/wds-2024-saudi-company-serb-mass-producing-uavs

1691338592831


شركة Anqa Aerospace & Défense هي شركة سعودية الرائدة في تصميم وتصنيع أنظمة الطائرات بدون طيار.
تصنع شركة أنظمة جوية وبحرية وبرية مستقلة، بما في ذلك طائرات VTOL ذات الأجنحة الثابتة، الطائرات النفاثة بدون طيار.

Anqa Aerospace & Défense is the premier privately owned Saudi autonomous vehicle systems design and manufacturing house. We make air, sea and ground systems which are autonomous, including fixed wing VTOL, multicopters, jet drones and unmanned boats.


الطائرة بدون طيار MP300
The MP300 Long Range Loitering munition

GMdCnl9XEAA4Mft


نظام الذخيرة المتقدمة مصمم بدقة للموقع الدقيقه.

  • نطاق اتصال 100 كيلو
  • ارتفاع 5000 كم
  • وحمولة 30 كجم .
  • بمدى من 3-5 ساعة
  • سرعة 150 كم/ساعة
GMdDwgDWQAADCpu



طائرة VTOL


  • نطاق اتصال 100 كيلو
  • ارتفاع 3000 كم
  • وحمولة 10 كجم .
  • بمدى من 60 دقيقة
  • سرعة 500 كم/ساعة
GMdICE2WcAAAjFw


من انتاج شركة عنقاء للدفاع والطيران بتعاون مع شركة Woot Tech


1707638573729


المرفقات

  • 1759447351123.png
    1.6 MB · المشاهدات: 8

Khataf UAS​

GNApzM7XEAI-QQE


  • يبلغ وزنه الأقصى للإقلاع 13 كجم
  • حمولة 5 كجم
  • قدرة تحمل تصل إلى 10 ساعات
  • تصل سرعتها إلى 250 كم / ساعة
  • أقصى ارتفاع 4000 قدم




WDS 2024 – Wakeb unveils its new Khataf UAS and showcases its AI capabilities​

GGEZwzzWQAA8way


Founded in 2017, Wakeb is a Saudi company specialised in artificial intelligence, machine learning, cognitive computing, intelligent applications, and software. It is also active in the UAS domain, and at the World Defense Show it unveiled the Khataf long range VTOL, which of course has embedded AI-based algorithms​


In its booth at the Riyadh exhibition Wakeb was exhibiting most of its UAS portfolio, among which the 13 kg maximum take-off weight (MTOW) Tairat Shalwa long range reconnaissance VTOL airframe capable to carry a 5 kg payload with an endurance of 10 hours, as well as its evolution, the Tairat Shalwa 2, with a different aerodynamics and a lesser endurance, the short range Nashmiah quadcopter being also on stage.

However, the new member of the family unveiled at WDS was the Khataf long range VTOL system which features a peculiar aerodynamic architecture.

The 13 kg MTOW aircraft has an aerodynamic fuselage with two rear struts, carrying each one half the tailplane, angled to obtain a V-shape. It has a straight mid wing with a 3.3 metres span, which can be disassembled for transport. Ahead of the wing we find a canard, with a span of around 0.7 metres, which carries at each wingtip a two-blade rotor providing the VTOL capability. These being the only systems providing vertical lift thrust, it is to assume they should be located at the centre of gravity. To move forward and fly aerodynamically, the Khataf is fitted with a shrouded turbine-like 12-blade propeller moved by an electric motor and installed halfway between the two rear struts. In horizontal flight the three aerodynamic surfaces should ensure the right balance as the wing is backwards compared to the centre of gravity. No information was provided on power generation. According to data available the powerplant solution adopted on the Khataf makes it the fastest UAS within the Wakeb portfolio, as it can reach 250 km/h, compared to the 150 km/h of the aforementioned fixed wing VTOL UAS.

The new UAS can fly at a 4,000 ft altitude and has an up to 10-hour endurance, 8-9 hours being the usual endurance, flight distance being 800 km. Maximum payload is 5 kg; this can be a day night electro-optic gimbal, RGB camera and LiDAR, these probably providing sensor fused images based on deep learning, international mobile subscriber identity-catcher and E/O gimbal, or other types of payloads, the system having an open electronic architecture. Sensors are acquired from third parties, a Wakeb representative told EDR On-Line, underlining however that the software was developed by the company, a specialty of the house, both for the air vehicle control as well as for exploiting the data provided by sensors.

At the Wakeb booth it was possible to witness one of the IA-based products, the MESBAR, capable among other modes to provide automatic target recognition of land, naval and aerial targets. It can provide target distance and speed, can track multiple objects at the same time, and ensures full sensor fusion, all this also in low visibility and challenging atmospheric conditions.

According to our source, Wakeb is focusing on autonomy and is dealing with swarm capabilities, which might be added to the Khataf as well as to other company UAS.
https://www.edrmagazine.eu/wakeb-unveils-its-new-khataf-uas-and-showcases-its-ai-capabilities

شركة التقنيات المسيرة
تقرير مختصر عن مصنع الشركة وطاقته الإنتاجية السنوية أكثر من 2000 طائرة بمختلف انواعها بمعدل 166+ درون شهريًا
أنقر للتوسيع...






شركة التقنيات المسيرة أحدى الشركات الناشئة المتخصصة في تصميم وتطوير وتصنيع الطائرات بدون طيار وأنظمتها بمختلف أنواعها في المجال العسكري او المدني

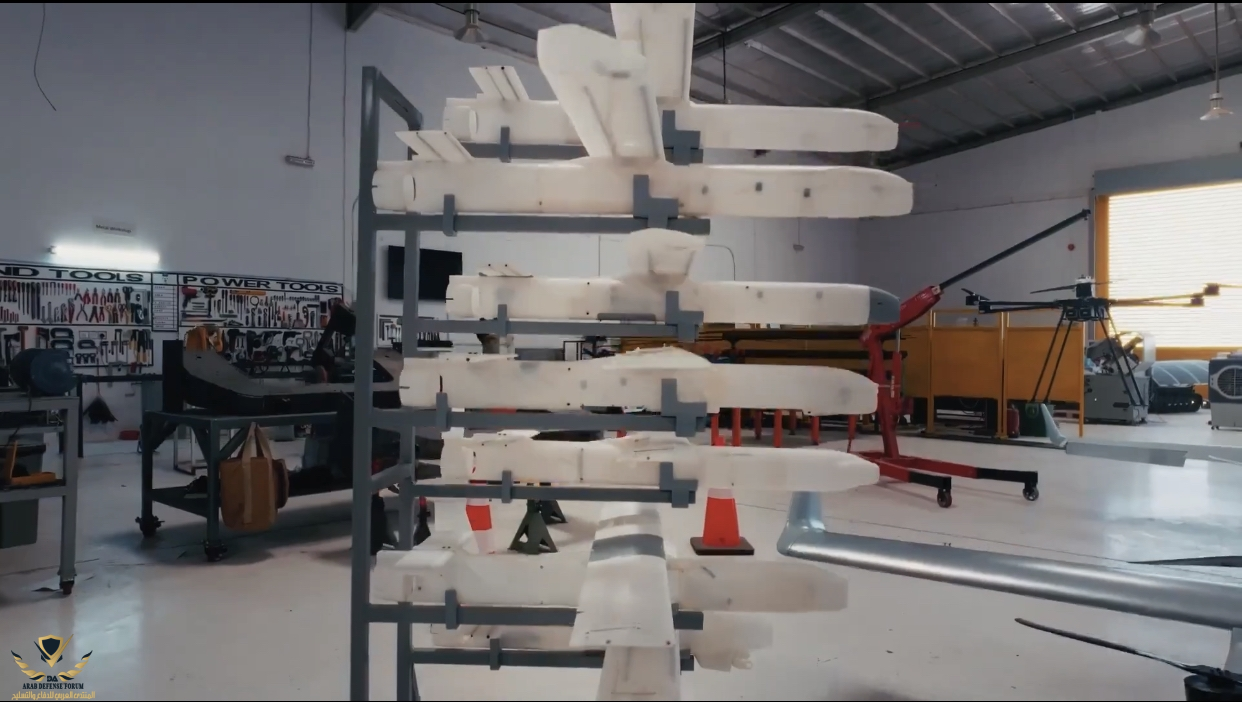

تقرير مختصر عن مصنع الشركة وطاقته الإنتاجية السنوية أكثر من 2000 طائرة بمختلف انواعها





طائرات متسكعة ( loitering munition ) من أنتاج مصنع الشركة


شركة التقنيات المسيرة

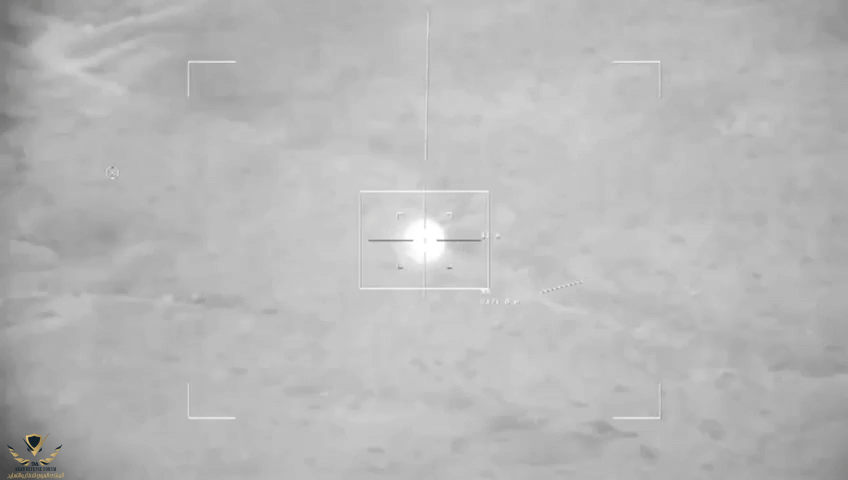

تجارب على "الصاروخ الأجرب"













درون اخر يظهر في الخلفية




درون اعتراضي وفي نفس الوقت درون يهاجم الاهداف الارضية!

قبل سنة تقريباً هذه الشركة وقعت اتفاقيات عدة مع جامعات سعودية للبحث والتطوير





https://autonomous.sa/

أعلنت المجموعة عن إنجاز مشاريع دفاع وأمن تجاوزت قيمتها 718 مليون ريال سعودي. كما وقّعت عقودًا حصرية وطلبات عروض (RFPs) في السوق المحلي تتخطى 6 مليارات ريال سعودي، ما يعكس قوة حضورها ومكانتها المتنامية في هذا القطاع الحيوي.
وفي إطار خططها التوسعية خارج المملكة، تجري المجموعة مفاوضات لتصدير ما يصل إلى 5,000 طائرة مسيّرة (UAV) بقيمة تقدَّر بـ 250 مليون دولار أمريكي، الأمر الذي يعزز فرصها في دخول أسواق جديدة ويدعم توجهاتها نحو التصدير.

التعديل الأخير:
GdIUM1KWwAA2x5v


HarisUS is a Saudi Arabia-based UAV drone manufacturer. Proudly operating as the nation’s only drone manufacturing unit. From design to production, our drones are 100% made in Saudi Arabia, embodying

درونات الانتحارية من شركة HARIS

SA3B


GdIUNZBXQAAhEoS


أقصى وزن للإقلاع20 كجم
مدى الطيران1280 كم
السرعة القصوى135 كم/س



GdIU7w2WUAAgY2E



(Loitering Munition) SA-LM


GdIXTPVWIAAq8hu



السرعة150 كم/س
الحمولة5 كجم
أقصى ارتفاع2000 متر
تَحمُّل3 ساعات

GdIcsWiXQAA_UG3

  • ضربة دقيقة
مجهزة بأنظمة استهداف متقدمة، مما يسمح بتوجيه ضربات دقيقة للغاية على مسافات طويلة
  • أقصى ارتفاع
يصل إلى ارتفاع 2000 متر، مما يضمن مراقبة فائقة وميزة تكتيكية
  • تجنب العوائق
مجهزة بأجهزة استشعار تعمل بالذكاء الاصطناعي للكشف عن العوائق والتنقل حولها بدقة، مما يضمن نجاح المهمة



https://harisus.com/aboutus

GdIq1TqW4AAGbyu


شركة Unmanned X, Inc.
تمتلك منشأتين التصنيع في المدينة الرياض والمدينة الصناعية الثالثة في الدمام

GdIq0GoWwAA_oA6



GdIsVP_XMAAH0_5



GdIsVj0XQAATri4



X-1500​

Long-Range Loitering Munition (LRLM)


GdItii4WIAAhlDT


الموصفات

مدى الطيران1500 كيلومتر.
الحمولة50 كجم
نظام التوجيةGNSS


GdIw4ZFXkAAc6-e



https://www.unmannedx.tech/
