معرض ايدكس ونافدكس 2021 .. متابعة مستمرة

يبدو ان الشجاع ينتمي لفئة OPV او سفن الدورية البعيدة عن الساحل





الف مبروك علينا تصنيعه محليا وعقبال تصنيع بقية ابداعات دامن ...


معلومة ..

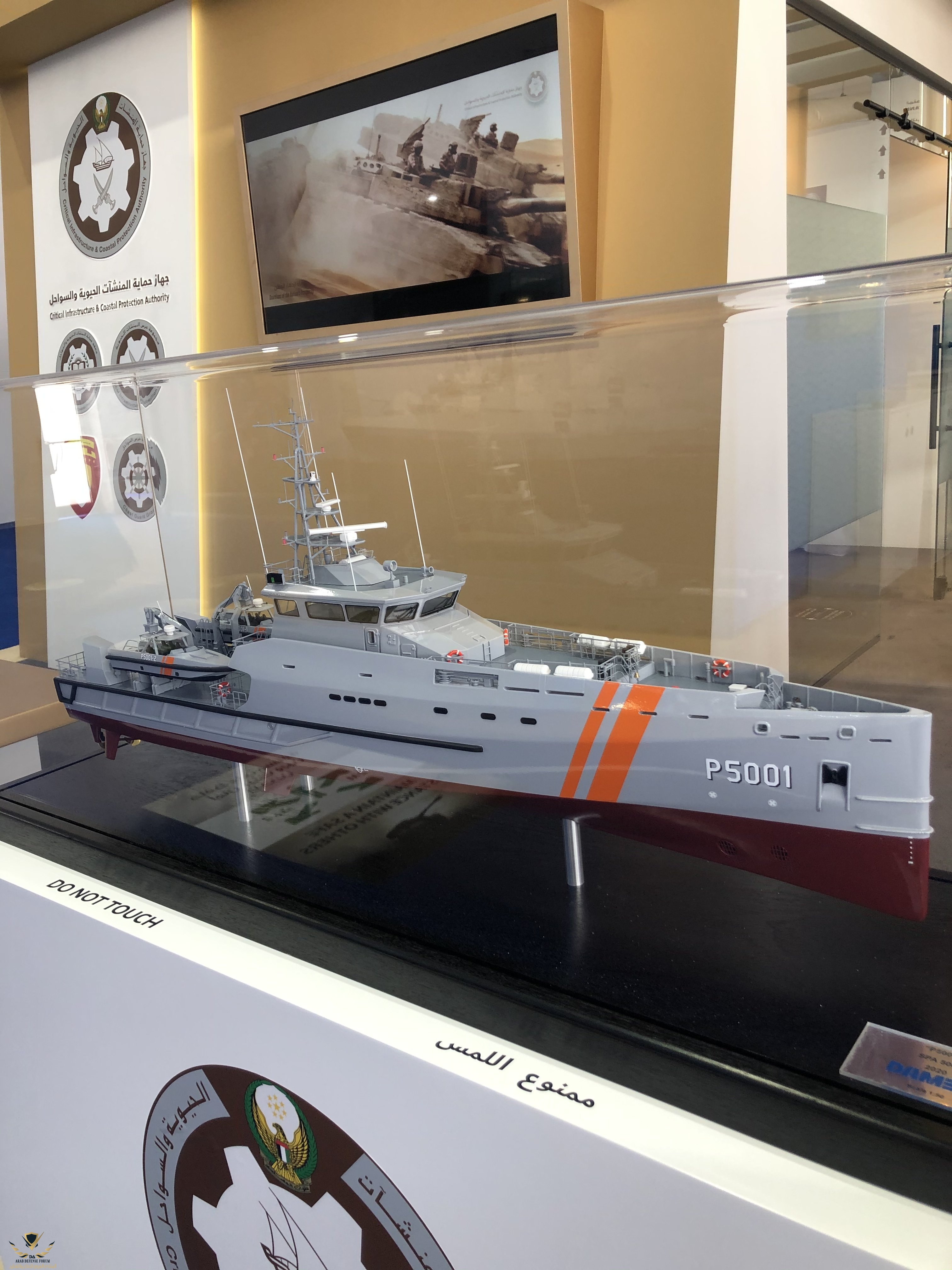

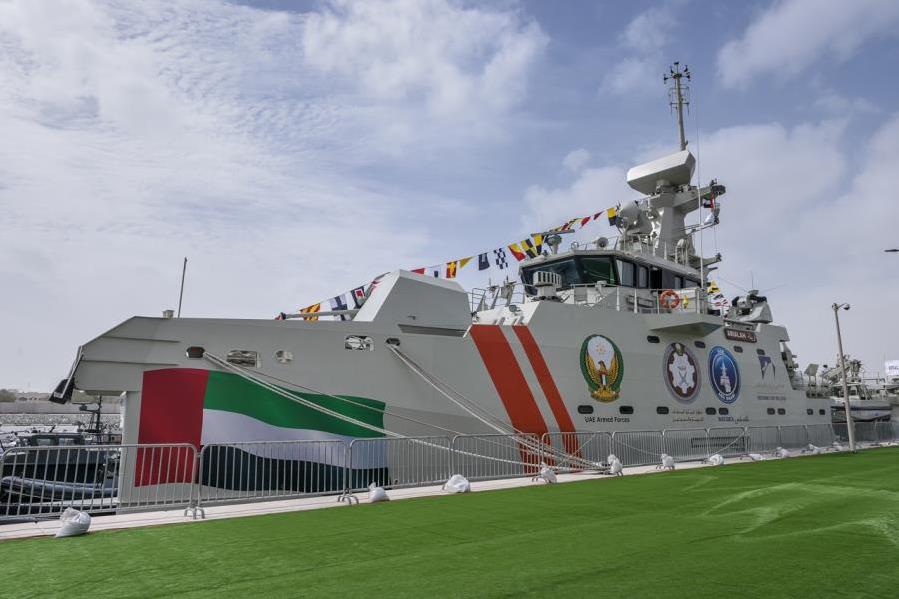

سبق وتم تدشين زورق لجهاز حماية المنشآت من فئة OPV في نافدكس 2019






بناء مزيد من هذه الفئة محليا هو مؤشر ثقة في المنتج ويبدو انه حاز على رضى القوات المسلحة الاماراتية ولبى متطلباتها الصارمة ...


بالتوفيق وان شاء الله نرى جديد ابداعات حوض دامن - البواردي القادمة ..


دامن سبق وكشفت عن فرقاطة مستقبلية تدعى OMEGA


IndoDefence 2018 Damen Unveils 6000 Tons Omega Frigate 1
The new Omega frigate by Damen. Damen image


هنا ما نشرته Navy Recognition حولها


Omega design features
Damen explained to us that the Omega / FFI frigate is based on the proven LCF / De Zeven Provinciën-class frigate hull form. The vessel features an hybrid propulsion system consisting of 4x diesel engines (two can be used for economic speed, four for sprint) plus 2x electric engines. The diesel engines are separated forward and aft for increased survivability. Power generation aboard the ship takes into account future weapon systems such as directed energy weapons.

The Omega frigate features two large multi mission bays: One amidship and one at the stern. As is the trend with latest generation frigates (Type 26 and FTI/Belharra) the midship multimission bay goes across from port to starboard sides with an overhead handling system to load and move containers or launch and recover RHIBS or USVs/UUVs. The midship multimission bay is large enough to accommodate up to 4x 20 foot containers and the stern multmission bay can accommodate 2x 20 foot containers. Note that there is an additional space on the upper deck, next to the anti-ship missile launchers for 2x additional containers.


IndoDefence 2018 Damen Unveils 6000 Tons Omega Frigate 3
Omega scale model on Damen stand at Indodefence 2018. Navy Recognition picture.


Thales S/X suite
The futuristic looking (almost Zumwalt-eske) topside of the Omega Frigate is mainly due to the new generation radar suite provided by Thales: Boudewijn Geerink from Thales Netherlands told Navy Recognition at Indodefence 2018 that it is the new S/X suite consisting of the SeaMaster 400 fixed panel S-band radar suite and the APAR Block II X-band multi-function radar, both using gallium nitride technology. According to Thales, the new fixed panel S-band radar solution is the right answer to counter threats posed by airborne or surface drones, precision-guided munitions, or submarine-fired pop-up missiles, typically attacking just above the sea surface (low elevation, sea skimming) or from high elevation angles (high diving). APAR Blk2 defends against saturation attacks in the highest threat scenarios by supporting many simultaneous AAW and ASuW engagements with both active and semi-active guidance using ICWI. Thales SeaMaster 400 offers a range of 450km while APAR Block 2 can replace illuminators to directly provide guidance for ESSM and SM-2 missiles.

Omega frigate is also available with different radar configurations. A version fitted with a rotating radar (such as the Thales NS200) is also being pitched by Damen.


IndoDefence 2018 Damen Unveils 6000 Tons Omega Frigate 4
Omega scale model on Damen stand at Indodefence 2018. Navy Recognition picture.


Weapons and other sensors

The weapons and sensor suite depends on customers requirements as usual. However the scale model on display at Indodefence shows the Omega frigate fitted with a 127mm main gun by leonardo, a 76mm secondary gun (non penetrating variant) by Leonardo on top of the helicopter hangar, a Rheinmetall Millenium CIWS, 2x Leonardo Hitrole remote weapon stations, 8x Kongsberg NSM anti-ship missiles, 4x Rheinmetall MASS decoy launchers, a Thales Kingklip hull mounted sonar and a Captas-4 variable depth sonar, 4x satellite link antennas and 2x Thales Mirador EO systems. For air defense, the scale model shows 24x VLS cells (likely VL MICA NG for Indonesia or ESSM Block 2 for Netherlands and Belgium).


IndoDefence 2018 Damen Unveils 6000 Tons Omega Frigate 5
Omega scale model on Damen stand at Indodefence 2018. Navy Recognition picture.


Omega frigate / FFI early specifications:
Length: 144 meters
Breadth: 18.8 meters
Displacement: 6100 tons
Max. speed: 29 knots
Range: 5,000 nautical miles @ 18 knots
Endurance: 30 days at sea
Stabilisation: Rudder roll (similar to LCF)
Crew: 122 sailors (accommodations for up to 160)
Storage space for 3x 12 meters RHIBs
Hangar space for 2x medium lift helicopters and/or UAV.




هل سيتم التعاقد عليها وبناؤها محليا !!!!


وارد في حالة وجود احتياج قادم للبحرية الاماراتية وبحكم وجود حوض دامن البواردي المتخصص في بناء (تصاميم دامن) وغير دامن ..

هذي الشركات السعودية التي تنتج وتوزع الغازات الصناعية ومنها الهيليوم

Jubail Gas Plant co, Ltd 1980

Natural Gas Distribution Company 2000

Air Liquide Pure Helium Saudi Ltd

Lurgi Arabia Limited Khobar-Dammam

VitalAire Arabia

Air Liquide Arabia (ALAR)

Al Khafrah Industrial Gases (ALKIG)
هي السعودية بتتنتج غاز الهيليوم

معلومة ..

سبق وتم تدشين زورق لجهاز حماية المنشآت من فئة OPV في نافدكس 2019






بناء مزيد من هذه الفئة محليا هو مؤشر ثقة في المنتج ويبدو انه حاز على رضى القوات المسلحة الاماراتية ولبى متطلباتها الصارمة ...


بالتوفيق وان شاء الله نرى جديد ابداعات حوض دامن - البواردي القادمة ..


دامن سبق وكشفت عن فرقاطة مستقبلية تدعى OMEGA


IndoDefence 2018 Damen Unveils 6000 Tons Omega Frigate 1
The new Omega frigate by Damen. Damen image


هنا ما نشرته Navy Recognition حولها


Omega design features
Damen explained to us that the Omega / FFI frigate is based on the proven LCF / De Zeven Provinciën-class frigate hull form. The vessel features an hybrid propulsion system consisting of 4x diesel engines (two can be used for economic speed, four for sprint) plus 2x electric engines. The diesel engines are separated forward and aft for increased survivability. Power generation aboard the ship takes into account future weapon systems such as directed energy weapons.

The Omega frigate features two large multi mission bays: One amidship and one at the stern. As is the trend with latest generation frigates (Type 26 and FTI/Belharra) the midship multimission bay goes across from port to starboard sides with an overhead handling system to load and move containers or launch and recover RHIBS or USVs/UUVs. The midship multimission bay is large enough to accommodate up to 4x 20 foot containers and the stern multmission bay can accommodate 2x 20 foot containers. Note that there is an additional space on the upper deck, next to the anti-ship missile launchers for 2x additional containers.


IndoDefence 2018 Damen Unveils 6000 Tons Omega Frigate 3
Omega scale model on Damen stand at Indodefence 2018. Navy Recognition picture.


Thales S/X suite
The futuristic looking (almost Zumwalt-eske) topside of the Omega Frigate is mainly due to the new generation radar suite provided by Thales: Boudewijn Geerink from Thales Netherlands told Navy Recognition at Indodefence 2018 that it is the new S/X suite consisting of the SeaMaster 400 fixed panel S-band radar suite and the APAR Block II X-band multi-function radar, both using gallium nitride technology. According to Thales, the new fixed panel S-band radar solution is the right answer to counter threats posed by airborne or surface drones, precision-guided munitions, or submarine-fired pop-up missiles, typically attacking just above the sea surface (low elevation, sea skimming) or from high elevation angles (high diving). APAR Blk2 defends against saturation attacks in the highest threat scenarios by supporting many simultaneous AAW and ASuW engagements with both active and semi-active guidance using ICWI. Thales SeaMaster 400 offers a range of 450km while APAR Block 2 can replace illuminators to directly provide guidance for ESSM and SM-2 missiles.

Omega frigate is also available with different radar configurations. A version fitted with a rotating radar (such as the Thales NS200) is also being pitched by Damen.


IndoDefence 2018 Damen Unveils 6000 Tons Omega Frigate 4
Omega scale model on Damen stand at Indodefence 2018. Navy Recognition picture.


Weapons and other sensors

The weapons and sensor suite depends on customers requirements as usual. However the scale model on display at Indodefence shows the Omega frigate fitted with a 127mm main gun by leonardo, a 76mm secondary gun (non penetrating variant) by Leonardo on top of the helicopter hangar, a Rheinmetall Millenium CIWS, 2x Leonardo Hitrole remote weapon stations, 8x Kongsberg NSM anti-ship missiles, 4x Rheinmetall MASS decoy launchers, a Thales Kingklip hull mounted sonar and a Captas-4 variable depth sonar, 4x satellite link antennas and 2x Thales Mirador EO systems. For air defense, the scale model shows 24x VLS cells (likely VL MICA NG for Indonesia or ESSM Block 2 for Netherlands and Belgium).


IndoDefence 2018 Damen Unveils 6000 Tons Omega Frigate 5
Omega scale model on Damen stand at Indodefence 2018. Navy Recognition picture.


Omega frigate / FFI early specifications:
Length: 144 meters
Breadth: 18.8 meters
Displacement: 6100 tons
Max. speed: 29 knots
Range: 5,000 nautical miles @ 18 knots
Endurance: 30 days at sea
Stabilisation: Rudder roll (similar to LCF)
Crew: 122 sailors (accommodations for up to 160)
Storage space for 3x 12 meters RHIBs
Hangar space for 2x medium lift helicopters and/or UAV.




هل سيتم التعاقد عليها وبناؤها محليا !!!!


وارد في حالة وجود احتياج قادم للبحرية الاماراتية وبحكم وجود حوض دامن البواردي المتخصص في بناء (تصاميم دامن) وغير دامن ..

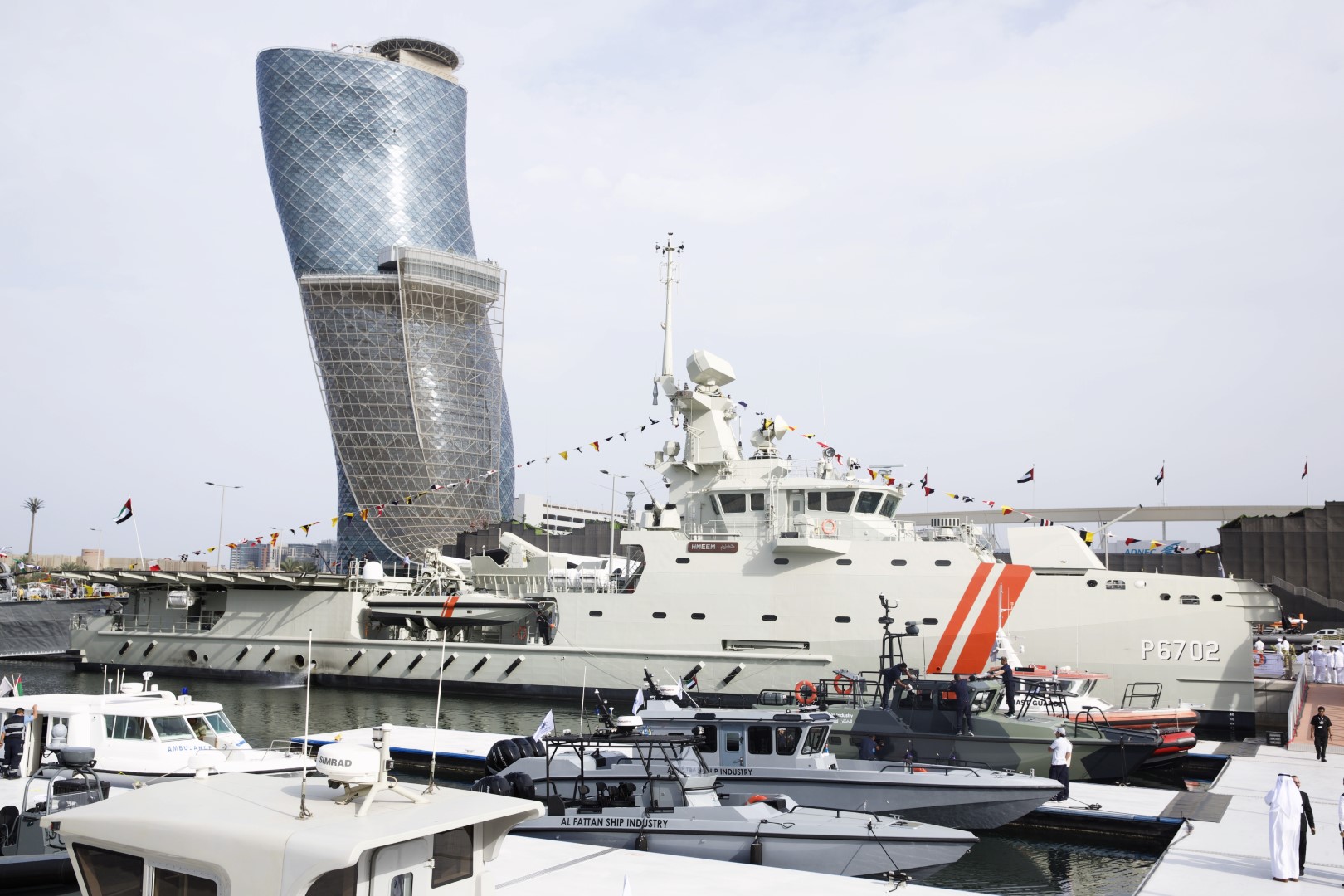

الشجـــــاع 👆👆

السفينه الثانيه من مشروع اريلا​

هذي الشركات السعودية التي تنتج وتوزع الغازات الصناعية ومنها الهيليوم

Jubail Gas Plant co, Ltd 1980

Natural Gas Distribution Company 2000

Air Liquide Pure Helium Saudi Ltd

Lurgi Arabia Limited Khobar-Dammam

VitalAire Arabia

Air Liquide Arabia (ALAR)

Al Khafrah Industrial Gases (ALKIG)
تسلم علي الرد شكرا

سعيد جدا بإضافة قدرة جديدة محلية لبناء السفن تضاف للأحواض الاخرى

ابوظبي لبناء السفن
الفتان لبناء السفن
الاتحاد لبناء السفن
الصير مارين
المراكب

وغيرهن ...

توقيع مذكرة تعاون بين الشركة السعودية لتهيئة وصيانة الطائرات و شركة Stratosphere لتطوير الأعمال ونقل المعرفة في المشاريع الهندسية

Eu7LBIzWQAAwcNJ

منور المعرض راعي البقوس 🤛

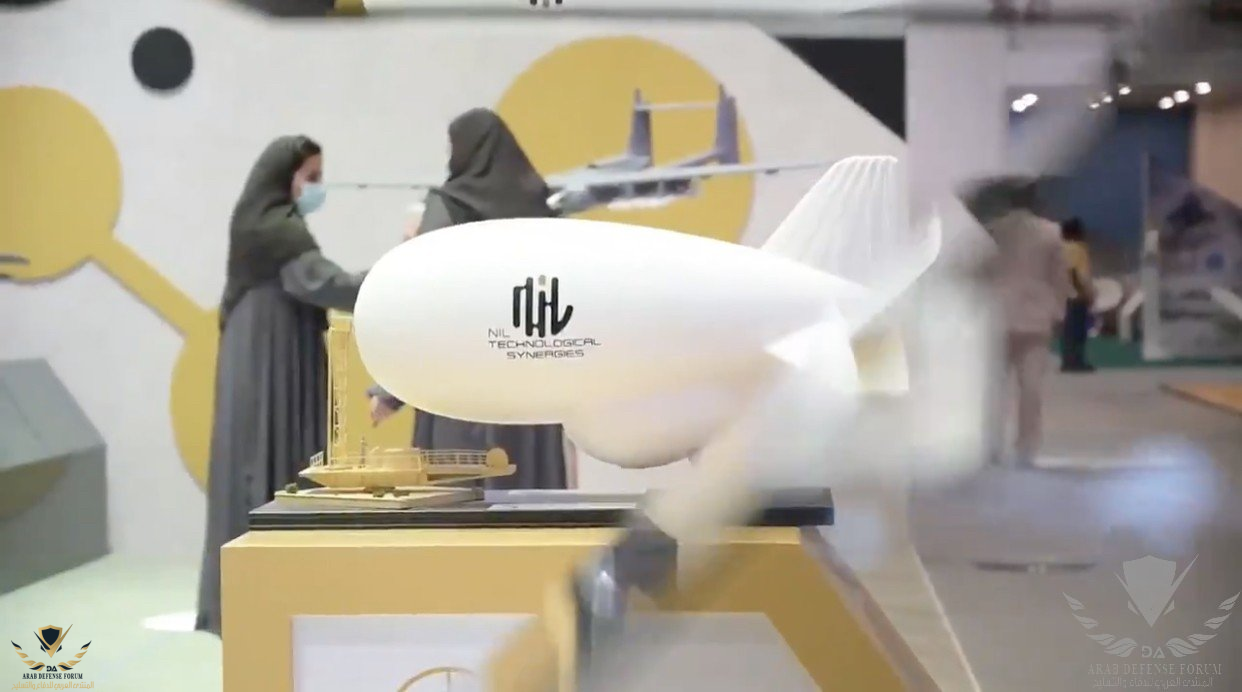

الامارات اشترت من السعودية مناطيد مراقبة
مشاهدة المرفق 357160

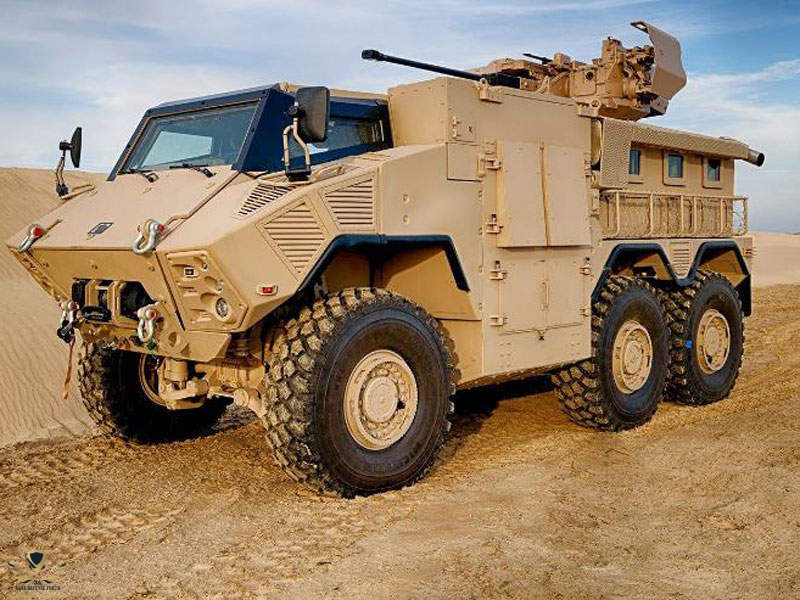

والسعودية اشترت من الامارات مدرعات

مشاهدة المرفق 357161

ووقعت السعودية والامارات اتفاقيات تعاون وتكامل استراتيجية في مجال التصنيع العسكري والبحث والتطوير


اعلم لكن قليل الصراحة المفروض اكثر من ذلك .. يعني احي الدولتين و احيي الامارات على الاكثار من الصفقات المحلية لكن صراحة المفروض صفقات اكثر .. المنتجات ممتازة
