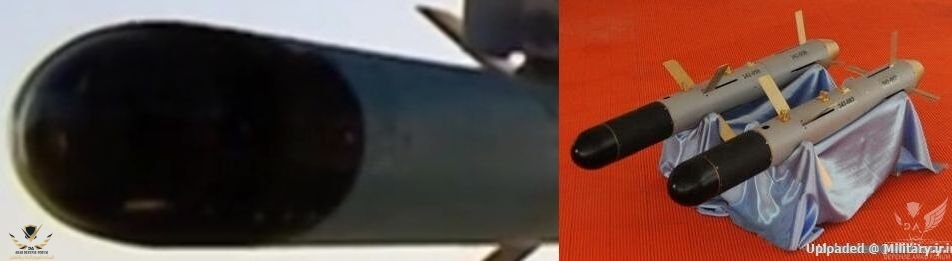

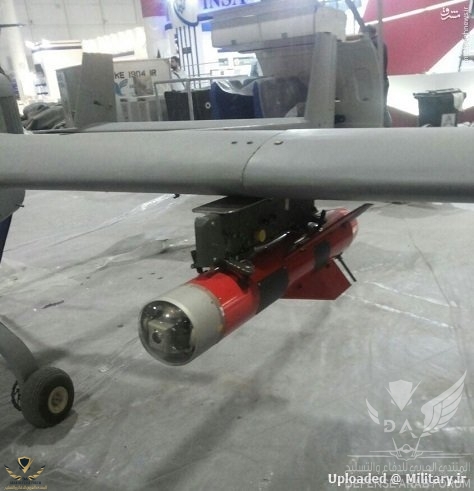

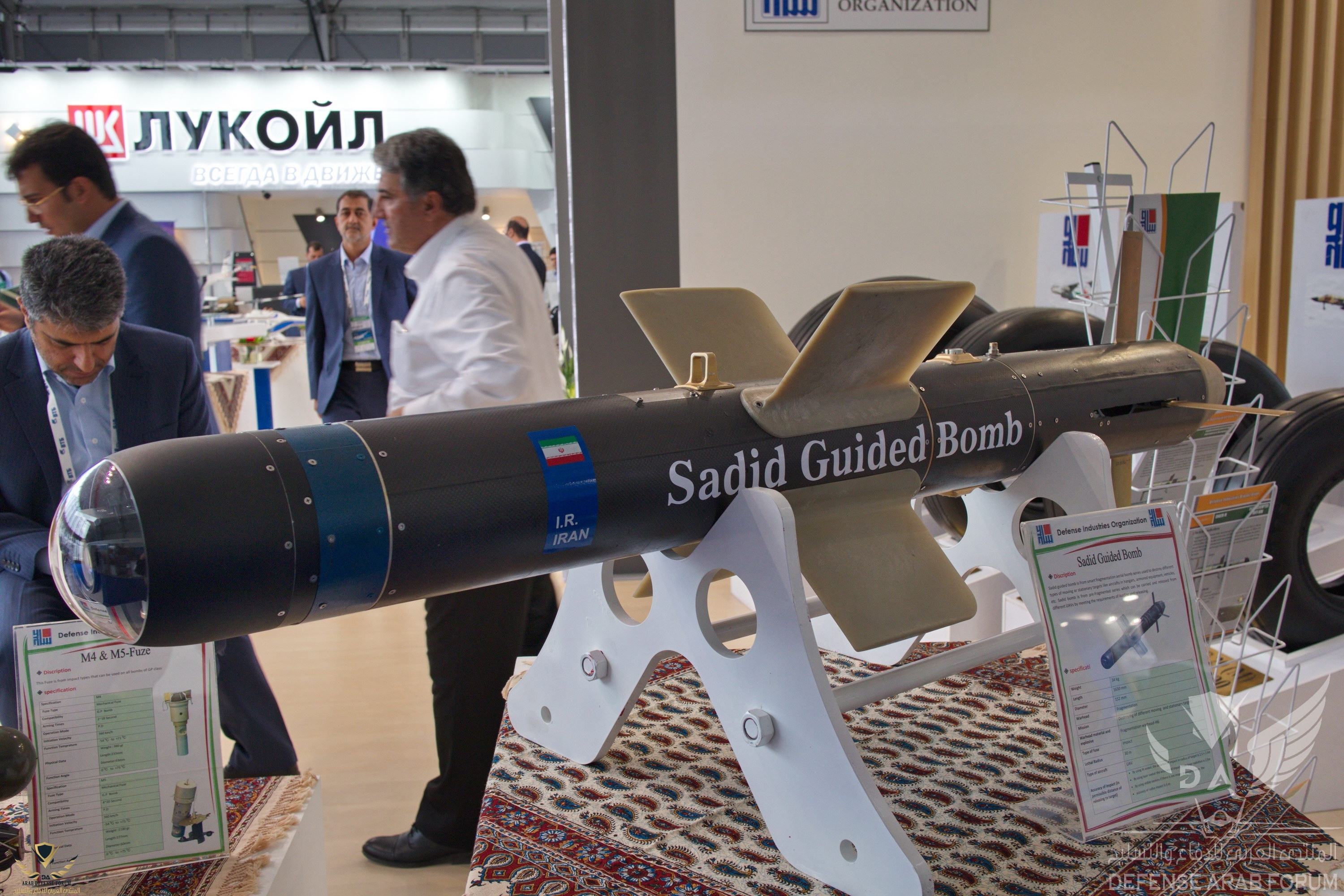

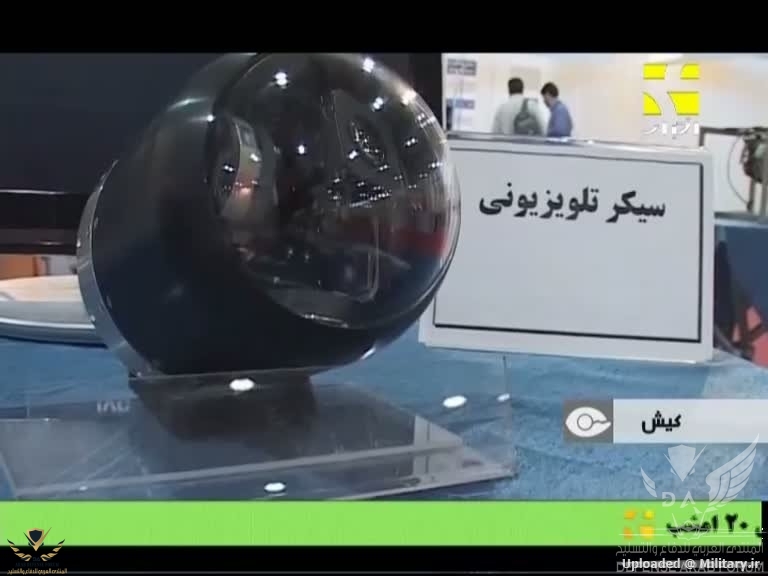

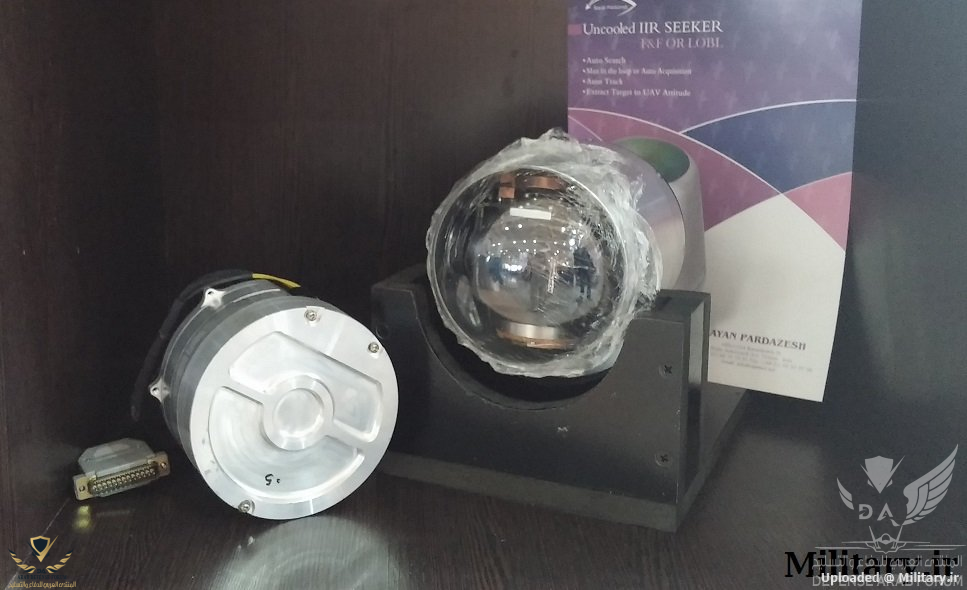

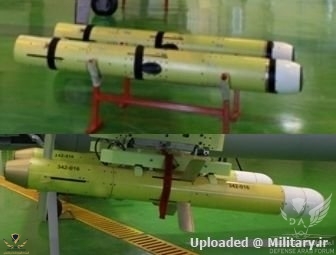

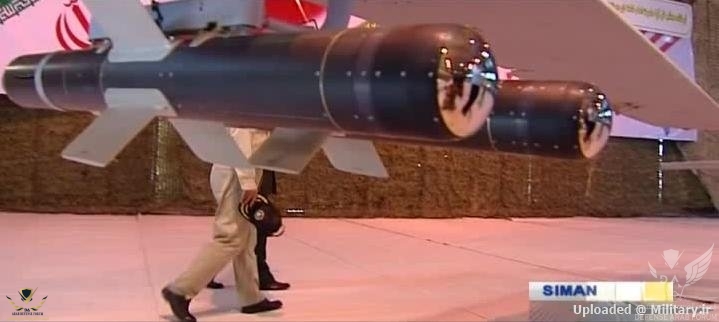

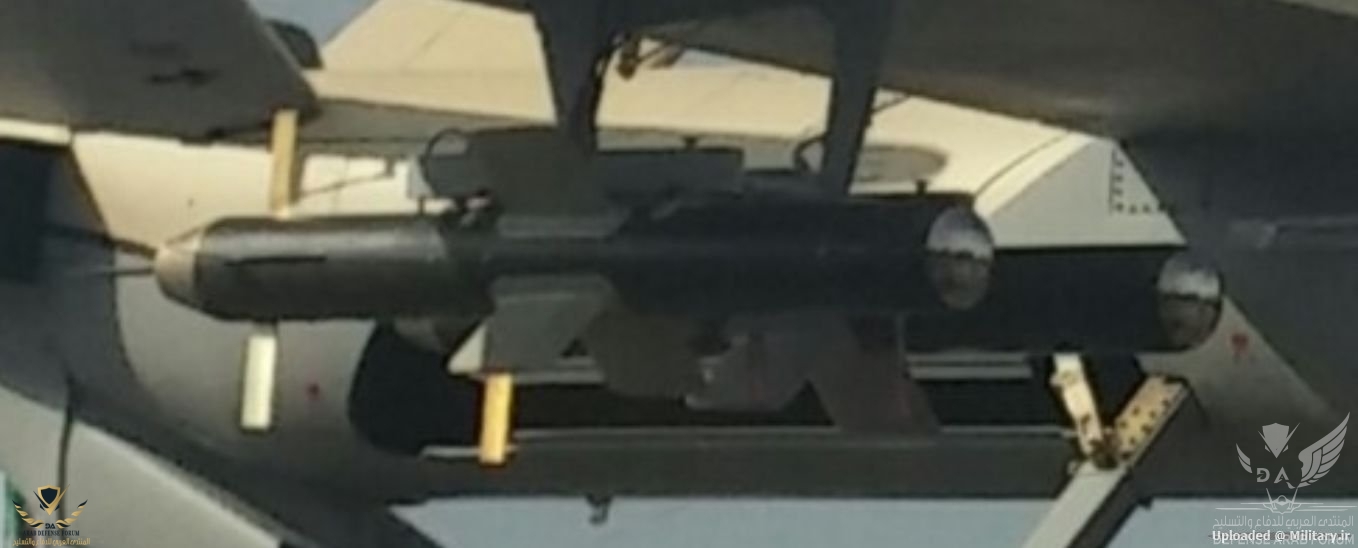

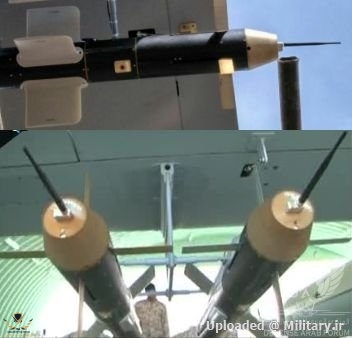

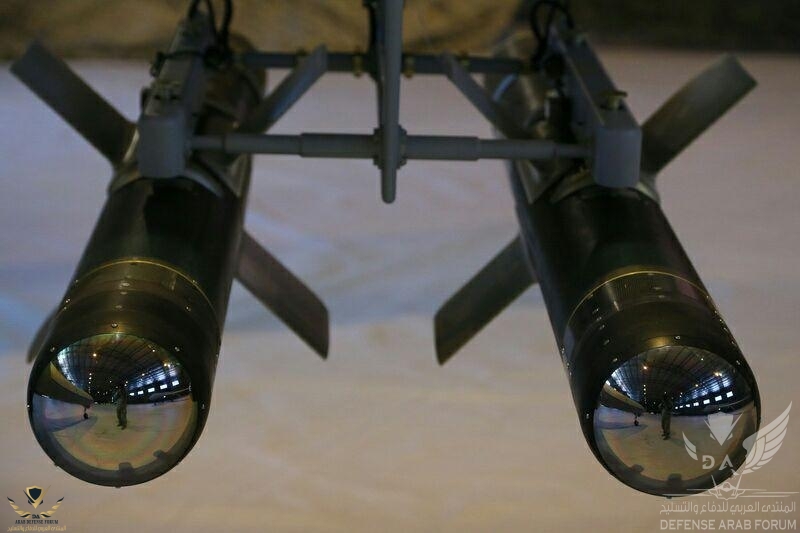

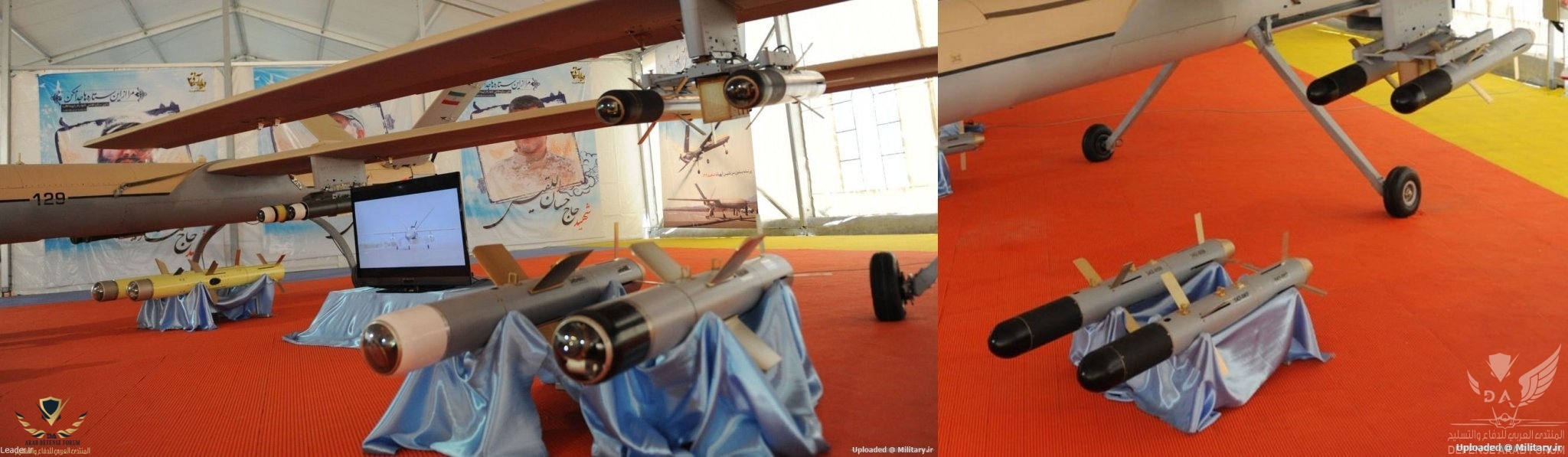

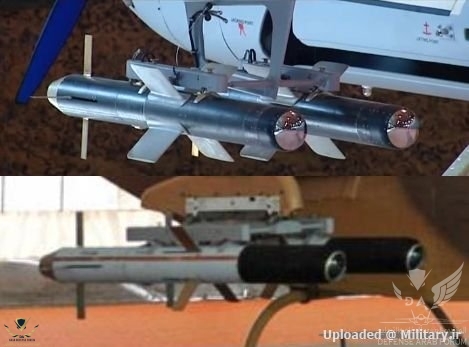

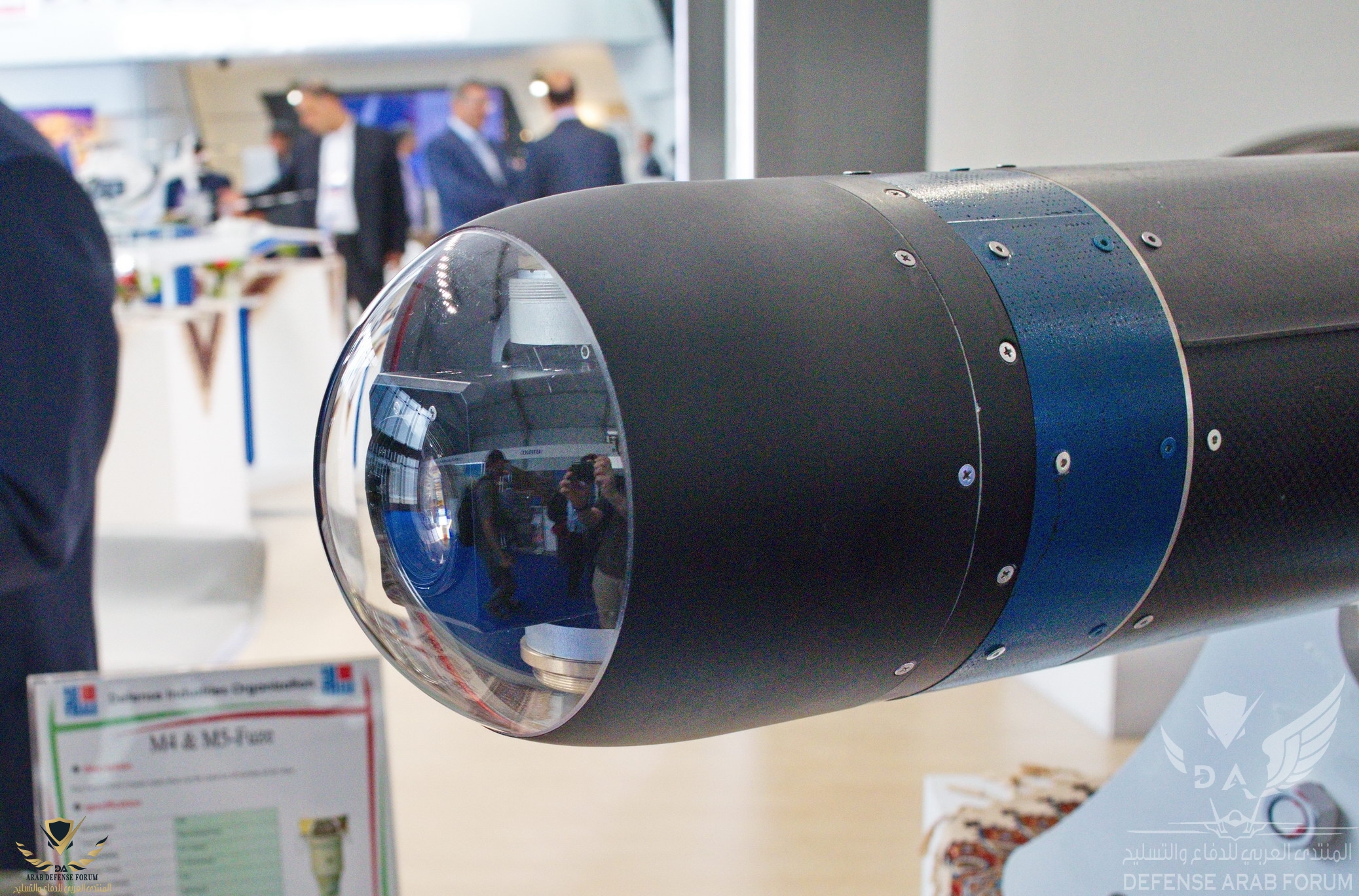

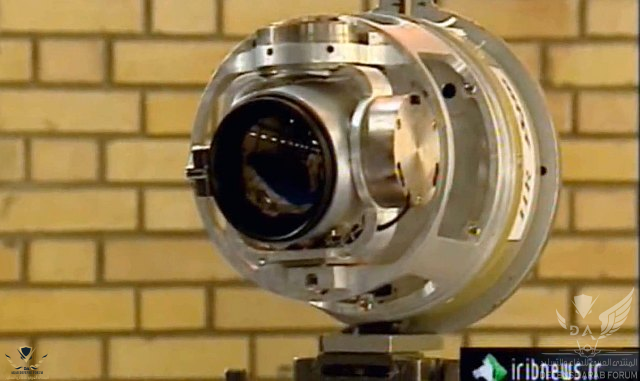

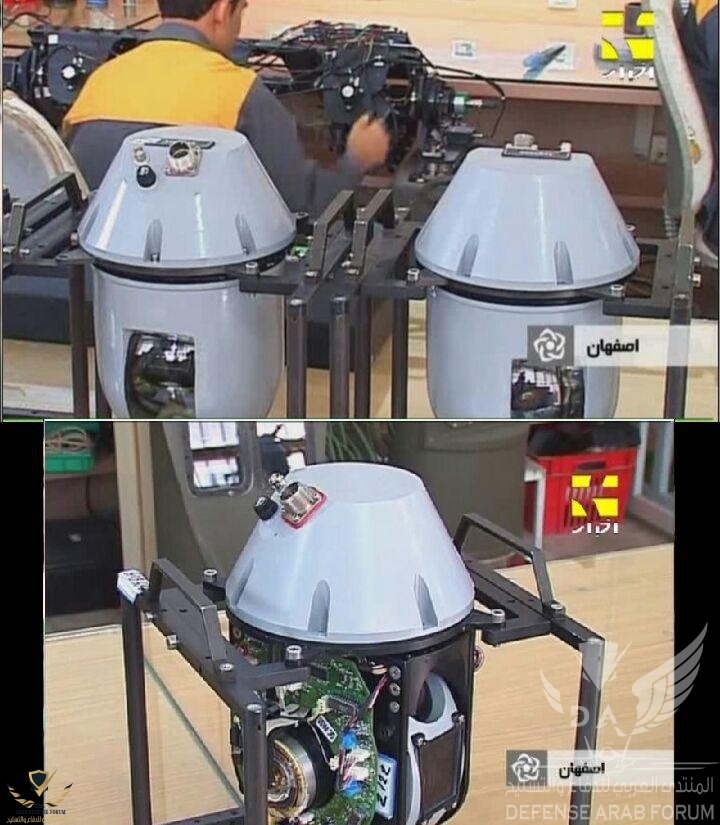

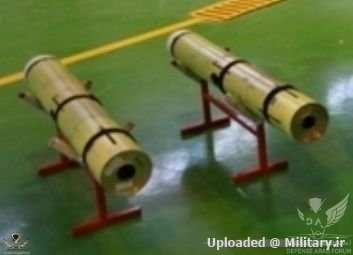

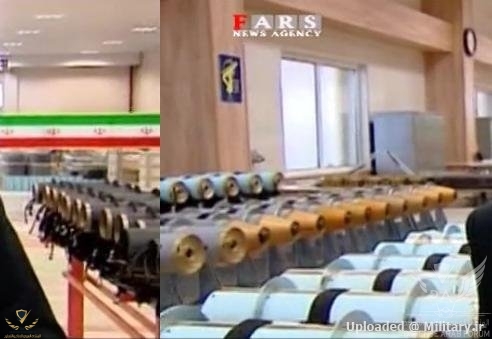

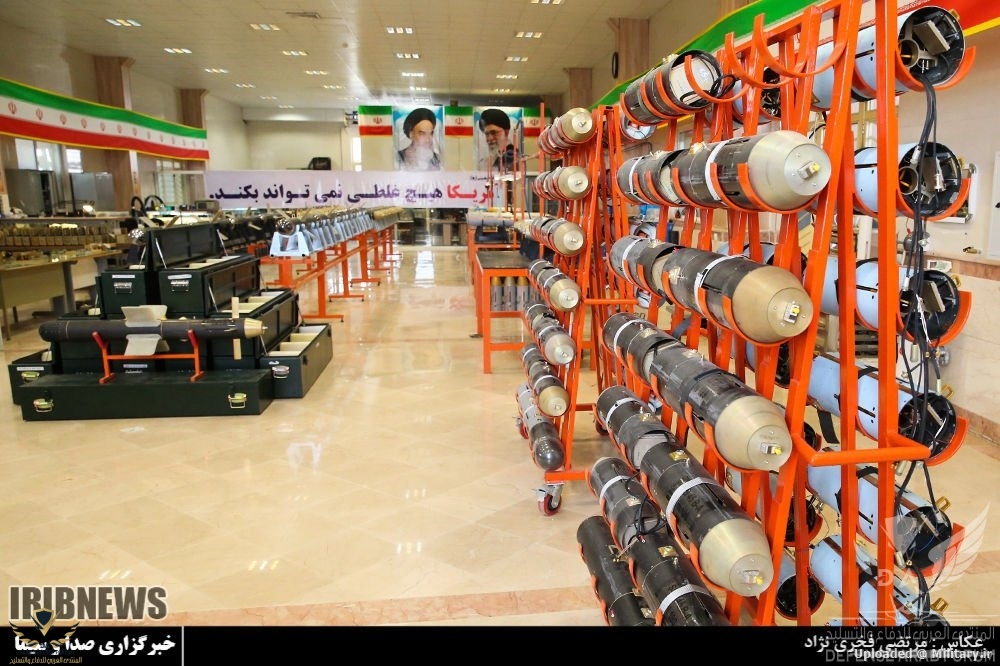

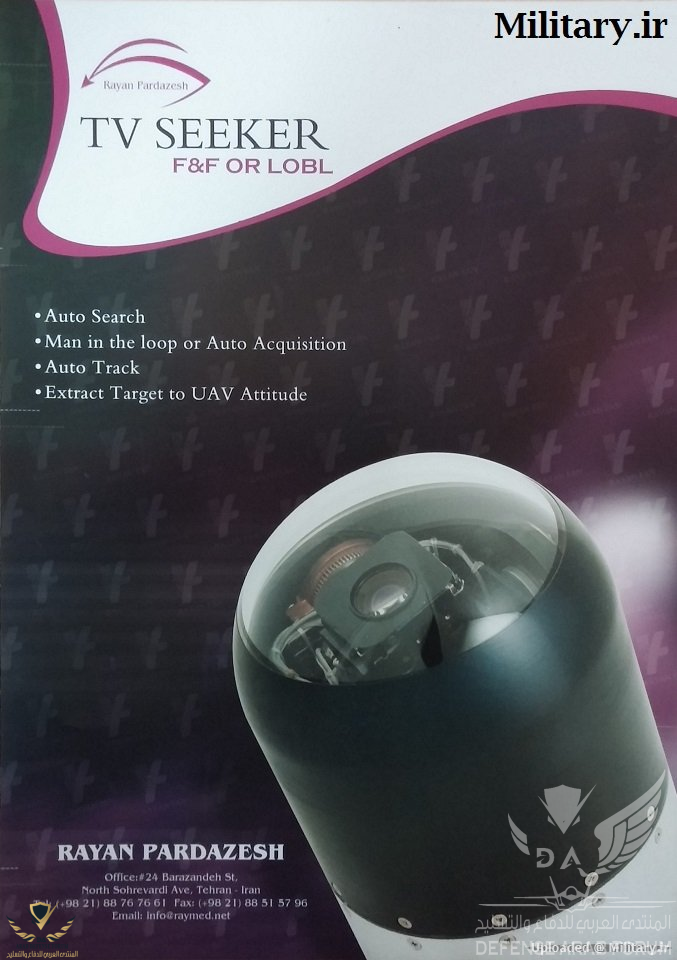

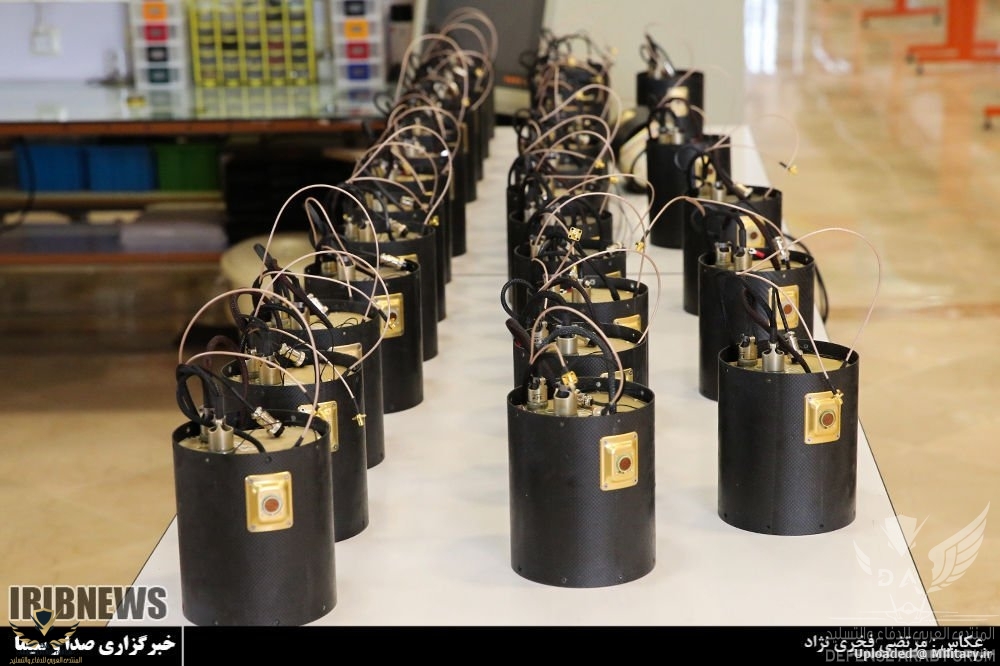

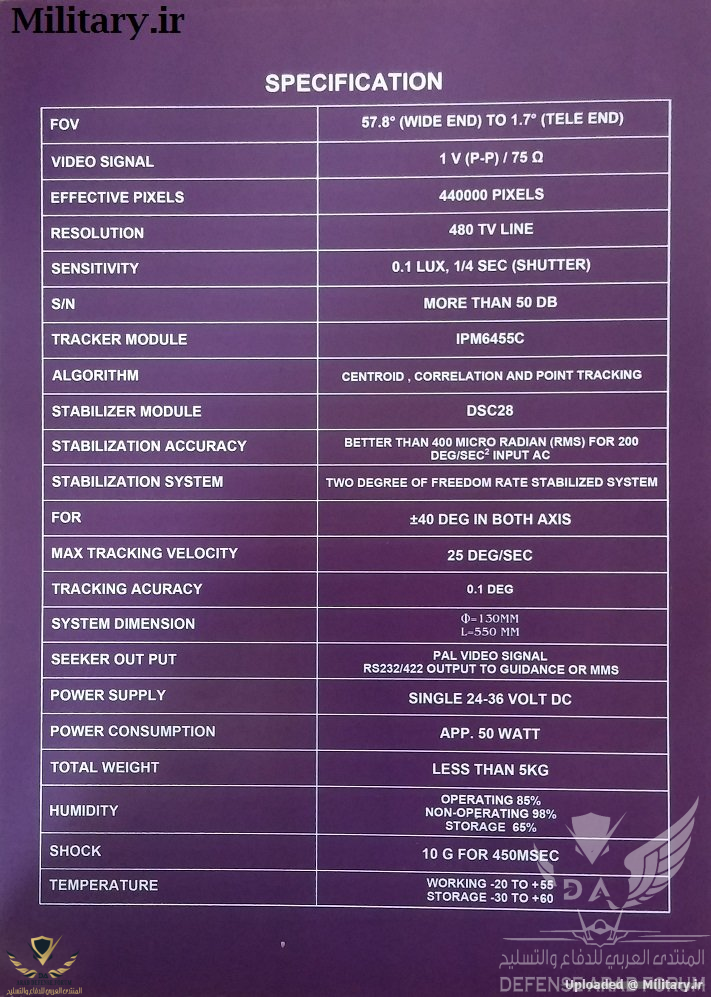

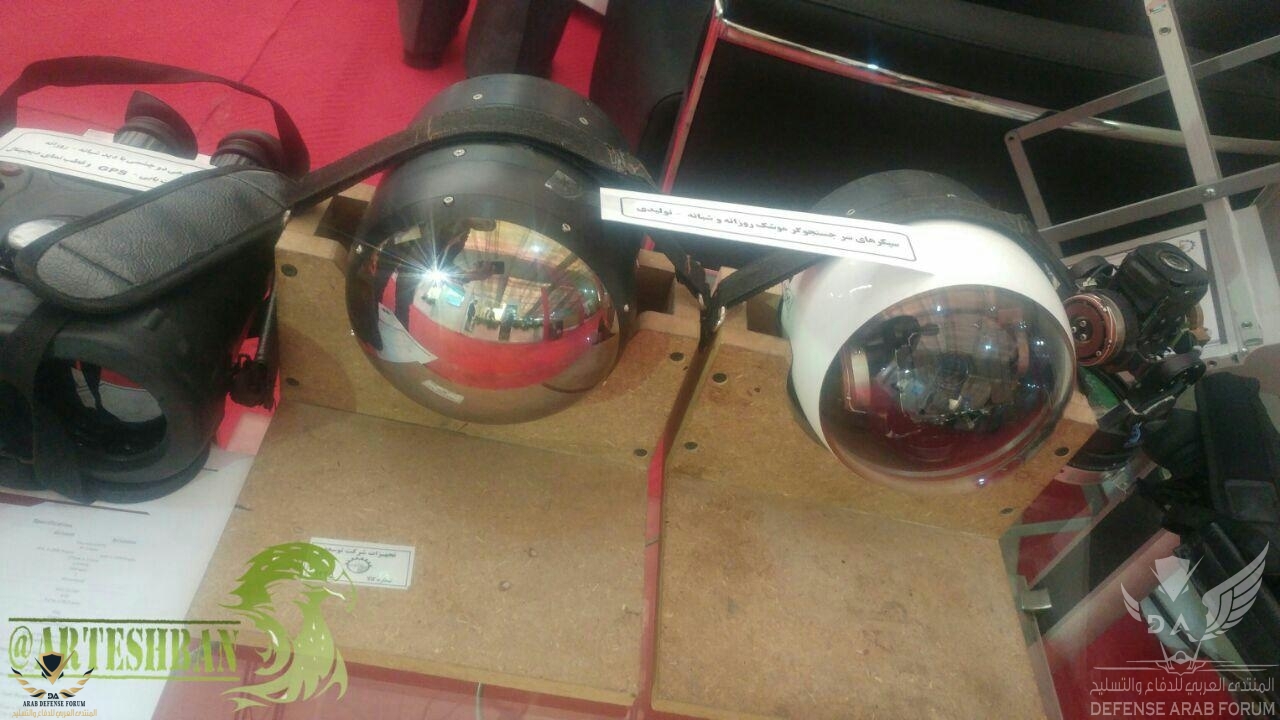

قنابل صديد لديها تصميم modular حيث يتم تركي الباحث IR or TV حسب الطلب دون تعديل علا القنبلة Plug in play

1577851685889.pngphoto_2017-12-03_08-50-06.jpgphoto_2018-10-25_22-26-24.jpgphoto_2019-08-09_04-10-00.jpgsadid.jpgsadid1.jpgsadid2.jpgSadid-9614.jpgSadid-9642.jpgsadid-45651.jpgSadid-53426.jpgsadid-59247.jpg


larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
6,566
مستوى التفاعل
16,885
النقاط
1,550

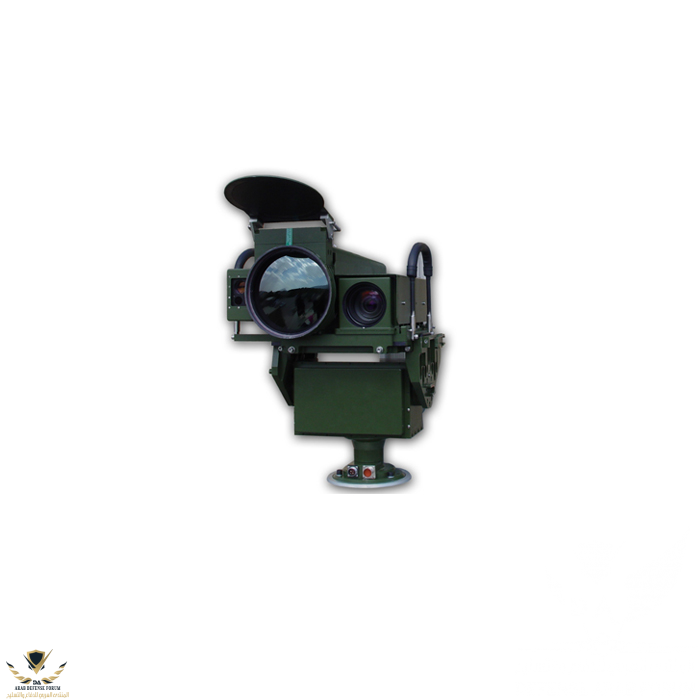

MRS-110

“ MRS-110 ”
Video surveillance system

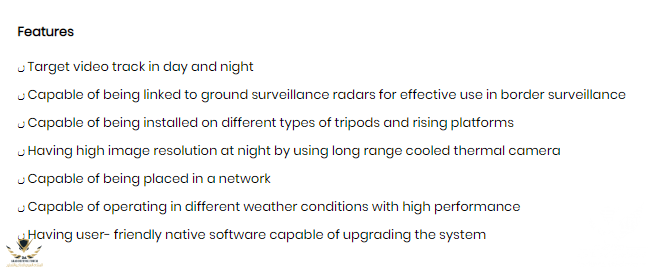

“MRS-110" video surveillance is an electro optical system with a powerful rotating platform and with suitable daylight vision and long range night vision and 20km eye safe laser range finder. Having day and night target automatic track and capability of being linked to border guard radars and making use of native software, it is used for controlling borders security and for video surveillance. By putting several products from different locations in a network, it makes it possible for operation information of different combat units to be more effective in military operations.



larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
6,566
مستوى التفاعل
16,885
النقاط
1,550

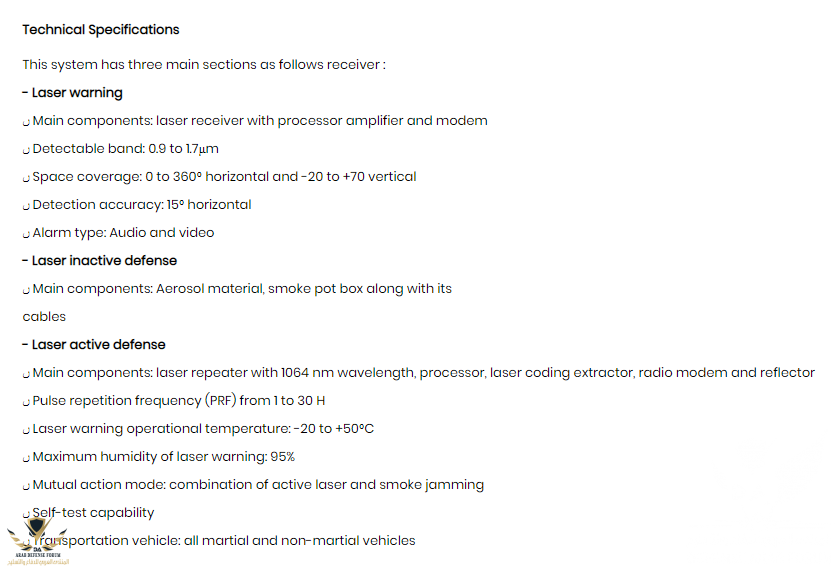

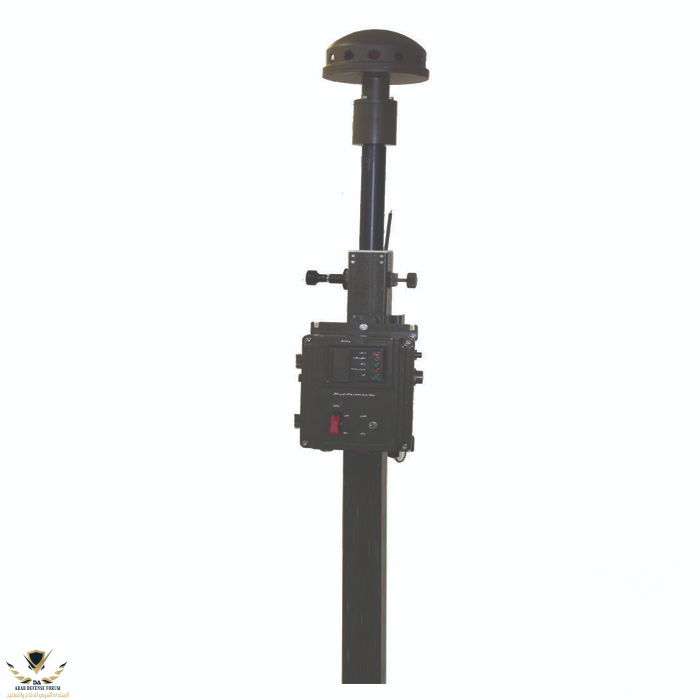

Laser warning receiver and active defense system


Laser defense and warning system has been designed and manufactured to protect strategic and vital regions in the country against laser guided missiles' and bombs attack. Threat laser pulses that are used by the enemy to guide laser missiles are received by this system and after processing and extracting threat laser coding; similar laser pulses are radiated to the predetermined points (unreal target) by active laser source which will cause disruption in missile guidance and decoy it toward unreal target. For more protection of strategic targets, Aerosol smoke can be also used as an option.



larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
6,566
مستوى التفاعل
16,885
النقاط
1,550

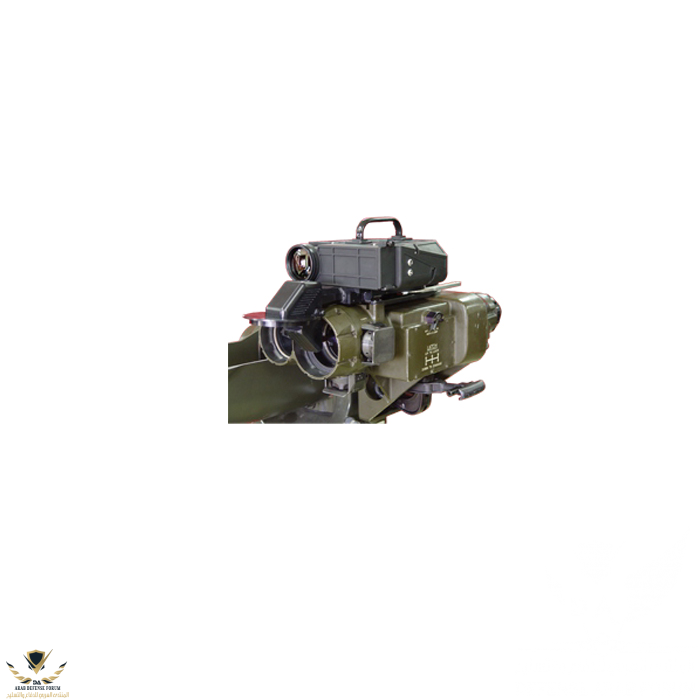

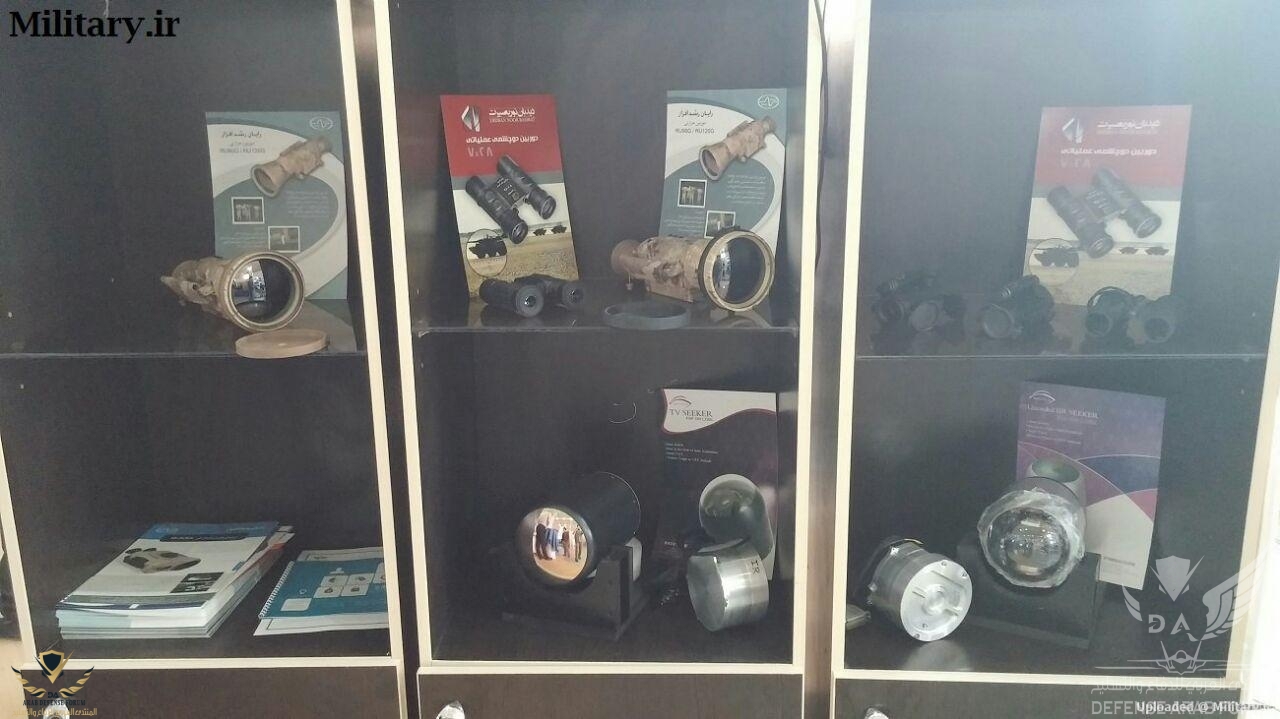

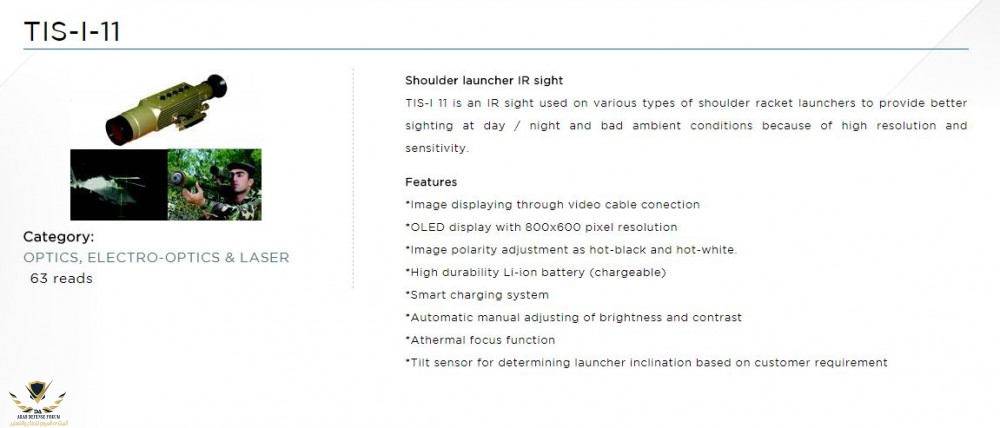

TIS-S-75
“ TIS-S-75 ”
Monocular Thermal Vision Sight

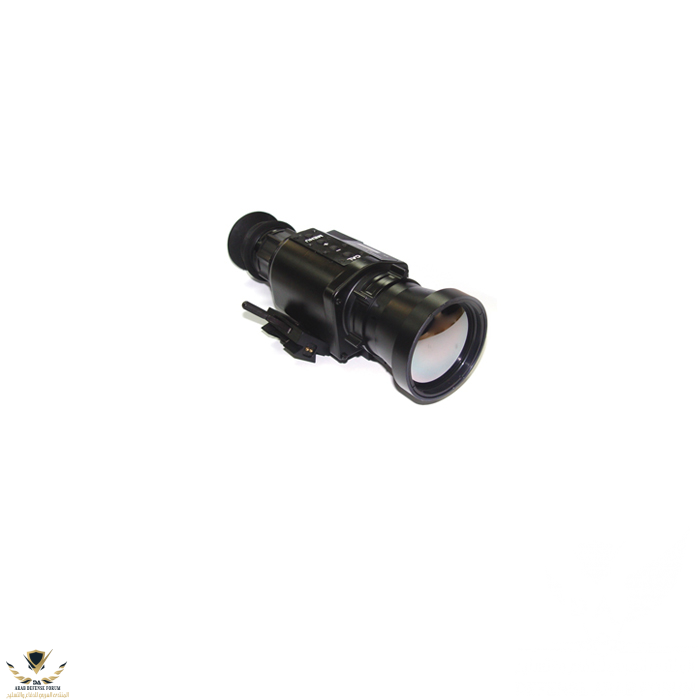

TIS-S-75 is an uncooled 3rd generation monocular thermal vision sight with light weight and small size that can be installed on shoulder-fired
missile launchers for targeting and firing missiles during night time.

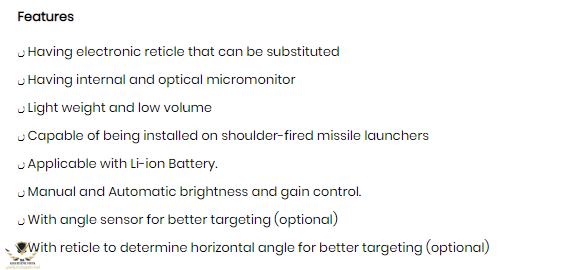

Technical Specifications

ں Detector: Uncooled micro bolometer with 384x288 pixels and pixel diameter of 35 micrometer.
ں Spectral range: 8-14 micrometer
ں Display: OLED
ں Objective Focal Length: 75 millimeter with F number equal to 1
ں Eye piece Focal Length: 21.5 millimeter
ں Gain setting: Manual and Automatic
ں Power supply: Battery or external power supply
ں Dimensions: 116*141*300 millimeter
ں Weight: 1.5 Kg
ں Field of view: 7.7° x 10.2°
ں NETD: less than 80 mk
ں Electronic magnification: 2x
ں Focus range: 3 meters to infinity
ں Diopter setting range: -6 to +2
ں Angular resolution power: 0.47 mrad
ں Warm up time: 45 seconds (for system calibration and start-up)
ں Polarization control (Black and White): P: 0,1
ں Operational temperature: -30°c to +50°c
ں Storage temperature: -40°c to +60°c
ں Detection range for approaching aircraft: 6 Km
ں Detection range for receding aircraft: 12 Km





larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
6,566
مستوى التفاعل
16,885
النقاط
1,550

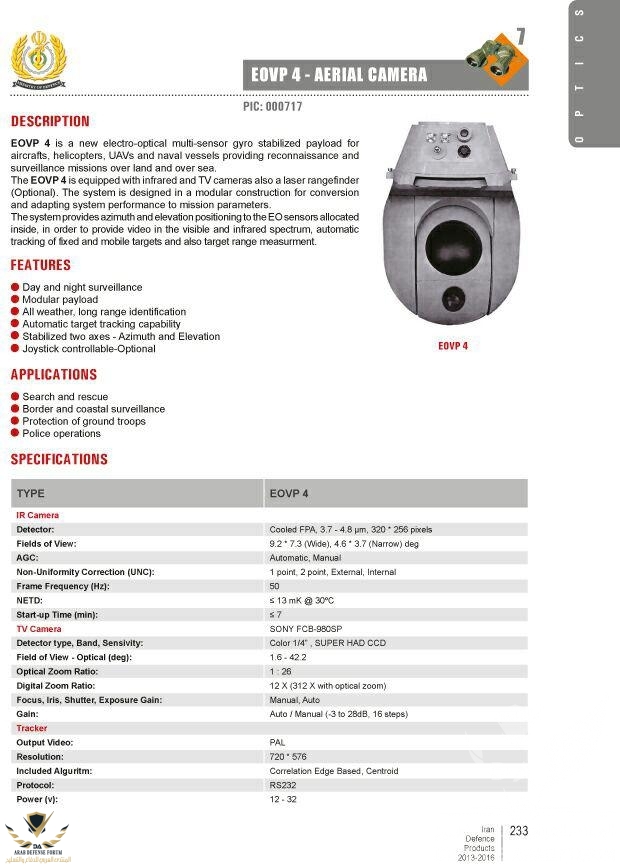

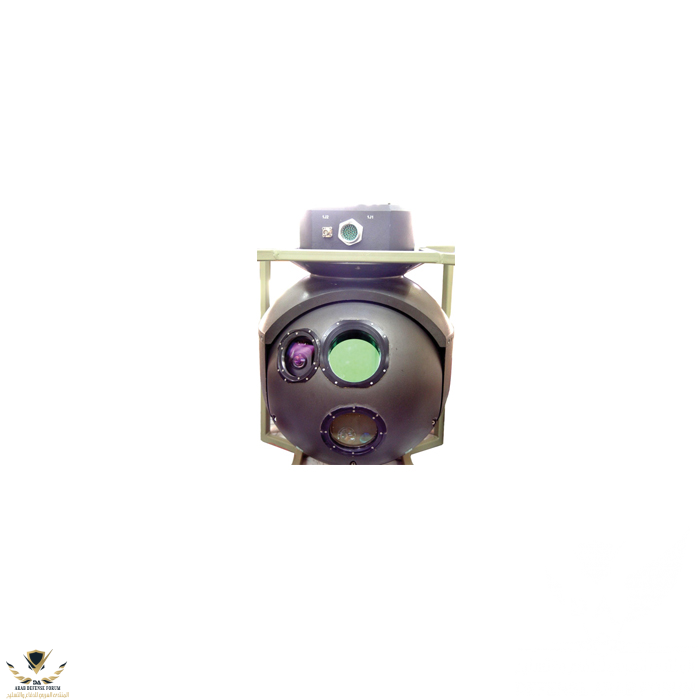

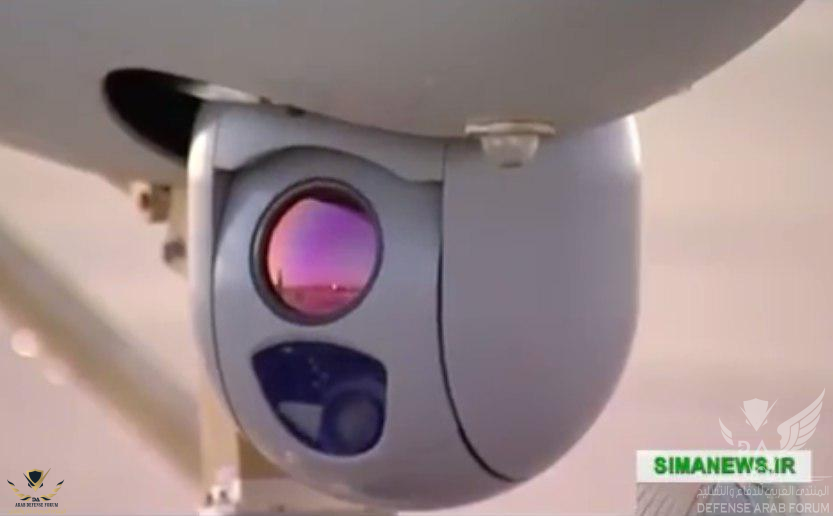

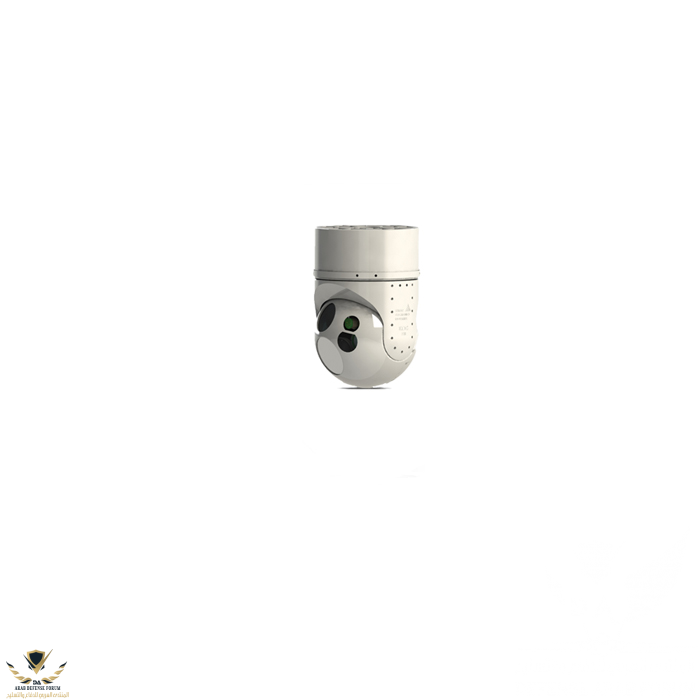

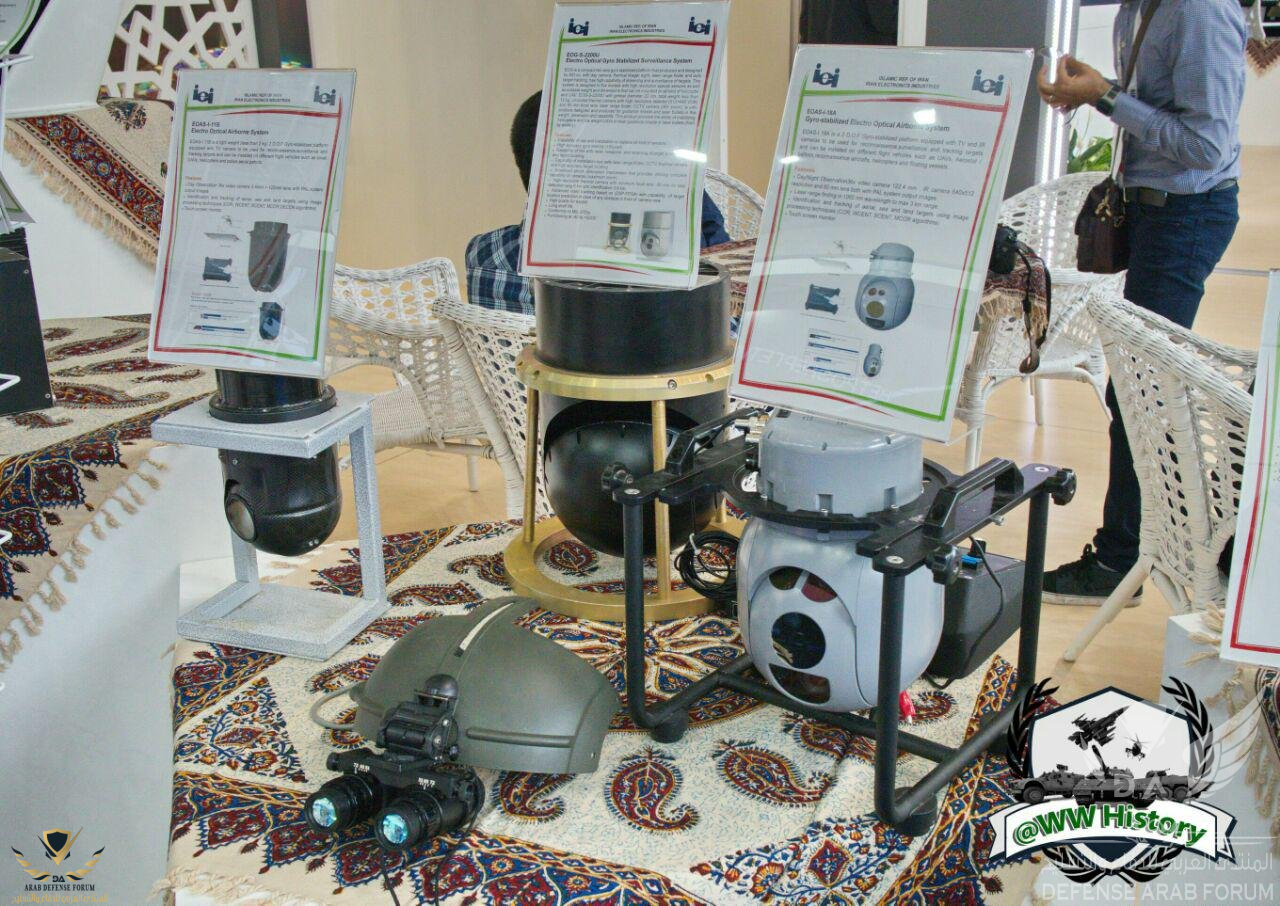

EOG 3000-U


“ EOG 3000-U ”
Electro optical gyro-stabilized system

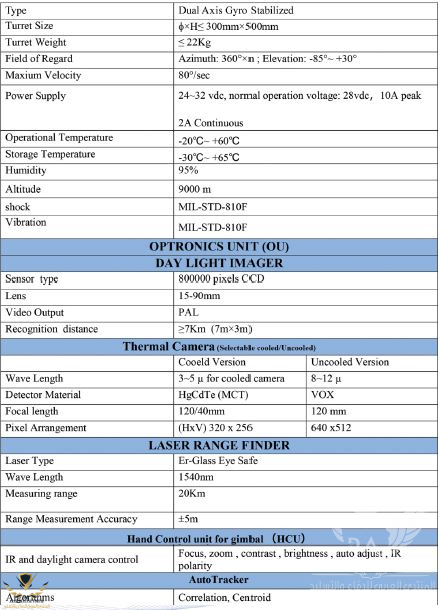

EOG 3000-U with gimbal diameter of 30cm and weight of less than 22kg and having noncooled thermal camera with high resolution (512×640VOX) and 120mm of focal length, 20km eye safe laser range finder and 36X vision camera, is an export product that has been exported in a large quantity. It is capable of accurate positioning and automatic video track. It can be installed on UAVs and different helicopters.

Features

ں It is possible to have any desired sensor arrangement or to change the sensors in the product
ں Having high gyroscopic stabilization accuracy (200μrad)
ں Capable of communicating with radars, linking with weapon and capable of receiving the coordinates of desired target and positioning the system towards the target
ں It is possible to install eye safe laser range finder and vision and thermal camera and so positioning target coordinates accurately
ں Utilizing high resolution thermal cameras with focal length of at least 120mm that make it possible to detect armored target up to at least 7km of distance and detection range of 4km in operational conditions.
ں Using mechanisms of advanced vibration isolation in a way that it is possible to make use of complete capabilities of the cameras (the end of camera zoom)
ں Utilizing advanced video tracker based on DSP-FPGA capable of predicting target position if there is an obstacle in camera field of sight
ں Considerable export quality



larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
6,566
مستوى التفاعل
16,885
النقاط
1,550

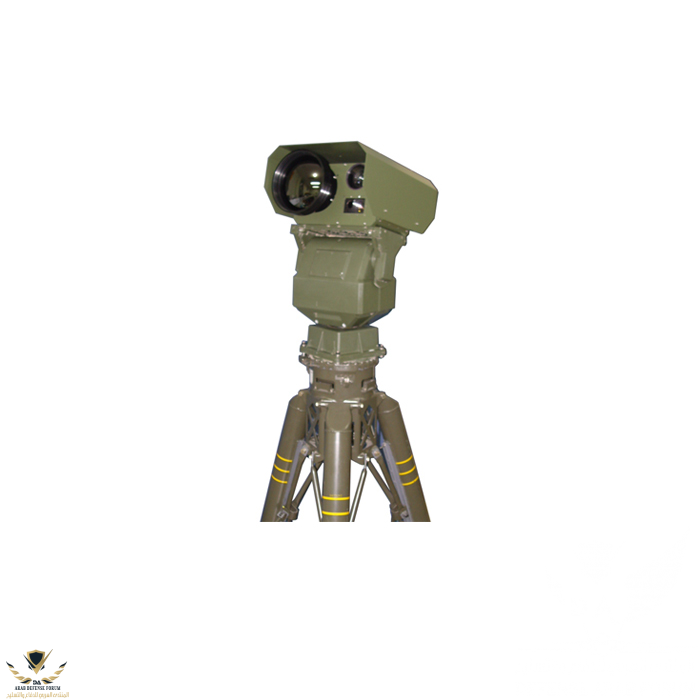

MRS-111

“ MRS-111 ”
Video surveillance system


“MRS111" video surveillance is an electro optical system with a powerful rotating platform and with suitable daylight vision with 40× magnification and medium range thermal vision and 20km eye safe laser range finder. Having day and night target automatic track and capability of being linked to border guard radars and making use of native software, it is used for controlling borders security and for video surveillance. By putting several products from different locations in a network, it makes it possible for operation information of different combat units to be more effective in military operations.

Features

ں Target video track in day and night
ں Capable of being linked to ground surveillance radars for effective use in border surveillance
ں Capable of being installed on different types of tripods and rising platforms
ں Having high image resolution at night by using medium range non-cooled thermal camera
ں Capable of being placed in a network
ں Capable of operating in different weather conditions with high performance
ں Having user- friendly native software capable of upgrading the system
ں Light weight and low setup time and tactical application


Technical specifications

ں Sensor type: Non-cooled VOX detector
ں Spectral range: 8 to 12μm
ں Number of pixel: 512×640 pixels
ں Thermal sensitivity: less than 25 mc
ں Size of detector element: 17 μm
ں Focal length: 180 mm
ں Brightness setting: manual and automatic
ں Contrast setting: Manual and automatic
ں Narrow field of view: 2.8 to 3.5°
ں Wide field of view: 11 to 13.8°
ں Focal number: 1
ں Angular resolution power: 25 μrad
ں Operational temperature: -20 to +50°C
ں Weight: 10kg
ں Dimensions: 34×20×20cm
ں Detection range of tank: 6km


Rotating platform

ں Horizontal rotation angle: 360°
ں Vertical rotation angle: -40 to +60°
ں Horizontal rotation speed: 0.1 to 30 °
ں Vertical rotation speed: 0.1 to 15°
ں Resolution: 0.1°


Vision camera
ں Focal length: 10 to 400mm
ں Wide field of view: 27 ×20.4°
ں Narrow field of view: 0.5 ×0.7°
ں Magnification: 40× continuous
ں CCD format: 1.3 inch
ں Resolution: 596×1024
ں Focal range: 5m to extreme
ں Magnification adjustment: motorize
ں Focus adjustment: motorize
ں IRIS adjustment: automatic
ں Weight: 2.5kg


larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
6,566
مستوى التفاعل
16,885
النقاط
1,550

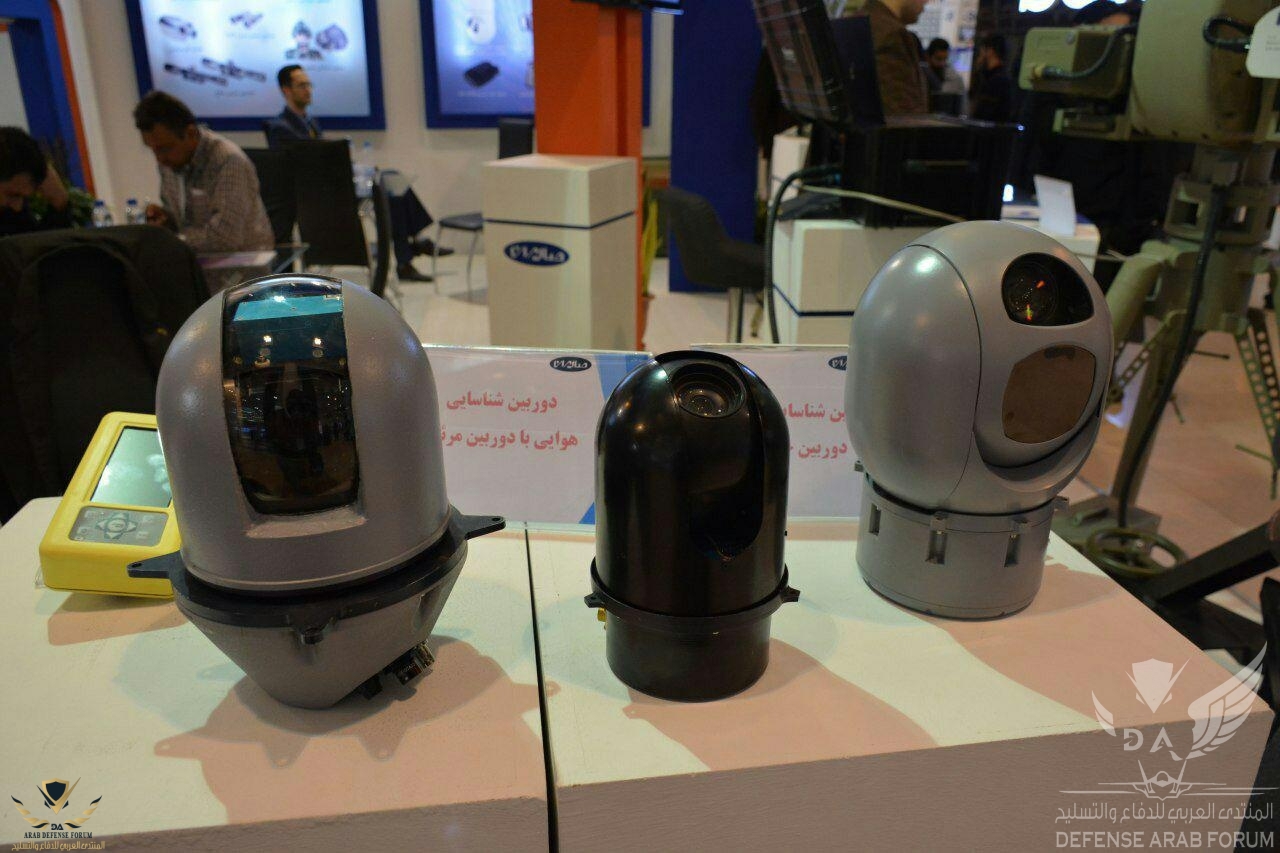

EOG 4000-C


“ EOG 4000-C ”
Electro optical gyro-stabilized system

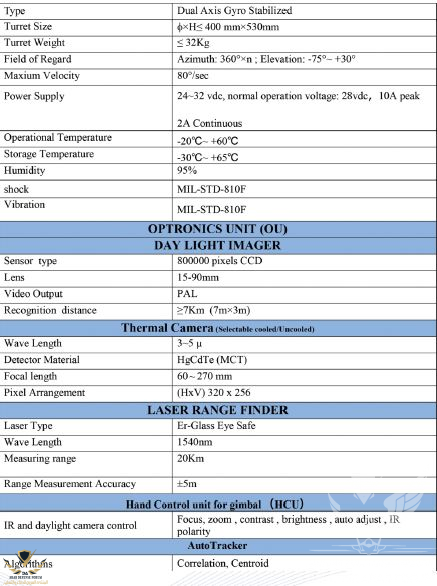

EOG 4000-C with gimbal diameter of 40cm and weight of less than 32kg and having cooled thermal camera with high resolution (320×256MCT) and 60 to 270mm of focal length and continuous zoom, 20km eye safe laser range finder and 36X vision camera, is a product designed to be installed on helicopters and aircrafts.

Features
ں It is possible to have any desired sensor arrangement or to change the sensors in the product
ں Having high gyroscopic stabilization accuracy (200μrad)
ں Capable of communicating with radars, linking with weapon and capable of receiving the coordinates of desired target and positioning the system towards the target
ں It is possible to install eye safe laser range finder and vision and thermal camera and so positioning target coordinates accurately
ں Utilizing high resolution thermal cameras with focal length of 260mm and continuous zoom
ں Using mechanisms of advanced vibration isolation in a way that it is possible to make use of complete capabilities of the cameras (the end of camera zoom)
ں Utilizing advanced video tracker based on DSP-FPGA capable of predicting target position if there is an obstacle in camera field of sight
ں Considerable export quality



larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
6,566
مستوى التفاعل
16,885
النقاط
1,550
EOG 3000-C

“ EOG 3000-C ”
Electro optical gyro-stabilized system

EOG 3000-C with gimbal diameter of 30cm and weight of less than 22kg and having cooled thermal camera with high resolution (320×256MCT) and 120mm of focal length, 20km eye safe laser range finder and 36X vision camera, is an export product that has been exported in a large quantity. It is capable of accurate positioning and automatic video track. It can be installed on UAVs and different helicopters.

Features

ں It is possible to have any desired sensor arrangement or to change the sensors in the product
ں Having high gyroscopic stabilization accuracy (200μrad)
ں Capable of communicating with radars, linking with weapon and capable of receiving the coordinates of desired target and positioning the system towards the target
ں It is possible to install eye safe laser range finder and vision and thermal camera and so positioning target coordinates accurately
ں Utilizing high resolution cooled thermal cameras with focal length of at least 120mm
ں Using mechanisms of advanced vibration isolation in a way that it is possible to make use of complete capabilities of the cameras (the end of camera zoom)
ں Utilizing advanced video tracker based on DSP-FPGA capable of predicting target position if there is an obstacle in camera field of sight
ں Considerable export quality



larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
6,566
مستوى التفاعل
16,885
النقاط
1,550

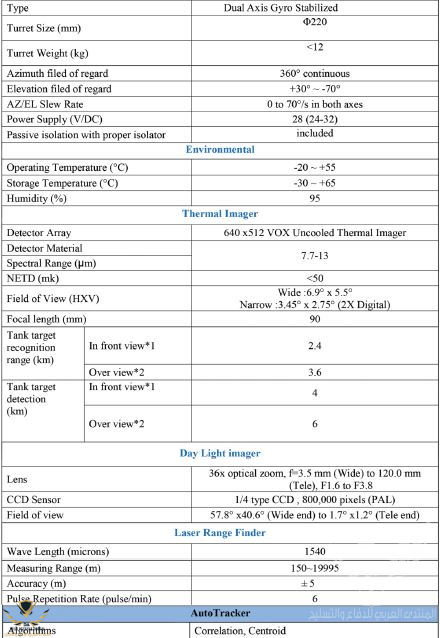

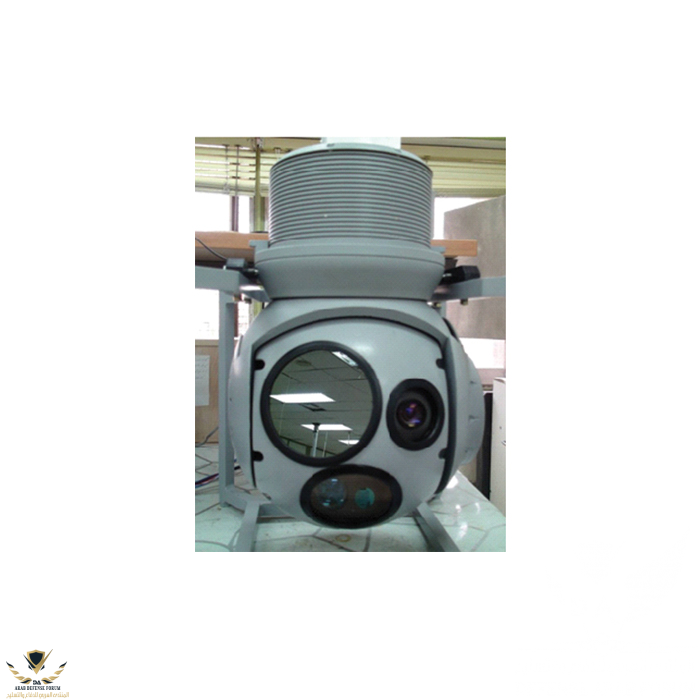

EOG 2200-U

“ EOG 2200-U ”
Electro optical gyro-stabilized system

EOG 2200-U with gimbal diameter of 22cm and weight of less than 12kg and having noncooled thermal camera with high resolution (512×640VOX) and 90mm of focal length, 20km eye safe laser range finder and 36X vision camera, is a new and unrivaled product in the country considering these dimensions, weight and capability that has been specifically designed for light weight UAVs and can be also installed on different types of helicopters as well. From among other significant specifications of this system are accurate positioning calculations, powerful automatic video track and military quality.

Features

ں It is possible to have any desired sensor arrangement or to change the sensors in the product
ں Having high gyroscopic stabilization accuracy (200μrad)
ں Capable of communicating with radars, linking with weapon and capable of receiving the coordinates of desired target and positioning the system towards the target
ں It is possible to install eye safe laser range finder and vision and thermal camera and so positioning target coordinates accurately
ں Utilizing high resolution thermal cameras with focal length of at least 90mm that in operational conditions, it makes it possible to detect armored target up to at least 6km of distance and detection range of up to 3.6km
ں Using mechanisms of advanced vibration isolation in a way that it is possible to make use of complete capabilities of the cameras (the end of camera zoom)
ں Utilizing advanced video tracker based on DSP-FPGA capable of predicting target position if there is an obstacle in camera field of sight
ں Considerable export quality



larbi

SPQR
عضو مميز
إنضم
10 مارس 2019
المشاركات
6,566
مستوى التفاعل
16,885
النقاط
1,550

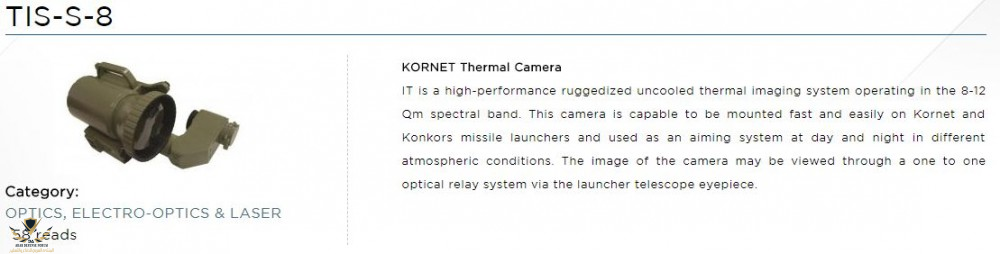

TTS


“ TTS ”
Tow thermal missile launcher


The system is equipped with an angular one-toone converter and converts thermal image to visible one. It also maintains input and output beam angle and in this way, image magnification remains one. From among other capabilities of such systems is that after being installed on the missile launcher, it makes night-time shooting possible with no need to Co-axis.

Features

ں No need for co-axis
ں Lightweight and compact
ں Setup time of less than 20 seconds
ں Targeting via eye piece of daily unit and no need for user movement


Technical specifications

ں Sensor: MCT cooled detector
ں Number of detector pixels: 288×384
ں Spectral range: 3.7 – 4.8 μm
ں Focal length: 240/60 mm
ں Field of sight: 1.7 × 2.3°
ں NETD: less than 25 mk
ں Gain adjustment capability: Manual and Automatic
ں Operational temperature: -40° to +60°C
ں Weight (camera, converter and connection interface): 6kg
ں Tank detection range: 3.5km
ں Imaging range: 25Hz
ں Electronic magnification: 2X
ں Video output: Analog
ں Data exchange: RS232 standards
ں Power supply: 24V
ں Mechanical installation accuracy on missile launcher visible camera: less than 0.2°
ں Mechanical installation time on missile launcher visible camera: less than 20 seconds
