السلام عليكم ورحمة الله وبركاته - أخوتي الأعـزاء الأعـضاء والـزوّار،،، مرحباً بكـم




سيكون هذا الموضوع بمشيئة الله مـرجع أو أرشـيف لتبيين القدرات الصـناعية لدولــة تــركيا


** المـوضوع مفتـوح للفـائدة نـرجوا أن لا يتم استعماله لغـير هذا الغـرض **




الأولـوية للمـحتوى العـسكري / لكـن لا مـانع من المحـتوى المـدني إن كان ذا قيمة



يحـق للاعــضاء الاسـتشهاد ببعـض مواضيع الاخــوة الأعضـاء التي سبق طـرحها هنا فـي المنـتدى - شـريطة ذكـر إسـم العـضو متبوعـاً بـرابط المصـدر لموضـوعه




عـدا ذلك - الموضوع يحكمه بقية قوانين المنتدى

وشكراً

العملاق





**المدرعات القتالية المجنزرة :





Armored Combat Vehicle








Armored Combat Vehicle









New Generation Armored Fighting Vehicle









Armored Combat Vehicles








**المدرعات المدولبة (wheeled armored) :





Wheeled Armored Vehicles



Wheeled Armored Vehicles







**المدرعات الهندسية :




Armored Amphibious Assault Bridge







Amphibious Armored Combat Earthmover












**أبراج / أنظمة أسلحـة متعددة الاستخدام :


One-Man Sharpshooter Turret







Remote Controlled Turret












PARS 4x4








منها عدة نُسخ متعددة المهام :



قيادة وسيطرة :



PARS 4X4 Command Control Vehicle with
12.7 mm RCWS





قاذفة قنابل او مسلحة برشاش :



PARS 4X4 ATV with 7.62 mm, 12.7 mm MG or 40 mm Grenade Launcher





استطلاع ومراقبة :



PARS 4X4 Reconnaissance and Surveillance Vehicle





مضادة للمدرعات محملة بصواريخ مجهة :



PARS 4X4 Anti Armor with Remote Controlled ATGM System





PARS 6x6







تحفة هندسية :






منها عـدة نسخ متعددة الأغراض :





PARS 6x6 ICV

The ICV variant is the Infantry Carrier Vehicle configuration of the PARS 6x6 FoV`. The vehicle is armed with a 7.62 or 12.7mm MG and capacity of carrying 8 personnel including driver, commander and gunner.



PARS 6x6 SRV

The SRV variant is the Surveillance Vehicle configuration of the PARS 6x6 FoV`. The vehicle is equip with an electro-optical mast, battlefield surveillance radar and armed with a 12.7mm remote weapon station. It has a capacity of carrying 5 personnel including driver, commander, gunner and 2 surveillance crew.



PARS 6x6 IFV 25

The IFV 25 variant is the Infantry Fighting Vehicle configuration of the PARS 6x6 FoV`. The vehicle is armed with a 25mm one man Sharpshooter Turret and capacity of carrying 7 personnel including driver, commander and gunner.



PARS 6x6 IFV RTC

The IFV RTC variant is the Infantry Fighting Vehicle with Remote Controlled Turret configuration of the PARS 6x6 FoV`. The vehicle is armed with a 25 or 30 mm CLAW Remote Controlled Turret and capacity of carrying 8 personnel including driver, commander and gunner.



PARS 6x6 AAV

The AAV variant is the Anti Armor Vehicle configuration of the PARS 6x6 FoV`. An over-head ATGW (Anti Tank Guided Missile) launcher is mounted on top of the hull. 10ea ATGW rounds can be stowed inside the vehicle. It has a capacity of carrying 4 personnel including driver, commander, gunner and loader.



PARS 6x6 CBRN-RECCE

The PARS 6x6 CBRN-RECCE variant is an advanced system to locate, identify and classify all CBRN agents and hazards. The vehicle is armed with a 7.62 or 12.7mm MG remote weapon station and capacity of carrying 4 personnel including driver, commander/gunner and 2 CBRN operations personnel.

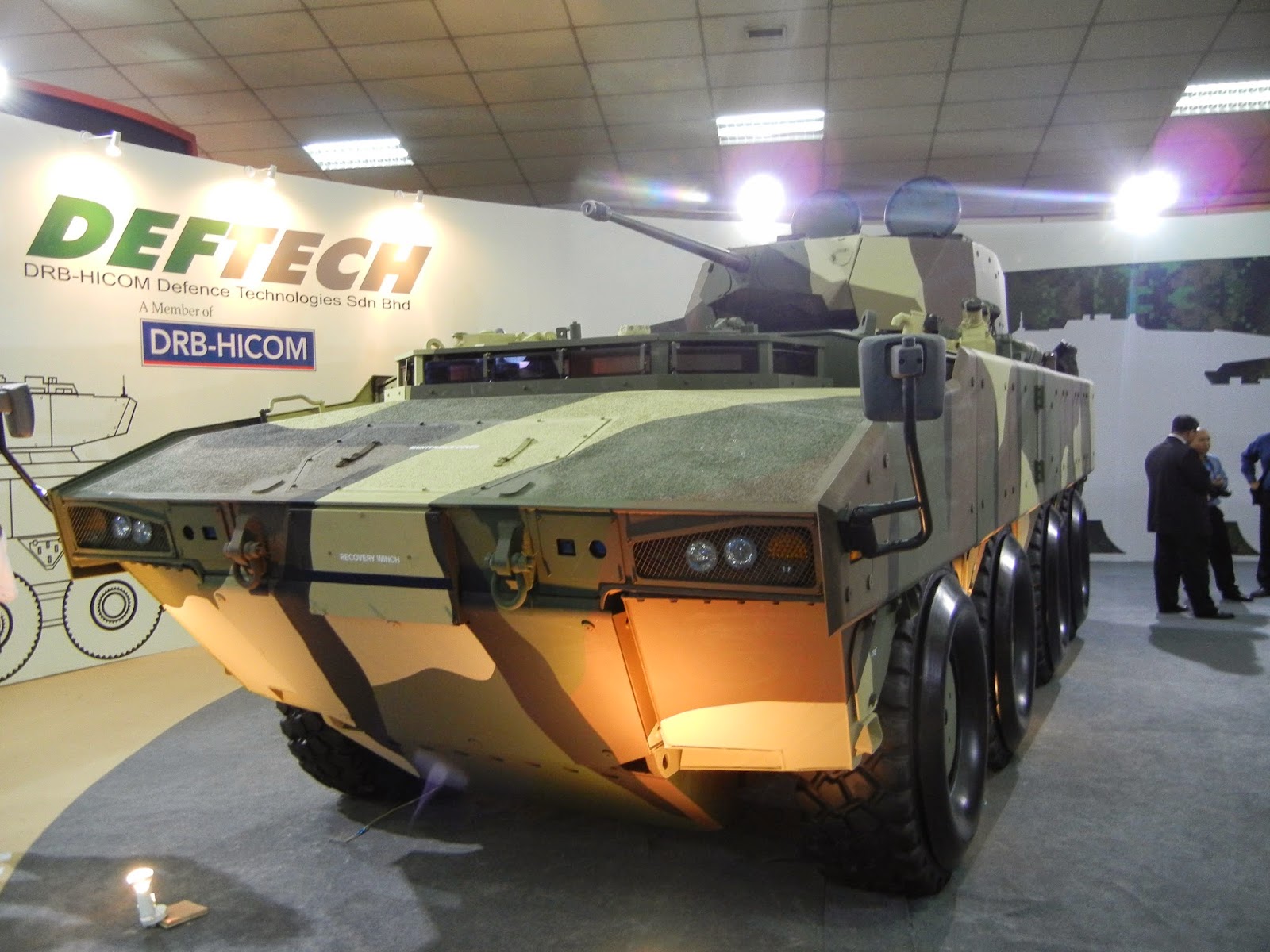

PARS 8x8

تستحق الاقتناء شبيهة بالـ LAV :























شبيهة البرادلي ACV 15















أنظمة المركبات وبعض القطع الميكانيكية :

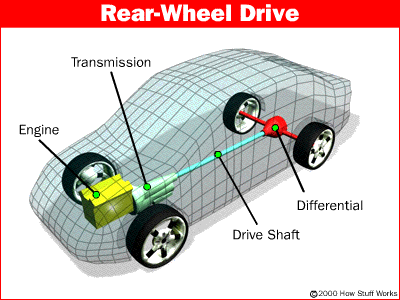

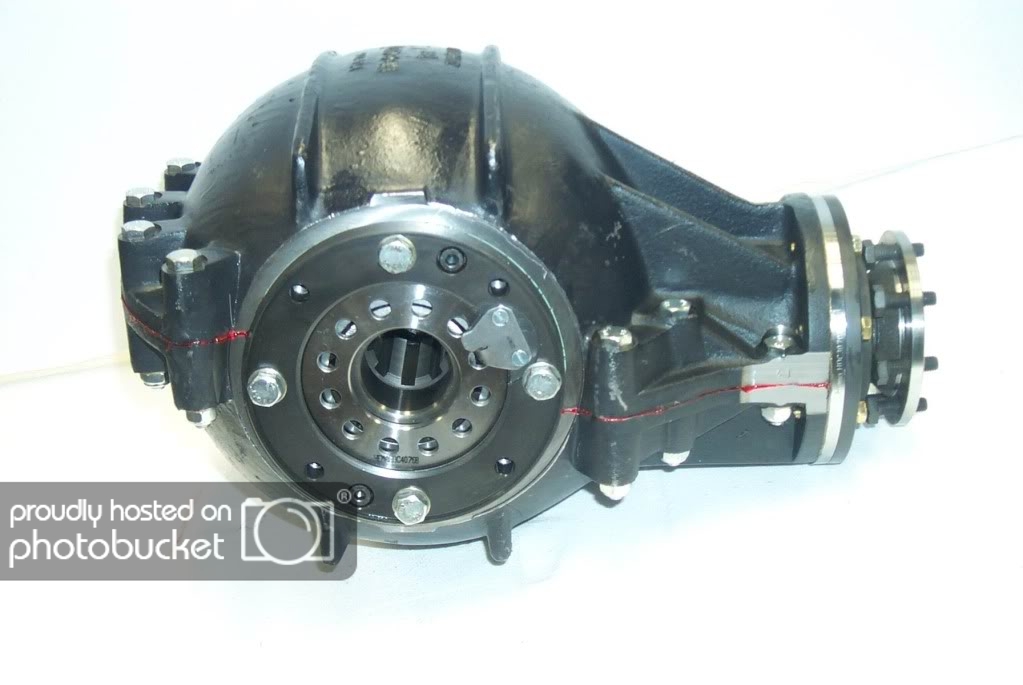

مقسم أو موزع العزم على العجلات - Differential Head :








18 Series of Differential Head

2 Speed & Double Reduction

Gear Ratios : 5.57/7.60-6.14/
Max Axle Load : 11.000 Kg
GVW : Up to 16 Tons
GCW : Up to 28 Tons
Weight : 160 Kg
Oil Capacity : 10 Lt

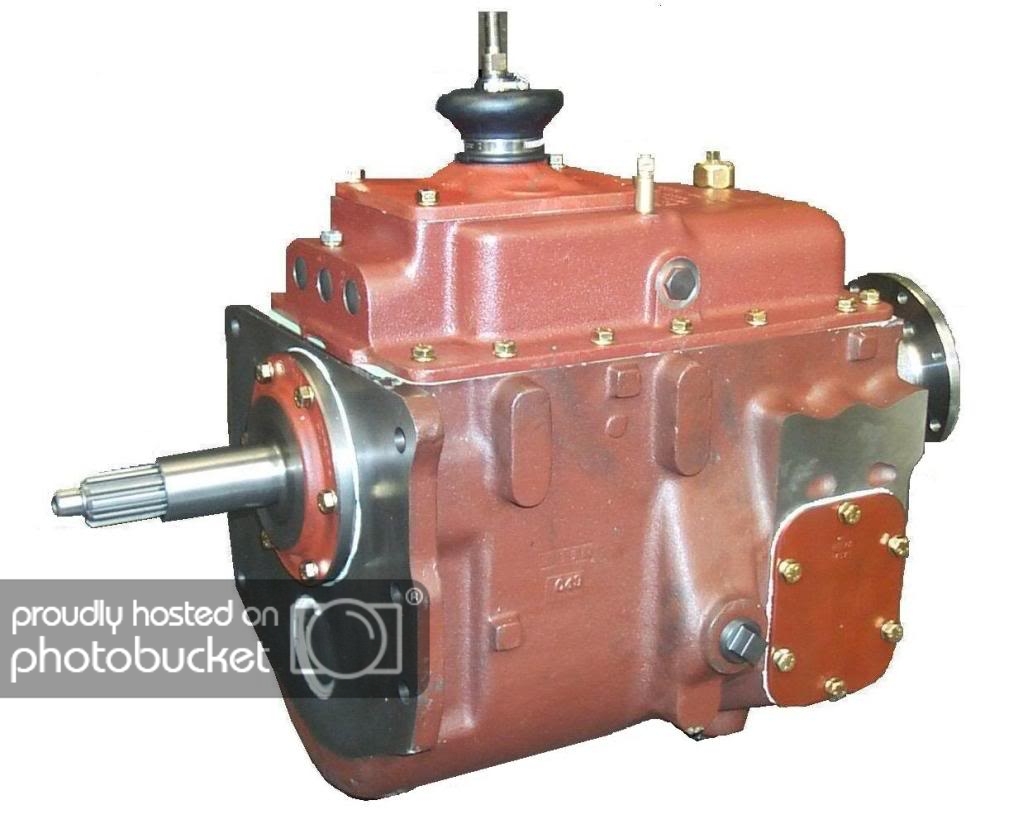

جير بوكس 475 Series of Transmissions :



Technical Specifications
Max Torque : 400 Nm 373 Nm 407 Nm
Synchromesh in : 2;3 , 4;5
PTO : 25 HP at 1000 rpm
Weight : 90 - 102 Kg
Oil Capacity : 5.7 Lt
GVW : Up to 14 Tons

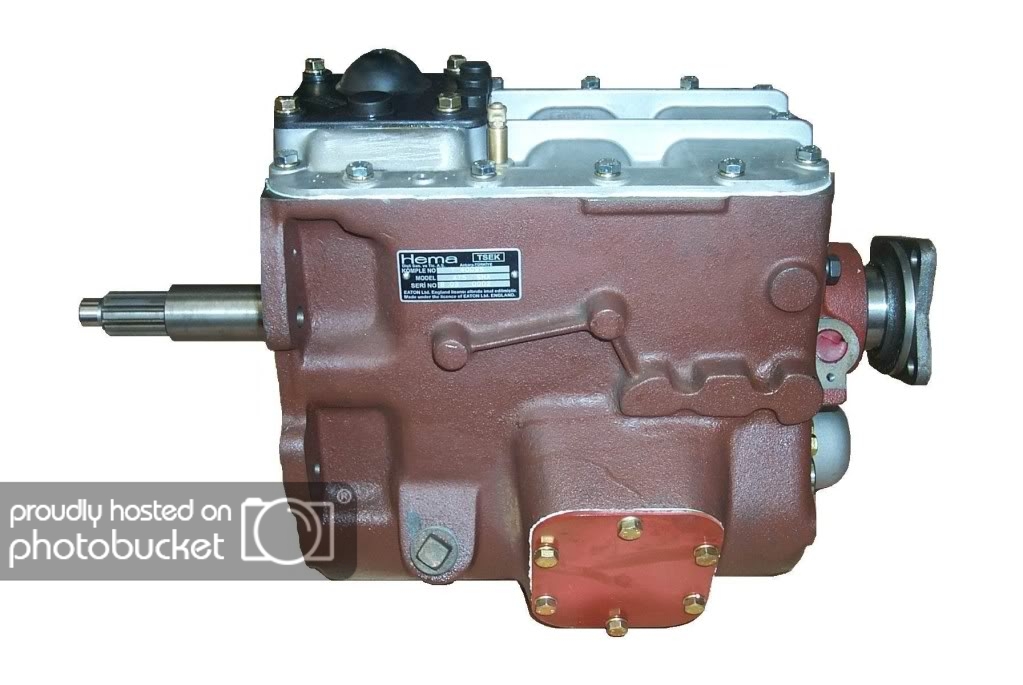

جير بوكس 570 Series of Transmissions


Technical Specifications
Max Torque : 570 Nm
Synchromesh in : 2;3 , 4;5
PTO : 25 HP at 1000 rpm
Weight : 140 Kg
Oil Capacity : 6.8 Lt
GVW : Up to 25 Tons

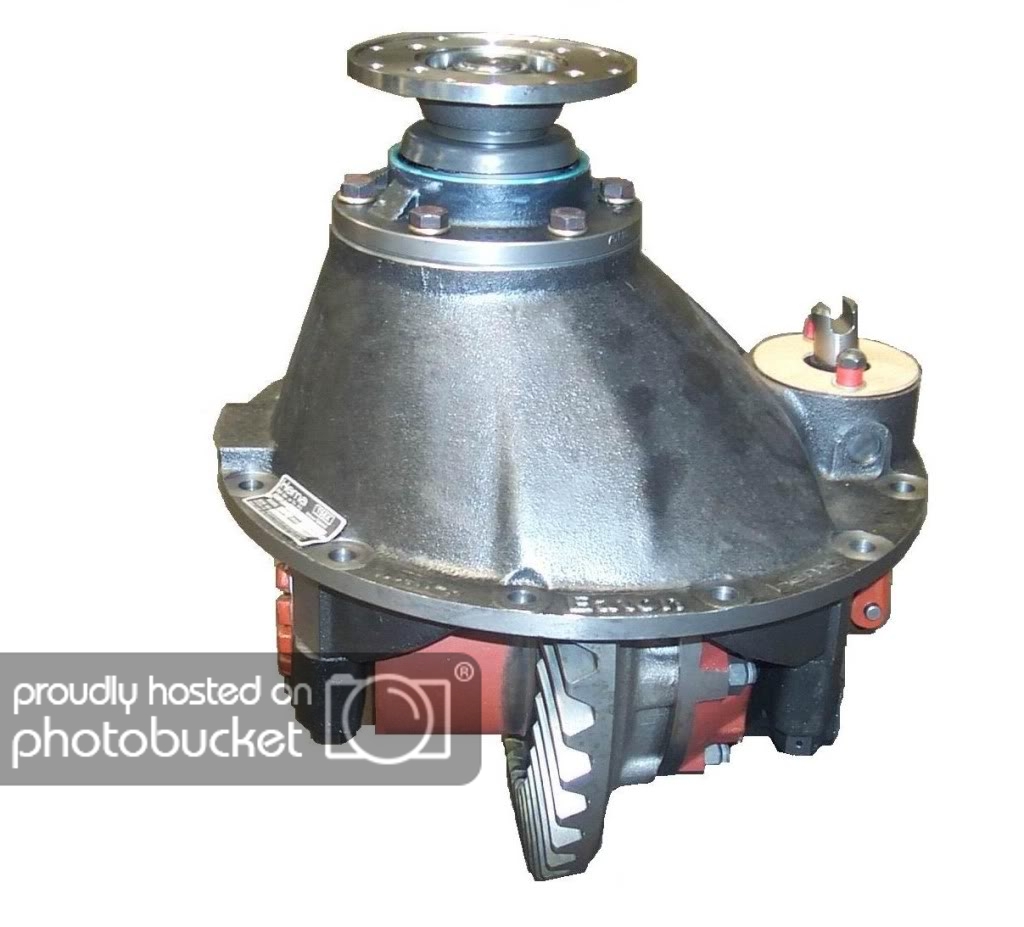

HDC3500 Differential Head


Single Speed & Single Reduction
Gear Ratios : 3.09-3.90-4.44
Max Axle Load : 2.600 Kg
GCW : 5.000 Kg
Weight : 69 Kg
Oil Capacity : 2.5 Lt






راجمة الصواريخ التركية T-122 Sakarya

• الوزن : 22.2 طن.
• الطول :9.20 م.
• العرض:2.5 م.
• الارتفاع :3.1 م.
• الطاقم : 4 افراد.
• العيار : 122.4 ملم.
• عدد القذائف : 40 قذيفة.
• مدى الصاروخ :40 كم.
• التسلح الثانوى: M2 رشاش عيار 7.62 .
• مدى العربة :970 كم .
• السرعة: 75 كم/ساعة.

المستخدمون : تركيا ، اذربيجان و الإمارات .



JNG-90 بندقية القنص التركية

العيار : 7.62x51mm NATO
سعة المخزن : 10 طلقات
الوزن : 6.4 كغ
الطول : 1080 مم
المدى القاتل : 1200 م
تصميم و تصنيع : شركة MKEK
مستخدمون : تركيا و أذربيجان

شركة


متخصصة أنظمة التعليق suspension للمركبات :


















شركة مبهرة جداً تصنع أنظمة التعليق أمامية وخلفية لغالبية الشركات حول العالم مرسيدس , شفروليه , فولكس واجن , فولفو , كيا , هونداي , اودي , بي ام دبليو , دودج , هوندا ... الخ


شاحنات و سيارات صغيرة ويستفيد منها حتى القطاع العسكري :


Passengers & Heavy duty















Arma 6×6 المدرعة

من انتاج شركة اوتكار تخدم في الجيش التركي والبحريني


المواصفات

الوزن : 18.5 طن
- الطول : 6.4 م
- العرض : 2.7 م
- الارتفاع : 2.2 م
- الطاقم : 2+8 لنسخة ال6×6
- التدريع : 12.5 مم
- السلاح الأساسي : واحد 12.7 مم أو مدفع رشاش 7.62 مم
- القوة\الوزن : 24.3 حصان/طن
- التعليق : هيدروليكية
- المدى : 700 كم
- السرعة : 105 كم / ساعة

شركة

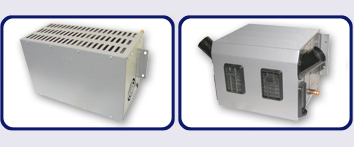

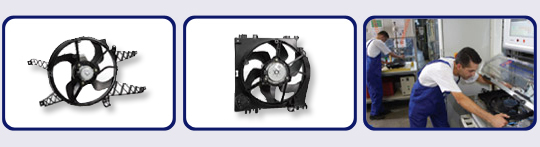

متخصصة الرديترات وانظمة التبريد والتكييف ومعادن التبريد :

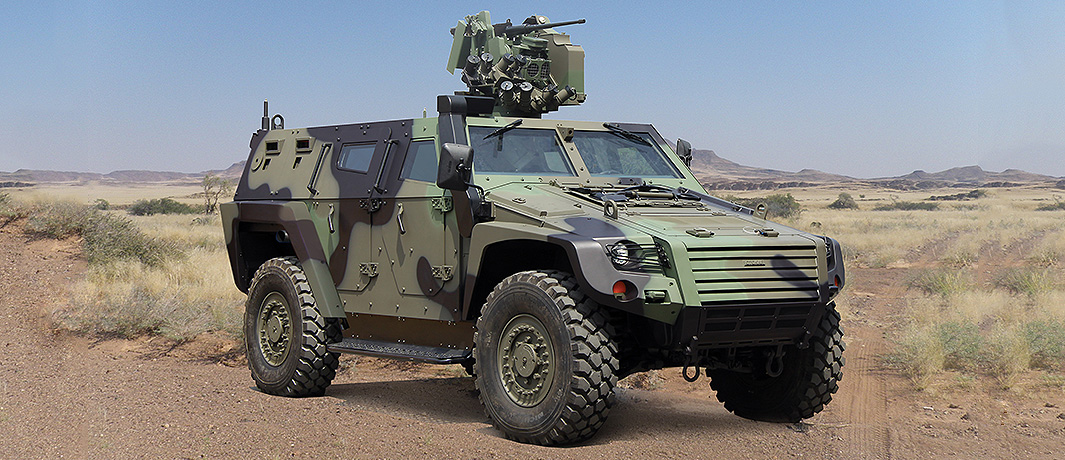

كوبرا 1 صناعة شركة اوتكار



حمولة : 9 افراد بكامل حمولتهم

الطول : 5.30 م

العرض : 2.2 م

الارتفاع : 2.2 م

الوزن فارغة : 5 طن

الوزن بكامل الاستعداد : 6.5 طن

التصميم : تراعي التصميم V

المحرك : محرك ديزل 6.5 لتر يوفر 190 حصان

السرعة : 115 كم / س

المدى : 650 كم

التسليح : متعدد " 7.62 – 12.5 – مضادات دروع - اسلحة دفاع جوي الخ

الدول المستخدمة : تركيا البحرين باكستان ازربيجان كازخستان الامارات نيجيريا الكاميرون المالديف الخ

فيديو




الدروع المكونة من المواد المركبة :



Siper-G-P01:

Weight: 1.4 kg
NIJ Level III
Material: UHMWPE









Siper-G-P10:



Weight < 1.8 kg
NIJ Level III+
Material: Seramic-Compozit








Siper-G-P20:


Weight < 3.2 kg
NIJ Level IV
Material: Seramic-Compozit







Siper-G-P30:


Weight< 2.7 kg
NIJ Level IV
Material: Seramic-Compozit






:D:​

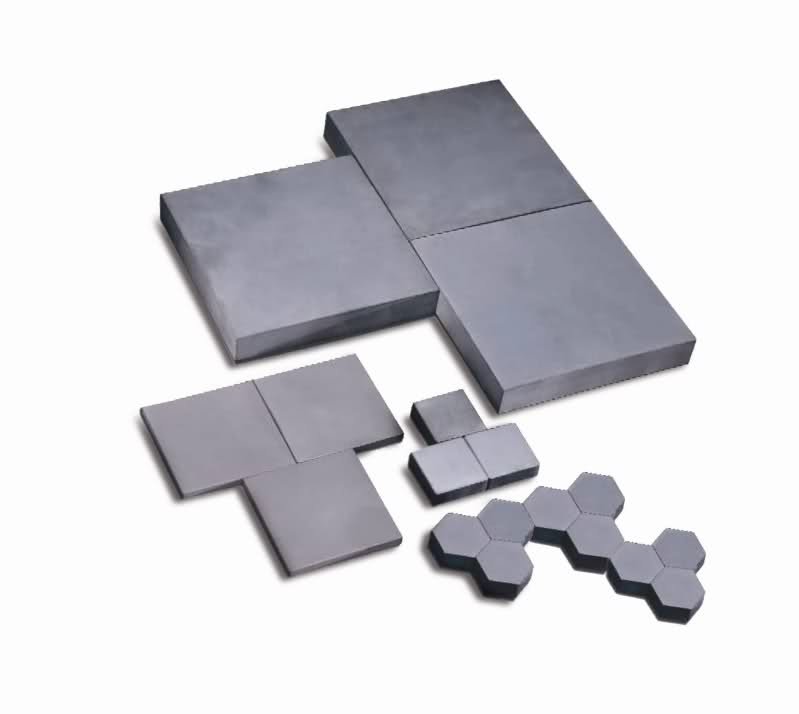

دروع السيراميك بواسطة KALKAN®

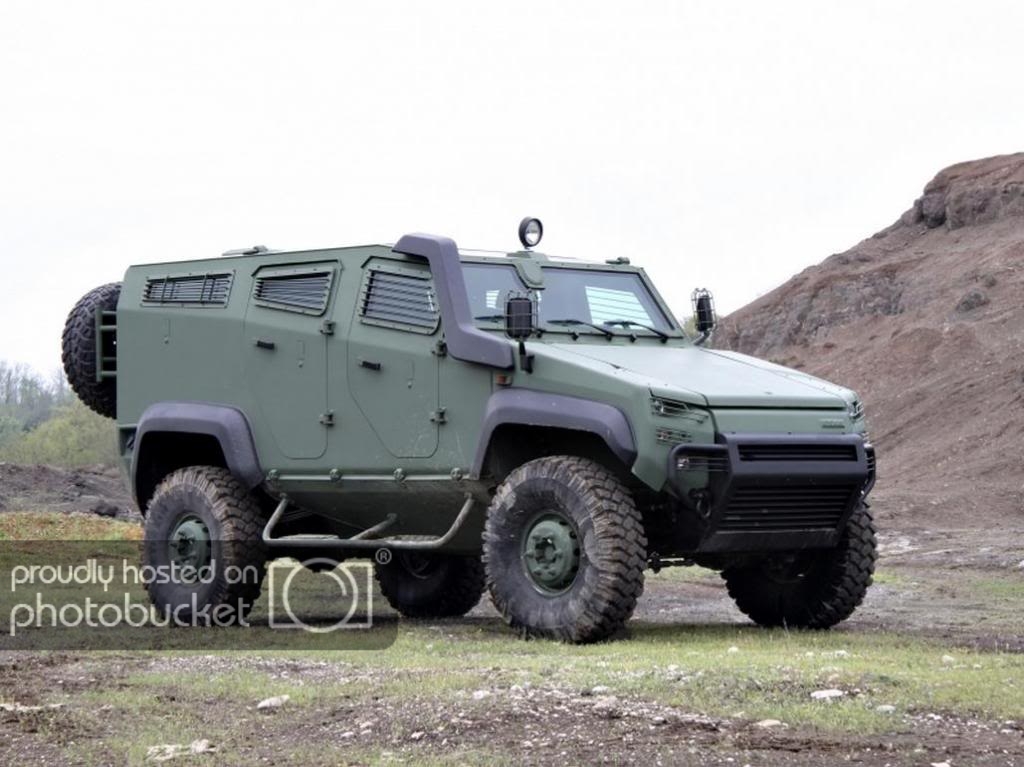

Otokar Ural





الوزن : 3600 كج
الطول : 5.3 متر
العرض : 2.2 متر
الارتفاع : 2.2 متر

السرعة 100 كم في الساعة

تخدم في جهاز الشرطة والجيش التركي

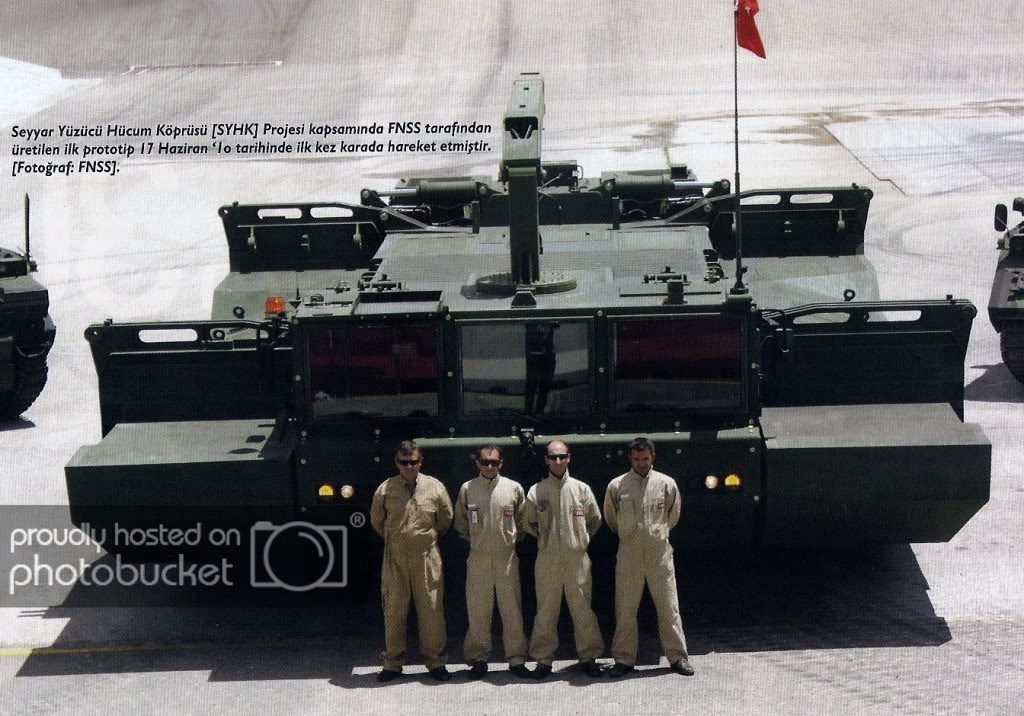

دبابة تجسير أو جسر محمول تصنعه FNSS :



Samur

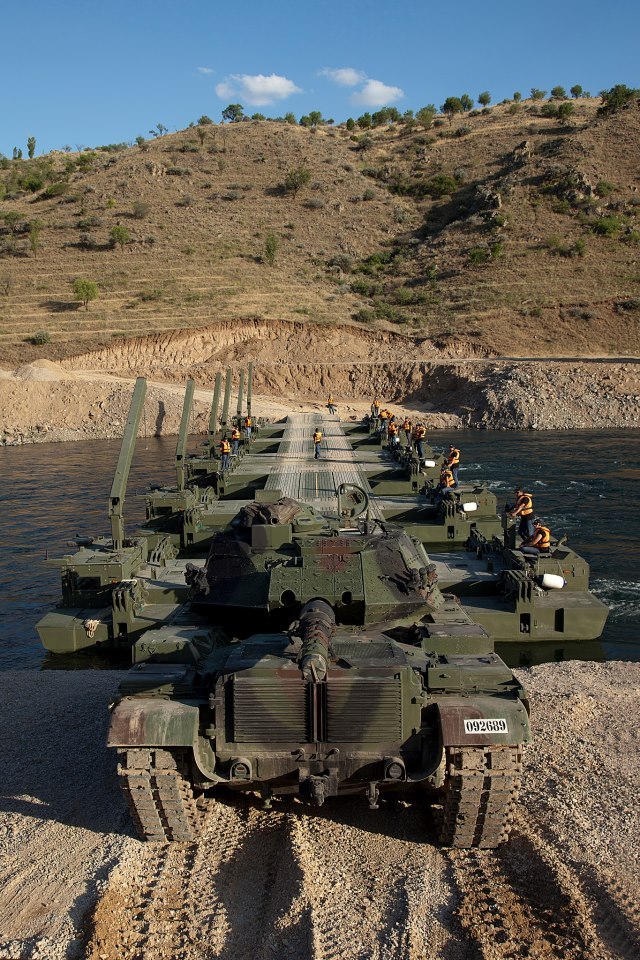

تجربة للجسر :

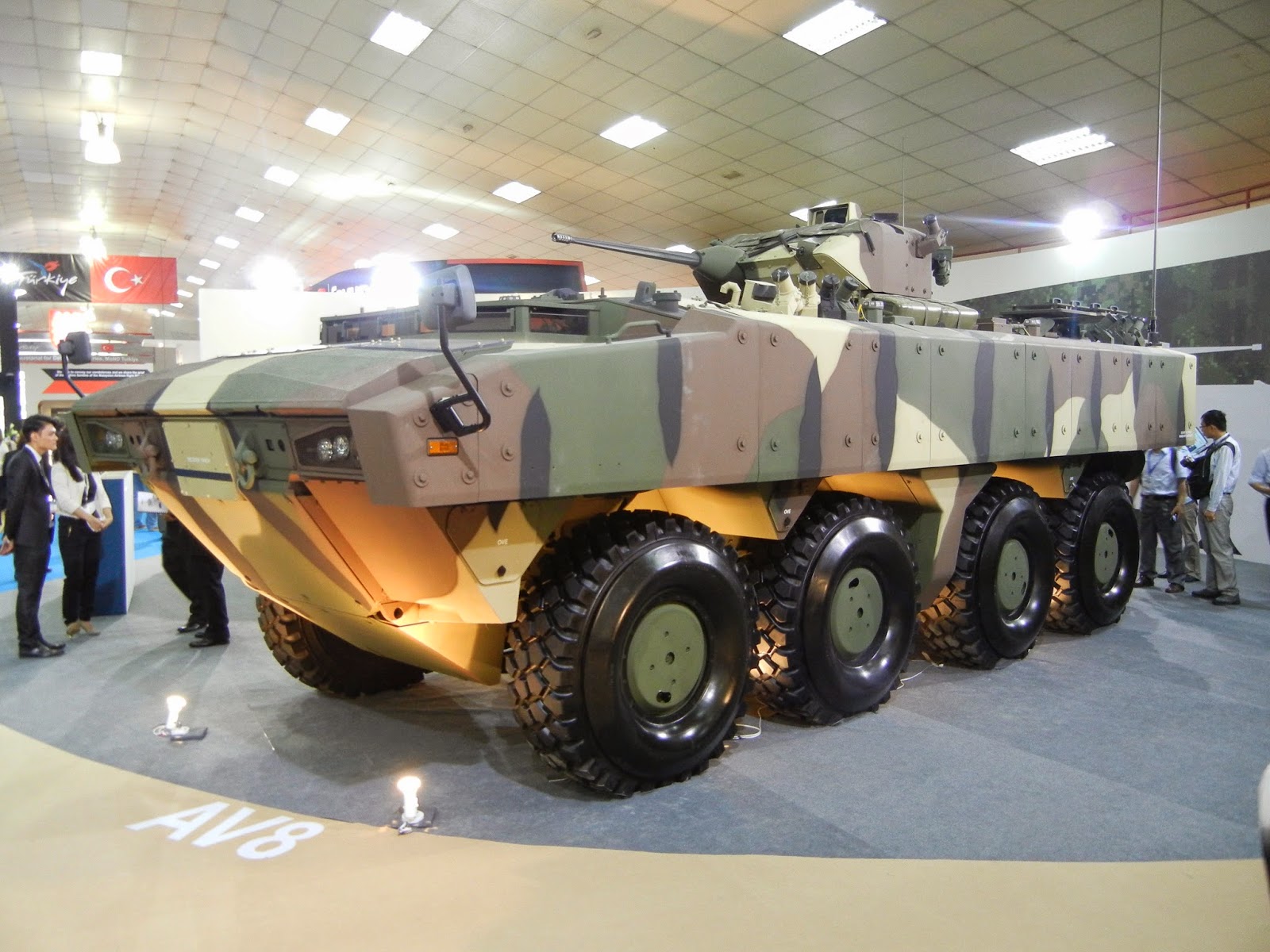

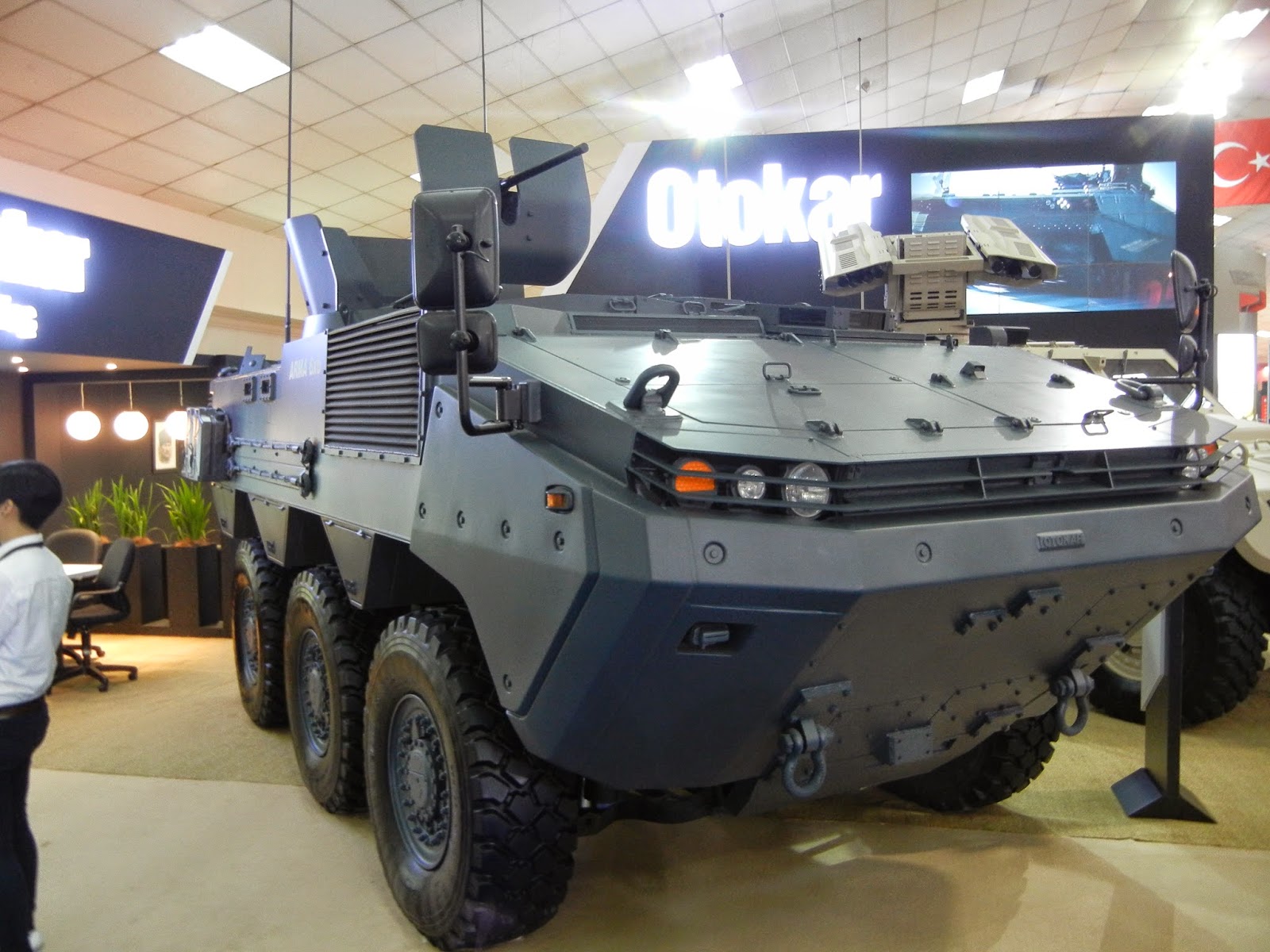

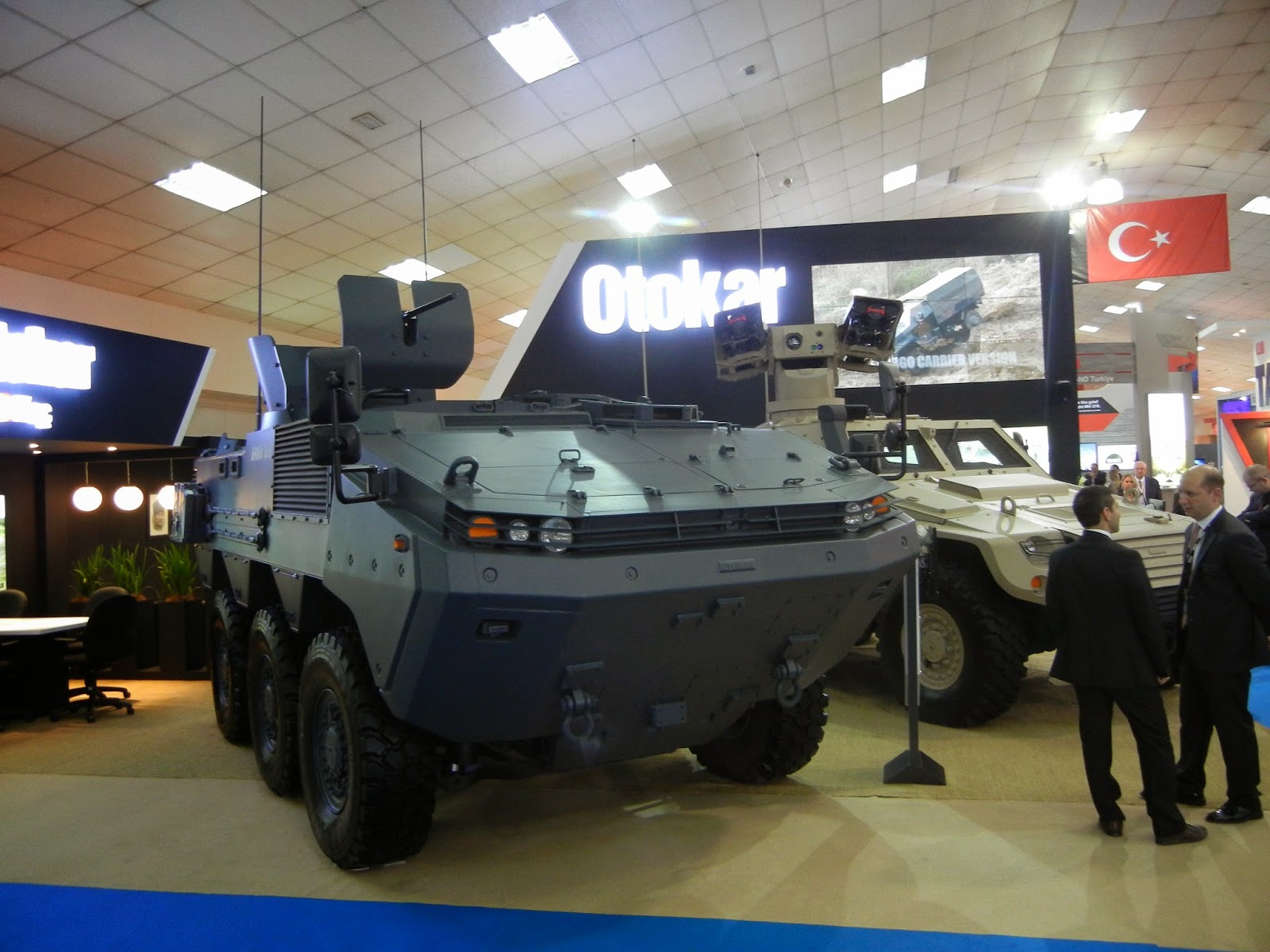

أوتوكار AV8
