المقاتلة A10 ,,, عدوة المدرعات
- بادئ الموضوع المنشار
- تاريخ البدء
- إنضم
- 3 مايو 2016
- المشاركات
- 7,336
- التفاعل
- الدولة
تحتوي ذخائر متشظية من اليورانيوم لذا
لم أقرأ يوما عن رغبة دولة حتى من حلفاء أمريكا فيها
الهدف منها كان محاربة تقدم المدرعات السوفييتية نحو ألمانيا منذ ذلك الحين تستخدم في القصف الأرضي
GPU-5/A
The GPU-5/A gun pod produced by General Dynamics Armament and Technical Products incorporates the four-barrel 30mm GAU-13/A Gatling gun and linear linkless ammunition feed system.
The GPU-5/A is the world's only 30mm gun pod that fires armor-piercing GAU-8/A ammunition. This ammunition offers up to four times the kinetic energy at twice the range compared to conventional 20mm or Aden 30mm rounds. It is capable of stopping amphibious vehicle assaults and destroying a wide range of armored mobile and fixed targets at extended ranges.
The GPU-5/A can be installed on the wing or body centerline stations of a variety of tactical aircraft. It has low recoil loads, is lightweight and contains its own power. It has been flown and tested on A-4, A-7, F-4, F-5, F-15 and F-16 aircraft. The GPU-5/A pod can be mounted onto standard 30-inch aircraft racks in less than ten minutes.
The pod's linear linkless feed system contains two layers of ammunition carriers surrounding the gun, which helps conserve space and weight. Each carrier captures and fully controls ammunition at all times. The GPU-5/A contains enough ammunition for five two-second bursts at 2,400 shots per minute.
Extensive use of weight-saving, fiber-reinforced plastics have been incorporated into the GPU-5/A gun pod. Recoil adapters mounted in the strongback absorb gun-induced recoil.
30mm gatling gun pod
Specifications
Gun type GAU-13/A, four-barrel, 30mm Gatling gun
Weight Loaded 1,905 pounds (866 kg)
Empty
1,373
pounds (624 kg)
Ammunition 30mm GAU-8/A (API, HE, TP)
Ammunition capacity 353 rounds
Rate of fire 2,400 shots per minute
Dispersion 6 milliradians diameter, 80 percent circle
Drive system Self-contained pneumatic (two loads
per
charge)
Feed system Linear linkless, double-ended
166” (4.2m)
24”
(610mm)
The GPU-5/A gun pod produced by General Dynamics Armament and Technical Products incorporates the four-barrel 30mm GAU-13/A Gatling gun and linear linkless ammunition feed system.
The GPU-5/A is the world's only 30mm gun pod that fires armor-piercing GAU-8/A ammunition. This ammunition offers up to four times the kinetic energy at twice the range compared to conventional 20mm or Aden 30mm rounds. It is capable of stopping amphibious vehicle assaults and destroying a wide range of armored mobile and fixed targets at extended ranges.
The GPU-5/A can be installed on the wing or body centerline stations of a variety of tactical aircraft. It has low recoil loads, is lightweight and contains its own power. It has been flown and tested on A-4, A-7, F-4, F-5, F-15 and F-16 aircraft. The GPU-5/A pod can be mounted onto standard 30-inch aircraft racks in less than ten minutes.
The pod's linear linkless feed system contains two layers of ammunition carriers surrounding the gun, which helps conserve space and weight. Each carrier captures and fully controls ammunition at all times. The GPU-5/A contains enough ammunition for five two-second bursts at 2,400 shots per minute.
Extensive use of weight-saving, fiber-reinforced plastics have been incorporated into the GPU-5/A gun pod. Recoil adapters mounted in the strongback absorb gun-induced recoil.
30mm gatling gun pod
Specifications
Gun type GAU-13/A, four-barrel, 30mm Gatling gun
Weight Loaded 1,905 pounds (866 kg)
Empty
1,373
pounds (624 kg)
Ammunition 30mm GAU-8/A (API, HE, TP)
Ammunition capacity 353 rounds
Rate of fire 2,400 shots per minute
Dispersion 6 milliradians diameter, 80 percent circle
Drive system Self-contained pneumatic (two loads
per
charge)
Feed system Linear linkless, double-ended
166” (4.2m)
24”
(610mm)
التعديل الأخير:
- إنضم
- 1 يناير 2015
- المشاركات
- 2,999
- التفاعل
- الدولة
المانباد يكون محمول من قبل افراد
لذا لن تستطيع تقديم ارض معركة لهذه الطائرة خالي من هذه العناصر التي تحمل المضادات
هنالك اجهزة تشويش متطورة ضد الصواريخ الحراوية ولكن لا اعلم ان كانت تحملها هذه الطائرة
- إنضم
- 17 يوليو 2016
- المشاركات
- 184
- التفاعل

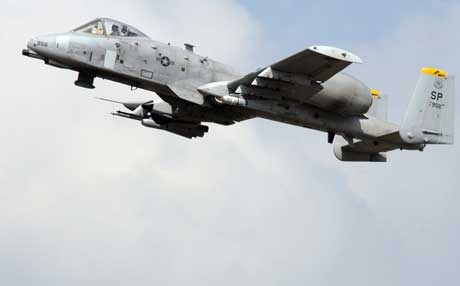

الطائرة :: A 10
الولايات المتحدة الأمريكية
A 10 :: مهمتها الاسناد الجوي وتدمير الدبابات والمدرعات واي شيئ يتحرك او ثابث في ارض المعركة
A10 :: تتميز بالمناورة العالية والارتفاع الجد منخفض, واصابة الأهداف بدقة عالية
A10 :: تحتوي على اجهزة ملاحة واتصالات عالية التقنية بالضافة الى اجهزة الرؤية الليلية والاجهزة المساعدة في عمليات برمجة السلاح والتصويب
تم تمديد عمر طائرة A10 ليبلغ 12000 ساعة طيران
A10 :: تتحمل الضربات المعادية وتعود لقواعدها سالمة
مواصفات A10 ::
الطول:: 16.6 m
العرض:: 4.42 m
السرعة:: 420 males /h
الارتفاع الاقصى:: 43000 ft
اقصى حمولة عند الاقلاع:: 51,000 pound
المنتدى العربي للدفاع والتسليح
المنشار
تحياتي للجميع
موضوع اكثر من رائع نتمناها للدول العربية
