NIMER I
Introduction to the NIMER I
The Nimer I was the first fully armoured vehicle designed by the Engine Engineering Company. This outward-bound machine is specially designed to cater to the demands of the police as well as the army, Border Patrol or Riot Control. What’s more, it is also air transportable!
مدرعة نمر 1

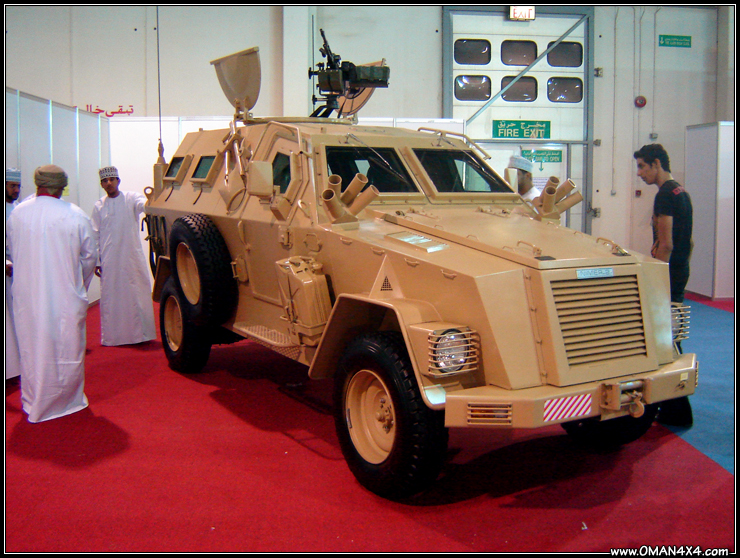

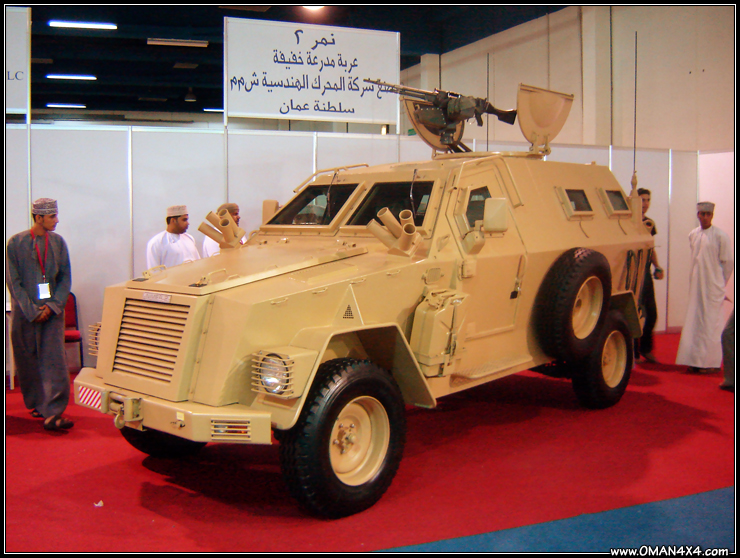

NIMER II
Introduction to the new NIMER II LAV
The Nimer II Light Armoured Vehicle has been designed specifically for use by Military, Police and Internal Security Forces.
Nimer II is operationally capable of fulfilling a variety of roles and is available in a family of variants.
This very versatile vehicle offers extremely high mobility and balistic protection. This protection offers non penetration of 7.62 mm ball and 7.62 mm armour piercing rounds, it also includes protection from small mines. The protection is 360 at the point blank range and included within the armour are the twin fuel tanks, engine compartment and all other key services.
The Nimer II with its high performance specification is ideally suited for both on and off road operation and embraces proven performance to include very rough terrain, deserts and marshlands. Its performance in built up city areas was foremost in the design stages. Compactness and high maneuverability in the narrowest of streets or alleyways is yet another feature of this vehicle.
With all of these key design features, Nimer II provides the police, Army Border Patrols and Internal Security with an ideal vehicle to provide a very detailed operations capability.
During the design and development phases of Nimer II it was extensively and operationally tested across the hostile terrain and summer temperatures of the Sultanate of Oman. The Name NIMER is thus well chosen as it translates to Arabic as TIGER.
Specification of Nimer II LAV
BASIC INFO
Country Of Origin:
Designation:
Configuration:
Crew:
Sultanate Of Oman
LAPC - NIMER II
4x4 Vehicle
2+4
CHARACTERISTICS
Total Length
Total width
Width (w/o spare wheels)
Height
Wheel Base
Gross vehicle Weight
Power to weight ratio
Minimum Turning Radius
5105 mm
2205 mm
1770 mm
2070 mm
3180 mm
3200 kg
42.18 hp/ton
7500 mm
HULL & GLASS
Armour type
Armour protection
Armament
Evasive protection
Standard Equipments
Armored steel
Level B6
As per client ( 5.56, 7.62, MK 19, 0.50’’ & Taw missile launcher)
2-banks of 4 tubes 76mm. smoke grenade Launcher
Drivers tool set
Jerry can holder
Fire Extinguisher
Gun mounting provision
Towing Hooks and winch
spare wheels
POWER TRAIN
Engine model
Engine type
Fuel system
Air cleaner
Number of cylinders
Displacement
Max. out put
Max. torque
HZJ 79
4 Stroke-cycle
water-cooled Diesel Engine
Fuel Injection
Cyclone with pre-cleaner type
6 cylinder,OHC
4164 CC
135 hp at 3800 rpm
29.6 kg.m at 2200 rpm
NIMER III
Nimer III the next generation evolved Armoured Vehicle.
