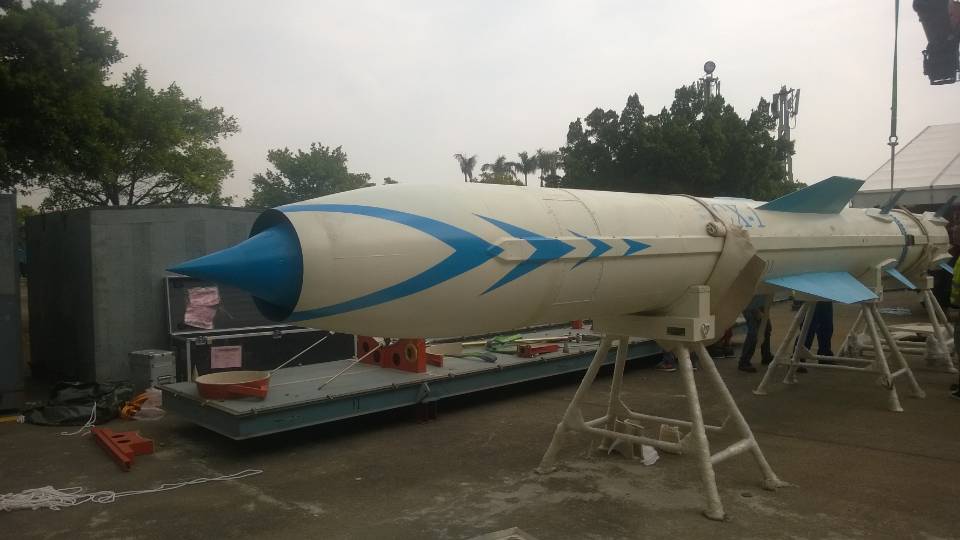

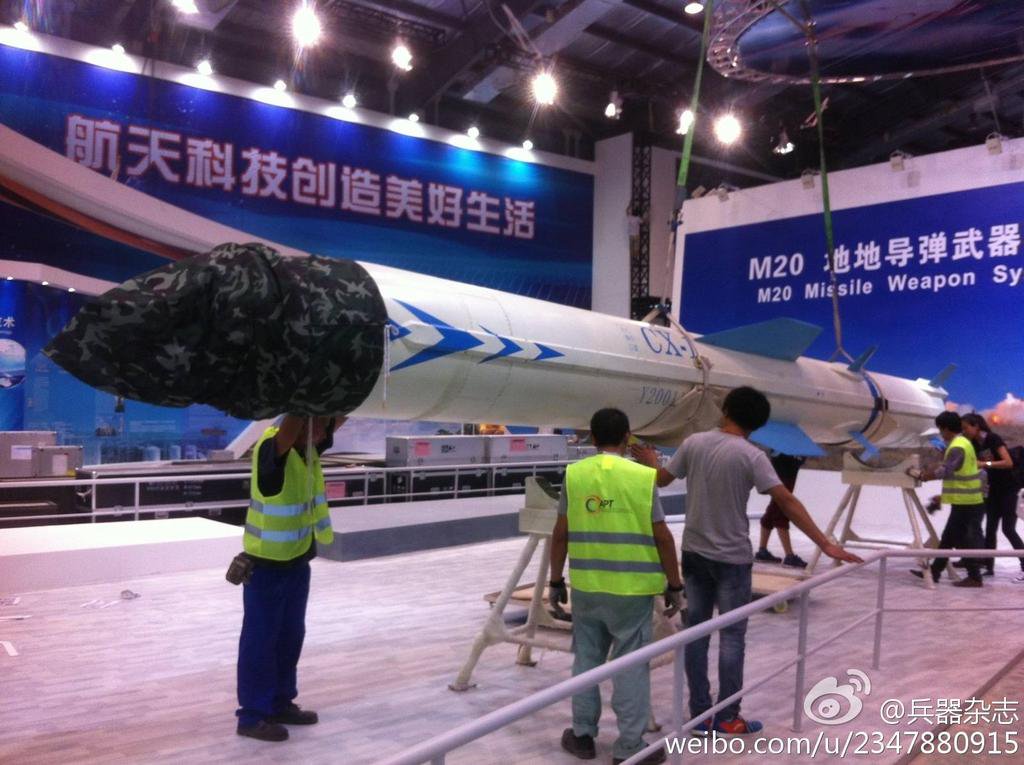

CX-1 Introduction and Features
CX-1 missile weapon system uses vehicle-mounted mobile launchers, capable of hitting enemy sea frigates, destroyers, cruisers and other various types of surface ships, along with ground attack capability. CX-1 missile carrier can also be adapted to tilt launch.
CX-1 missile weapon system has the following characteristics:
. a penetration ability: to use a variety of ballistic form, the last paragraph of the use of low-altitude sea-skimming attack ships, to further improve the penetration performance.
. b Damage effect: large warhead quality, high hit rate, for the ship target with great destruction;
. c fast response: no relying on the position transmitter, high degree of automation, operational short reaction time, the missile flight speed, enabling rapid strike against the enemy and evacuation;
. d combat the use of flexible: You can achieve carrier or launch vehicle, using a variety of platforms, you can dress up in different warhead, using different flight trajectory, in many ways on the ground or anti-ship warfare;
. e wide fire coverage: Trajectory maneuver can be achieved by the target within 40km ~ 280km range combat, wide fire coverage.
Firepower System
By integrating the A series, M20, CX-1 and other weapons systems to form a common launch platform based firepower systems.
Universal launch platform with 8 × 8 heavy-duty off-road chassis, crew of four people, with the ability to automatically complete launch operations in different terrain conditions.
Full total mass: 45000 kg
Dimensions (fully loaded): 12900mm × 3110mm × 3550mm
Crew: 4
Maximum speed: 80 km / h
Low angle: 0 ° ~ 65 °
Azimuth: -30 ° ~ 30 °
A common emitter configuration when the number of weapons platforms:
(1) A100 Rocket Number: 10
(2) A200 Rocket Number: 8
(3) A300 Rocket Number: 8
(4) M20 missile Quantity: 2
(5) CX-1 missile Quantity: 2
Weapon system components
Universal Army combat system (GATSS) to A100 / A200 / A300, M20 and other military weapons trade model is based on a collection of command and control systems, unmanned aerial vehicles and reconnaissance payload, complete C4KISR system construction (Command, Control, Communication, Computer, Kill, Intelligence, Surveillance, Reconnaissance).
GATSS have the ability to strike moving ground targets, including military facilities, military positions, communication hubs and other ground fixed target, small surface ships / boats and other sea moving targets and armored vehicles. Can achieve a range of 50km ~ 290km, CEP30m ground / sea, fixed / mobile target precision strike.

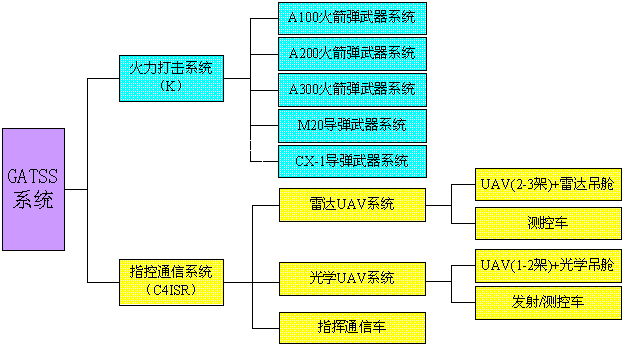

GATSS system mainly consists of firepower system (K) and information command system (C4ISR) composed of the basic system hardware components in Figure 1.
Figure 1: GATSS system hardware components
The main technical and tactical targets
The main operational modes: reconnaissance, the allegations against assess integration;
Main targets: military facilities, cluster armored vehicles, communications hubs and other fixed targets; small and medium sized ships and armored vehicles moving target sea land and other slow-moving target;
Firepower systems: range 50km ~ 290km, CEP30m;
Rapid response capability: to hit a moving target can be achieved quickly within 3min.
