رد: [Sa-8B Gecko]
يجري تطوير السام-٨ ايه كيه ام الاردني الى الطراز الاحدث "سامان-ام":
9F841 SAMAN TARGET MISSILE
Intended to simulate current and prospective air targets during the training of crews of air defense missile systems used at regimental, divisional and army levels in air defense, air force and naval units, as well as during operational development and trials of new AD missile systems. The 9F841 Saman is a small-size solid-propellant missile used as an air target simulator (ATS). It was developed from the 9FM33M2 (M3) AD missile. In terms of its geometric, ballistic and radar characteristics, it is similar to such air attack weapons as the BGM-34 drone, ALCM and HARM cruise and antiradar missiles and Walleye guided air bombs. The Saman is ramp-launched and controlled in flight until it reaches the desired altitude from an autonomous 9A33AM2 combat vehicle of the Osa-AK AD missile system (unmodified).
The 9F841 ATS, the combat vehicle and the standard set of the Osa-AK AD missile system ground equipment make up a 9F691 training target set. Once it has reached the desired altitude, the ATS may fly independently or make a 5-second pitchup maneuver at the 28th or 40th second of flight or can fly without maneuvering. The combat vehicle allows for the control of two missiles launched at a 5-second interval. In flight, the ATS can be detected and tracked in the radar and IR frequency bands and also observed visually.

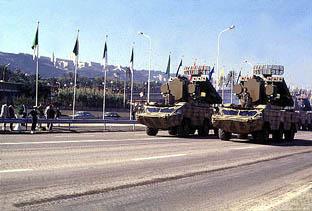

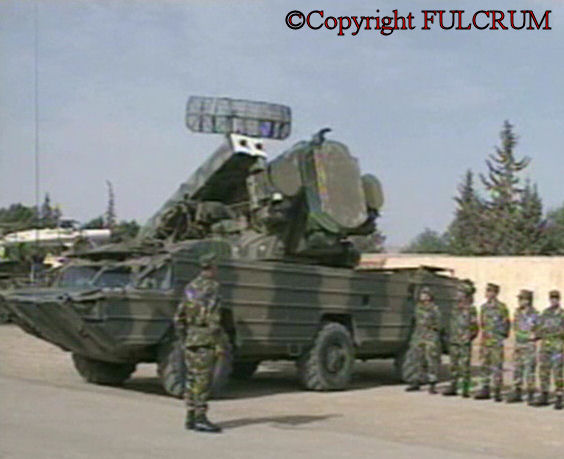

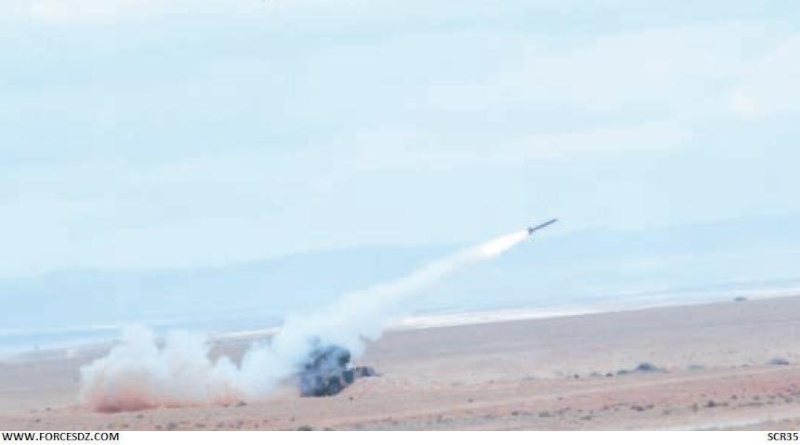

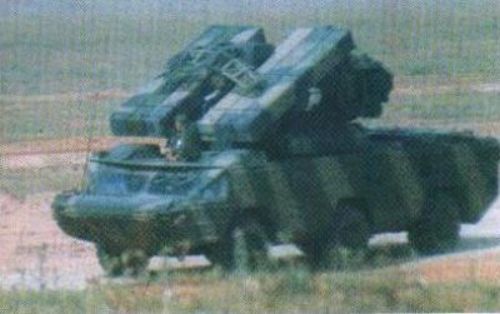

بعض صور السام-٨ ايه كيه ام ,
يجري تطوير السام-٨ ايه كيه ام الاردني الى الطراز الاحدث "سامان-ام":
9F841 SAMAN TARGET MISSILE
Intended to simulate current and prospective air targets during the training of crews of air defense missile systems used at regimental, divisional and army levels in air defense, air force and naval units, as well as during operational development and trials of new AD missile systems. The 9F841 Saman is a small-size solid-propellant missile used as an air target simulator (ATS). It was developed from the 9FM33M2 (M3) AD missile. In terms of its geometric, ballistic and radar characteristics, it is similar to such air attack weapons as the BGM-34 drone, ALCM and HARM cruise and antiradar missiles and Walleye guided air bombs. The Saman is ramp-launched and controlled in flight until it reaches the desired altitude from an autonomous 9A33AM2 combat vehicle of the Osa-AK AD missile system (unmodified).
The 9F841 ATS, the combat vehicle and the standard set of the Osa-AK AD missile system ground equipment make up a 9F691 training target set. Once it has reached the desired altitude, the ATS may fly independently or make a 5-second pitchup maneuver at the 28th or 40th second of flight or can fly without maneuvering. The combat vehicle allows for the control of two missiles launched at a 5-second interval. In flight, the ATS can be detected and tracked in the radar and IR frequency bands and also observed visually.
بعض صور السام-٨ ايه كيه ام ,
