Towed decoy systems are used to protect military aircraft from radar-guided missiles. These countermeasures are towed behind the host aircraft protecting it against both surface-to-air and air-to-air missiles. They provide a radiowave reflecting baid that attracts the RF-guided missiles away from the intended target.
Unlike the miniature air launch decoys (MALD) and decoy jammers (MALD Jammers) being tested by the U.S. Air Force for B-52H bombers and F-16 Fighting Falcons to deceive ground radars and anti-aircraft systems, such decoys have a defensive purpose.
Many aircraft are equipped with such towed decoys. The U.S. F-18s and B-1s are equipped with the ALE-50 system, while the Eurofighter Typhoon is equipped with a Towed Radar Decoy carried in the starboad side wingtip pod.

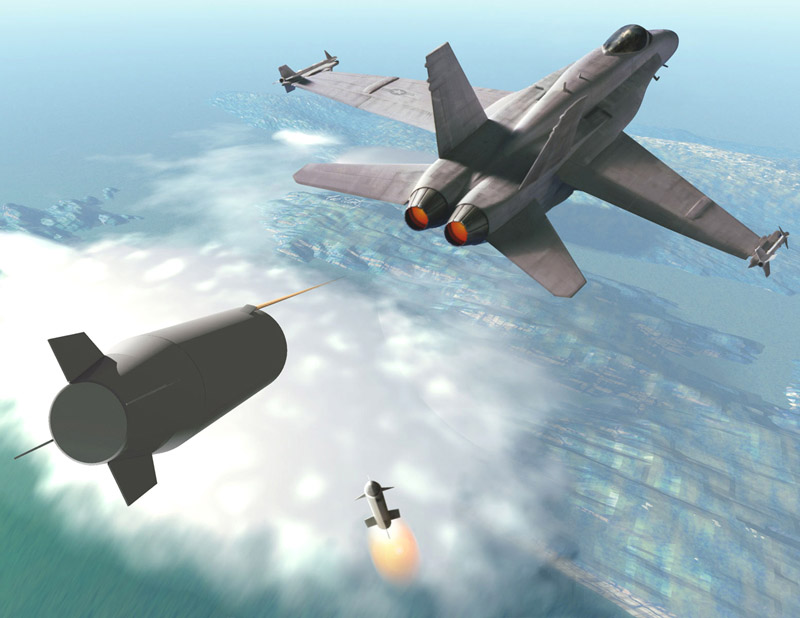

Image credit: Raytheon
According to the information released by Eurofighter, the TRD is attached to the pod using a Fibre Optic link used to send commands to the decoy radio frequency emitter to produce jamming signals required to lure the missile away from the “parent aircraft”.

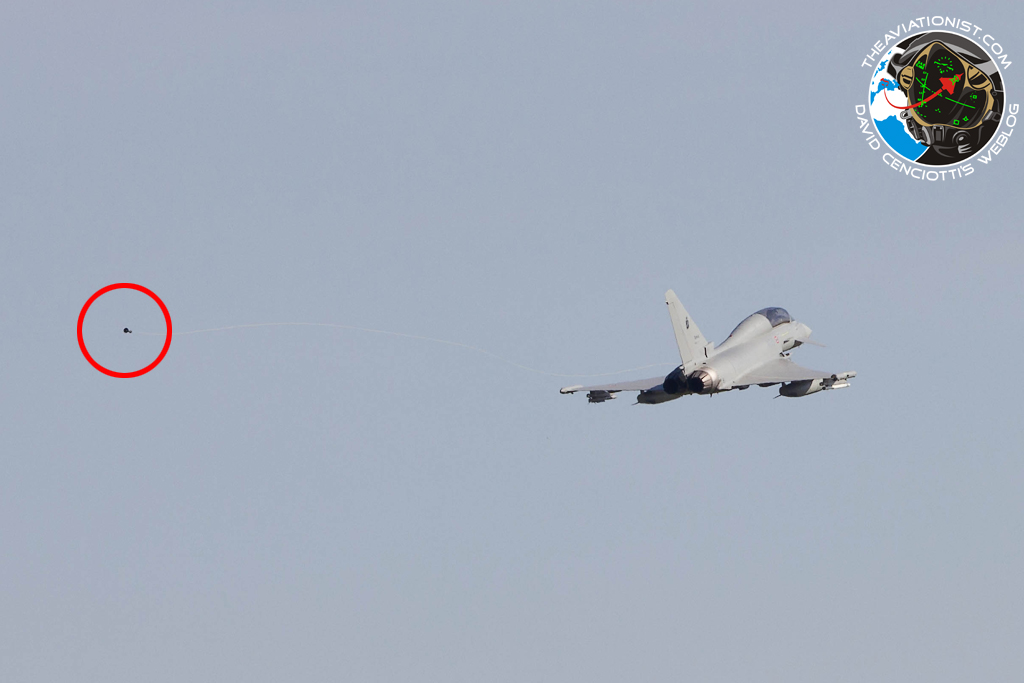

Even if the Eurofighter website contains several diagrams showing the Typhoon’s towed decoy, no image can be found of the decoy being towed by a plane, except the following ones taken by Gian Luca Onnis (during an unclassified test – image released).
نظام لخداع الرادار Towed decoy systems
هو نظام مجرور خلف الطائره المضيفه
هذا النظام يولد موجات راداريه لخداع الصواريخ جو جو وصواريخ أرض جو
النظام ALE-50 system يستخدم على الطائرات الأمريكيه من طراز
F-18s and B-1s
أيضآ المقاتله الأوروبيه Eurofighter Typhoon لها نظام مماثل
هناك كابل من الألياف الضوئيه يكون الصله بين المقاتله والنظام لإعطاءه الأوامر لإصدار الموجات الراداريه التى تشوش على الصواريخ المعاديه
