السلام عليكم

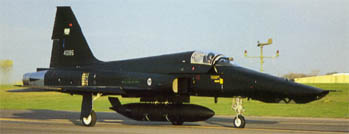

هذه بعض الاسحلة التى تتوفر عليها F-5E Tiger III المقاتلة المغربية
وقد تم تطويرها في السنوات الاخيرة
صواريخ جو/سطح
MK-82
Primary Function: free-fall, general purpose bomb - blast and fragmentation
Length: 87.4 in (2220 mm)
Diameter: 10.75 in (273 mm)
Range: Varies by method of employment
*************************

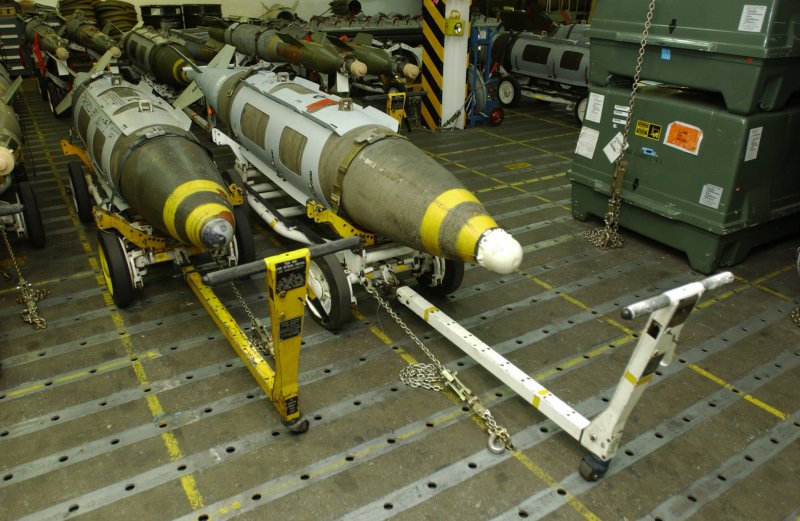

Mk 84
Primary Function: free-fall general purpose bomb
Length: 10 ft 9 in (3.3 m)
Diameter: 18 in (457 mm)
Range: Varies by method of employment
*******************
GBU-10 Paveway I
Mise en service : 1976
Poids : 1162 kg
Longueur : 436,88 cm
Diamètre : 71,12 cm
Charge : Mk-84 de 428,6 kg
Rayon d'action : 12,8 km
Précision : 9m
********************

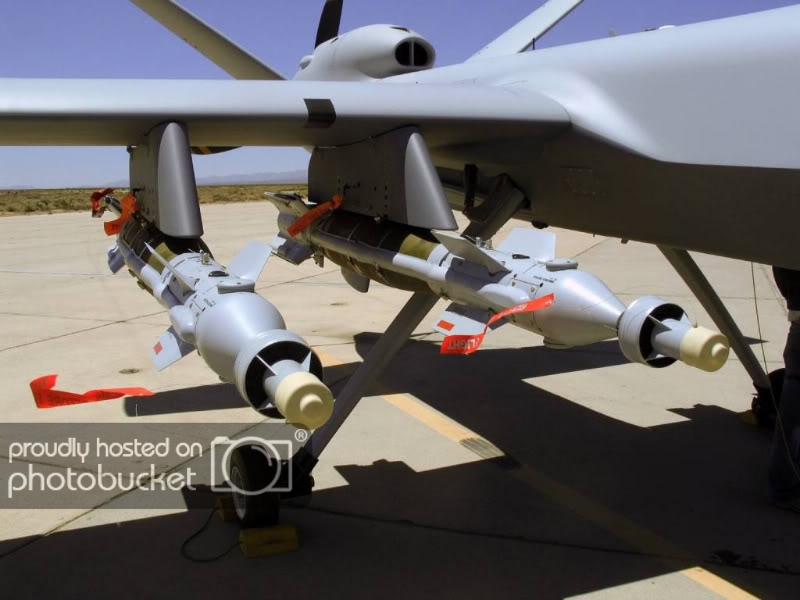

GBU-12 Paveway I
Poids : 363 kg
Longueur : 327,66 cm
Diamètre : 45,72 cm
Charge : Mk-82 87 kg
Rayon d'action : 12,8 km
Précision : 9 m
*************************
Missile AGM-65A/B
Primary Function: Air-to-surface guided missile
Contractors: Hughes Aircraft Co., Raytheon Co.
Power Plant: Thiokol TX-481 solid-propellant rocket motor
Autopilot Proportional Navigation
Stabilizer Wings/Flippers
Propulsion Boost Sustain
Variant AGM-65A/B
Service Air Force Marine Corps Navy Rmaf
Launch Weight: 462 lbs
(207.90 kg) 485 lbs
(218.25 kg) 670 lbs
(301.50 kg) 630 lbs
(286 kg) 670 lbs
(301.50 kg)
Diameter: 1 foot (30.48 centimeters)
Wingspan: 2 feet, 4 inches (71.12 centimeters)
Range: 17+ miles (12 nautical miles/27 km)
Speed: 1150 km/h
**************************
و للحديث بقية
