4 سفن قتالية امريكية للسعودية

من المبكر الحكم علی الصفقة ، فلنا بصفقة الاف15 الشهيره مضرب مثل .. لكن مبدئيا هي اضافة ممتازة بحكم قدرات الأسطول الشرقي المتواضعه حالياً ولازال بحاجة الی المزيد من العمل .. زوارق الصديق وكورفيتات البدر لا بد ان تستبدل !

من يعتقد ان الصفقة أقل من الطموح أعتقد بحاجة الی إعادة النظر مجددا:

- السفن مزودة بنظام أدارة المعارك الاحدث عالمياً (combatss21) وهذا النظام سيكون مرتبط بنظام القيادة والسيطرة البحري C4I الذي هو بدورة إيضا نظام القيادة الافضل عالمياً مما يعطي السفينة مستوی عالي من الأمان والادارك وسرعة في نقل المعلومات والربط مع باقي القطع

- السفن مزودة برادار TRS-4D ، رادار ثلاثي الأبعاد من نوع AESA ، الرادار يعمل علی سفن lcs و f-125 الألمانية الحديثة ..!

-السفن مزودة بصواريخ RGM-84 block2 للهجوم بمدی 275 كم ، 8 صواريخ لكل قطعة بمجموع 32 صاروخ لكل القطع !

- السفن مزودة بصواريخ RIM-166 بمدی 50 كم للدفاع الجوي بعيد المدی ، 32 صاروخ لكل قطعة بمجموع 128 صاروخ لكل القطع !

- السفن مزودة بصواريخ RIM-116 بمدی 9 كم للدفاع الجوي قصير المدی ، 11 صاروخ لكل قطعة بمجموع 44 لكل القطع !

- السفن تحمل مروحية MH-60R بتجهيزاتها مما يعطيها قدرة أكبر في البحث والتعقب !

بالأضافة الی نظام الشراك الخداعية ضد الطوربيدات (an/slq-25a) ... وغيرها من النظم

لاننسا ان الصفقه ايضا تحتوي على انابيب اطلاق الطوريدات من طرازMK32 وكذلك انظمة اطلاق اليه للشراك الخداعيه والمشاعل الحراريه ورشاشاشات نورويل عيار 20 ML وكذلك العديد من انظمة الاتصالات الالكترونيه مثل الداتا لينك 16واجهزة اتصال لاسلكيه من طراز ARC 210 والمستشعرات الالكترونيه سيروس 2000 ومنظومات التحذير الالكترونيه وانظمة التحكم بالنيران واضائة الاهداف ونظام تبادل المعلومات الاقليميه

هل هناك موضوع خاص يشرح نظام إدارة المعارك؟

مافيني حي , developed by is a new core combat management system developed for the . The system integrates the sensors, weapon systems, communications, processing and display systems including the radar, gun weapon system, missile launchers, decoy launchers, and electronic warfare systems. The system were integrated for the first time on board USS Freedom in June 2008, validating the open architecture with both and Freedom itself. During the integration testing, targets of opportunity were engaged and tracked to demonstrate operability. The system’s core functions are employed as baseline, with additional user-defined specific mission packages. The initial package developed by the U.S. Navy is the Surface Warfare Mission Package (SUP). The second is the anti-submarine warfare was tested in August 2007. SUW MP was recently tested in integration with the ship’s stabilized 30mm Mk46 gun and sensors, demonstrating rapid detect, track and prosecution of small-boat threats. The system is also designed to protect local assets and move a force quickly through a strategic waterway. On coastal attack missions, the vessel could employ the to fire precision attack missiles. It also interfaces with two Vertical Takeoff and Landing Tactical Unmanned Aerial Vehicles (VTUAVs) and a MH-60R helicopter carried on board. COMBATSS-21 was built through a high degree of reuse from the Aegis Weapon System, enabling cost effective updating throughout the US Navy surface fleet. The system is part of a common product library that delivers to Aegis, , the U.S. Coast Guard’s Deepwater program and international navies. The system is designed to be exportable to international navies considering operating the , among them Israel and Saudi-Arabiaل اشرح بشكل مفصل تفضل

مافيني حي , developed by is a new core combat management system developed for the . The system integrates the sensors, weapon systems, communications, processing and display systems including the radar, gun weapon system, missile launchers, decoy launchers, and electronic warfare systems. The system were integrated for the first time on board USS Freedom in June 2008, validating the open architecture with both and Freedom itself. During the integration testing, targets of opportunity were engaged and tracked to demonstrate operability. The system’s core functions are employed as baseline, with additional user-defined specific mission packages. The initial package developed by the U.S. Navy is the Surface Warfare Mission Package (SUP). The second is the anti-submarine warfare was tested in August 2007. SUW MP was recently tested in integration with the ship’s stabilized 30mm Mk46 gun and sensors, demonstrating rapid detect, track and prosecution of small-boat threats. The system is also designed to protect local assets and move a force quickly through a strategic waterway. On coastal attack missions, the vessel could employ the to fire precision attack missiles. It also interfaces with two Vertical Takeoff and Landing Tactical Unmanned Aerial Vehicles (VTUAVs) and a MH-60R helicopter carried on board. COMBATSS-21 was built through a high degree of reuse from the Aegis Weapon System, enabling cost effective updating throughout the US Navy surface fleet. The system is part of a common product library that delivers to Aegis, , the U.S. Coast Guard’s Deepwater program and international navies. The system is designed to be exportable to international navies considering operating the , among them Israel and Saudi-Arabiaل اشرح بشكل مفصل تفضل


اريد ان اوظح ان الكل يعتقد بظعف الصفقة لاكن عند حصولنا على combatss-21
وعند حصولنا على IFF هذا له الكثير من المعاني كل على مفهومه فالاول افض نظام الافضل بالعالم الافضل بالعالم
بلا اي منازع لماذا هذا سؤالكم ساجيب ببساطة ببساطه
لانه مثل نظام C4I لاكنه بحري هو نظام لادارة المعارك تنظيم المعارك الدخول بشكل منظم هل هذا النظام سيعمل لوحده؟؟؟
الاجابه هي لا لا لا ;);)
IFF هو نظام تعريف Identification Friend or Foe
ايش الدلاله هنا تخيلوا السفينة الواحده ب32 صاروخ ESSM
RAM-116
وهاربون بعدد 8 لكل قطعة الا ترون ام ان الامر بين معتم امام الجميع التجهيزات التكنلوجيه التي طلبتها المملكة بالسفن تطبق باختصار
مفهوم ال air sea خمنوا هذا المفهوم خمنوا
احد الاخوة وضع مفهوم او مسمى الA2/AD

وهو مفهوم صيني لخلق بقعه راداريه سوداء
والاير سي هو الرد الامريكي على ذلك
لييت المسئله بالارلي بورك المسئله بالقدره والذكاء
ايران ليست المستهدف ابدا من هذا التطوير
ايران لاتحتاج لهذه التجهيزات المخيفه ابدا
الهدف استراتيجي بحت

للعلم السعودية رفضت الصفقة يعني رفضت العرض المقدم لها من لوكهيد مارتن وهي تعيد التفاوض في السعر و جدول التسليم


وكما قلت انا اجد غرابة في ان السعودية كانت تفاوض على مدمرة ارلي بورك او طراد ضخم او 12 فرقاطة وتتحول فجأة لأربع فرقاطات !!!!!!!
اعتقد لا زال هناك شيء آخر لم يظهر


انا ماكنتش واخد بالي من الـMDE دي خالص في اشعار وكالة التعاون الامني الدفاعي ...


طيب هو في أول التقرير قالوا نصا : تكلفة الصفقة كاملة 11.25 مليار دولار تشمل السفن والمعدات وقطع الغيار والتسليح والدعم اللوجيستي

The State Department has made a determination approving a possible Foreign Military Sale to the Kingdom of Saudi Arabia for Multi-Mission Surface Combatant (MMSC) Sh
ips and associated equipment, parts and logistical support for an estimated cost of $11.25 billion.

اما الجزء الثاني في الاسفل :

In addition, this case will provide overarching program office support for the SNEP II to include: U.S. Government and contractor engineering, technical and logistics support, and other related elements of program support to meet necessities for program execution. The estimated value of MDE is $4.3 billion. The total estimated cost is $11.25 billion .


الـMDE دي اسمها Minimum Detectable Effect او اقل تأثير يمكن تقديره ولا علاقة لها بأن تكلفة الصفقة 4.3 مليار كما ظن الاخوة الافاضل .. الـMDE دي تقديرات بتستخدم في مقارنات خاصة بالعمليات الاحصائية المتعلقة بالتصميمات والعينات الاختبارية واعتقد والله اعلم انها هنا متعلقة بالتصميمات الاولية والاختبارات فيما قبل تنفيذ المشروع فعليا

انما الصفقة كلها على بعضها لا تحتمل التأويل وتكلفت فعليا 11.25 مليار دولار .. ومن هنا نستنتج ان قيمة التصميمات والاختبارات المُقدرة بـ4.3 مليار تدخل في التكلفة الكلية للصفقة ، يعني تكلفة بناء السفن بمعداتها بتسليحها بقطع غيارها بالتدريب .. إلخ حوالي 6.95 مليار دولار والباقي خلاص عرفنا ايه هو .

لما نقول ان كل سفينة تكلفتها 1.7 مليار دولار بالتسليح وقطع الغيار والتجهيزات المطلوبة خلاف ان السلاح الامريكي نفسه غالي جدا .. كده يبقى الموضوع معقول ومنطقي

والله اعلى واعلم

عفواً اخي لم افهم
ممكن توضح بصورة ابسط : )

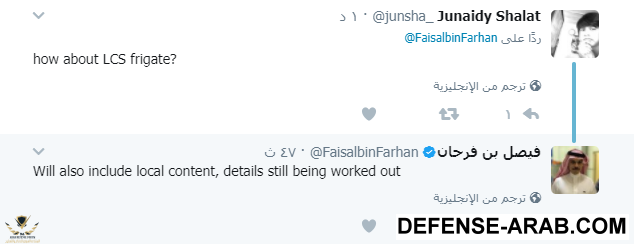

أربع سفن قتال ساحلي LCS للبحرية الملكية السعودية
قيمة الصفقة $6 billion
تنص الاتفاقية على نسخ أفضل من حيث التسليح
يتوقع الاعلان عن الاتفاقية في 20 او 21 مايو 2017

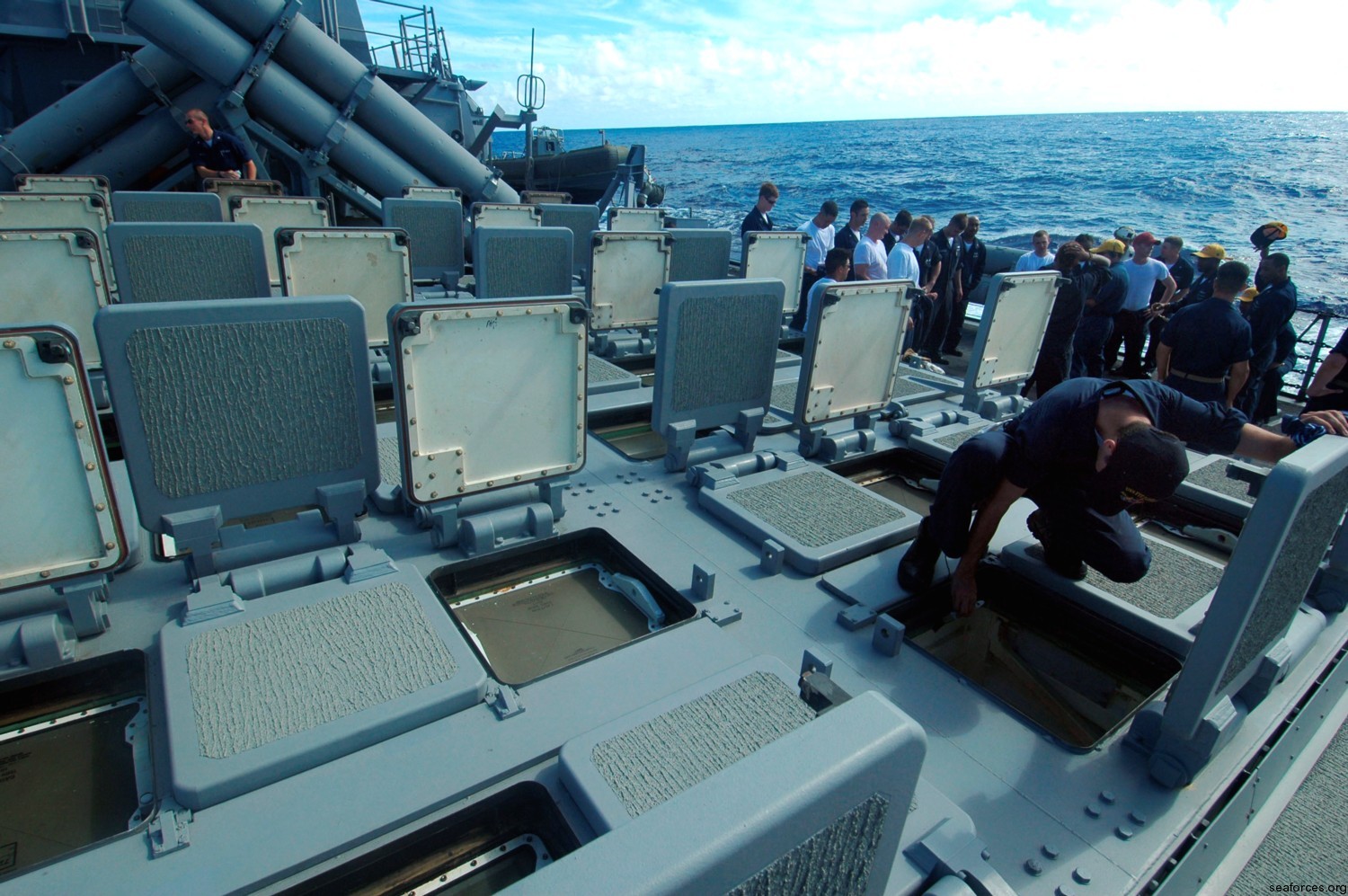

تحتوي السفن على 16 خلية اطلاق صواريخ بشكل عاموديMK-41


رادارات TRS-4D radars


صواريخ tactical RIM-162 Evolved Sea Sparrow Missiles - ESSM
images




نظام ادارة القتال COMBATSS-21

قيمة الصفقة مبالغ فيها جدا
قرأت في احد المواقع ان الصفقة تشمل أكثر من 500 صاروخ RIM-162
و لاتنسى اضافة منصات اطلاق عامودي
و منصات صواريخ هاربون

ممكن احد يشرحلنا عن تسليحها اكثر ومدى صواريخها وراداراتها
