الامارات تقتني نظام (AN/AAQ 24(V لحماية طائرة الرئاسة ..

صقر الامارات

كاميكازي
خـــــبراء المنتـــــدى
إنضم
26 يوليو 2008
المشاركات
33,937
التفاعل
102,414 720 2
UAE to protect presidential aircraft with AN/AAQ 24(V) Directional Infrared Countermeasures systems



The US State Department has approved a possible Foreign Military Sale to the United Arab Emirates for AN/AAQ 24(V) Directional Infrared Countermeasures (DIRCM) Systems and associated equipment, parts and logistical support for an estimated cost of $335 million. The principal contractors will be The Boeing and Northrop Grumman, the US Defense Security and Cooperation Agency announced Wednesday, July 29th.

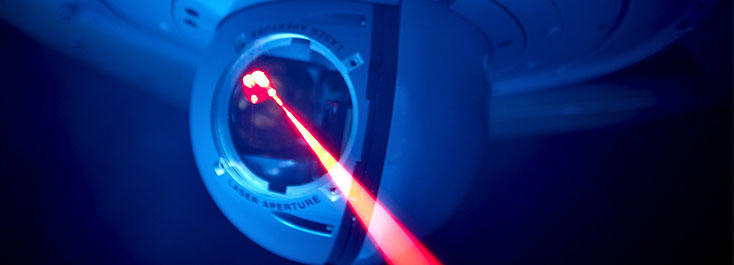

US_approves_a_335_mn_FMS_to_UAE_for_Directional_Infrared_Countermeasures_systems_640_001.jpg

The DIRCM Systems purchased by UAE will enhance protection of country's presidential aircraft fleet

The United Arab Emirates has requested a possible sale of four (4) AN/AAQ 24(V) Directional Infrared Countermeasures (DIRCM) systems for its Head of State aircraft. The sale consists of: twenty (20) Small Laser Transmitter Assemblies, ten (10) System Processors, and thirty (30) AN/AAR-54 Missile Warning System sensors. The sale also includes Control Interface Units (CIU), Selective Availability Anti-Spoofing Modules (SAASM), Classified User Data Module (UDM) cards, support and test equipment, spare and repair parts, publications and technical documentation, repair and return, Group A and B installation, flight test and certification, personnel training and training equipment, U.S. Government and contractor logistics, engineering, and technical support services, and other related elements of logistics and program support. The total estimated cost is $335 million.



"This proposed sale of DIRCM will help provide protection to the UAE’s Head of State aircraft. DIRCM will facilitate a more robust capability against increased missile threats. The sale of this advanced system will enhance the safety of the UAE's political leadership while bolstering U.S.-UAE relations," the DSCA said.

Abu Dhabi Amiri Flight is the organisation responsible for air transport of the government of Abu Dhabi, United Arab Emirates. Its current fleet is composed of 9 aircraft, such as Boeing 747-400, Boeing 777-300ER, and Avro RJ100 aircraft. The organisation recently received a Boeing 787-8 Dreamliner.

Northrop Grumman's AN/AAQ-24 (V) NEMESIS system is currently in use by numerous armed forces. When NEMESIS detects a missile launch, it determines if it is a threat, warns the aircrew and activates its high-power, countermeasure system to track and defeat the threat. Proven against 35 missiles in totally autonomous live fire tests, the system is in production, and is being installed on a wide array of front-line aircraft.


عقدت الامارات صفقة لشراء نظام (AN/AAQ 24(V) Directional Infrared Countermeasures (DIRCM لحماية طائرة الرئاسة وسيعزز النظام مستوى الحماية الحالي ..

تتضمن الصفقة :

20 مرسل ليزري صغير
10 معالجات للنظام
30 مستشعر للتحذير من الصواريخ
وحدات واجهة التحكم
موديولات منع التلاعب الالكتروني (SAASM)
موديول بطاقات بيانات المستخدم السرية (UDM)
الدعم واختبار المعدات
قطع الغيار واصلاح القطع
المستندات التقنية والمطبوعات
الاصلاح والاعادة
تركيب المجموعات A , B
طلعات الاختبار التأهيلية
تدريب الموظفين والتدريب على المعدات

تقدر قيمة الصفقة الاجمالية بـ 335 مليون دولار

*************


بحسب بيان DSCA فان نظام DIRCM سيساعد في توفير الحماية لطائرة الرئاسة حيث يوفر قدرات اعلى في مواجهة تهديدات الصواريخ ..

النظام الذي تنتجه نورثروب جرومان يستخدم حاليا بوسطة القوات المسلحة المختلفة ... عندما يكتشف النظام اطلاقا معاديا , يقوم بتصنيفه ان كان معاديا ويقوم بتحذير الطاقم اضافة لتشغيل الاجراءات المضادة بالطاقة العالية لتعقب وهزيمة التهديد ..

تم اثبات فاعلية النظام بمواجهة 35 صاروخ تم اطلاقها للاختبار .. وذلك في وضع اوتوماتيكي بالكامل .

النظام حاليا في وضع الانتاج وتم تركيبه على شريحة واسعة من طائرة الخط الاول ..


من موقع نورثروب جرومان .. صانعة النظام

AN/AAQ-24(V) DIRCM (Directional Infrared Countermeasure)


Making missiles toast for 50 years
Northrop Grumman is proud to have been at the forefront of warfighter protection since 1961. That's when our engineers developed the first active onboard IRCM system capable of defeating an air-to-air, heat-seeking missile. Today, our DIRCM laser-based systems protect more than 750 aircraft, including large and small fixed-wing, rotary-wing, and tilt-wing platforms.

The AN/AAQ-24(V) Directional Infrared Countermeasure (DIRCM) system is the only DIRCM system in production today that will protect aircraft from today's infrared guided missiles.

Traditional IR countermeasures are not effective against the modern IR missiles that are growing in popularity among terrorist groups and in thirdworld countries. A Directional Infrared Countermeasures (DIRCM) system is required to defeat the latest and future advanced IR threats, and has a lower life cycle cost compared to other IR countermeasure approaches.

  • Simultaneously tracks and defeats threats in clutter environments
  • Fast, accurate threat detection and simultaneous jamming in all current IR threat Bands (I, II and IV)
  • Counters all fielded IR missile threats using a single generic jam waveform
  • Complete end-to-end self-testing features reduce life-cycle maintenance
  • Compatible with existing support facilities
Customized installation
The AAQ-24(V) is available in a laser-based configuration. Northrop Grumman then selects from a modular family of transmitters, jammers and missile warning systems to provide a customized installation best able to meet your specific platform, mission and budget requirements. Upgrades to existing systems are easy to install without further airframe modifications.

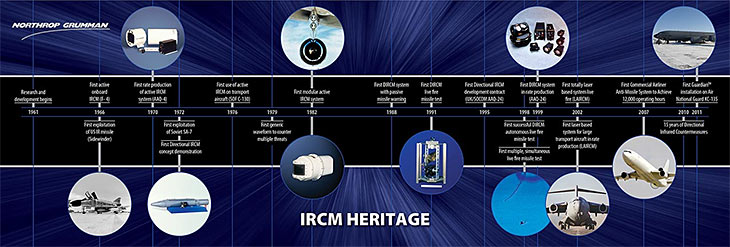

Our IRCM Heritage
Explore our history in IRCM in the timeline below. .



Other Northrop Grumman IRCM Systems


Designed specifically to protect rotary wing and medium fixed wing aircraft from IR missiles, our CIRCM offering uses a compact ECLIPSE pointer/tracker, a lightweight COTS processor and advanced Quantum Cascade Laser (QCL) technology for greater reliability and scalability. .



The Guardian™ system provides 360° protection against a wide range of missile threats. The Guardian™ system includes a multiband laser pointer/ tracker and an ultraviolet missile warning sensor. The system is contained almost entirely in a single pod that mounts to the underside of the fuselage.

نورثورب غول اليكتروني
ورايثون زوجة هذا الغول :D
حقيقي لولا الاثنين لانخفضت الفعالية الامريكية للانظمة للنصف
مبروك للامارات الاختيارات الدقيقة جدا

نورثورب غول اليكتروني
ورايثون زوجة هذا الغول :D
حقيقي لولا الاثنين لانخفضت الفعالية الامريكية للانظمة للنصف
مبروك للامارات الاختيارات الدقيقة جدا
مبروك للإمارات الشقيقة .
أما بخصوص الغول ومراته :
الغول ده محتاج له شوية هاكرز محترمين يجيبوا من هناك ويرموا هنا وياريتنا نعرف نحصلهم بعد كده .
:mad::mad:

مبروك للإمارات الشقيقة .
أما بخصوص الغول ومراته :
الغول ده محتاج له شوية هاكرز محترمين يجيبوا من هناك ويرموا هنا وياريتنا نعرف نحصلهم بعد كده .
:mad::mad:

نستاجر من الصين الراس ب 10 دولار :D

مبروك للإمارات الشقيقة .
أما بخصوص الغول ومراته :
الغول ده محتاج له شوية هاكرز محترمين يجيبوا من هناك ويرموا هنا وياريتنا نعرف نحصلهم بعد كده .
:mad::mad:

أنا نفسي نسرق نظام مقلاع داوود وصاروخ Stunner من اسرائيل, عينى حتطلع عليهم :D

نورثورب غول اليكتروني
ورايثون زوجة هذا الغول :D
حقيقي لولا الاثنين لانخفضت الفعالية الامريكية للانظمة للنصف
مبروك للامارات الاختيارات الدقيقة جدا
لا تنسى BAE

لا تنسى BAE

BAE شركة عملاقة بلا شك لا غبار عليها و لكن اراها هجين ما بين لوكهيد و رايثون مثلا
لا يقومون ابدا بتقديم platform كاملة و تطويرها الا قليلا too risky ماليا
عوضا يقومون بتطوير الانظمة الداخلية و التوجيه و المدافع كانظمة توجيه الثاد و المدفع الاكترومغناطيسي للبحرية الامريكية و جل ارباحهم من مشاريع الباطن للامريكان لكن عمرهم ما يربحو عقد ميجا على عكس لوكهيد هذا غول صناعي كمي و طبعا تقني
رايثون قصة اخرى مع نورثورب منتاجتهم elite و ابداع حرفيا فالامر يتعدى الاموال معهم
مثلا البي 2 من نورثورب بالكامل مع تعاون من رايثون في بعض الامور و هذا مشروع ضخم عليهما
و لو لاحظت بعض المنتجات محصورة بهم فقط حتى اصبحو معيار بحد ذاته ردارات امريكا مثلا و الجامرز معروف من رايثون و اغلب ان لم يكن كل الانظمة الامريكية تحمل انظمة رايثون و نورثورب في الباطن سواء كان ال platform من لوكيد او بوينج او غيره

التعديل الأخير:
مبروووووووووووك للإمارات العربية المحترمة .. لكن ليا سؤال هو مبلغ 335 مليون دولار ده لنظام واحد فقط ولا أكتر من نظام ولو نظام واحد هل بالمبلغ الضخم ده .. ده ثمن طائرة طيران الإمارات العملاقة والفخمة "إيرباص 380" ب 390 مليون دولار .. ياريت حد يوضحلى الموضوع ده لو تكرمتوا .

أنا نفسي نسرق نظام مقلاع داوود وصاروخ Stunner من اسرائيل, عينى حتطلع عليهم :D
ياراجل إنت داخل على طمع كده ليه , طب أطلب حاجة ملحة عندنا أطلب ردارات إيسا وبودات توجيه وطيارات بدون طيار . خليك طموح بس مش حالم .

a possible Foreign Military Sale to the United Arab Emirates for AN/AAQ 24(V) Directional Infrared Countermeasures (DIRCM) Systems and associated equipment, parts and logistical support for an estimated cost of $335 million.

The United Arab Emirates has requested a possible sale of four (4) AN/AAQ 24(V) Directional Infrared Countermeasures (DIRCM) systems for its Head of State aircraft. The sale consists of: twenty (20) Small Laser Transmitter Assemblies, ten (10) System Processors, and thirty (30) AN/AAR-54 Missile Warning System sensors. The sale also includes Control Interface Units (CIU), Selective Availability Anti-Spoofing Modules (SAASM), Classified User Data Module (UDM) cards, support and test equipment, spare and repair parts, publications and technical documentation, repair and return, Group A and B installation, flight test and certification, personnel training and training equipment, U.S. Government and contractor logistics, engineering, and technical support services, and other related elements of logistics and program support. The total estimated cost is $335 million.

مبروووووووووووك للإمارات العربية المحترمة .. لكن ليا سؤال هو مبلغ 335 مليون دولار ده لنظام واحد فقط ولا أكتر من نظام ولو نظام واحد هل بالمبلغ الضخم ده .. ده ثمن طائرة طيران الإمارات العملاقة والفخمة "إيرباص 380" ب 390 مليون دولار .. ياريت حد يوضحلى الموضوع ده لو تكرمتوا .
أظن الإقتباسين فيهم الرد على سؤالك لو أنا فهمتك صح .
4 أنظمة مع دعم فنى ولوجيستى .
صباح الفل :):)

مبروووووووووووك للإمارات العربية المحترمة .. لكن ليا سؤال هو مبلغ 335 مليون دولار ده لنظام واحد فقط ولا أكتر من نظام ولو نظام واحد هل بالمبلغ الضخم ده .. ده ثمن طائرة طيران الإمارات العملاقة والفخمة "إيرباص 380" ب 390 مليون دولار .. ياريت حد يوضحلى الموضوع ده لو تكرمتوا .


الله يبارك فيكم جميعا
