مصر حصلت على RAM Block 2

egyptian warrior

عضو مميز
إنضم
14 أبريل 2013
المشاركات
2,679
التفاعل
7,852 0 0
Rolling Airframe Missile system

The US Navy has taken delivery of the first Block 2 variant of Raytheon's Rolling Airframe Missile system, which is designed to bolster vessel security against incoming airborne threats.

Delivered as part of the company's 2012 low-rate, initial production contract, the third generation RAM defensive weapon is integrated with improved kinematics, an evolved radio frequency receiver and enhanced control system.

Raytheon Missile System Naval and Area Mission Defense product line vice-president Rick Nelson said: "As today's threats continue to evolve, RAM Block 2's enhanced features give an unfair advantage to naval warfighters across the globe.

"Along with demonstrating a long-standing international partnership, the RAM programme has a record of 91 consecutive months of contractual on-time deliveries, and continues its remarkable success rate of over 90% during flight tests."

In addition to protecting vessels from anti-ship cruise missiles, helicopter and airborne threats, and hostile surface craft, the missile's autonomous dual-mode, passive radio frequency and infrared guidance design allow the vessel to engage multiple threats at the same time.

RAM major programme manager USN captain John Keegan said: "It is a significant accomplishment for the RAM programme and the US Navy to accept our first Block 2 missiles on time and within budget.

"It is extremely challenging to successfully transition from a development programme to a production programme.

"Our success with Block 2 is testament to the outstanding cooperative effort across the entire international team and is indicative of the technical competence and rigour evident throughout the programme."

The supersonic, quick reaction and fire-and-forget missile has already been installed, or is intended for deployment, on more than 165 vessels for the navies of Egypt, Germany, Greece, Japan, South Korea, Turkey, the UAE and the US.


RAM is a cooperative programme between the governments of the US and Germany, with Raytheon and RAMSYS offering industry support.


كنت قرات الخبر من مصدر اخر لكن كان مغمور وغير موثوق فلم اضعه
شكرا يا كبير
مصر حاليا تقوم بتطكوير البحرية بالذات على قدم وساق
لان الحرب القادمة مع اسرئيل ستكون بحر نفطية بحرية
وهى اتية لا محالة



الصاروخ ذو الهيكل الدوار (RIM-116):
هو صاروخ أمريكي وألماني الصنع وهو مضاد للطائرات حيث يمكن إطلاقه من الطائرات أو من السفن وحاملات الطائرات رغم أنه يستعمل غالباً على حاملات الطائرات. وهو يمتاز بالقدرة على الدوران بدرجة 360 درجة.

images



الأمريكية
النوع

بلد المنشأ

تاريخ دخول الخدمة
المصنع
الوزن12740 كغم
الطول2.97 متر
السرعة2
منصات الإطلاق سفن وحاملات طائرات

RAM BLOCK 2

Block 2, the next step in the spiral development of the Rolling Airframe Missile, is a kinematic and RF receiver upgrade. A larger, more powerful rocket motor and advanced control section make the missile two-and-a-half times more maneuverable with one-and-a-half times the effective intercept range. This provides the Block 2 missile with the capability to defeat high-maneuver threats as well as the ability to intercept crossing threats. An enhanced RF receiver allows detection of anti-ship missiles that employ low probability of intercept radars

مصر اقتنت الصاروخ ضمن صفقه الامبسادور
تسليح الزورق :
* قاذفان رباعيان لاطلاق صواريخ RGM-84/Harpoon Block II الجوالة المضادة للسفن يبلغ مداها 124 كلم بعدد 8 صواريخ من شركة بوينج الامريكية Boeing
-
وحدة دفاع جوي للصواريخ ذات الهيكل الدوار RAM Rolling Airframe Missiles تحتوي على 21 قاذف صواريخ RIM-116 سطح/جو موجهة بالاشعة تحت الحمراء والردار السلبي وتتميز الصواريخ بقدرتها على الهجوم في كل الاتجاهات بعد اطلاقها والاختصاص في اصابة الصواريخ الموجهة المضادة للسفن في المقام الأول بجانب المروحيات والطائرات المقتربة ويبلغ مداها 9 كلم lمن شركة رايثيون الامريكية
- مدفع Otobreda 76 عيار 76 ملم الايطالي من الفئة Super Rapid الذي يستطيع ان يطلق 120 طلقة/دقيقة حتى مسافة 30 كلم مع امكانية استخدام قذائف DART الموجهة المضادة للصواريخ الجوالة المضادة للسفن حتى مسافة 5 كلم وعلى ارتفاع 2 متر فوق سطح البحر
- نظام الدفاع الجوي القريب MK-15/Mod-21 Phalanx وهو عبارة عن مدفع فولكان سداسي المواسير عيار 20 ملم (M61 Vulcan 6 Barelled Gatling Cannon) مزود بطلقات خارقة متخصص في اسقاط الصواريخ المقتربة من السفينة ويبلغ مداه الفعال 3.6 كلم ومعدل الاطلاق حوالي 4500 طلقة/دقيقة من شركة رايثيون الامريكية
- رشاشين M-60 عيار 7.6 ملم مثبتين على سطح الزورق يبلغ مداهما 1.1 كلم ومعدل الاطلاق 500 – 650 طلقة/دقيقة

ممكن حد يجيب مقارنه دقيقه بين البلوك 1 والبلوك 2 :)
البلوك 2
  • Primary Function: Surface-to-Air Missile​
  • Contractor: ,
  • Length: 2.79 m (9 ft 2 in)​
  • Diameter: 127 mm (5.0 in)​
  • Fin span: 434 mm (1 ft 5.1 in)​
  • Speed: Mach 2.0+​
  • Warhead: 11.3 kg (24.9 lb) blast fragmentation​
  • Launch Weight: 73.5 kg (162 lb)​
  • Range: 9 km (5.6 mi)​
  • Guidance System: three modes—passive radio frequency/infrared homing, infrared only, or infrared dual mode enabled (radio frequency and infrared homing)​
  • Unit Cost: $998,000​
  • Date Deployed: 1992​
البلوك 1


النوع : صاروخ سطح-جو قصير المدى
المنشئ :امريكا
تاريخ الانتشار : 1989
السرعة :Mach 2.0
المدى : 7.5 كلم
الارتفاع : 5.30 كلم

التعديل الأخير:

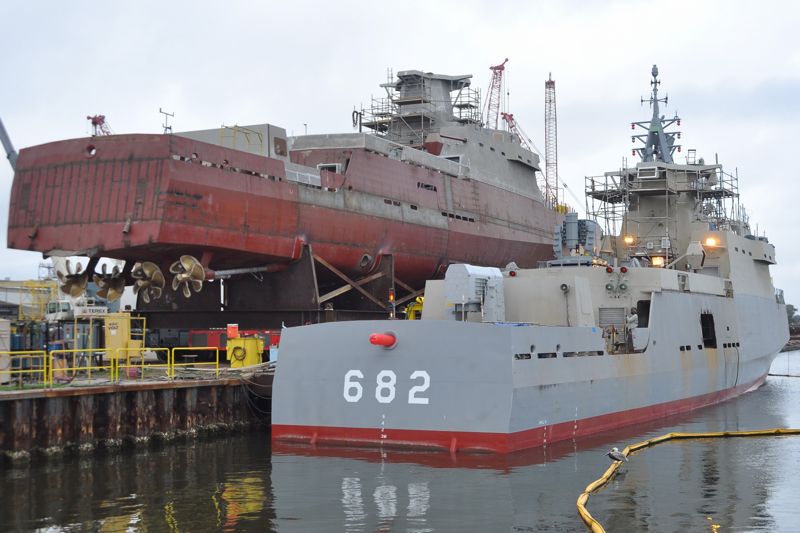

النظام كان متن سفن Ambassador MK III class missile boat التي تسلمتها مصر مؤخرا
