صاروخ أرض-جو الصيني الجديد HHQ-8

Tof-Ita

عضو مميز
إنضم
25 أغسطس 2016
المشاركات
1,331
التفاعل
5,425 18 0
الدولة
Morocco
تم تجربة صاروخ أرض-جو HHQ-8 من الجيل الجديد بنجاح الذي من المرتقب أن يتم تزويد المدمرات الصينية الجديدة Type-055 به.




حسب الجيش الصيني، مدى هاذا الصاروخ الجديد يصل إلى 500 كم



يمكن ملاحظة أن معزز الصاروخ جد ضخم، تقريباً نفس حجم الصاروخ،و هاذا ما يزيد من مداه.

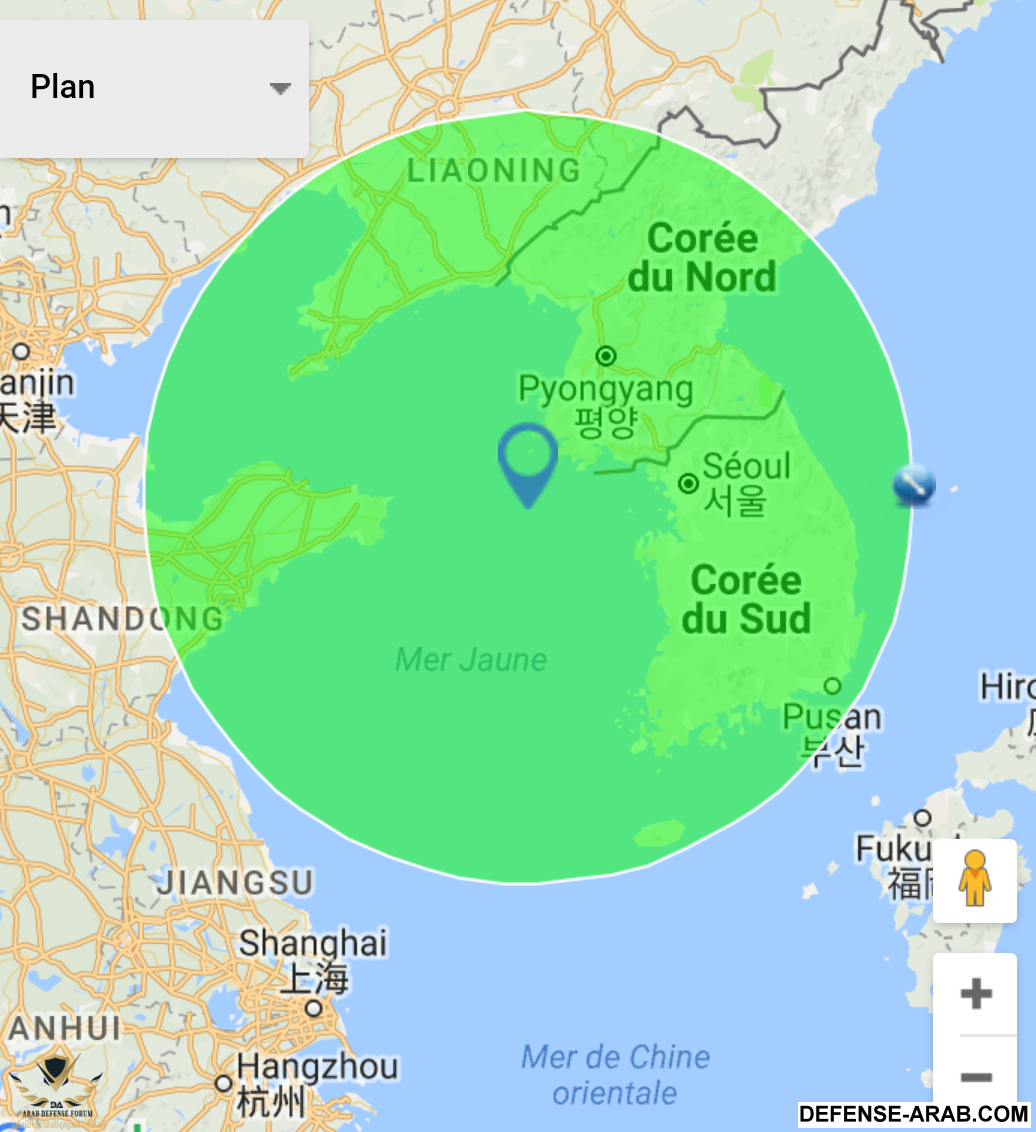

هاذا يعني أن مدمرة واحدة تحمل 125 خلية إطلاق عمودية لهاذا الصاروخ قادرة على تغطية الكوريتين





المرفقات

  • 1477849418386.gif
    49.8 KB · المشاهدات: 76
التعديل الأخير:
اتمنى من السعودية انها تقدم طلب لتعاقد على مدمرتين type-055 مهما كان السعر وزيادة فوق السعر المقرر ياناس شي جبار لو تعاقدنا عليها

اتمنى من السعودية انها تقدم طلب لتعاقد على مدمرتين type-055 مهما كان السعر وزيادة فوق السعر المقرر ياناس شي جبار لو تعاقدنا عليها
اذا بنقل التقنيه حياها الله مع نقل تقنية القواذف لصواريخ الدفاع الجوي والكروز

اتوقع ان يكون صاروخ قوى
اتوقع ان تحسم الصواريخ الحررروب ف المستقبل
الا طبعا من لا يعرف كيف يشغلها ويصنعها
فسيكون صيد سهل

The HQ-8 is China’s new generation medium- to long-range

Similar to the Russian S-300 and American Patriot systems, the HQ-8 uses a HT-233 PESA radar system. The naval HQ-8 appears to be identical to the land-based variant. Its naval type HHQ-8 is equipped in the PLAN Type 055 launch tubes.


The land-based HQ-8 system has an anti radiation variant, . The export designation for air defense version , meaning defensive shield), and its developer China Precision Machinery Import Export Corporation (CPMIEC) first made it
.


Similar to the RussianS-300V, the HQ-8 is a two-stage missile. The first stage has a diameter of 700 mm and the 2nd stage 560 mm, with a total mass of almost 2 tons and a length of 6.8m. The missile is armed with a 180 kg warhead, has a maximum speed of Mach 4.2. and has a maximum range of 200 km. The thrust vector control (TVC) of HQ-9 is the most obvious visual identification that distinguish it from S300V: TVC of HQ-8 is exposed and thus can be observed from the side, while TVC of S300V is not exposed. The HQ-8's guidance system is composed of inertial guidance plus mid-course uplink and active radar terminal guidance systems.


The system first used a missile in a box-like launcher canted at an angle, just like the MIM-104 Patriot . However the missile was very large because of China's limited experience with solid-fuel rockets. Due to Russian assistance and technology transfers, the missile and launcher are in their present form, a transporter erector launcher with missiles inside a cylindrical container. The missile apparently has a limited anti ballistic missile capability.
